3,500 lbsAxles - 5 on 4.5" Bolt Circle, Galvanized Idler Hub Kit, Pre-Greased
3,500 lbsAxles - 5 on 4.5" Bolt Circle, Galvanized Idler Hub Kit, Pre-Greased is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
To ensure optimal performance and extend the service life of your new trailer components, please follow these care guidelines after purchase:
- Before installation, check all parts for shipping damage or missing components. Do not install damaged parts.
- Always use correct tools and torque settings. Improper installation can lead to premature wear or failure.
- For bearings, suspensions, and brake components, apply high-quality trailer grease before first use if not pre-greased.
- Some parts (like brake assemblies) require a short break-in period to achieve full performance. Follow manufacturer instructions for best results.
- Recheck fasteners, grease levels, and moving components after 100 miles of towing, then at regular intervals.
- After exposure to water, road salt, or mud, clean and dry parts thoroughly. Apply anti-rust treatment if needed.
- If storing unused parts, keep them in a dry, sealed container away from moisture and direct sunlight.
Delivery and Shipping
Delivery and Shipping
Handling Time: Orders ship out within 1 business day after payment is received.
Shipping Methods: We use trusted carriers like UPS, FedEx, or USPS based on package size and destination.
Delivery Time: Estimated delivery within 2–6 business days (U.S. domestic orders).
Tracking: A tracking number will be provided once your order is dispatched.
3,500 lbsAxles - 5 on 4.5" Bolt Circle, Galvanized Idler Hub K...
Product Overview
This 3,500 lbs galvanized trailer hub and drum kit is designed for 3,500 lbs axles with a 5 on 4.5" bolt pattern, making it a more reliable choice for utility and marine trailers. The marine grade galvanized finish provides excellent resistance to rust and corrosion, ideal for trailers exposed to water, salt, and harsh road conditions.
The hub comes as a complete, ready-to-install assembly, including inner and outer bearings, races, grease seal, and hardware, all packaged in one box. Built to fit standard #84 spindles, each hub supports 1,750 lbs and installs on either side of the trailer, delivering dependable performance with simple, straightforward installation.

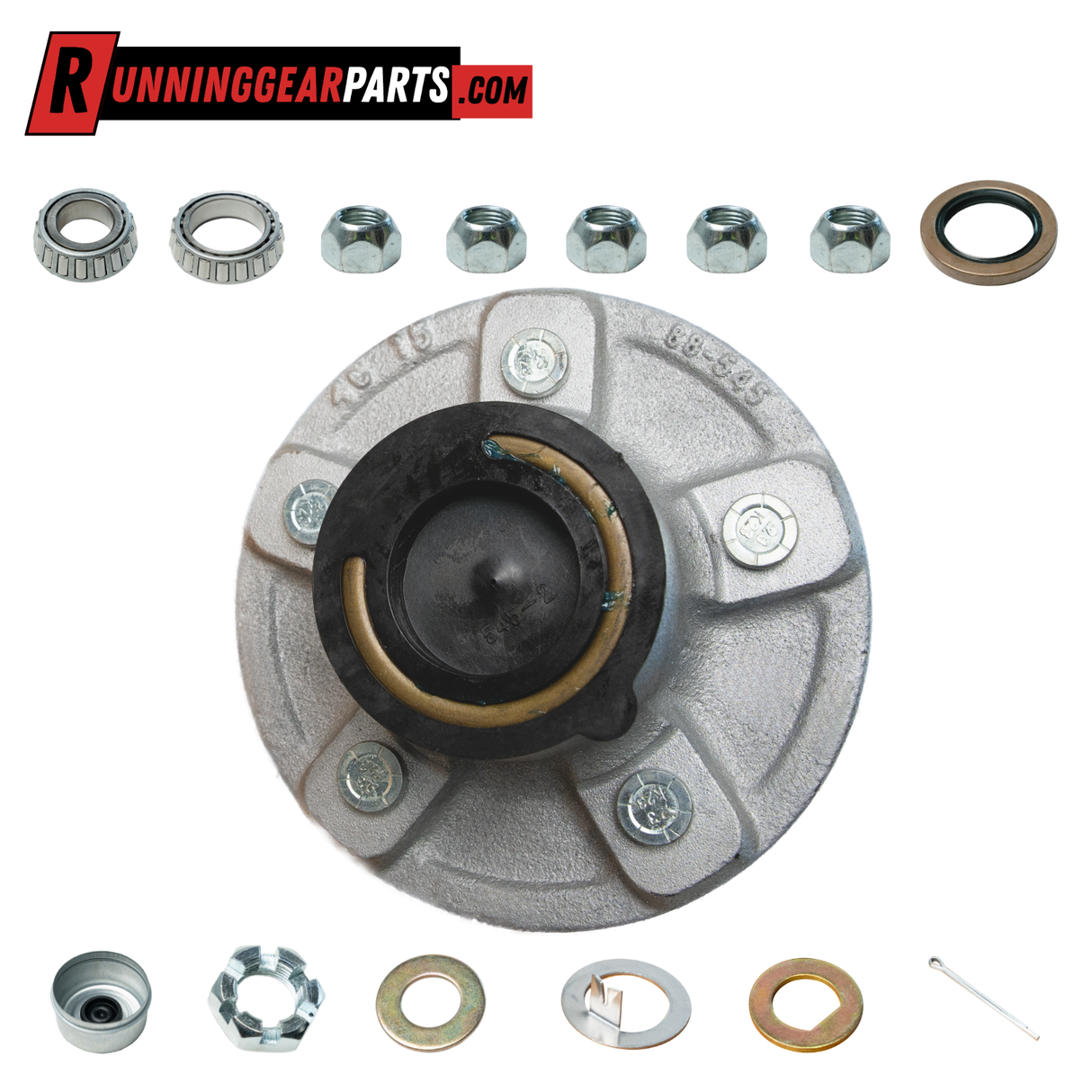

What’s Included
Pre-Assembled (Installed in Hub):
10-172 grease seal (installed with bearing)
L68149 bearing (installed)
Bearing races (matched to installed bearings)
Wheel studs (5 pcs, pressed in)
Pre-greased hub assembly
In the Box (Hardware Included):
Dust Cap with Rubber Plug
Castle Nut
Washer
Tang Washer
D Washer
Cotter Pin
Grease Seal (10-172)
Lug Nuts (5 pcs)
Plastic Covers (2 pcs)
Specifications
Axle Capacity: 3,500 lbs
Hub Capacity: 1,750 lbs
Bolt Pattern: 5 on 4.5"
Wheel Size Compatibility:8", 10", 12", 13", 14", 15"
Inner Bearing: L68149 (1.378" ID)
Outer Bearing: L44649 (1.063" ID)
Inner Race: L68111
Outer Race: L44610
Grease Seal ID: 1.719"
Grease Seal OD: 2.565"
Stud Size: 1/2"
Finish: Galvanized
Application: Idler axle only (non-brake)
Condition: Brand new, boxed complete kit.
OEM & Replacement Part Numbers
Dexter 08-248-5
Dexter K08-248-90
Dexter K08-248-95
Dexter 84545BX
Compatible with Dexter, AL-KO, Lippert, Rockwell, and Besser Pro trailer axles.
