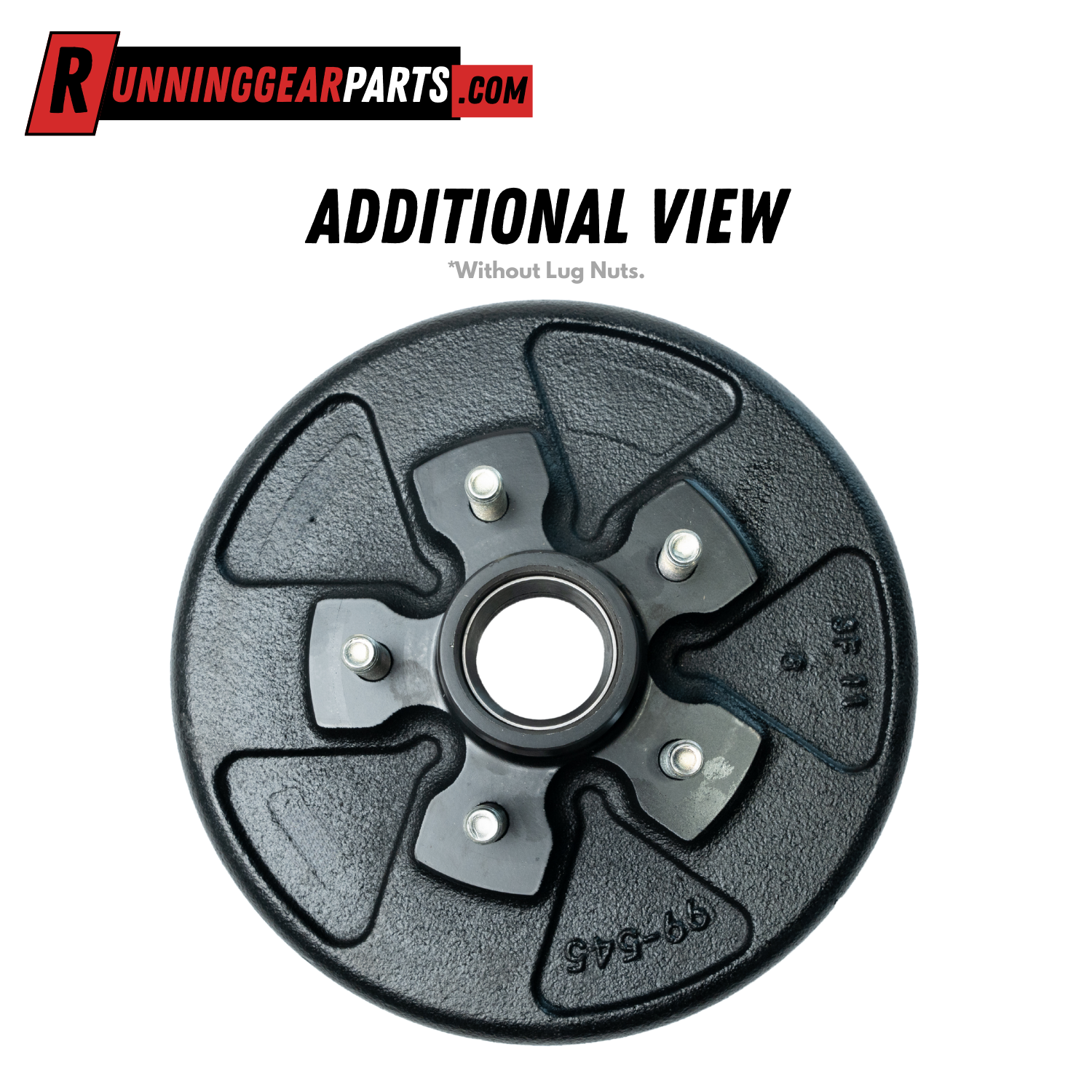

3,500 lbs Trailer Axle Drum Kit- 5 on 4.5" Bolt Circle, Pre-Greased
3,500 lbs Trailer Axle Drum Kit- 5 on 4.5" Bolt Circle, Pre-Greased - is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
To ensure optimal performance and extend the service life of your new trailer components, please follow these care guidelines after purchase:
- Before installation, check all parts for shipping damage or missing components. Do not install damaged parts.
- Always use correct tools and torque settings. Improper installation can lead to premature wear or failure.
- For bearings, suspensions, and brake components, apply high-quality trailer grease before first use if not pre-greased.
- Some parts (like brake assemblies) require a short break-in period to achieve full performance. Follow manufacturer instructions for best results.
- Recheck fasteners, grease levels, and moving components after 100 miles of towing, then at regular intervals.
- After exposure to water, road salt, or mud, clean and dry parts thoroughly. Apply anti-rust treatment if needed.
- If storing unused parts, keep them in a dry, sealed container away from moisture and direct sunlight.
Delivery and Shipping
Delivery and Shipping
Handling Time: Orders ship out within 1 business day after payment is received.
Shipping Methods: We use trusted carriers like UPS, FedEx, or USPS based on package size and destination.
Delivery Time: Estimated delivery within 2–6 business days (U.S. domestic orders).
Tracking: A tracking number will be provided once your order is dispatched.
Product Overview

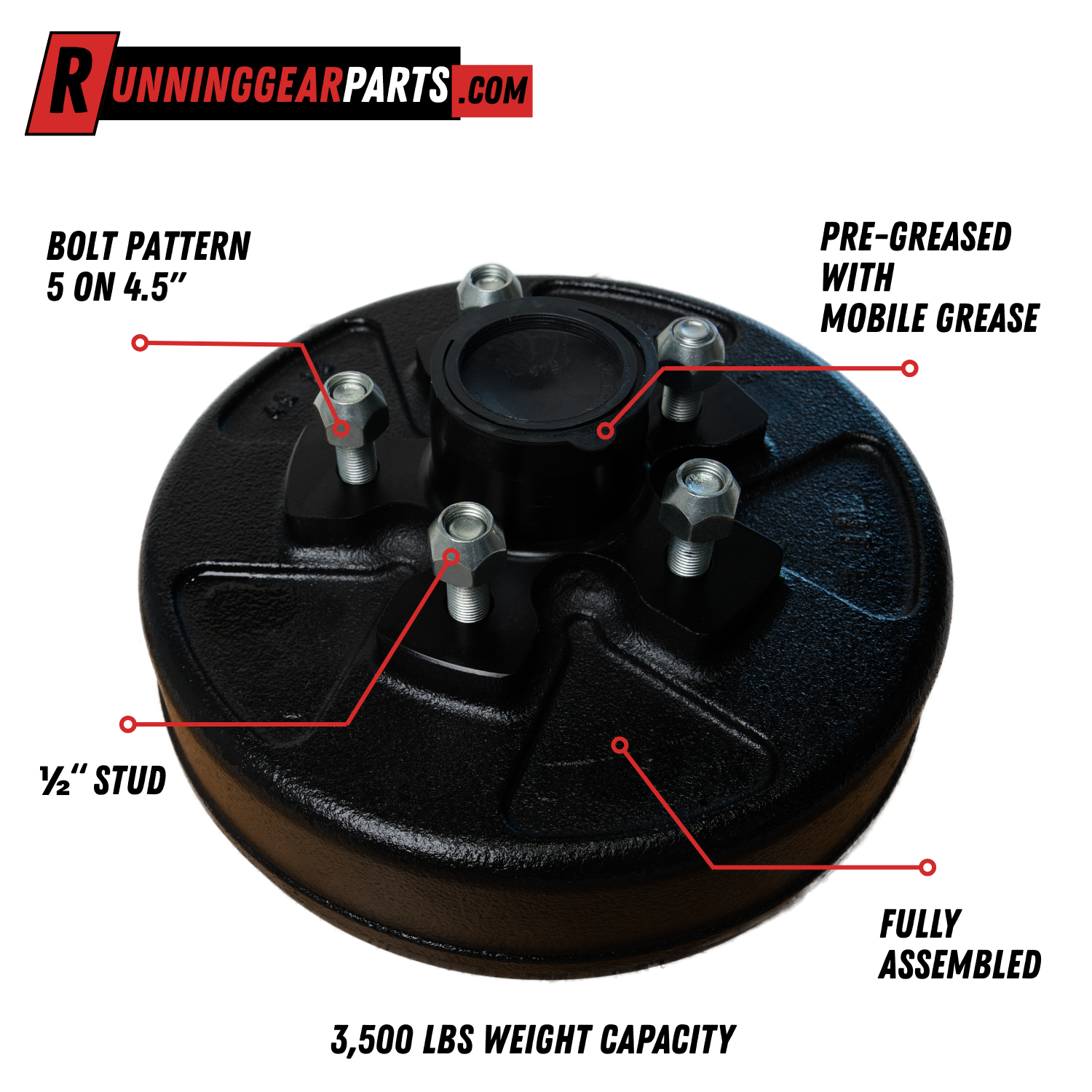

Designed for 3,500 lb trailer axles, this drum kit fits wheels with a 5 on 4.5" bolt pattern and is intended for trailers equipped with 10" brake assemblies. The black painted steel finish provides practical, everyday durability for standard towing applications such as cargo, utility, and light equipment trailers.
This kit arrives pre-greased and packaged complete, reducing install time and eliminating the need to gather separate components. With bearings, seal, wheel studs, and mounting hardware already matched and included, it offers a straightforward replacement option that restores smooth, reliable hub performance with minimal effort.

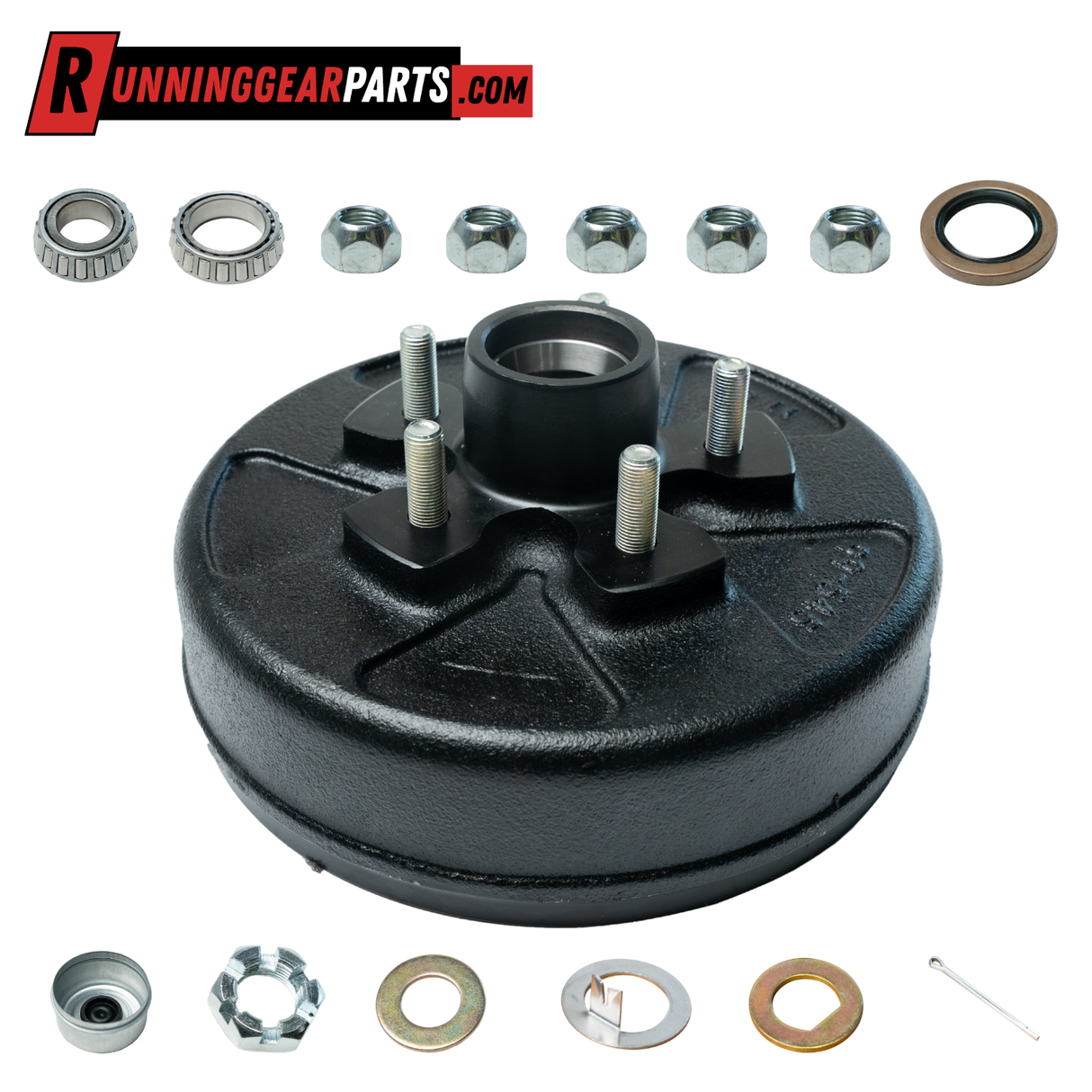

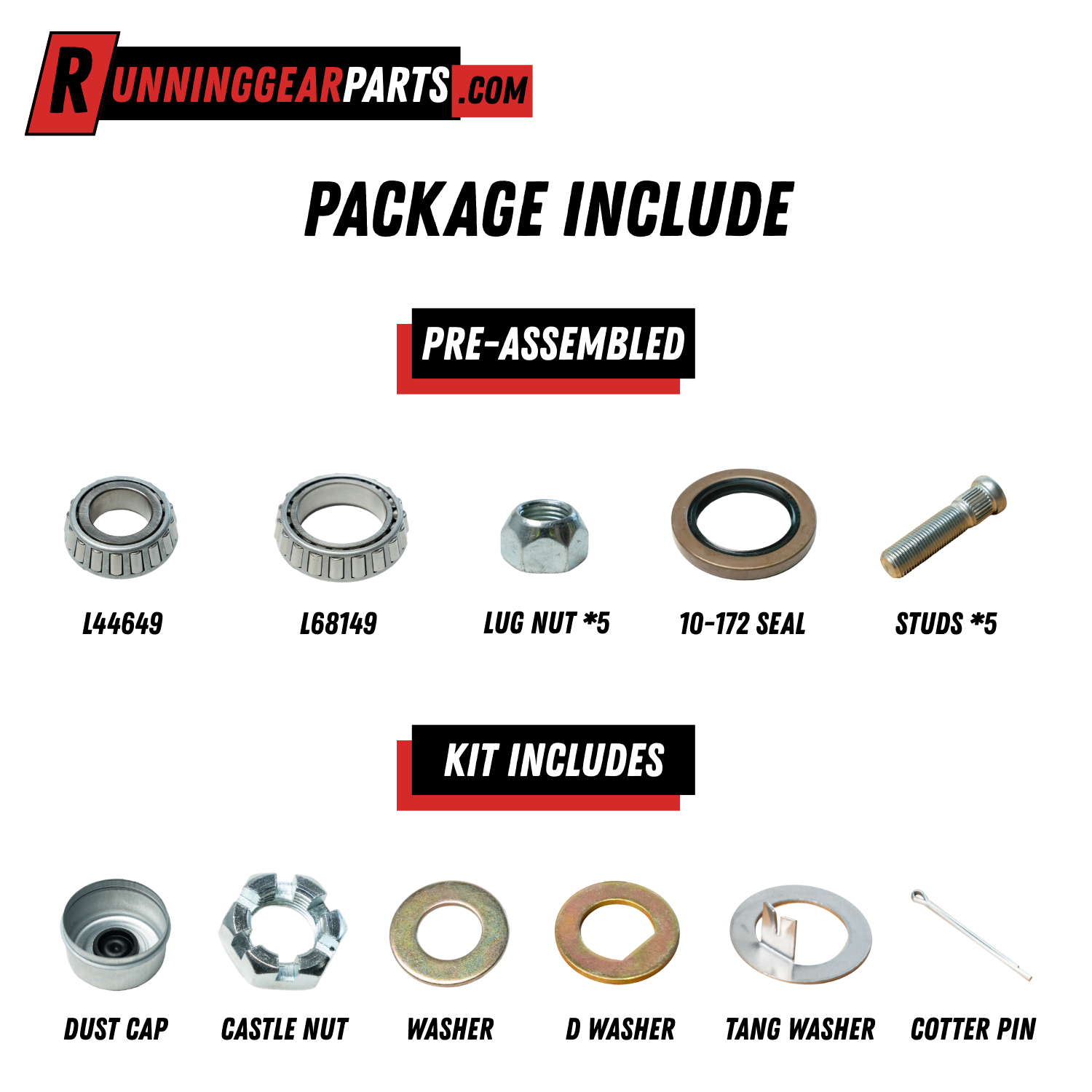

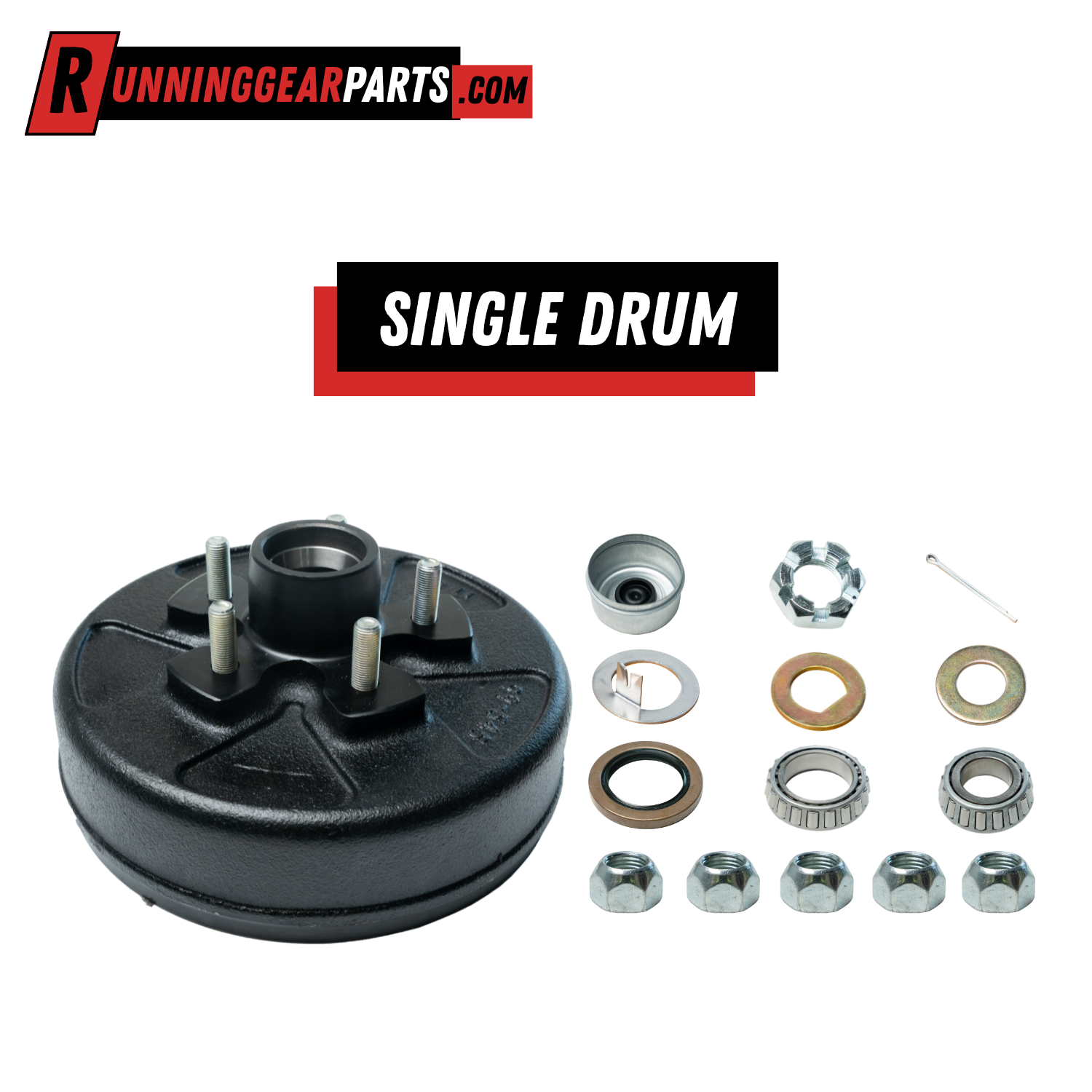

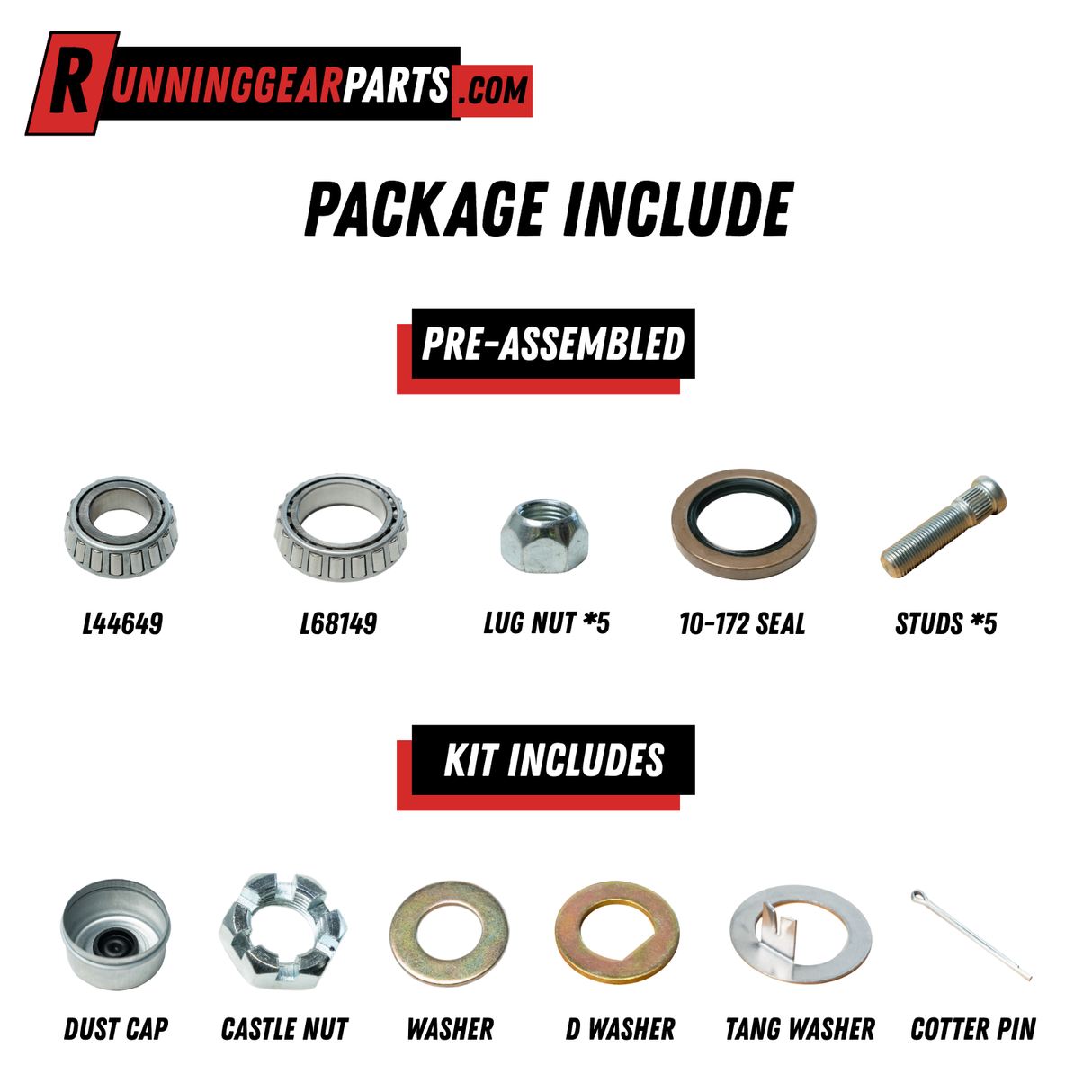

What’s Included
Pre-Assembled (Installed in Hub):
10-172 seal (installed with bearing)
L68149 bearing (installed)
Wheel studs (5 pcs, pressed in)
Pre-greased hub assembly
In the Box (Hardware Included):
L44649 (loose sitting in drum)
Dust Cap with Rubber Plug
Castle Nut
Washer
Tang Washer
D Washer
Cotter Pin
Grease Seal (10-172)
Lug Nuts (5 pcs)
Plastic Covers (2 pcs)
Specifications
Axle Capacity: 3,500 lbs
Hub Capacity: 1,750 lbs
Bolt Pattern: 5 on 5"
Wheel Size Compatibility:8", 10", 12", 13", 14", 15"
Inner Bearing: L68149 (1.378" ID)
Outer Bearing: L44649 (1.063" ID)
Inner Race: L68111
Outer Race: L44610
Grease Seal ID: 1.719"
Grease Seal OD: 2.565"
Stud Size: 1/2"
Finish: Black steel
Application: Idler axle only (non-brake)
Condition: Brand new, boxed complete kit.
OEM & Replacement Part Numbers
Dexter 008-247-05
Dexter K08-247-90
Dexter K08-247-94
Compatible with Dexter, AL-KO, Lippert, Rockwell, and Besser Pro trailer axles.
