5,200-7,000 lb Trailer Axle Drum Kit- 8 on 6.5" Bolt Circle with 1/2" Studs, Pre-Greased
5,200-7,000 lb Trailer Axle Drum Kit- 8 on 6.5" Bolt Circle with 1/2" Studs, Pre-Greased - is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
To ensure optimal performance and extend the service life of your new trailer components, please follow these care guidelines after purchase:
- Before installation, check all parts for shipping damage or missing components. Do not install damaged parts.
- Always use correct tools and torque settings. Improper installation can lead to premature wear or failure.
- For bearings, suspensions, and brake components, apply high-quality trailer grease before first use if not pre-greased.
- Some parts (like brake assemblies) require a short break-in period to achieve full performance. Follow manufacturer instructions for best results.
- Recheck fasteners, grease levels, and moving components after 100 miles of towing, then at regular intervals.
- After exposure to water, road salt, or mud, clean and dry parts thoroughly. Apply anti-rust treatment if needed.
- If storing unused parts, keep them in a dry, sealed container away from moisture and direct sunlight.
Delivery and Shipping
Delivery and Shipping
Handling Time: Orders ship out within 1 business day after payment is received.
Shipping Methods: We use trusted carriers like UPS, FedEx, or USPS based on package size and destination.
Delivery Time: Estimated delivery within 2–6 business days (U.S. domestic orders).
Tracking: A tracking number will be provided once your order is dispatched.
5,200-7,000 lb Trailer Axle Drum Kit- 8 on 6.5" Bolt Circle wi...
Product Overview

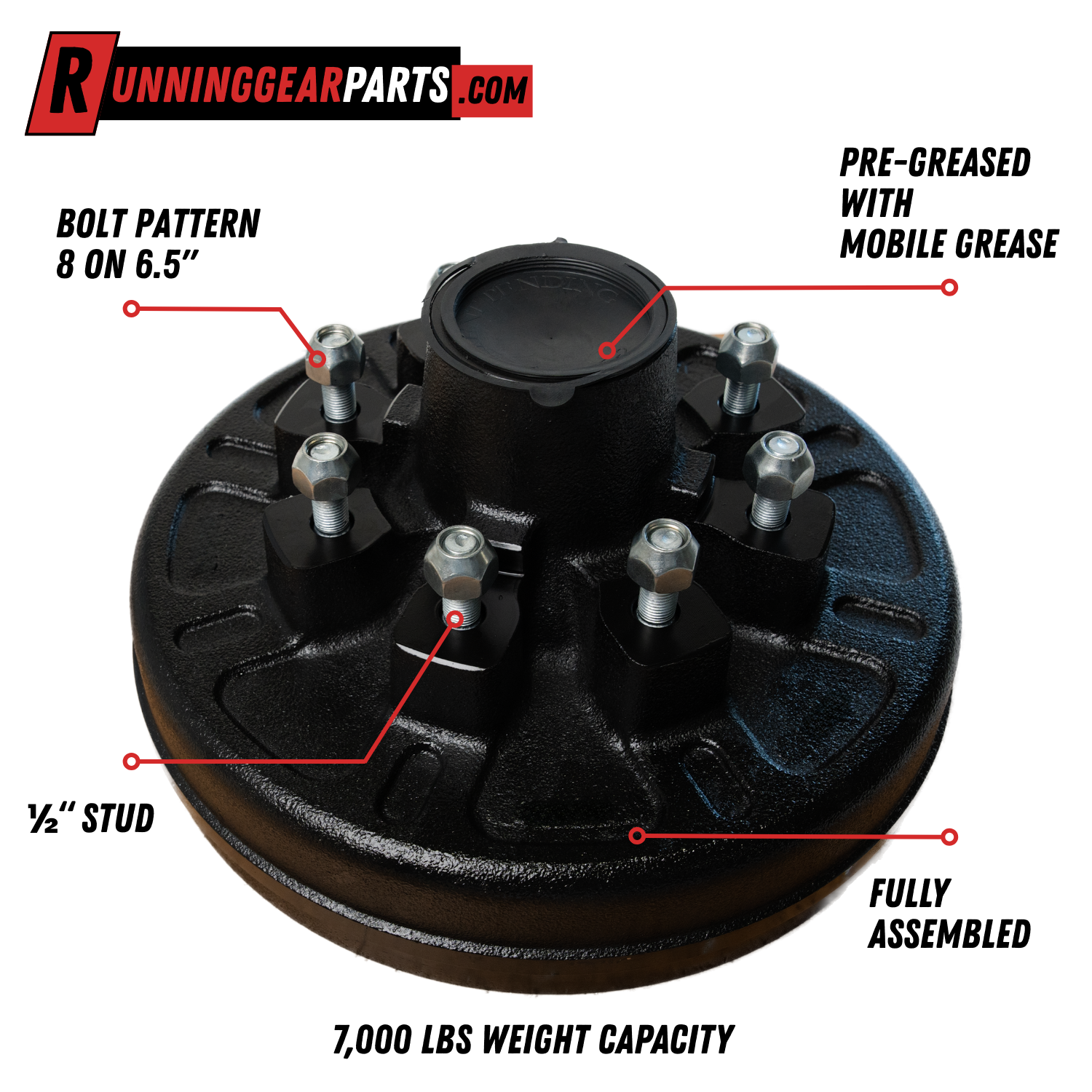

This 7,000 lb trailer hub and drum assembly is engineered for 5,200 - 7,000 lb axles with #42 spindles, featuring an inner bearing 25580 and outer bearing 14125A for a secure and reliable fit. Designed for 8 on 6.5" bolt patterns, it accommodates 16"- 17.5" wheels using 1/2" studs, making it ideal for heavy-duty trailers such as equipment, utility, and boat trailers.
The assembly comes pre-greased and boxed complete, including bearings, races, grease seal and hardware for fast, hassle-free installation. The Easy Grease cap allows quick bearing lubrication through the spindle zerk fitting without removing the hub, keeping maintenance simple and clean. With a corrosion-resistant finish on the drum and hardware, this hub provides long-lasting durability for trailers that face wet or harsh environments.

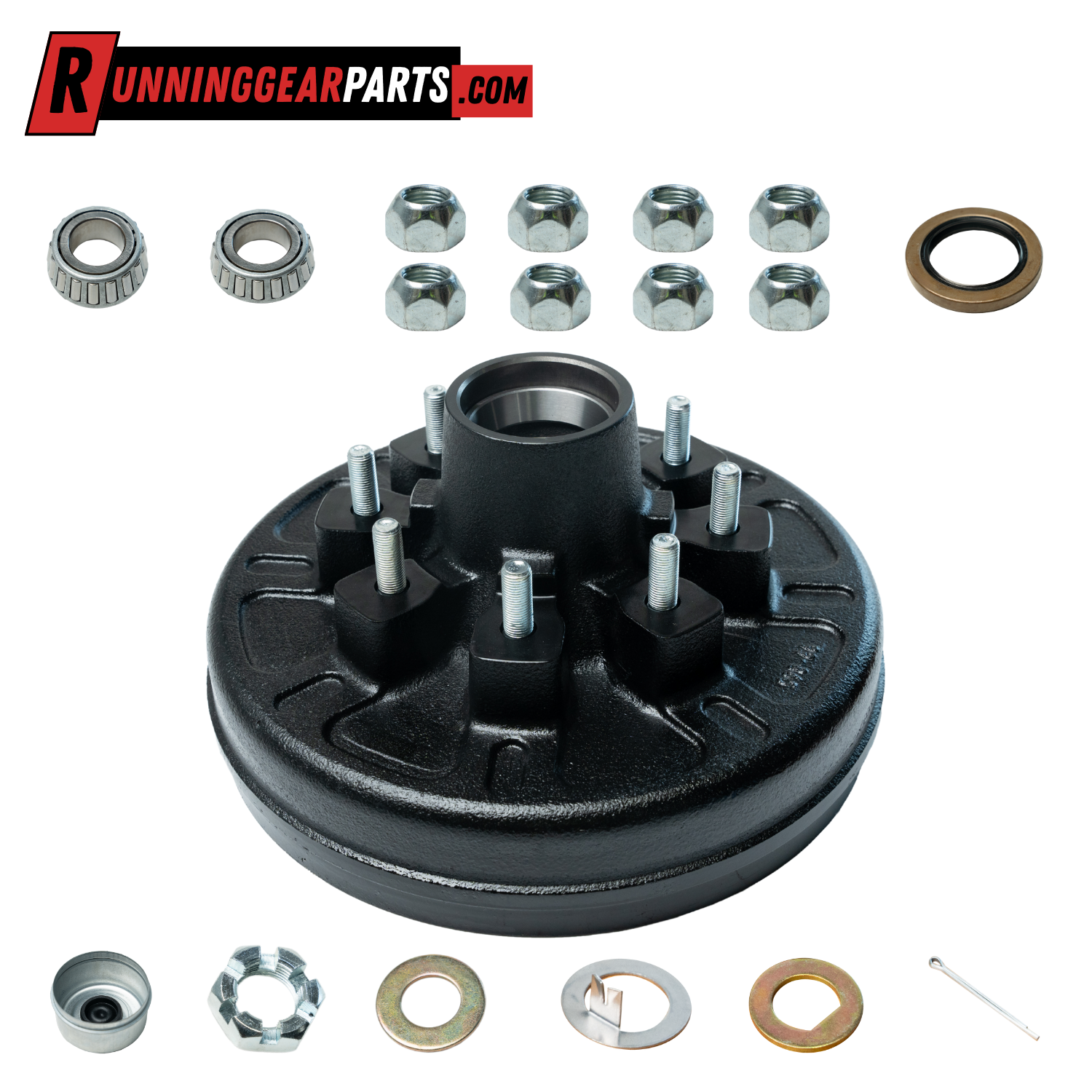

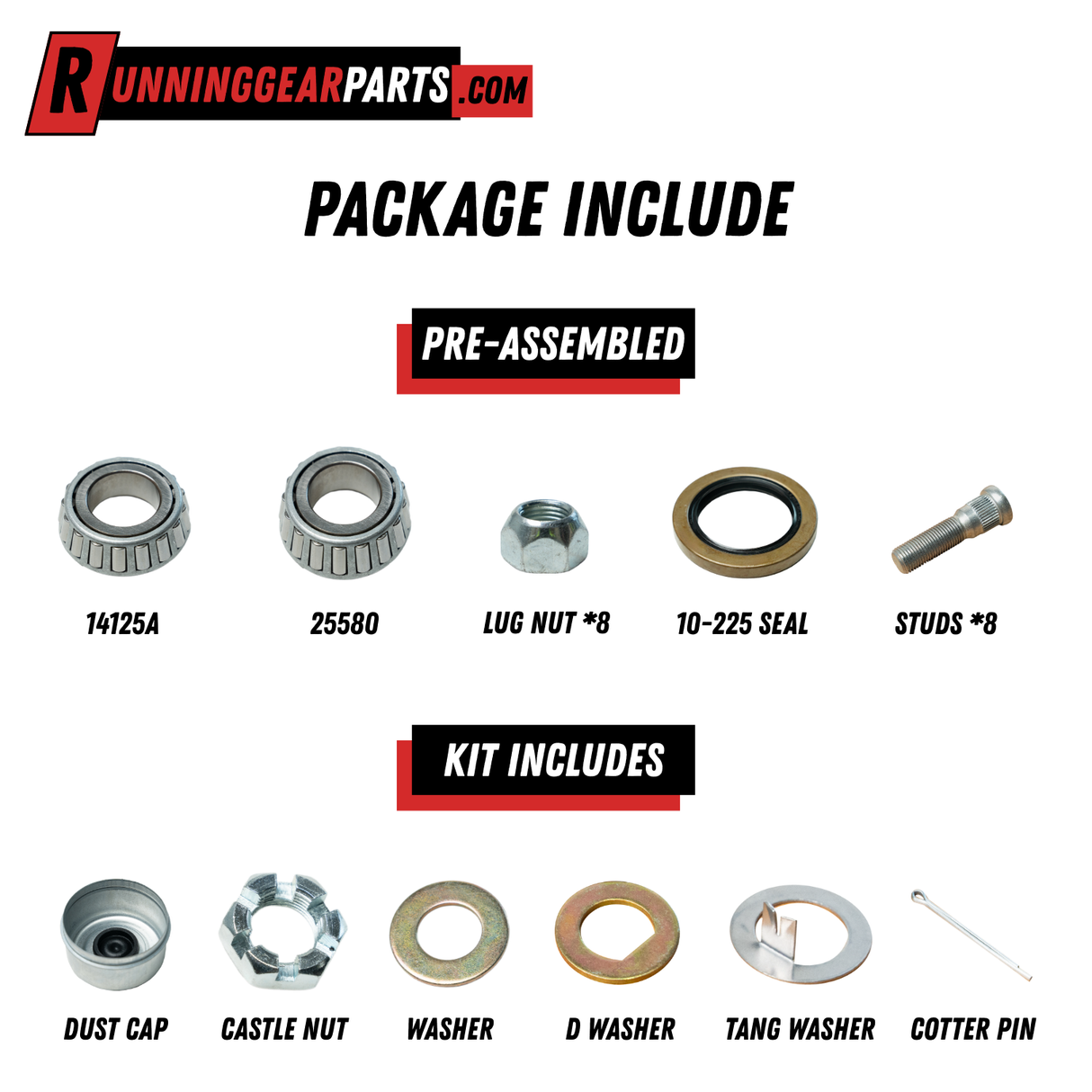

What’s Included
Pre-Assembled (Installed in Hub)
Inner Race: 25520
Outer Race: 14276
Wheel Studs: 1/2" (pressed in)
In the Box
Inner Bearing: 25580
Outer Bearing: 14125A
Grease Seal: 10-225
Grease Cap: Regular or EZ Lube (select option)
Lug Nuts
Specifications
Axle Capacity: 7,000 lbs
Hub Capacity: 3,500 lbs
Bolt Pattern: 8 on 6.5"
Wheel Size Compatibility: 16"
Inner Bearing: 25580 (1.75" ID)
Outer Bearing: 14125A (1.25" ID)
If the outer bearing is LM67048, it will be replaced by the 14125A bearing.
Inner Race: 25520
Outer Race: 14276
Grease Seal: 10-225 （ID: 2.25" / OD: 3.376")
Grease Cap: Regular or EZ Lube
Stud Size: 1/2"
Application: Idler axle only (non-brake)
Condition: Brand New
OEM & Replacement Part Numbers
Dexter 008-219-04
Dexter K08-219-90
Dexter K08-219-9D
Dexter K08-219-96
Compatible with Dexter, AL-KO, Lippert, Rockwell, and Besser Pro trailer axles.
