3,500 lbs Trailer Axles, 10 Inch Manual Electric Brake
3,500 lbs Trailer Axles, 10 Inch Manual Electric Brake - is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
To ensure optimal performance and extend the service life of your new trailer components, please follow these care guidelines after purchase:
- Before installation, check all parts for shipping damage or missing components. Do not install damaged parts.
- Always use correct tools and torque settings. Improper installation can lead to premature wear or failure.
- For bearings, suspensions, and brake components, apply high-quality trailer grease before first use if not pre-greased.
- Some parts (like brake assemblies) require a short break-in period to achieve full performance. Follow manufacturer instructions for best results.
- Recheck fasteners, grease levels, and moving components after 100 miles of towing, then at regular intervals.
- After exposure to water, road salt, or mud, clean and dry parts thoroughly. Apply anti-rust treatment if needed.
- If storing unused parts, keep them in a dry, sealed container away from moisture and direct sunlight.
Delivery and Shipping
Delivery and Shipping
Handling Time: Orders ship out within 1 business day after payment is received.
Shipping Methods: We use trusted carriers like UPS, FedEx, or USPS based on package size and destination.
Delivery Time: Estimated delivery within 2–6 business days (U.S. domestic orders).
Tracking: A tracking number will be provided once your order is dispatched.
3,500 lbs Trailer Axles, 10 Inch Manual Electric Brake
Product Overview

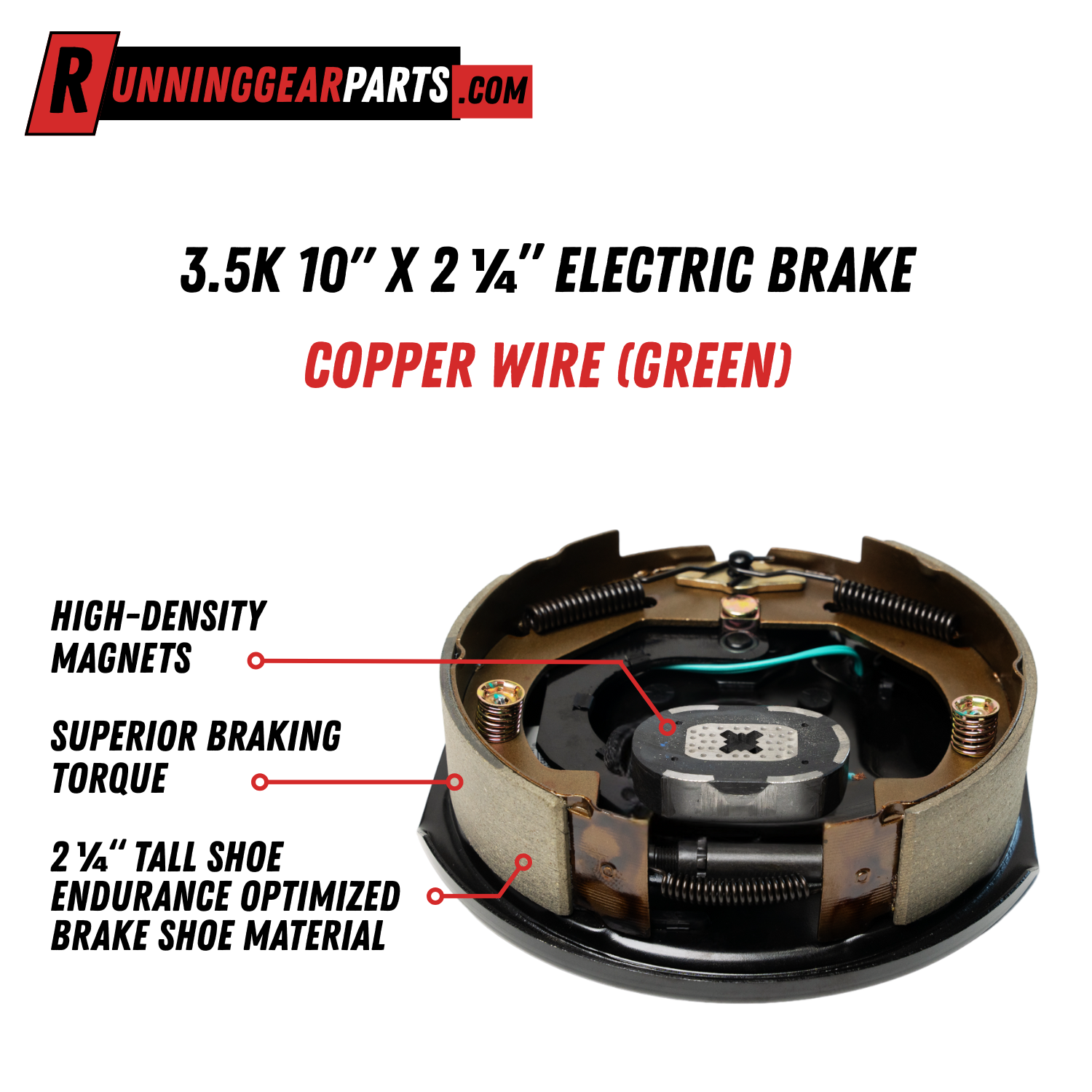

Bring reliable braking performance to your trailer with this 3,500 lb manual-adjust electric brake assembly, offered as a left-hand unit, right-hand unit, or a matched pair to suit your setup. Designed for trailers with 10"×2-1/4" drum brakes, these brakes deliver dependable stopping power and long service life.
These brakes use a manual adjustment system, so periodic tightening of the brake shoes is required as they wear. This gives you more direct control over the brake shoe-to-drum clearance and can help tailor brake performance to your trailer's load and towing conditions. Each assembly arrives fully built and ready to install, with brake shoes, springs, and magnet mounted on a sturdy backing plate, no need to source parts separately.
Made to fit standard 3,500 lb trailer axles and compatible with popular hub and drum setups, this brake is a solid choice if you prefer a manual design that you can adjust yourself for peak performance.
What’s Included by Kit Option

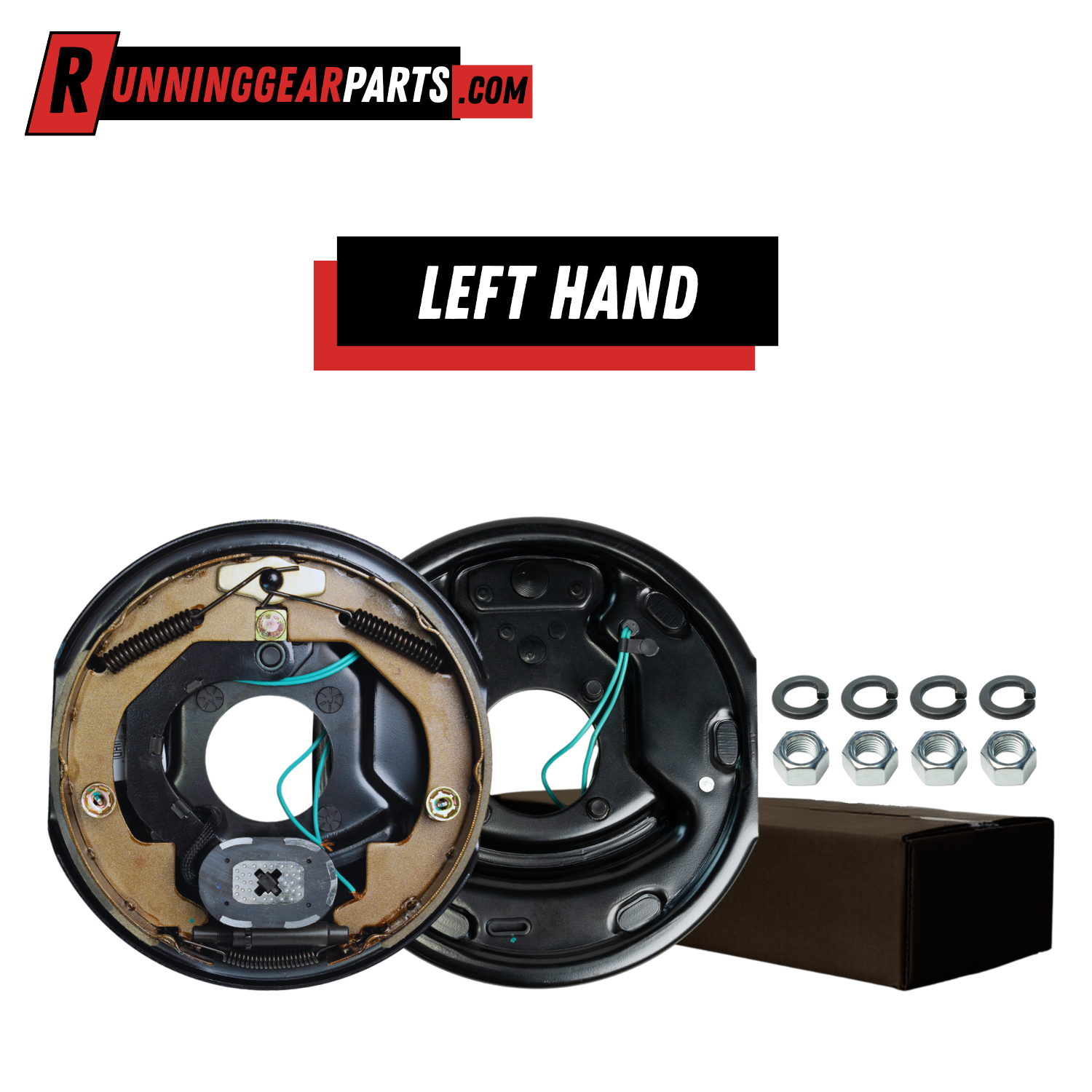

Left-Hand (LH): 1 Brake Assembly, Driver side
1 x Left hand 10"x2-1/4" manual electric brake assembly
Pre-mounted brake shoes, magnet, return springs and backing plate
4 x mounting nuts
4 x lock washers
Fit 3,500 lbs axles with standard #84 spindles
Manual adjust brake, periodic adjustment required
Standard 4-bolt mounting, fits 10"x2-1/4" drums

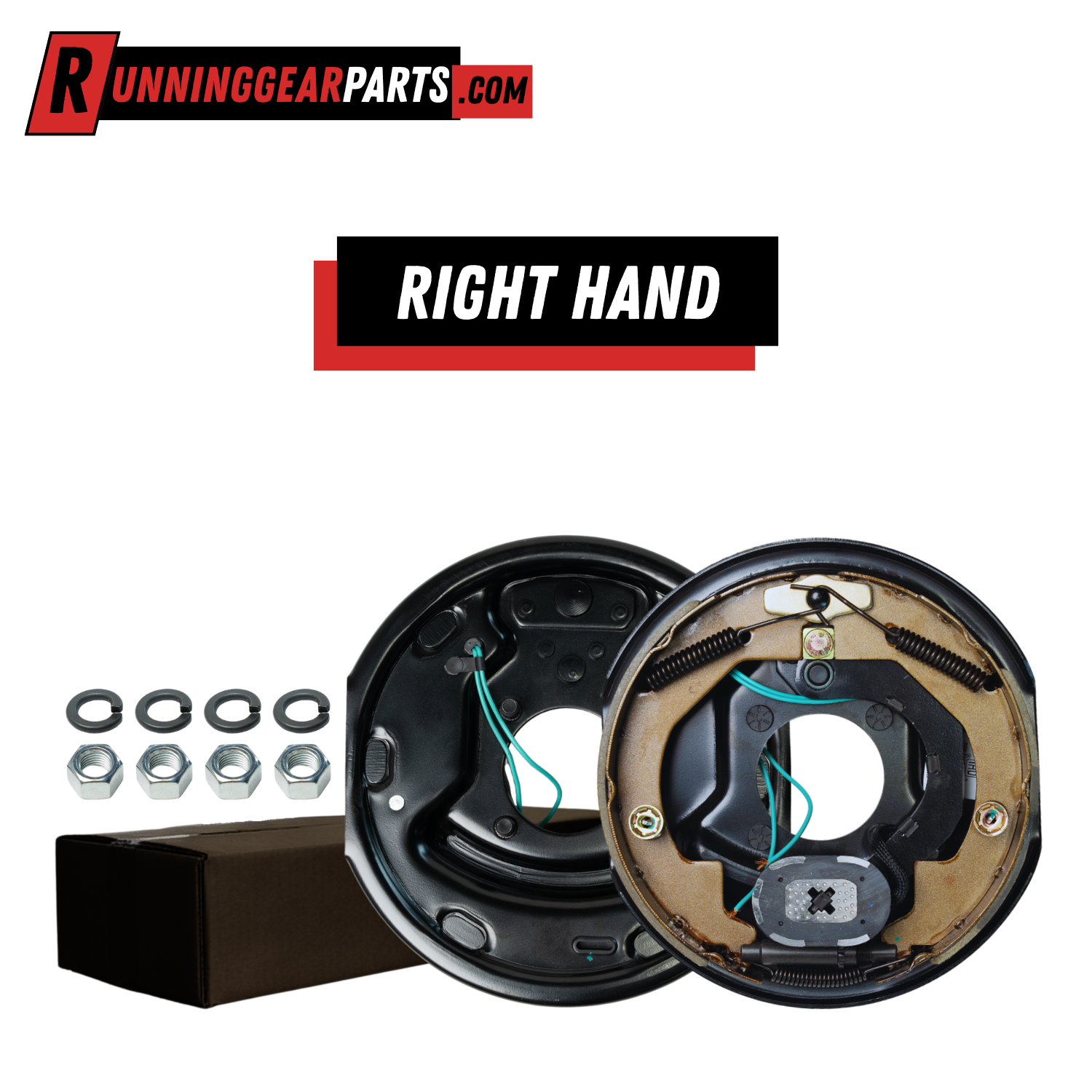

Right-Hand (RH): 1 Brake Assembly, Passenger side
1 x Right hand 10"x2-1/4" manual electric brake assembly
Pre-mounted brake shoes, magnet, return springs, and back plate
4 x mounting nuts
4 x lock washers
Fits 3,500 lbs axles with standard #84 spindles
Manual adjust brake, periodic adjustment required
Standard 4-bolt mounting, fits 10"x2-1/4" drums

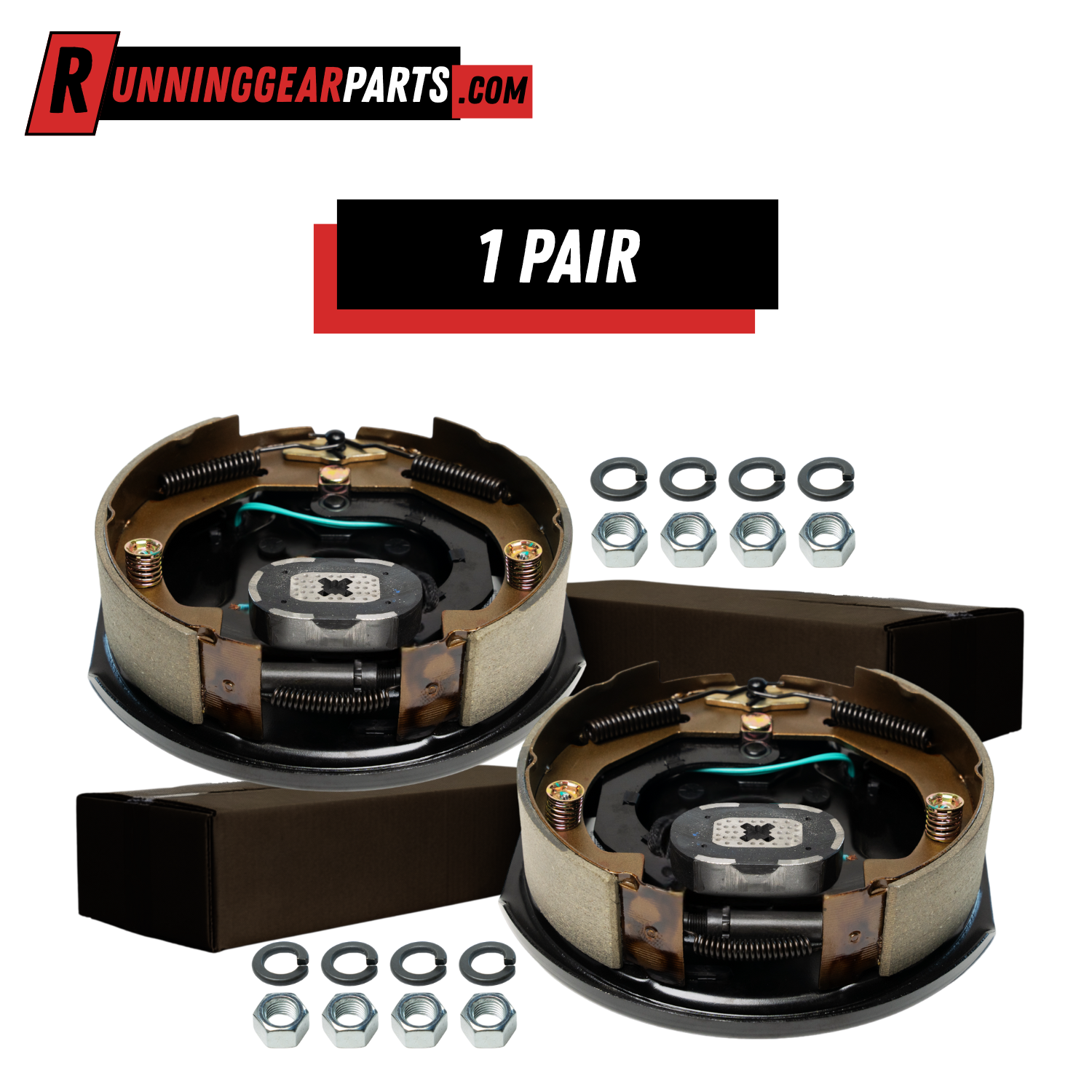

1 pair : 2 brake assemblies (1LH + 1RH)
1 × Left-Hand 10"×2-1/4" Manual Adjust Electric Brake Assembly
1 × Right-Hand 10"×2-1/4" Manual Adjust Electric Brake Assembly
Pre-mounted brake shoes, magnets, springs and back plate
8 × mounting nuts
8 × lock washers
Fits 3,500 lbs axles with standard #84 spindles
Manual adjust brakes, periodic adjustment required
Fits standard 4-bolt brake flange and 10"×2-1/4" drums

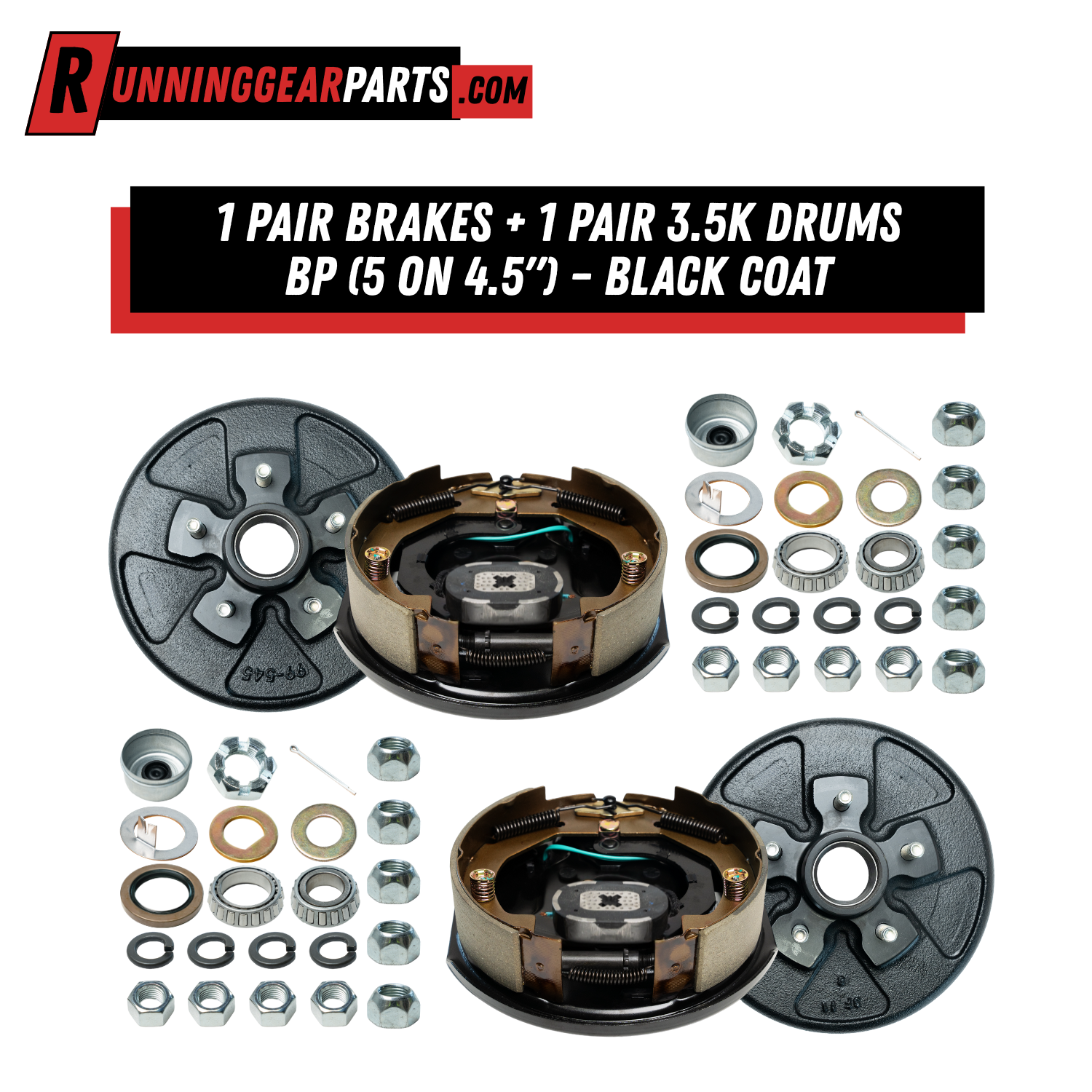

1 pair brake + 1 pair 3,500 lb drums, 5 on 4.5" bolt pattern, black coated.
1 × Left-Hand 10"×2-1/4" Manual Adjust Electric Brake Assembly
1 × Right-Hand 10"×2-1/4" Manual Adjust Electric Brake Assembly
2 × hub and drum assemblies, 5 on 4.5" bolt pattern, black coated, pre-installed studs and races.
2 × inner bearings (L68149, 1.378" ID × 2.361" OD), pre-installed.
2 × outer bearings (L44649, 1.063" ID × 1.98" OD), pre-installed.
2 × grease seals (1.719" ID × 2.565" OD)
2 × dust caps with rubber plugs
10 × lug nuts (1/2")

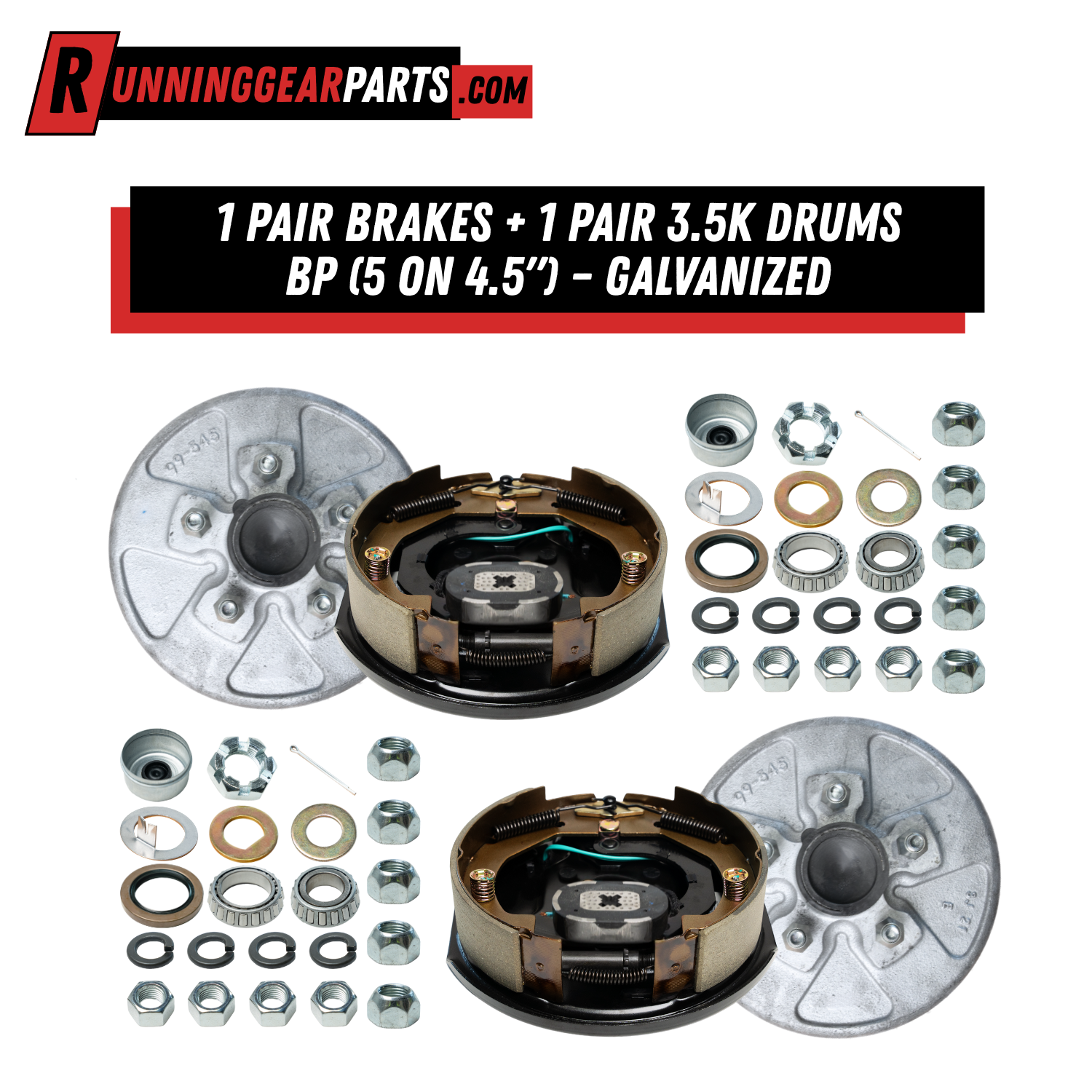

1 pair brake + 1 pair 3,500 lb drums, 5 on 4.5" bolt pattern, galvanized.
1 × Left-Hand 10"×2-1/4" Manual Adjust Electric Brake Assembly
1 × Right-Hand 10"×2-1/4" Manual Adjust Electric Brake Assembly
2 × hub and drum assemblies, 5 on 4.5" bolt pattern, galvanized, pre-installed studs and races.
2 × inner bearings (L68149, 1.378" ID × 2.361" OD), pre-installed.
2 × outer bearings (L44649, 1.063" ID × 1.98" OD), pre-installed.
2 × grease seals (1.719" ID × 2.565" OD)
2 × dust caps with rubber plugs
10 × lug nuts (1/2")
1 pair brake + 1 pair 3,500 lb drums, 5 on 5" bolt pattern, black coated.
1 × Left-Hand 10"×2-1/4" Manual Adjust Electric Brake Assembly
1 × Right-Hand 10"×2-1/4" Manual Adjust Electric Brake Assembly
2 × hub and drum assemblies, 5 on 5" bolt pattern, black coated, pre-installed studs and races.
2 × inner bearings (L68149, 1.378" ID × 2.361" OD)
2 × outer bearings (L44649, 1.063" ID × 1.98" OD)
2 × grease seals (10-172, 2.125" ID × 3.376" OD)
2 × dust caps
10 × lug nuts (1/2")
1 pair brake + 1 pair 3,500 lb drums, 5 on 5" bolt pattern, galvanized.
1 × Left-Hand 10"×2-1/4" Manual Adjust Electric Brake Assembly
1 × Right-Hand 10"×2-1/4" Manual Adjust Electric Brake Assembly
2 × hub and drum assemblies, 5 on 5" bolt pattern, galvanized, pre-installed studs and races.
2 × inner bearings (L68149, 1.378" ID × 2.361" OD)
2 × outer bearings (L44649, 1.063" ID × 1.98" OD)
2 × grease seals (10-172, 2.125" ID × 3.376" OD)
2 × dust caps
10 × lug nuts (1/2")
Specifications
Type: Drum Brakes
Brake Type: Electric (manual)
Drum Diameter: 10"
Drum Width: 2-1/4"
Mounting bolt dimension:
Left to Right: 2-7/8" (center bolt to center bolt)
Top to Bottom: 2-7/8" (center bolt to center bolt)
13"-15" Wheels
4 Hole Brake Flange
OEM & Replacement Part Numbers
Dexter K23-026-00 (LH)
Dexter K23-027-00 (RH)
Compatible with Dexter, AL-KO, Lippert, Rockwell, and Besser Pro trailer axles.
