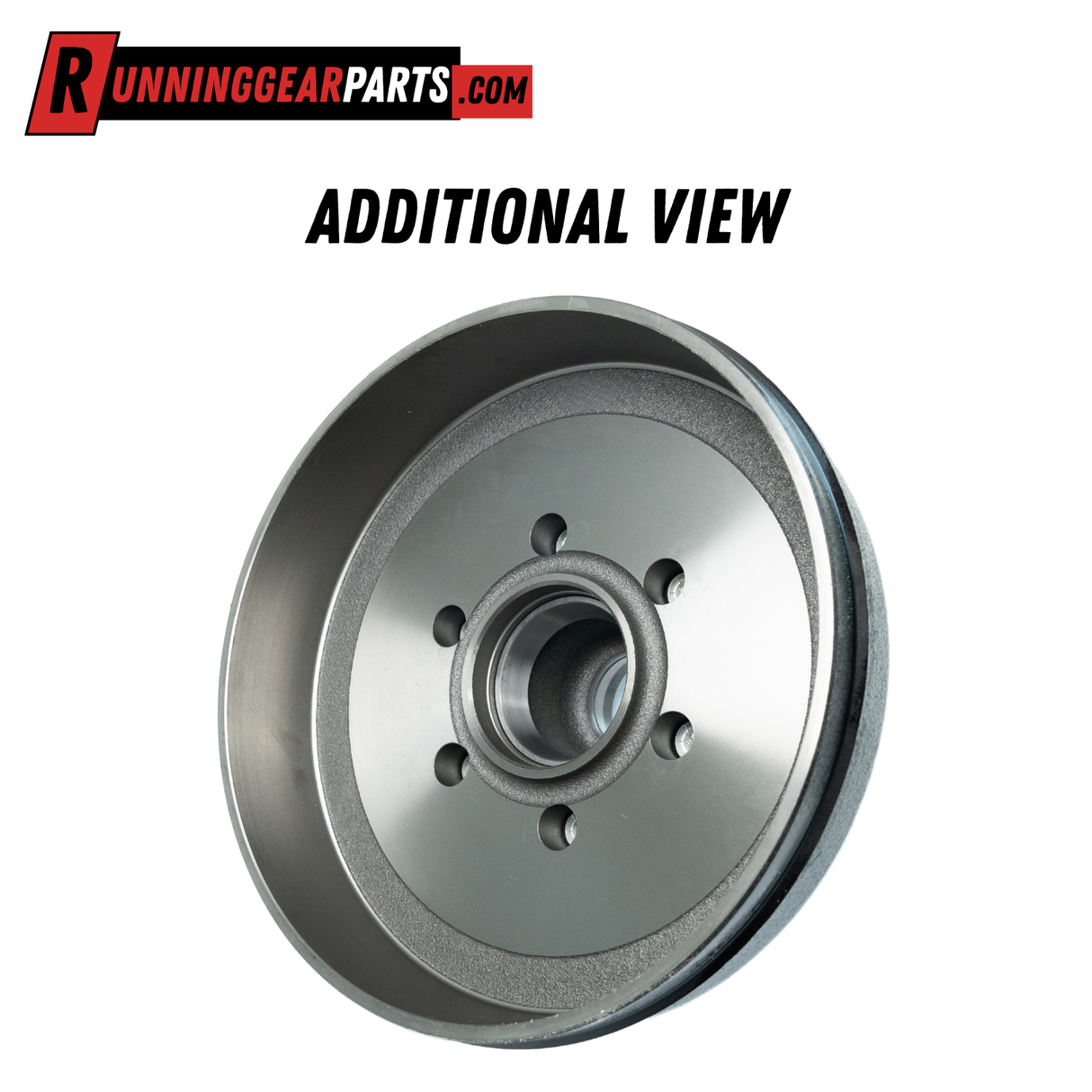

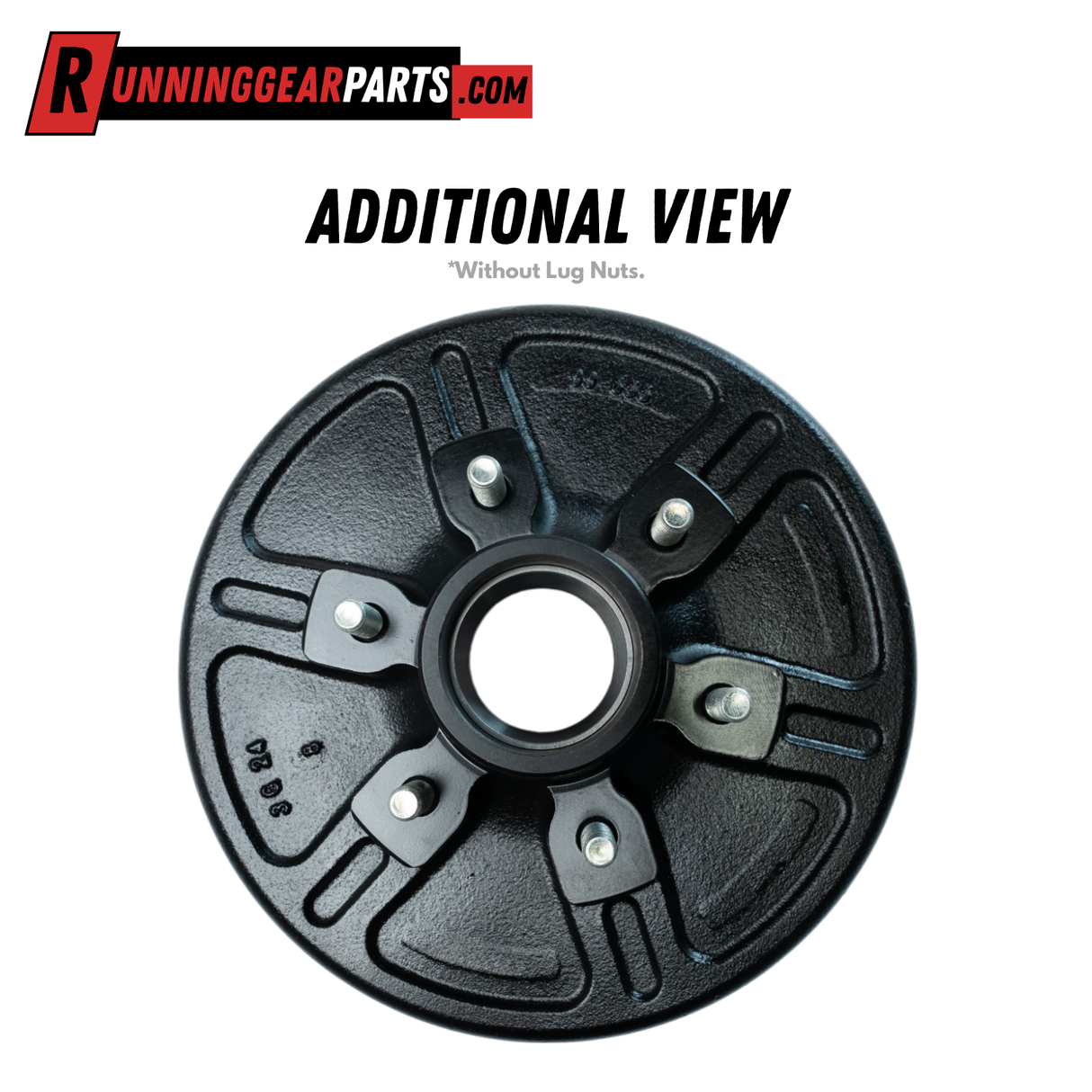

6,000 lb Trailer Axle Drum Kit - 6 on 5.5" Bolt Circle, Pre-Greased
6,000 lb Trailer Axle Drum Kit - 6 on 5.5" Bolt Circle, Pre-Greased - is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
To ensure optimal performance and extend the service life of your new trailer components, please follow these care guidelines after purchase:
- Before installation, check all parts for shipping damage or missing components. Do not install damaged parts.
- Always use correct tools and torque settings. Improper installation can lead to premature wear or failure.
- For bearings, suspensions, and brake components, apply high-quality trailer grease before first use if not pre-greased.
- Some parts (like brake assemblies) require a short break-in period to achieve full performance. Follow manufacturer instructions for best results.
- Recheck fasteners, grease levels, and moving components after 100 miles of towing, then at regular intervals.
- After exposure to water, road salt, or mud, clean and dry parts thoroughly. Apply anti-rust treatment if needed.
- If storing unused parts, keep them in a dry, sealed container away from moisture and direct sunlight.
Delivery and Shipping
Delivery and Shipping
Handling Time: Orders ship out within 1 business day after payment is received.
Shipping Methods: We use trusted carriers like UPS, FedEx, or USPS based on package size and destination.
Delivery Time: Estimated delivery within 2–6 business days (U.S. domestic orders).
Tracking: A tracking number will be provided once your order is dispatched.
6,000 lb Trailer Axle Drum Kit - 6 on 5.5" Bolt Circle, Pre-Gr...
Product Overview

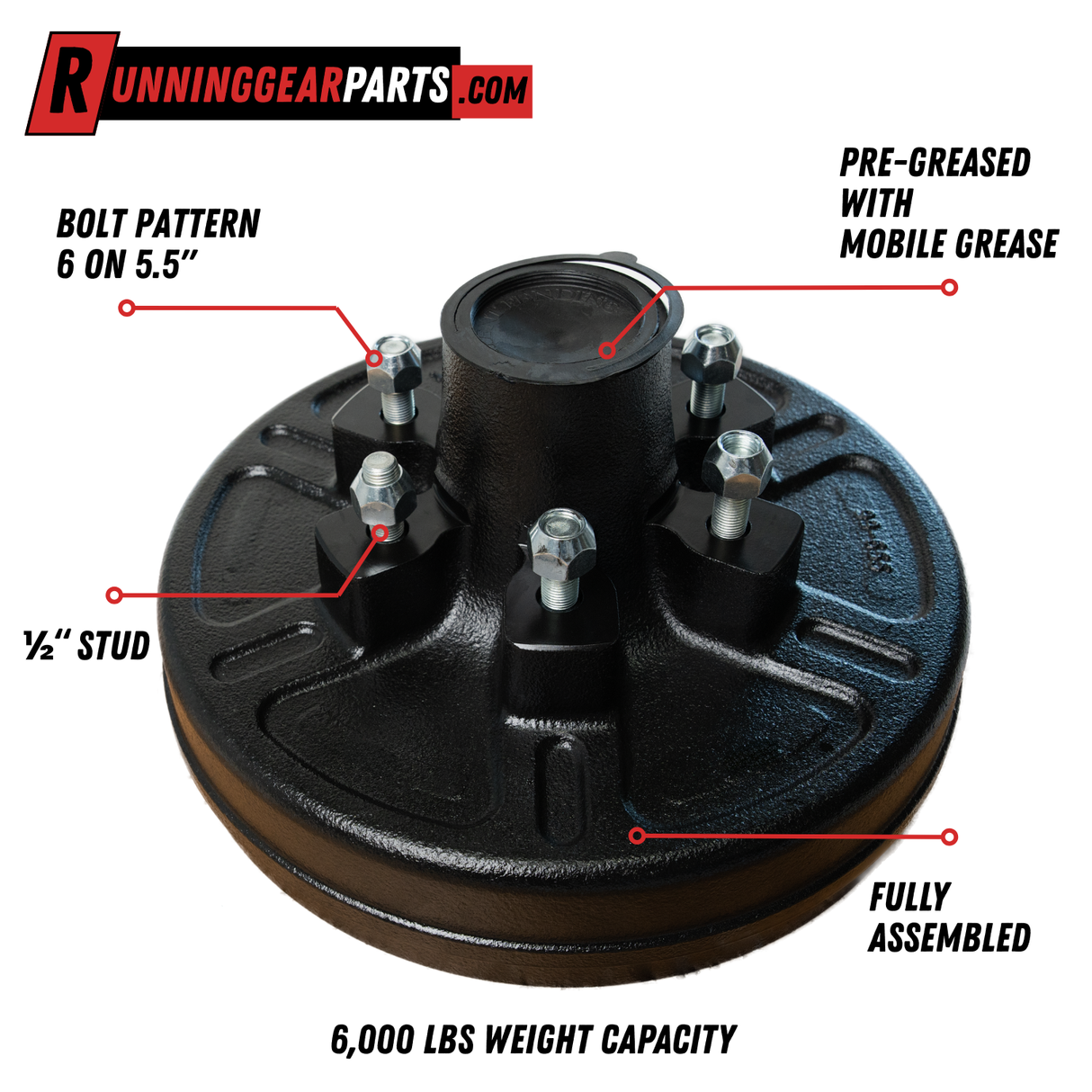

This 6,000 lb trailer hub and drum assembly is designed for 5,200 - 6,000 lb axles with #42 spindles, using an inner bearing 25580 and outer bearing 15123 for a secure, reliable fit. The hub fits a 6 on 5.5" bolt pattern and works with 12" brake assemblies and wheels up to 16.5", making it ideal for heavy duty utility, equipment, or boat trailers.
The assembly comes pre-greased and boxed complete, including bearings, races, grease seals and hardware for fast, straightforward installation. The E-Z Lube grease cap allows easy bearing maintenance through the spindle zerk fitting without removing the hub. Finished with a corrosion-resistant coating, this hub provides long-lasting durability under everyday towing conditions.

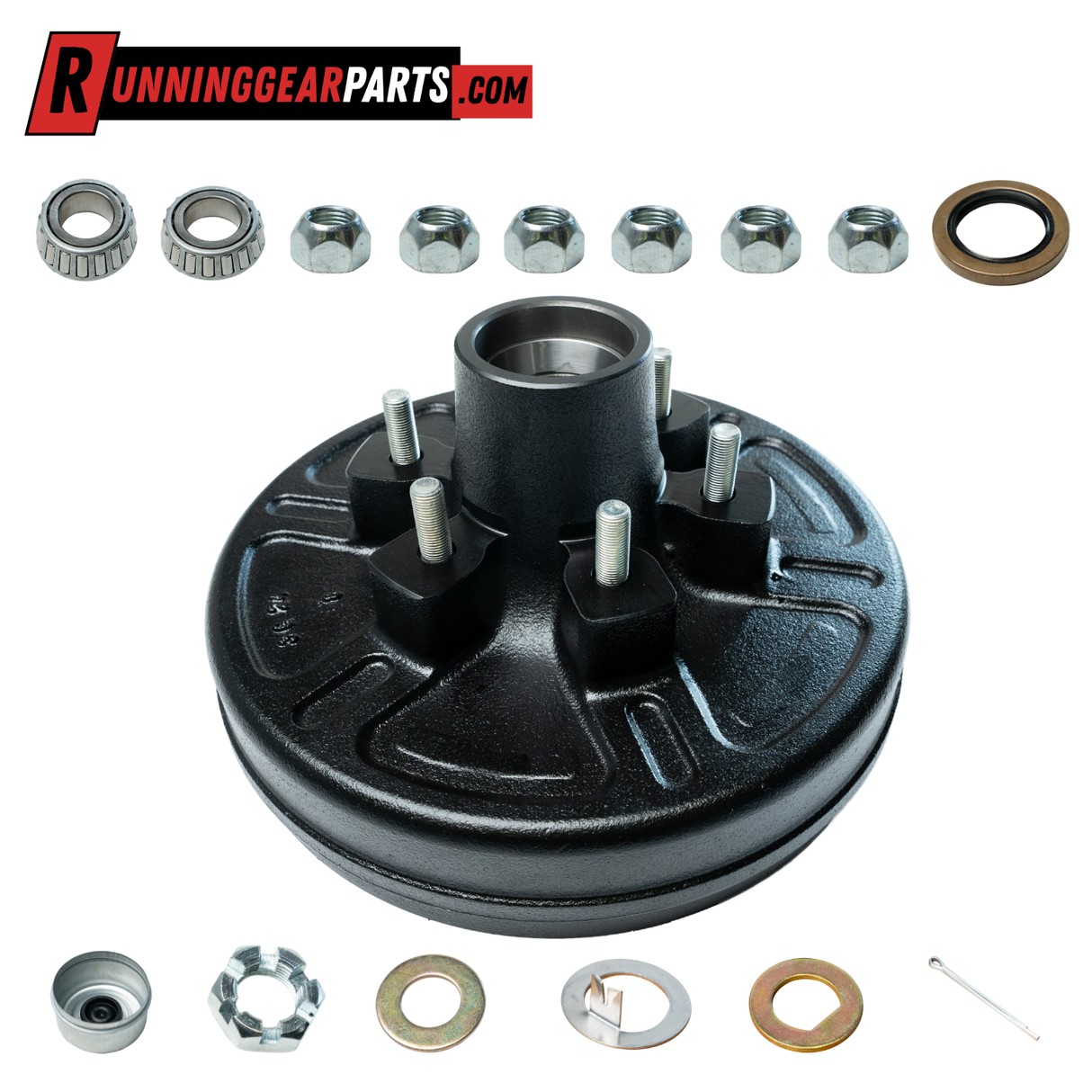

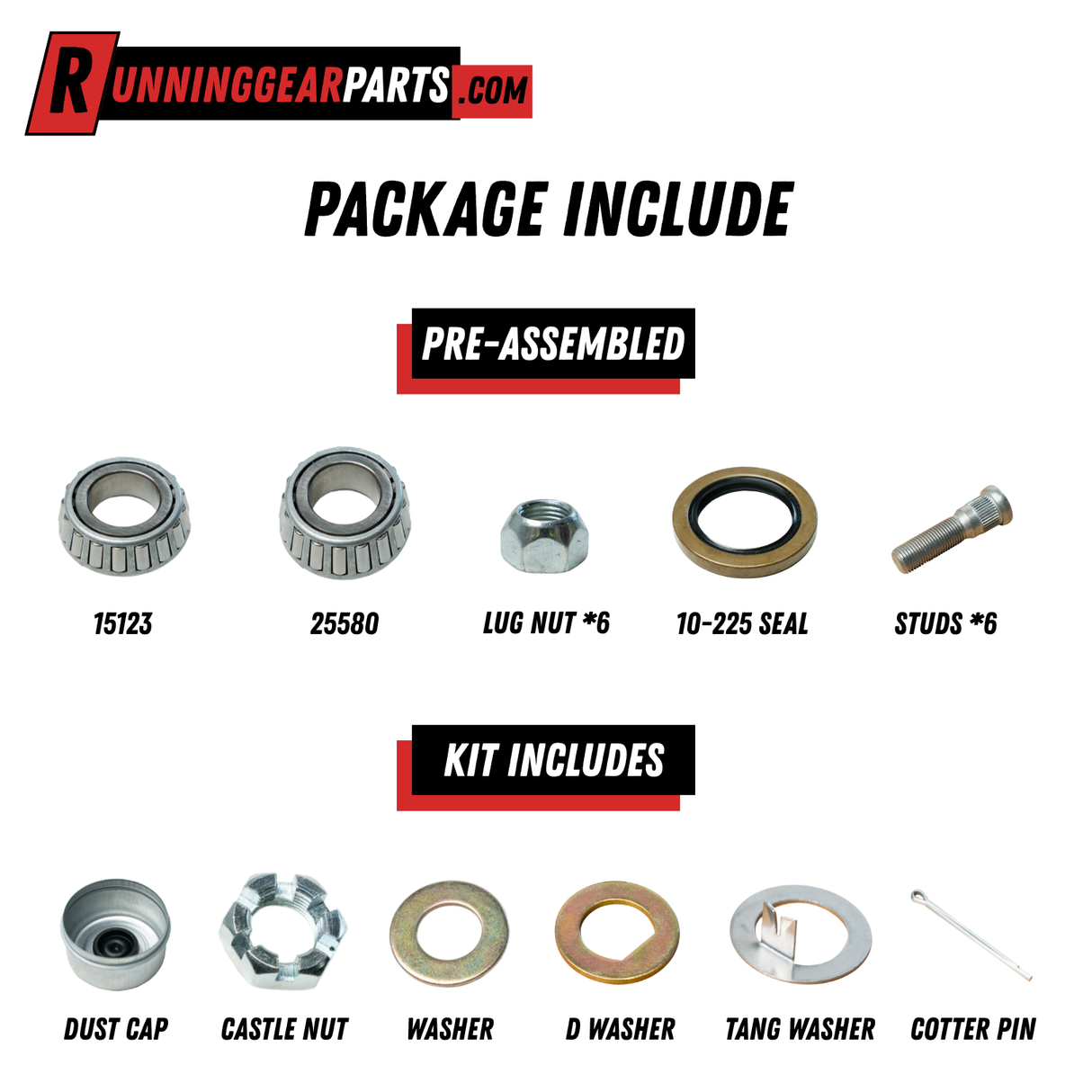

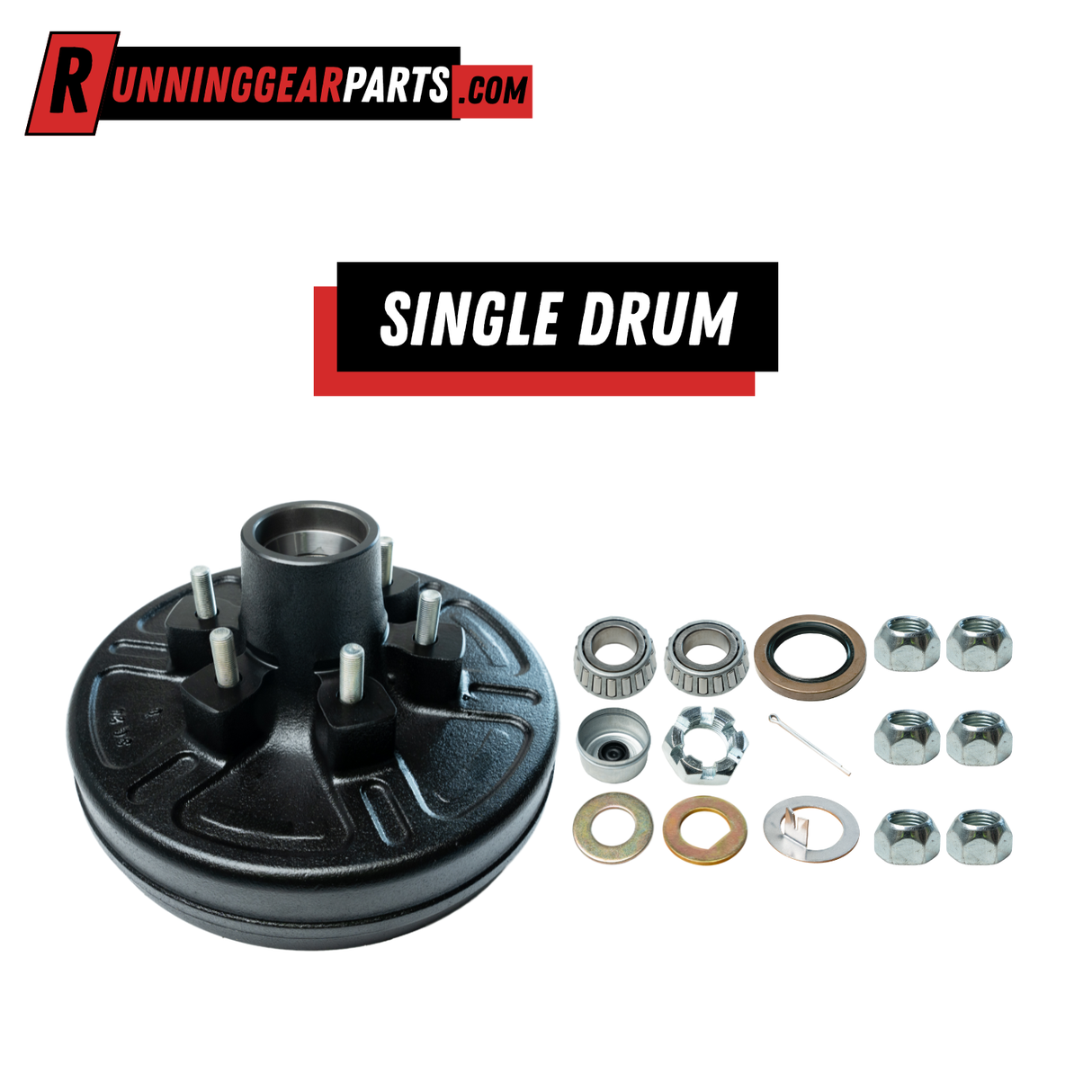

What’s Included
Pre-Assembled (Installed in Hub)
Inner Race: 25520
Outer Race: 15245
Wheel Studs: 1/2" (pressed in)
In the Box
Inner Bearing: 25580
Outer Bearing: 15123
Grease Seal: 10-225
Grease Cap: Regular or EZ Lube (select option)
Lug Nuts
Specifications
Axle Capacity: 6,000 lbs
Hub Capacity: 3,500 lbs
Bolt Pattern: 6 on 5.5"
Wheel Size Compatibility: 15", 16"
Inner Bearing: 25580 (1.75" ID)
Outer Bearing: 15123 (1.25" ID)
If the outer bearing is LM67048, it will be replaced by the 15123 bearing.
Inner Race: 25520
Outer Race: 15245
Grease Seal: 10-225 （ID: 2.25" / OD: 3.376")
Grease Cap: Regular or EZ Lube
Stud Size: 1/2"
Application: Idler axle only (non-brake)
Condition: Brand New
OEM & Replacement Part Numbers
Dexter 008-201-09
Dexter K08-201-94
Dexter K08-201-90
Dexter K08-201-98
Dexter K08-201-97
Compatible with Dexter, AL-KO, Lippert, Rockwell, and Besser Pro trailer axles.
