5,200-7,000 lb Trailer Axle Drum Kit- 8 on 6.5" Bolt Circle with 5/8" Studs, Pre-Greased
5,200-7,000 lb Trailer Axle Drum Kit- 8 on 6.5" Bolt Circle with 5/8" Studs, Pre-Greased - is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
To ensure optimal performance and extend the service life of your new trailer components, please follow these care guidelines after purchase:
- Before installation, check all parts for shipping damage or missing components. Do not install damaged parts.
- Always use correct tools and torque settings. Improper installation can lead to premature wear or failure.
- For bearings, suspensions, and brake components, apply high-quality trailer grease before first use if not pre-greased.
- Some parts (like brake assemblies) require a short break-in period to achieve full performance. Follow manufacturer instructions for best results.
- Recheck fasteners, grease levels, and moving components after 100 miles of towing, then at regular intervals.
- After exposure to water, road salt, or mud, clean and dry parts thoroughly. Apply anti-rust treatment if needed.
- If storing unused parts, keep them in a dry, sealed container away from moisture and direct sunlight.
Delivery and Shipping
Delivery and Shipping
Handling Time: Orders ship out within 1 business day after payment is received.
Shipping Methods: We use trusted carriers like UPS, FedEx, or USPS based on package size and destination.
Delivery Time: Estimated delivery within 2–6 business days (U.S. domestic orders).
Tracking: A tracking number will be provided once your order is dispatched.
5,200-7,000 lb Trailer Axle Drum Kit- 8 on 6.5" Bolt Circle wi...
Product Overview

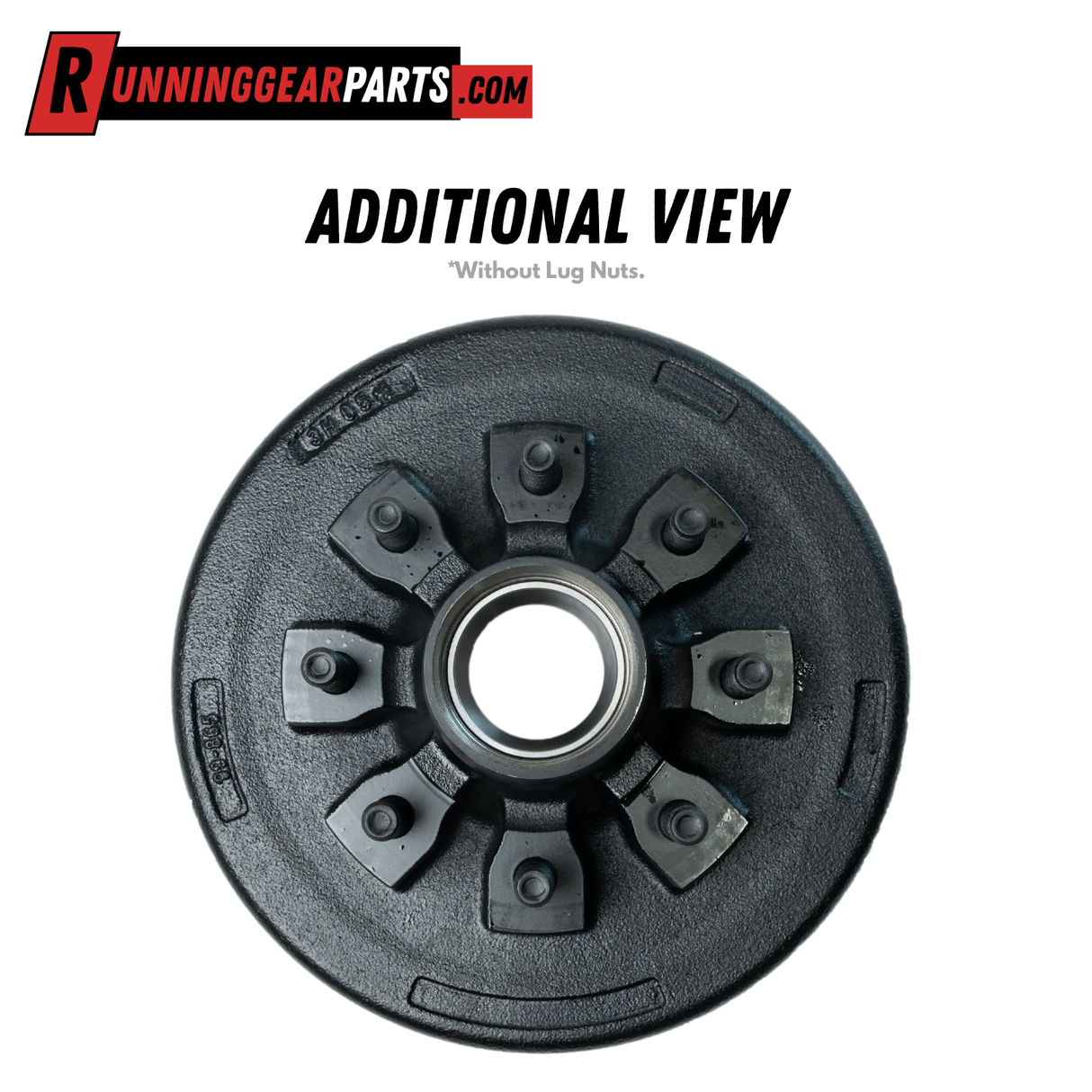

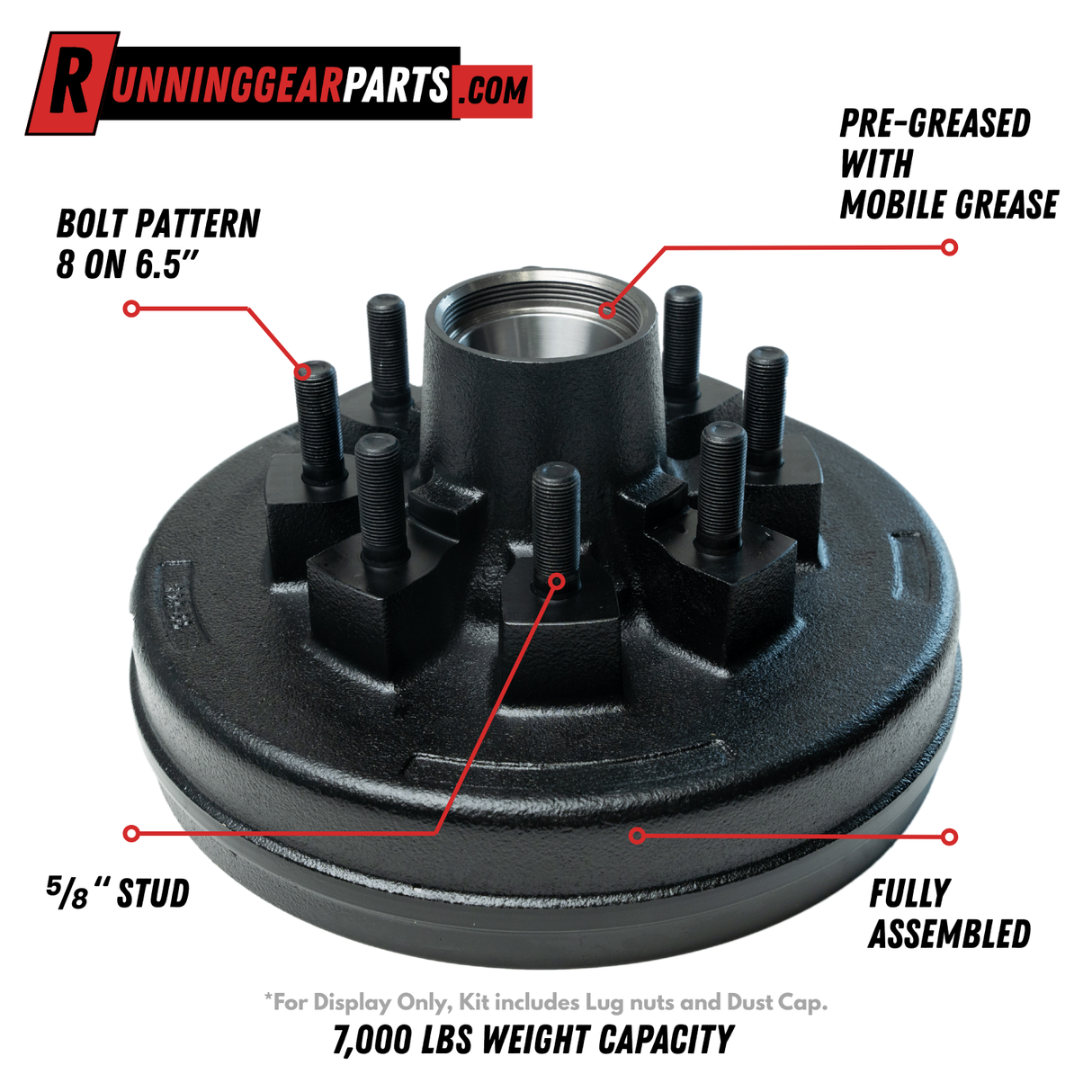

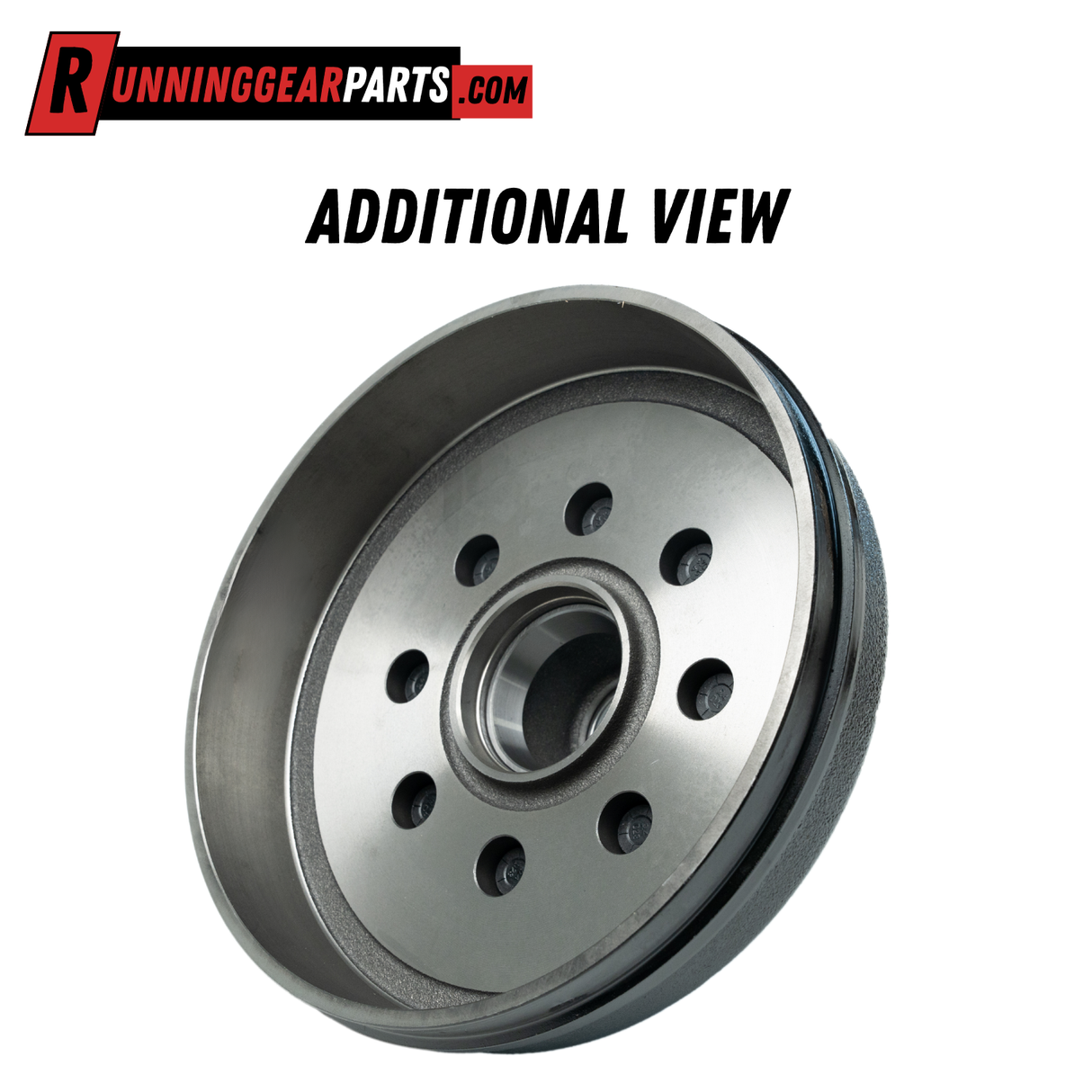

Built for heavier trailer applications, this 7,000 lb hub and drum assembly fits axles rated from 5,200 to 7,000 lbs and uses the common 25580 inner bearing and 14125A outer bearing for a reliable match on standard #42 spindles. With an 8 on 6.5" bolt pattern and 5/8" wheel studs, it is sized for larger wheels (typically 16"-17.5") and is compatible with 12" electric or hydraulic brake assemblies.
This complete unit arrives pre-greased and boxed with everything needed, so you can replace worn components quickly without searching for parts. It includes bearings, races, grease seals, studs, lug nuts and hardware in one ready-to-install package. The hub is finished with a tough protective coating to help resist corrosion and wear, giving you dependable performance mile after mile.

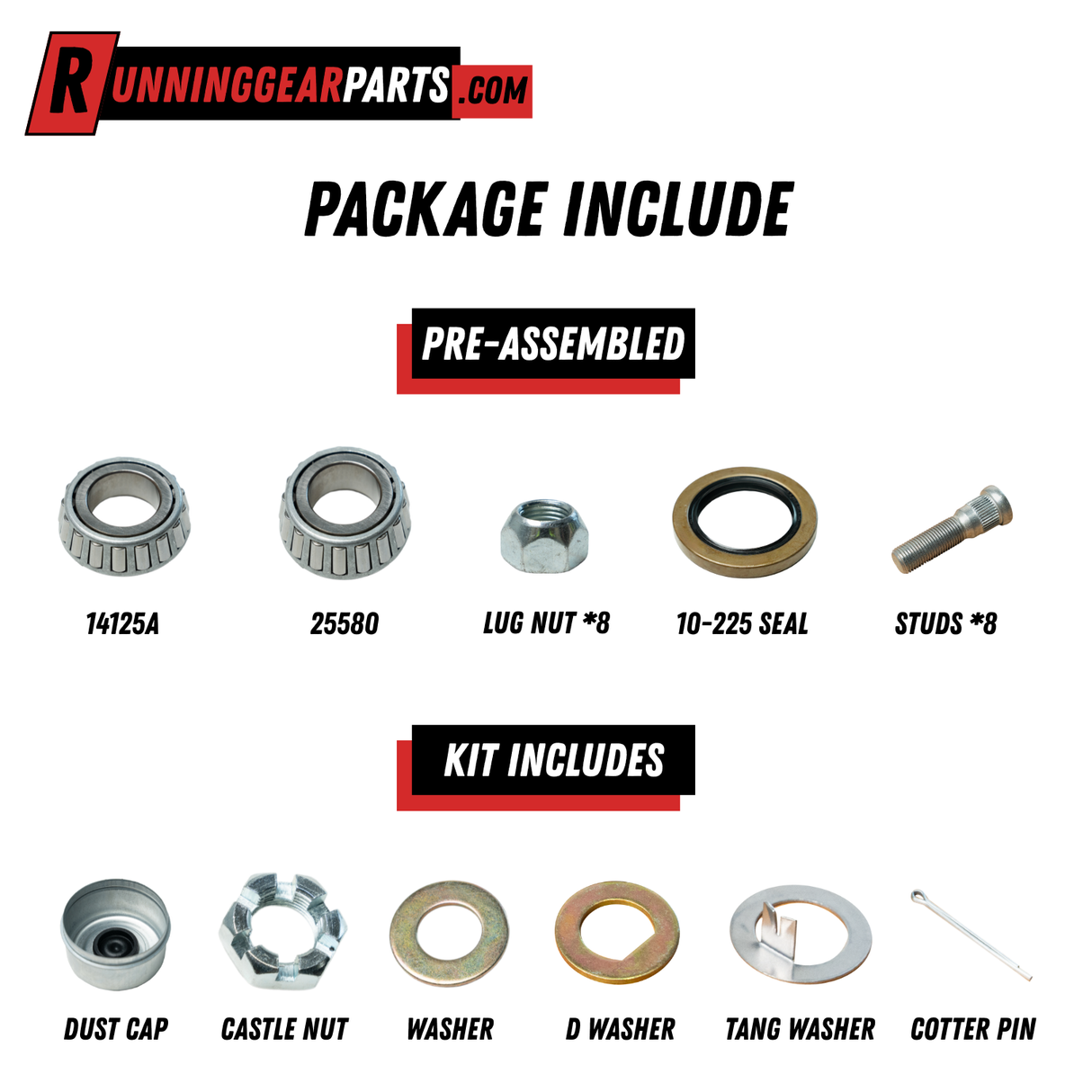

What’s Included
Pre-Assembled (Installed in Hub)
Inner Race: 25520
Outer Race: 14276
Wheel Studs: 5/8" (pressed in)
In the Box
Inner Bearing: 25580
Outer Bearing: 14125A
Grease Seal: 10-225
Grease Cap: Regular or EZ Lube (select option)
Lug Nuts
Specifications
Axle Capacity: 7,000 lbs
Hub Capacity: 3,500 lbs
Bolt Pattern: 8 on 6.5"
Wheel Size Compatibility: 16"
Inner Bearing: 25580 (1.75" ID)
Outer Bearing: 14125A (1.25" ID)
If the outer bearing is LM67048, it will be replaced by the 14125A bearing.
Inner Race: 25520
Outer Race: 14276
Grease Seal: 10-225 （ID: 2.25" / OD: 3.376")
Grease Cap: Regular or EZ Lube
Stud Size: 5/8"
Application: Idler axle only (non-brake)
Condition: Brand New
OEM & Replacement Part Numbers
Compatible with:
Dexter 008-219-18
Dexter 008-219-9G
Compatible with Dexter, AL-KO, Lippert, Rockwell, and Besser Pro trailer axles.
