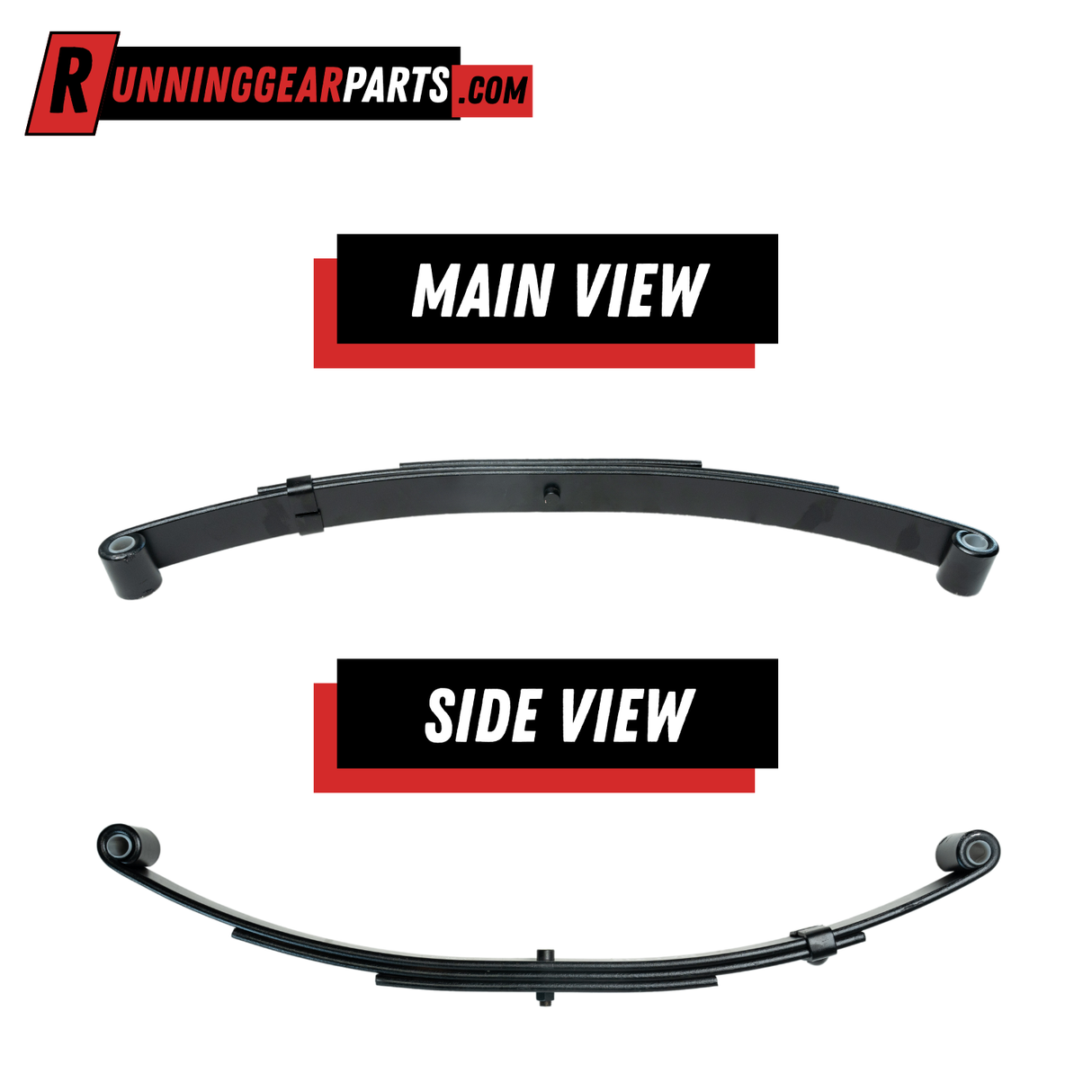

3-leaf double eye spring for 2,500 lb axles, 25-1/8" free length, 1-3/4" wide
3-leaf double eye spring for 2,500 lb axles, 25-1/8" free length, 1-3/4" wide - is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
To ensure optimal performance and extend the service life of your new trailer components, please follow these care guidelines after purchase:
- Before installation, check all parts for shipping damage or missing components. Do not install damaged parts.
- Always use correct tools and torque settings. Improper installation can lead to premature wear or failure.
- For bearings, suspensions, and brake components, apply high-quality trailer grease before first use if not pre-greased.
- Some parts (like brake assemblies) require a short break-in period to achieve full performance. Follow manufacturer instructions for best results.
- Recheck fasteners, grease levels, and moving components after 100 miles of towing, then at regular intervals.
- After exposure to water, road salt, or mud, clean and dry parts thoroughly. Apply anti-rust treatment if needed.
- If storing unused parts, keep them in a dry, sealed container away from moisture and direct sunlight.
Delivery and Shipping
Delivery and Shipping
Handling Time: Orders ship out within 1 business day after payment is received.
Shipping Methods: We use trusted carriers like UPS, FedEx, or USPS based on package size and destination.
Delivery Time: Estimated delivery within 2–6 business days (U.S. domestic orders).
Tracking: A tracking number will be provided once your order is dispatched.
3-leaf double eye spring for 2,500 lb axles, 25-1/8" free leng...
Product Overview:
This 3-leaf double eye trailer spring is engineered to support up to 2,500 lb trailer axles, making it a reliable suspension component for light trailers such as utility, boat, and equipment trailers. At 25-1/8" long with a 1-3/4" width and 9/16" eye diameter with nylon bushings included, it provides a precise fit and smooth articulation when paired with the correct hanger and shackle setup.
Constructed from sturdy steel, this spring flexes to absorb road shock and helps ensure a smooth ride while reducing wear on your trailer's frame and components. The double design makes installation straightforward when matched with compatible suspensions hangers and shackle straps, and the included bushings help reduce noise and wear at mounting points.
Ideal for single-axle trailers with approximately 2,500 lb capacity, this leaf spring restores suspension strength and ride quality when replacing worn or sagging springs. For best performance, replace springs in pairs to maintain balanced suspension and proper axle alignment.
What's Include by Kit option:

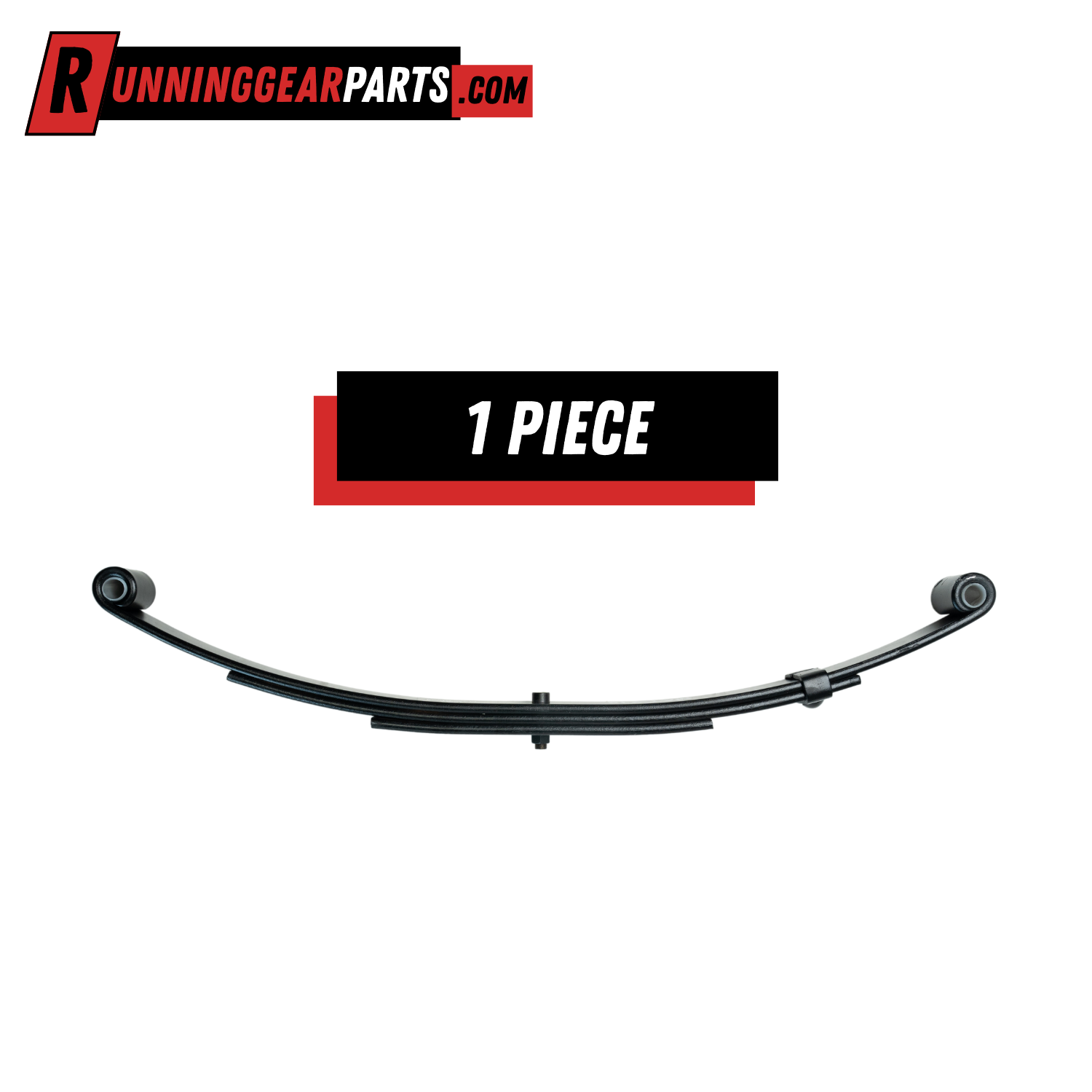

1 Piece
(1) 3-leaf double eye leaf spring (2,500 lbs capacity)
Pre-installed 9/16" nylon bushing

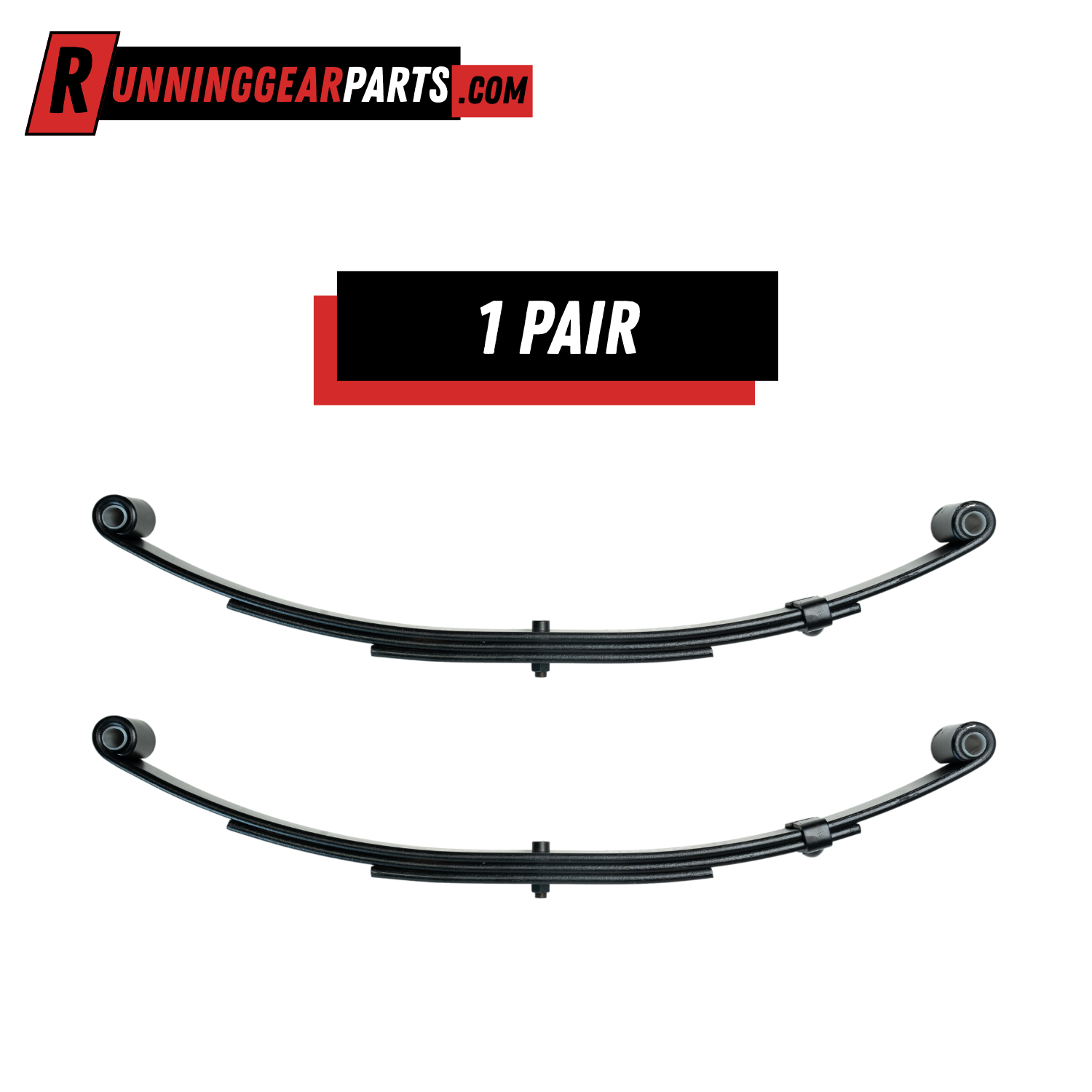

1 Pair
(2) 3-leaf double eye leaf springs (2,500 lbs each)
Pre-installed 9/16" nylon bushings

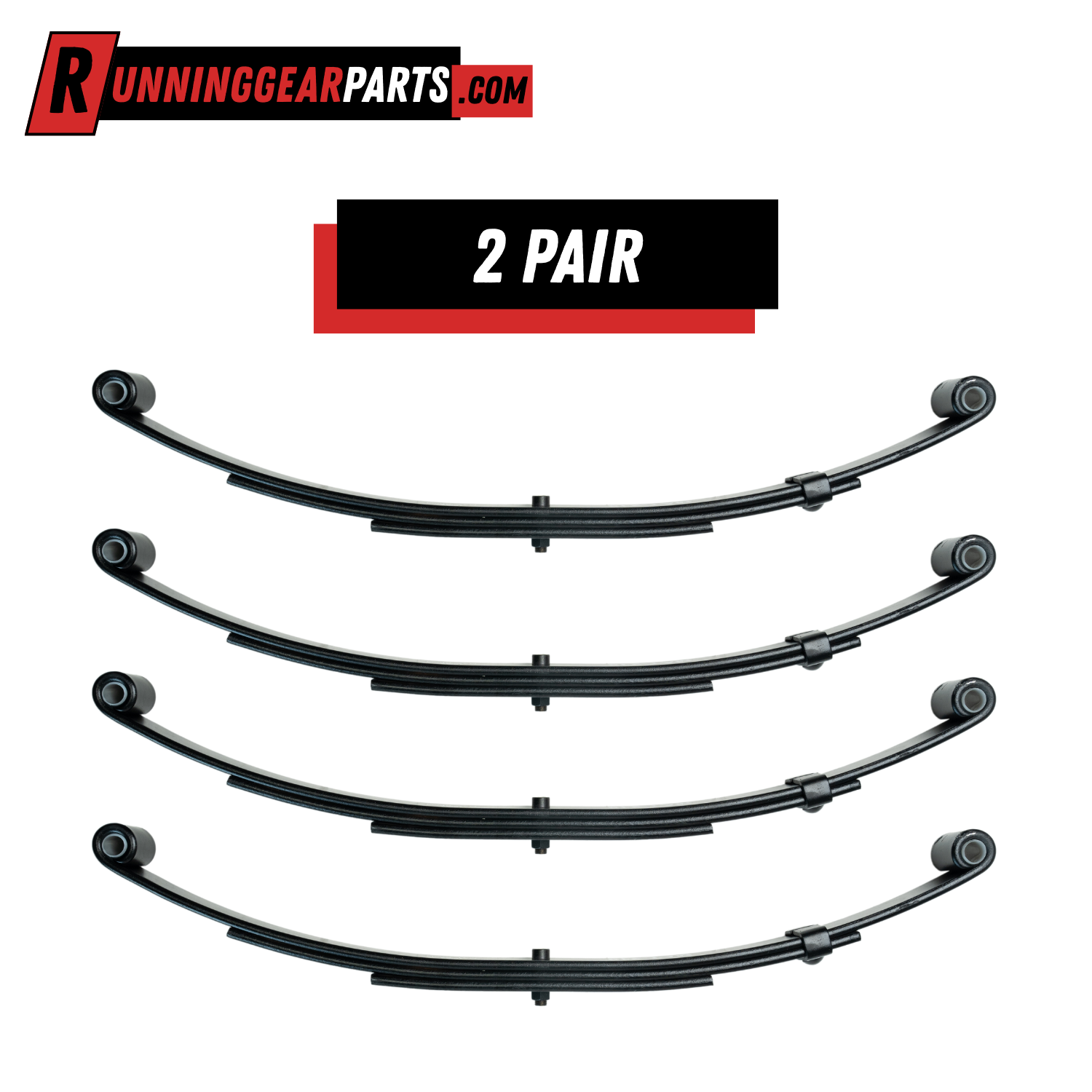

2 Paris
(4) 3-leaf double eye leaf springs (2,500 lbs each)
Pre-installed 9/16" nylon bushings

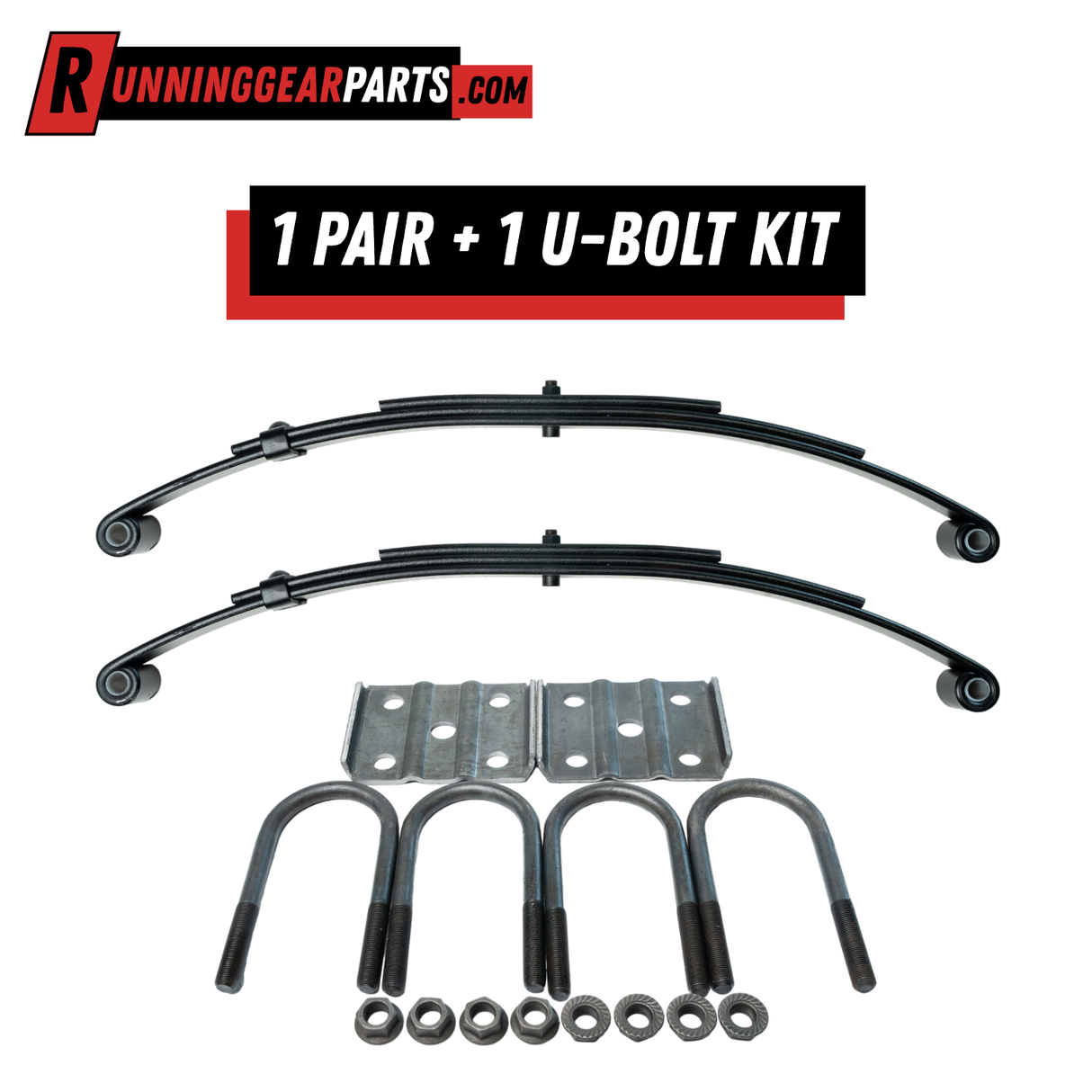

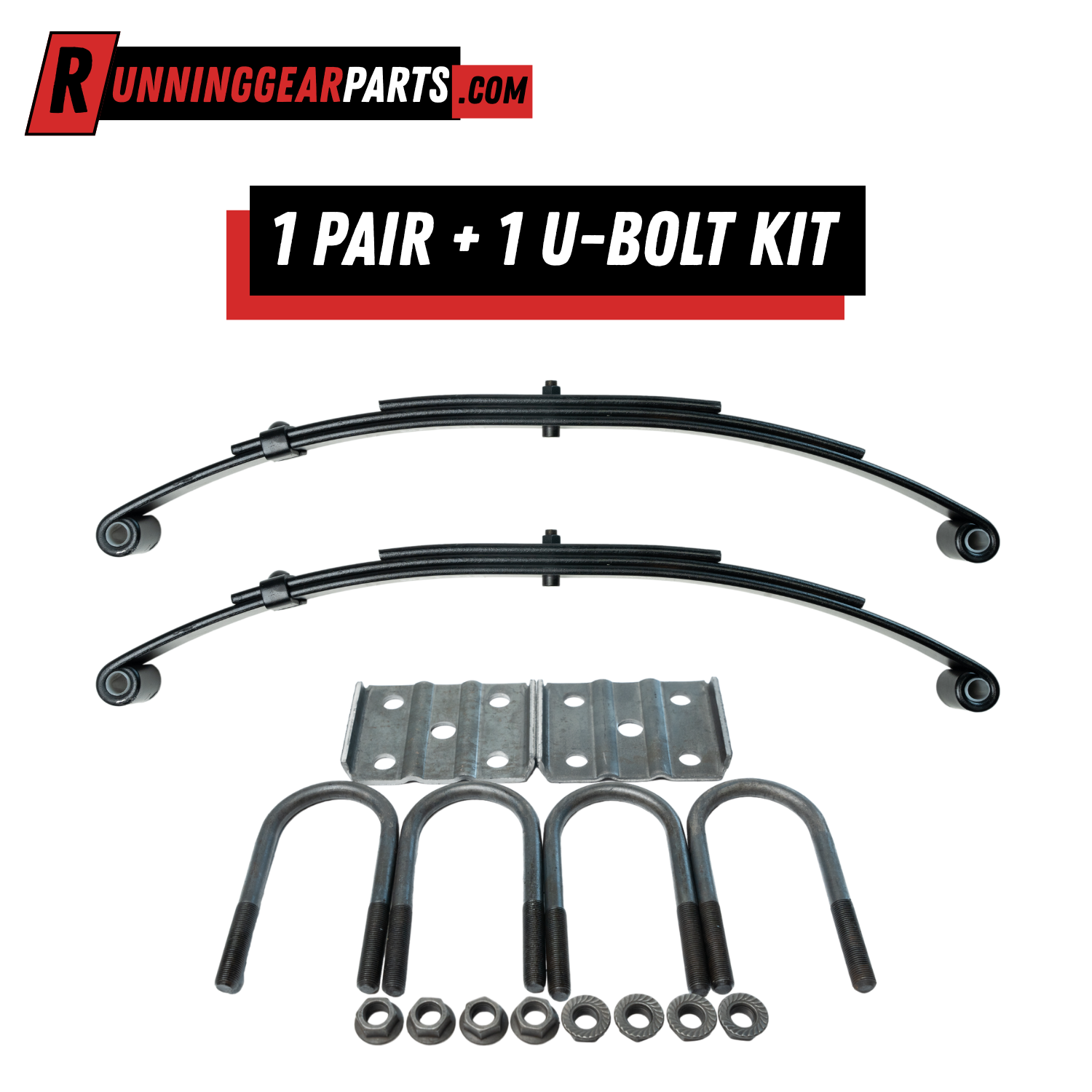

1 Pair + 1 U-Bolt Kit
(2) 3-leaf double eye leaf springs
Pre-installed 9/16" nylon bushings
(4) U-bolts
(8) nuts & lock washers
(2) axle tie plates

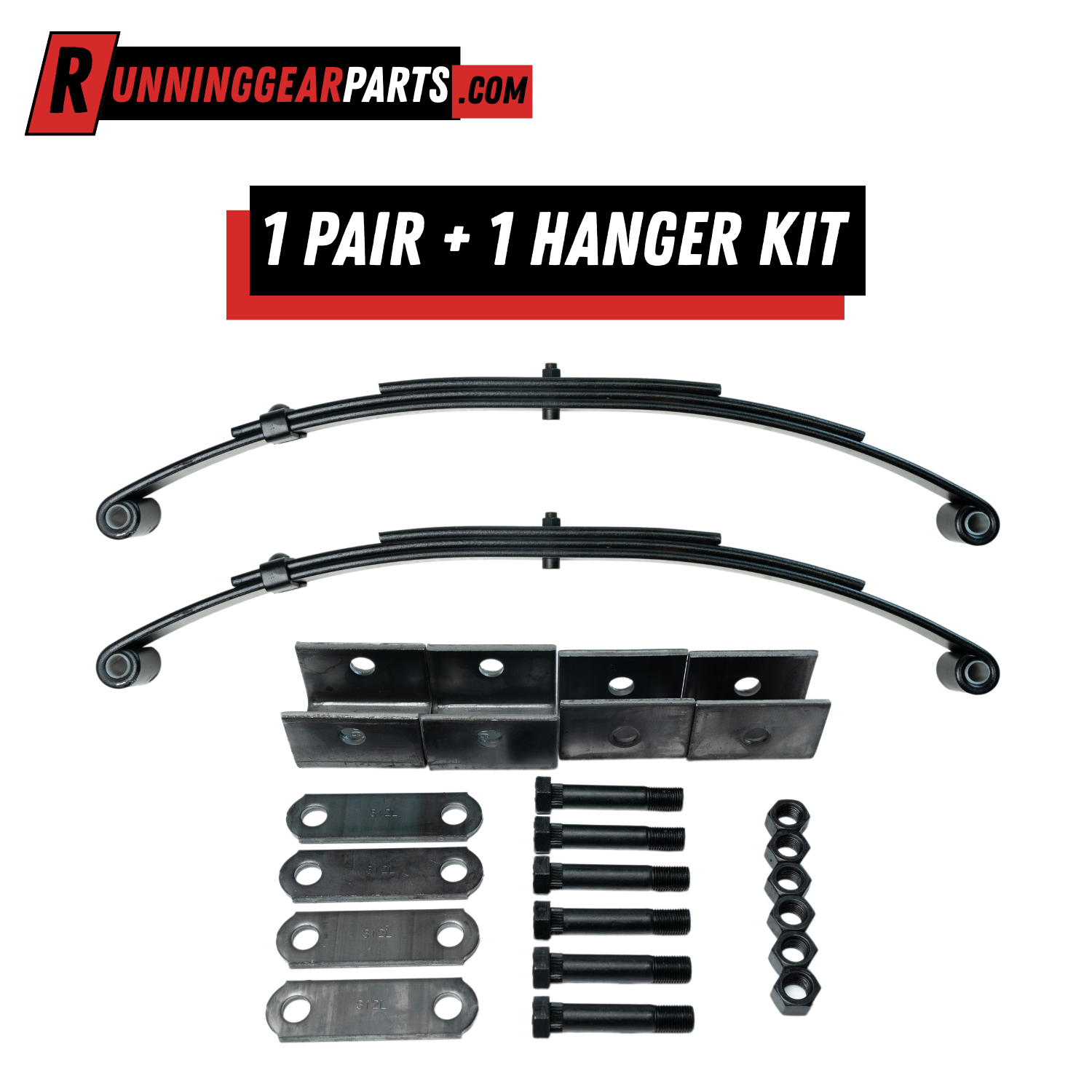

1 Pair + 1 Hanger Kit
(2) 3-leaf double eye leaf springs
Pre-installed 9/16" nylon bushings
(2) Front hangers
(2) Rear hangers
(4) Shackle links
(6) 9/16" -18 x 3" shackle bolt
(6) 9/16"-18 x 3: lock nuts

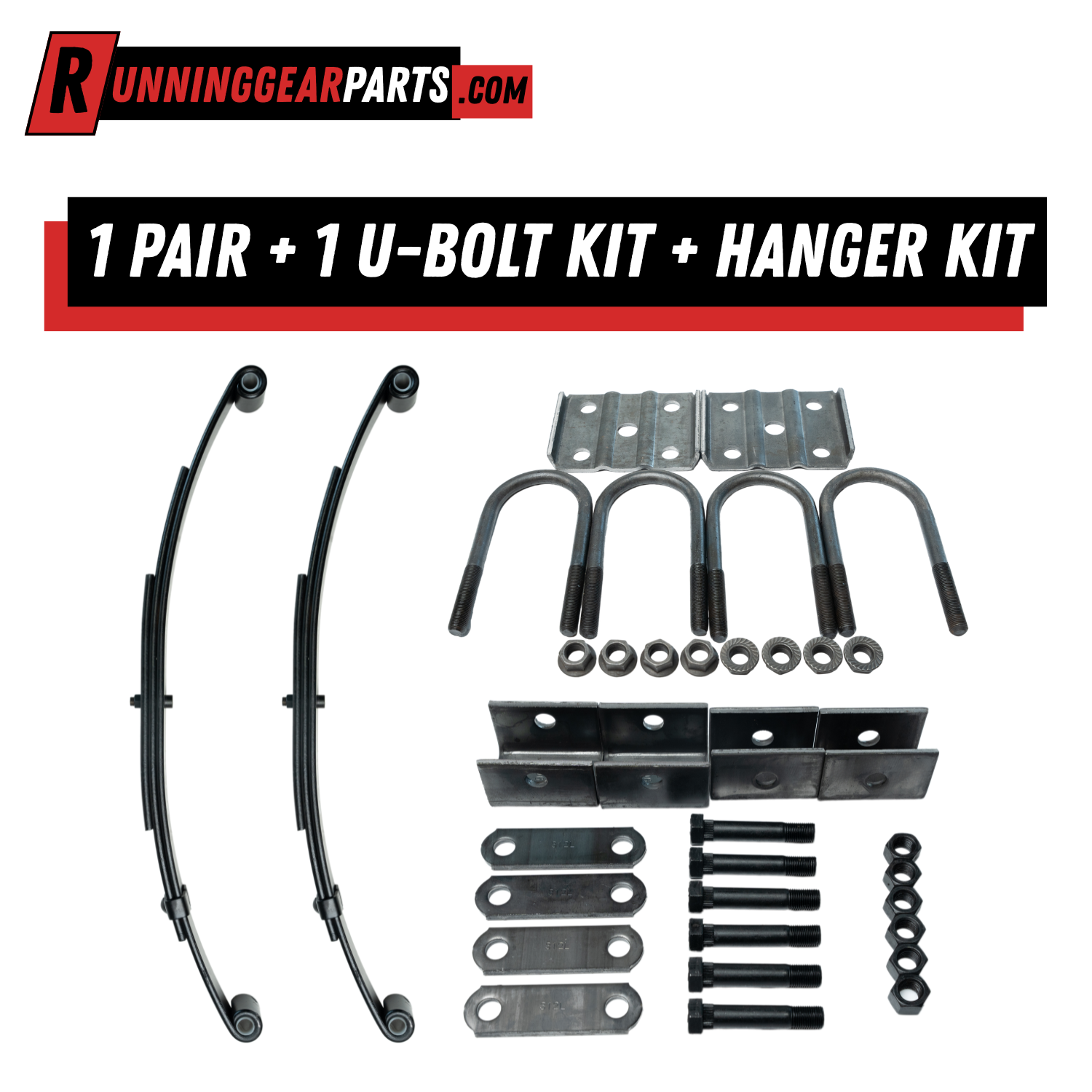

1 Pair + 1 U-Bolt Kit + 1 Hanger Kit
(2) 3-leaf double eye leaf springs
Pre-installed 9/16" nylon bushings
(4) U-bolts
(8) nuts & lock washers
(2) axle tie plates
(2) Front hangers
(2) Rear hangers
(4) Shackle links
(6) 9/16" -18 x 3" shackle bolt
(6) 9/16"-18 x 3: lock nuts

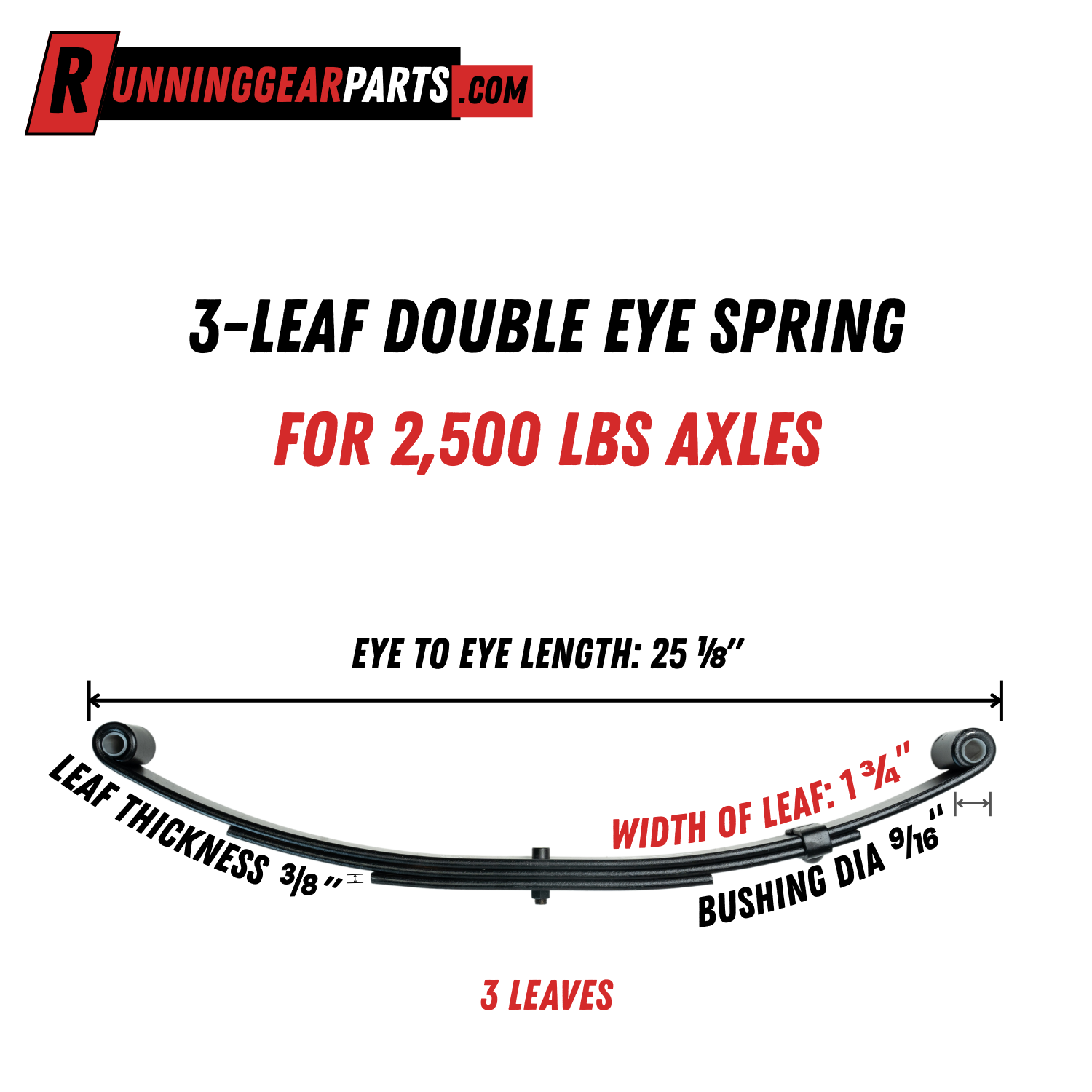

Specifications:
Leaf Spring:
Quantity: 1 leaf spring
Spring capacity: 1,250 lb
Axle capacity: 2,500 lb
Length from center of spring eye to center of spring eye (unloaded): 25-1/8"
Spring width: 1-3/4"
Eye diameter with bushing: 9/16"
Number of leaves: 3
U-bolt kit for 3,500 lb, round trailer axles:
Axle capacity: typical 3,500 lb axle
U-bolt length: 5-1/2"
Hex nuts: 7/16"-20
Hanger kit for double eye springs:
Axle type: single axle
Axle capacity: 2,000lb - 7,000 lb
Spring type: double eye leaf springs
Front hangers: 1-1/2" tall
Rear hangers: 7/8" tall
Shack straps: 3-1/8" long
Shackle bolts: 3" long x 9/16" diameter
Locknuts: 9/16" diameter
