Jammy LED Top Load Flange Mount Breakaway System, with 1 2 Volt 5 Amp Battery, Dual Use Junction Box, LED Charge Indicator Lights with Test Button, J-ELEC Breakaway Switch, J-BWEK-V2
Jammy LED Top Load Flange Mount Breakaway System, with 1 2 Volt 5 Amp Battery, Dual Use Junction Box, LED Charge Indicator Lights with Test Button, J-ELEC Breakaway Switch, J-BWEK-V2 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
To ensure optimal performance and extend the service life of your new trailer components, please follow these care guidelines after purchase:
- Before installation, check all parts for shipping damage or missing components. Do not install damaged parts.
- Always use correct tools and torque settings. Improper installation can lead to premature wear or failure.
- For bearings, suspensions, and brake components, apply high-quality trailer grease before first use if not pre-greased.
- Some parts (like brake assemblies) require a short break-in period to achieve full performance. Follow manufacturer instructions for best results.
- Recheck fasteners, grease levels, and moving components after 100 miles of towing, then at regular intervals.
- After exposure to water, road salt, or mud, clean and dry parts thoroughly. Apply anti-rust treatment if needed.
- If storing unused parts, keep them in a dry, sealed container away from moisture and direct sunlight.
Delivery and Shipping
Delivery and Shipping
Handling Time: Orders ship out within 1 business day after payment is received.
Shipping Methods: We use trusted carriers like UPS, FedEx, or USPS based on package size and destination.
Delivery Time: Estimated delivery within 2–6 business days (U.S. domestic orders).
Tracking: A tracking number will be provided once your order is dispatched.
Jammy LED Top Load Flange Mount Breakaway System, with 1 2 Volt 5 ...

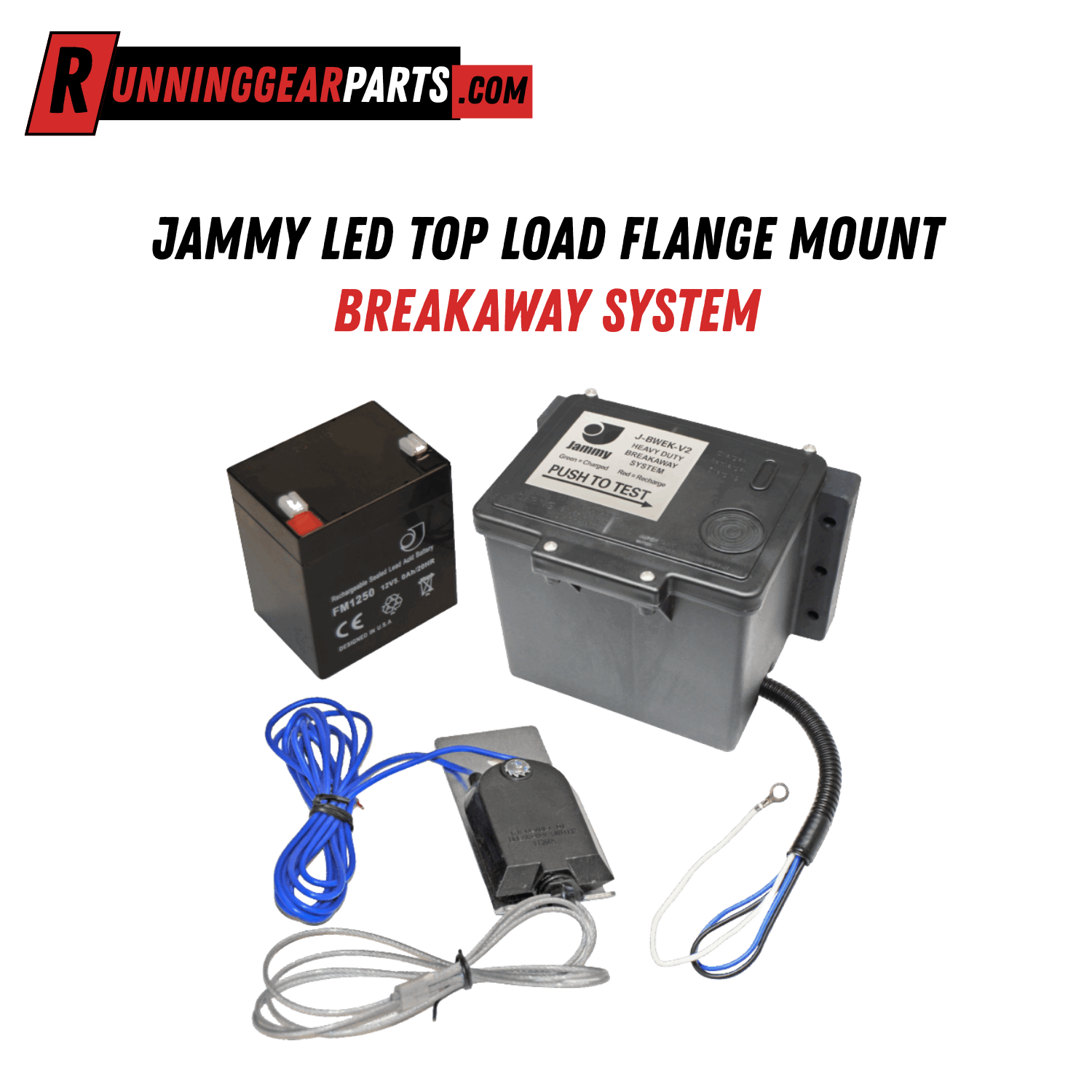

PRODUCT OVERVIEW:
This shop grade top load side mount LED breakaway system features a high performance safety solution engineered for trailer operations. Developed by Jammy, this upgraded unit features a heavy duty plastic battery box that has a unique dual use as a junction box, with wiring routed directly through the bottom/right side. The top loading lid is secured with fasteners and integrates premium LED Charge Indicator Lights paired with a manual Test Button for instant status checks. Built to withstand demanding conditions, the silicon potted circuitry includes a built-in charging circuit, and the package comes prewired with generous 12 inch leads alongside a specialized ring terminal on the ground wire. The system is designed for quick installation, utilizing up to 6 holes in the rear flange spaced 1.25 inches apart on 5-7/8 inch centers, which is explicitly intended for use with sheet metal or self drilling screws. This complete safety maintenance kit includes a reliable 12 Volt/5 Amp battery and a high sensitivity J-ELEC breakaway switch, minimizing field installation labor while ensuring maximum highway towing safety and dependable emergency backing performance.
WHAT'S INCLUDED BY KIT OPTION:
1 x Heavy Duty Plastic Battery Box with Lid and Fasteners
1 x 12 Volt / 5 Amp Battery
1 x Built-in Silicon Potted Circuitry with Charging Circuit and LED Test Lights
1 x J-ELEC Breakaway Switch
3 x 15" Leads with Ground Wire Ring Terminal
J-ELEC Breakaway Switch included
SPECIFICATIONS:
Brand: Jammy
System type: LED top load flange mount breakaway system
Part number: J-BWEK-V2
Battery specifications: 12 Volt / 5 Amp battery
Battery box style: Heavy duty plastic box with dual use as junction box Wiring entry: Wiring through bottom/right side
Lid style: Top loading lid secured with fasteners
Indicator system: LED charge indicator lights with test button
Circuit protection: Silicon potted circuitry with built-in charging circuit
Wiring leads: Prewired with generous 12" leads (3x 15" Leads listed)
Ground wire detail: Ring terminal on ground wire
Mounting type: Flange mount using 2 to 6 screws
Mounting hole details: Up to 6 holes in rear flange spaced 1.25" apart on 5-7/8" centers
Recommended hardware: Intended for use with sheet metal or self drilling screws
Switch component: J-ELEC Breakaway Switch included
