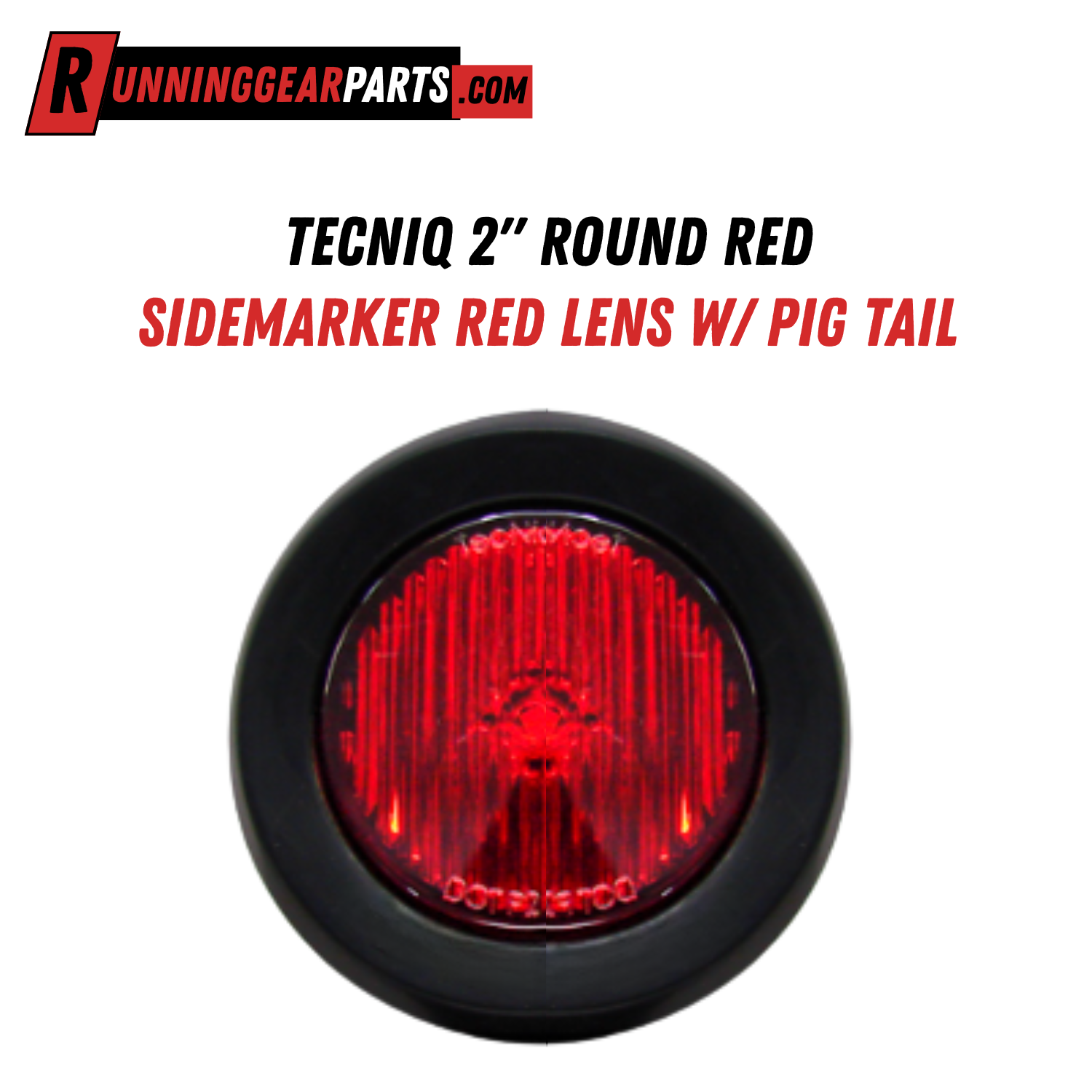

TecNiq 2" Round Red Sidemarker Red Lens w/ Pig Tail, S30-RR0P-1

$4.49 USD

Quantity

Single Piece 2 Pieces 4 Pieces

Product variants

Care information

To ensure optimal performance and extend the service life of your new trailer components, please follow these care guidelines after purchase:

Before installation, check all parts for shipping damage or missing components. Do not install damaged parts.
Always use correct tools and torque settings. Improper installation can lead to premature wear or failure.
For bearings, suspensions, and brake components, apply high-quality trailer grease before first use if not pre-greased.
Some parts (like brake assemblies) require a short break-in period to achieve full performance. Follow manufacturer instructions for best results.
Recheck fasteners, grease levels, and moving components after 100 miles of towing, then at regular intervals.
After exposure to water, road salt, or mud, clean and dry parts thoroughly. Apply anti-rust treatment if needed.
If storing unused parts, keep them in a dry, sealed container away from moisture and direct sunlight.

Delivery and Shipping

Handling Time: Orders ship out within 1 business day after payment is received.

Shipping Methods: We use trusted carriers like UPS, FedEx, or USPS based on package size and destination.

Delivery Time: Estimated delivery within 2–6 business days (U.S. domestic orders).

Tracking: A tracking number will be provided once your order is dispatched.

Product Overview:

Significantly maximize your transport security and ensure absolute highway compliance with this premium S30 2" round low profile side marker light expertly engineered by TecNiq Inc. As an ideal high performance high value lighting solution, this P2 rated lamp serves as a reliable clearance indicator for vehicle retrofitting. The ultra efficient lenses are combined with unique materials and powerful next generation LEDs to deliver exceptional illumination visibility. For guaranteed circuit board protection against the elements, the assembly features TecSeal urethane potting to ensure a durable and completely dust and water proof barrier. The durable impact resistant lens is crafted from automotive exterior lighting grade polycarbonate to provide excellent UV resistance over time. Exceeding strict FMVSS 108 standards, this light source is built to deliver reliable performance over one hundred thousand hours. This specific model utilizes a standard non polarized PL2 connector setup with bidirectional positive and ground wire colors. Designed for clean grommet mounted installation into a standard hole, it comes pre equipped with a convenient pig tail wire layout to maximize connection versatility.

What's Include by Kit Option:

Single Piece

1 x TecNiq S30-RR0P-1 2" Round Red Sidemarker Red Lens w/ Pig Tail Assembly

2 Pieces:

2 x TecNiq S30-RR0P-1 2" Round Red Sidemarker Red Lens w/ Pig Tail Assembly

4 Pieces:

4 x TecNiq S30-RR0P-1 2" Round Red Sidemarker Red Lens w/ Pig Tail Assembly

Specifications:

Brand: TecNiq Inc

Product type: 2" Round Red Sidemarker Red Lens w/ Pig Tail

Part number: S30-RR0P-1

Product dimensions: Diameter 2" x 0.72"

Assembly footprint dimensions: 3.00" Outer width with 0.95" and 2.20" Structural layout sizes

Illumination output color: Red

Internal lighting component: 1 LED

Lens styling appearance: Circular textured low profile red lens with ultra-efficient optics

Illumination coverage rating: P2-rated lamp performance

Fixture structural shape: Round

Voltage: 9-14VDC

Current: 0.06A-0.08A @ 12V for colored lens

Ingress protection rating: IP68 Rated dust and water proof with hermetic seal

Sealing technology: TecSeal Urethane Potting guaranteed circuit board protection

Lens material: Automotive exterior lighting grade polycarbonate with excellent UV resistance

Lens durability features: Durable impact resistant lens

Regulatory compliance: Exceeds FMVSS 108 standards

Connectors: PL2 -Non Polarized Connector

Wire Colors: White Wire - Interchangeable and Black Wire - Interchangeable

Ground: Bidirectional positive and ground wiring infrastructure

Mounting: Grommet-mounted into standard hole

Operational lifespan longevity: Reliable performance over 100,000 hours
