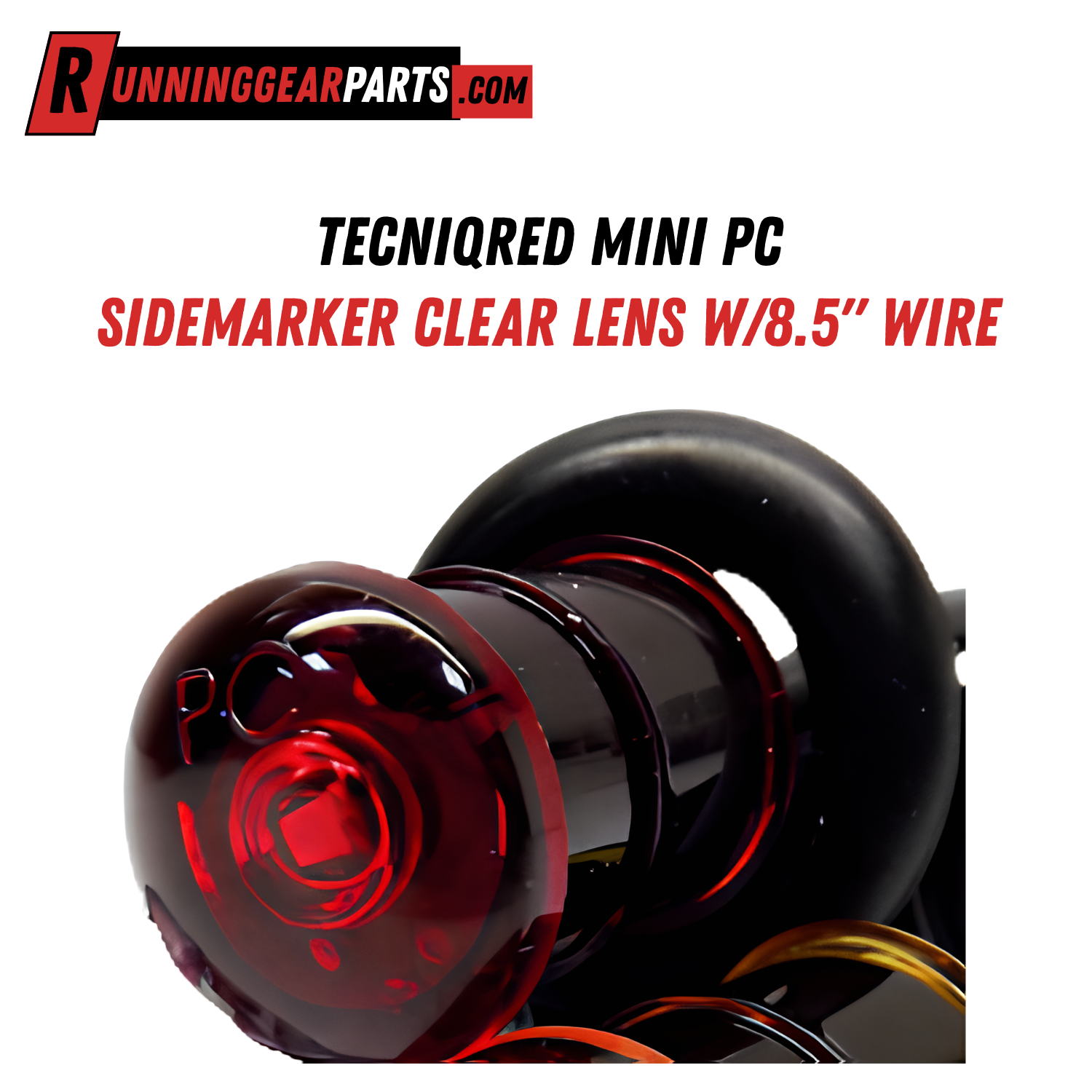

TecNiqRed Mini PC Sidemarker Clear Lens w/8.5" wire, S34-RC00-1

$5.49 USD

Quantity

Single Piece Pack of 4 Pack of 10

Product variants

Care information

To ensure optimal performance and extend the service life of your new trailer components, please follow these care guidelines after purchase:

Before installation, check all parts for shipping damage or missing components. Do not install damaged parts.
Always use correct tools and torque settings. Improper installation can lead to premature wear or failure.
For bearings, suspensions, and brake components, apply high-quality trailer grease before first use if not pre-greased.
Some parts (like brake assemblies) require a short break-in period to achieve full performance. Follow manufacturer instructions for best results.
Recheck fasteners, grease levels, and moving components after 100 miles of towing, then at regular intervals.
After exposure to water, road salt, or mud, clean and dry parts thoroughly. Apply anti-rust treatment if needed.
If storing unused parts, keep them in a dry, sealed container away from moisture and direct sunlight.

Delivery and Shipping

Handling Time: Orders ship out within 1 business day after payment is received.

Shipping Methods: We use trusted carriers like UPS, FedEx, or USPS based on package size and destination.

Delivery Time: Estimated delivery within 2–6 business days (U.S. domestic orders).

Tracking: A tracking number will be provided once your order is dispatched.

Product Overview:

Significantly maximize your transport security and ensure absolute highway compliance with this premium S34 PC/P2 rated miniature side marker light expertly engineered by TecNiq Inc. As a rotation-insensitive mini-PC lamp format designed to meet significant thermal and optical challenges, this world-leading efficient marker lamp features a high impact polycarbonate body filled with unbelievably tough urethane that makes this light nearly hammer proof. The durable impact resistant lens provides excellent UV resistance as it is constructed from automotive exterior lighting grade polycarbonate. For guaranteed circuit board protection, the assembly utilizes TecSeal urethane potting to ensure an IP68 rated dust and water proof design. Meeting wide angle demands, the illumination light distribution provides a 180 degree PC rated angle of coverage. Fully exceeding strict FMVSS 108 specifications, this high performance miniature indicator is built to deliver reliable performance over one hundred thousand hours. This specific model features a red light output shining through a clear lens, and comes equipped with a sheathed pigtail connection layout with an eight point five inch wire system. Designed to easily mount into a standard three quarter inch hole at any orientation, the fixture includes a chemical resistant TPE grommet for a secure installation setup.

What's Include by Kit Option:

Single Piece:

1 x TecNiq S34-RC00-1 Red Mini PC Sidemarker Clear Lens w/8.5" wire Assembly with Chemical Resistant TPE Grommet

Pack of 4:

4 x TecNiq S34-RC00-1 Red Mini PC Sidemarker Clear Lens w/8.5" wire Assembly with Chemical Resistant TPE Grommet

Pack of 10:

10 x TecNiq S34-RC00-1 Red Mini PC Sidemarker Clear Lens w/8.5" wire Assembly with Chemical Resistant TPE Grommet

Specifications:

Brand: TecNiq Inc

Product type: Red Mini PC Sidemarker Clear Lens w/8.5" wire

Part number: S34-RC00-1

Product dimensions: Ø1"x 0.97"

Technical diagram clearance dimensions: 0.786" Rear width by 1.063" Front diameter size dimensions

Illumination output color: Red

Internal lighting component: 1 LED

Lens styling appearance: Clear lens design

Angle: 180° PC Rated angle light coverage layout

Illumination coverage rating: PC/P2 output exceeds FMVSS 108 specifications

Voltage: 9-14VDC

Current for colored lens: 0.07A-0.09A

Current for Red/Clear configuration: 0.06A-0.08A

Current for Amber/Clear configuration: 0.03A-0.06A

Ingress protection rating: IP68 Rated - Dust and water proof

Sealing technology: TecSeal Urethane Potting - Guaranteed Circuit Board Protection

Lens features: Durable impact resistant lens with excellent UV resistance - Automotive exterior lighting grade polycarbonate

Regulatory compliance: Exceeds FMVSS 108 standards

Optional aesthetic hardware availability: 316 stainless steel trim ring available and optional stainless steel trim options

Alternative color availability: Available in color changing RGB option

Connectors: 9" pigtail standard configuration with specific Sheathed Pigtail wiring layout

Wire Colors: White Wire - Ground, Black Wire - 12VDC Power

Ground: White - Ground and Black - Positive wiring connection design layout

Mounting configuration: Easily mounts into standard 3/4" hole at any orientation with included chemical resistant TPE grommet

Operational lifespan longevity: Reliable performance over 100,000 hours
