8,000-lb Axles Brake Drum with 8 on 6-1/2" Bolt Pattern, 9/16" Stud, Oil Bath
8,000-lb Axles Brake Drum with 8 on 6-1/2" Bolt Pattern, 9/16" Stud, Oil Bath is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
To ensure optimal performance and extend the service life of your new trailer components, please follow these care guidelines after purchase:
- Before installation, check all parts for shipping damage or missing components. Do not install damaged parts.
- Always use correct tools and torque settings. Improper installation can lead to premature wear or failure.
- For bearings, suspensions, and brake components, apply high-quality trailer grease before first use if not pre-greased.
- Some parts (like brake assemblies) require a short break-in period to achieve full performance. Follow manufacturer instructions for best results.
- Recheck fasteners, grease levels, and moving components after 100 miles of towing, then at regular intervals.
- After exposure to water, road salt, or mud, clean and dry parts thoroughly. Apply anti-rust treatment if needed.
- If storing unused parts, keep them in a dry, sealed container away from moisture and direct sunlight.
Delivery and Shipping
Delivery and Shipping
Handling Time: Orders ship out within 1 business day after payment is received.
Shipping Methods: We use trusted carriers like UPS, FedEx, or USPS based on package size and destination.
Delivery Time: Estimated delivery within 2–6 business days (U.S. domestic orders).
Tracking: A tracking number will be provided once your order is dispatched.
8,000-lb Axles Brake Drum with 8 on 6-1/2" Bolt Pattern, 9/16&...
Product Overview:

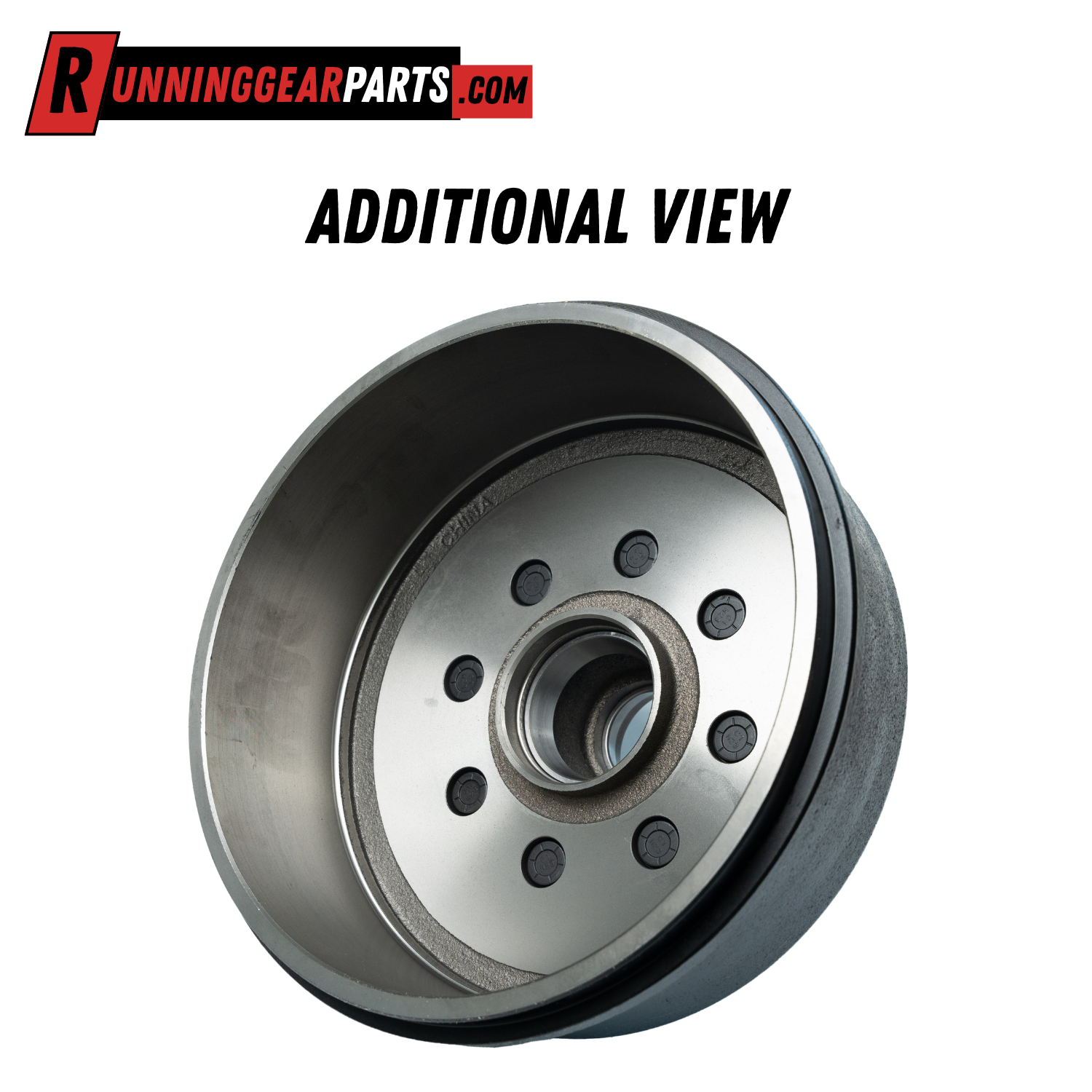

This heavy duty trailer brake drum is designed for 8,000 lb axle applications, delivering reliable braking performance and durability for demanding towing conditions. Featuring a standard 8 on 6-1/2" bolt pattern and 9/16" wheel studs, it provides a secure and stable fit for a wide range of heavy trailer wheels. Engineered to work with 12-1/4" x 3-3/8" brake assemblies, it ensures proper brake shoe contact and consistent stopping power for both electric and hydraulic braking systems.
Constructed from high strength materials, this drum offers excellent resistance to heat and wear, making it suitable for continuous heavy load use. It comes with bearings and studs pre-installed, allowing for easier installation and reduced downtime during maintenance.
Designed as an oil bath lubrication system, this product allows bearings to remain continuous lubricated without frequent disassembly, helping improve longevity and reduce maintenance compared to traditional grease setups.
Ideal for equipment trailers, flatbeds, car haulers, and other heavy duty applications, this oil bath drum provides a dependable replacement solution for maintaining safe and efficient braking performance on 8K axle systems.

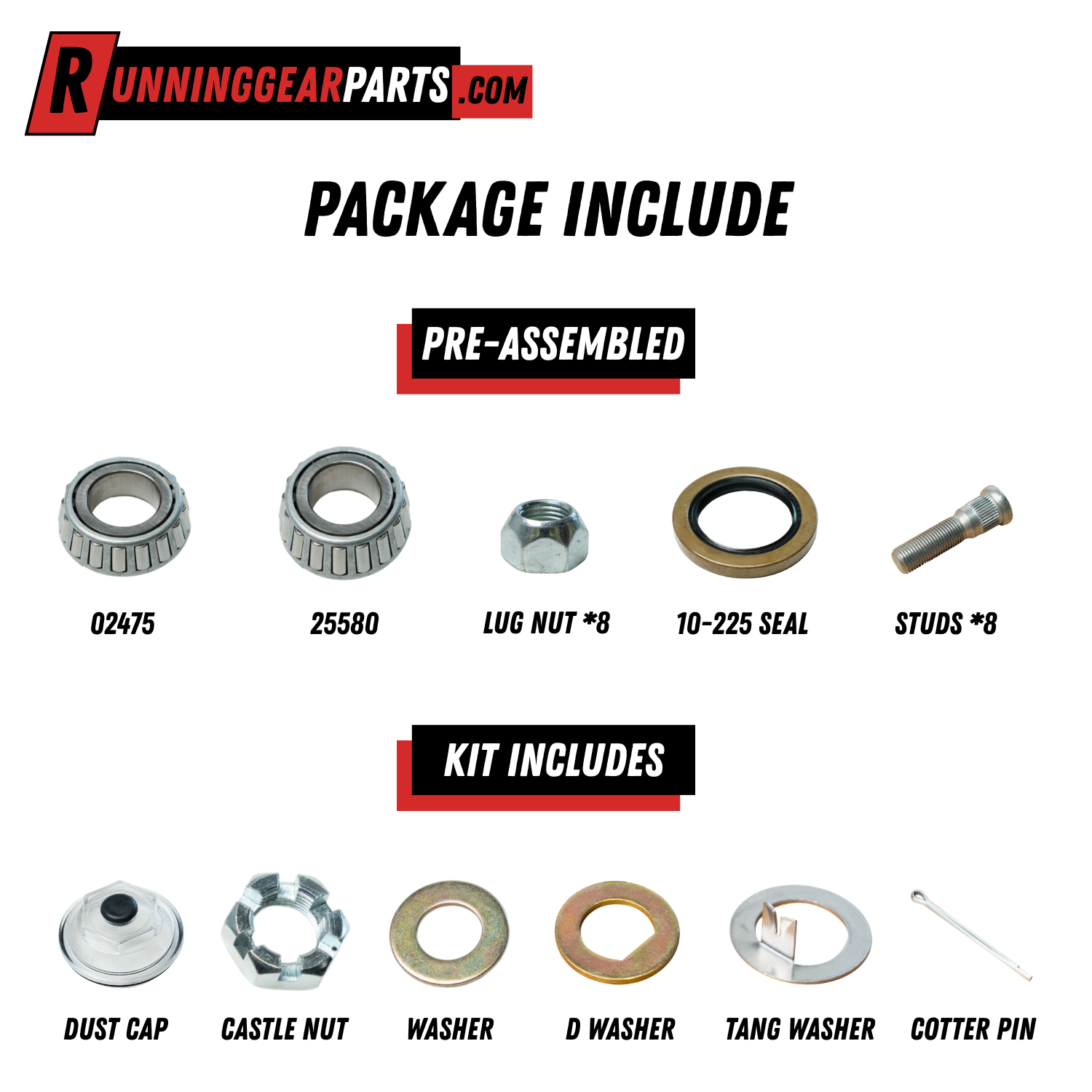

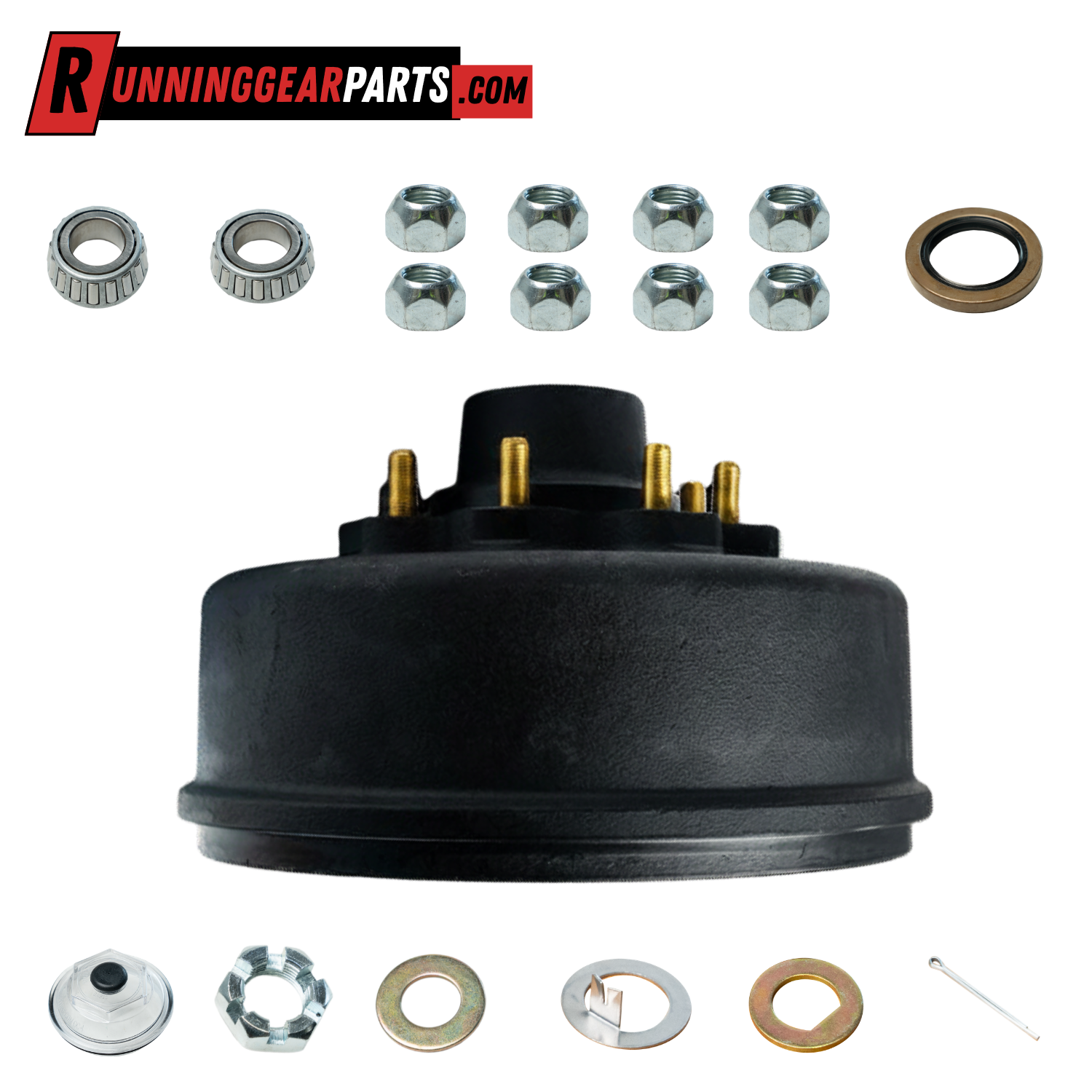

What's Include:
Pre-assembled:
1 x inner bearing (25580)
1 x outer bearing (02475)
1 x inner race (22520)
1 x outer race (02420)
1 x oil seal (10-63)
8 x 9/16" studs
8 x lug nuts
Kit includes:
1 x oil cap (OC-86580-26)
1 x castle nut
1 x washer
1 x D washer
1 x Tang washer
1 x cotter pin
Specifications:
Axle capacity: 8,000 lbs
Hub capacity: 4,000 lbs

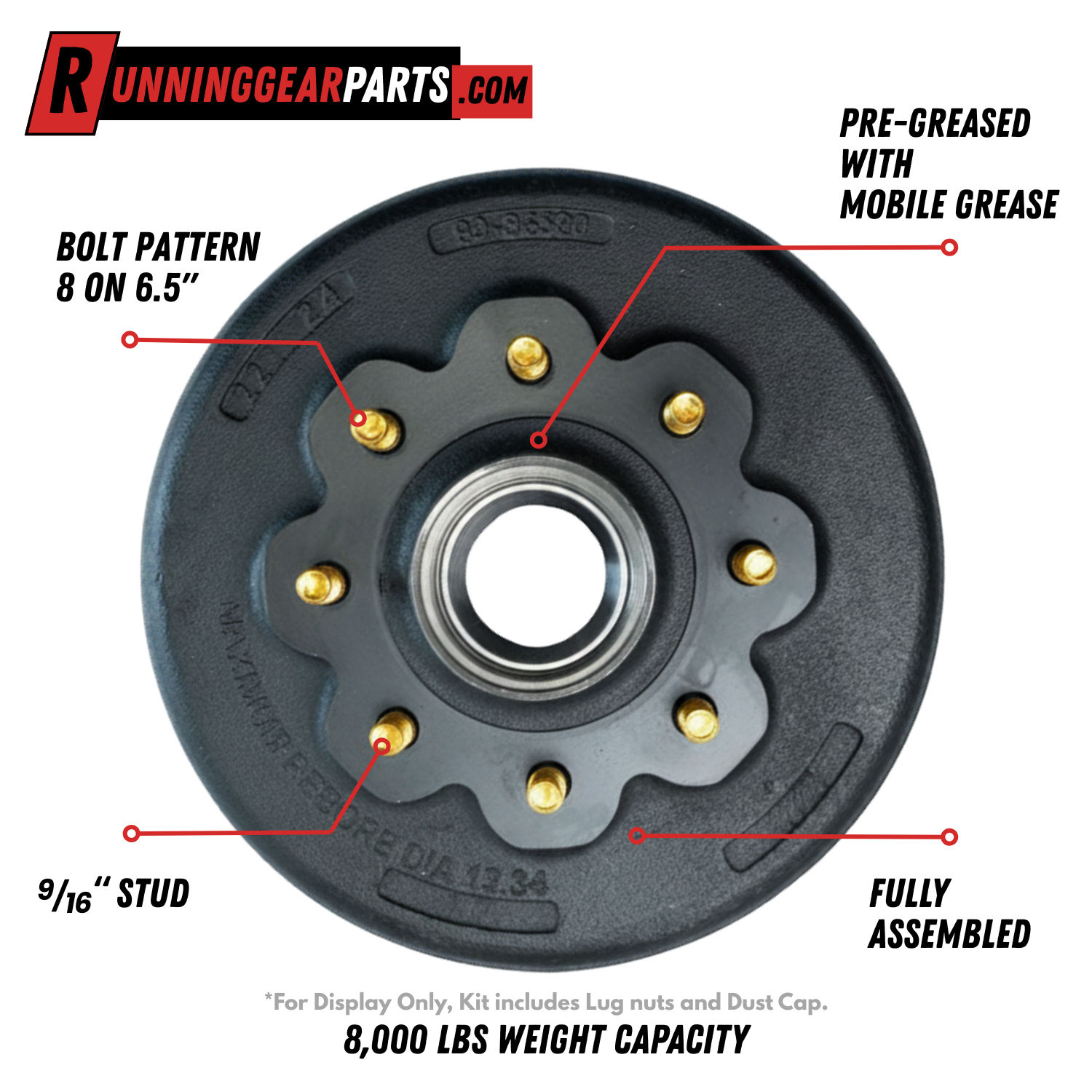

Bolt pattern: 8 on 6-1/2"
Wheel size: 16", 17.5"
Hub pilot: 4-3/4"
Drum dimensions:
Diameter: 12-1/4"
Width: 3-3/8"
Bearings:
Inner bearing: 25580 (ID:1.75")
Outer bearing: 02475 (ID:1.25")
Races:
Inner race: 22520
Outer race: 02420
Oil seal: 10-63 (ID:2.25", OD: 3.371")
Oil cap: OC-86580-26 (OD:2-7/8")
9/16" studs
OEM Part Number:
Compatible with Dexter K08-285-92
Compatible with Dexter trailer axles
