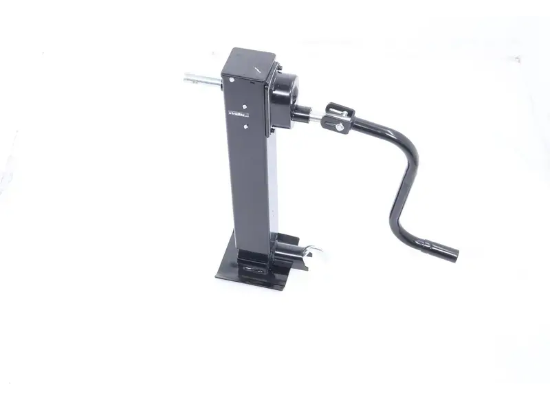

RAM 10,000 Lbs Lift Heavy Duty Square 2-Speed Side Wind Drop Leg Trailer Jack, Spring Return, TJD2SP-12000SP-F
RAM 10,000 Lbs Lift Heavy Duty Square 2-Speed Side Wind Drop Leg Trailer Jack, Spring Return, TJD2SP-12000SP-F is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
To ensure optimal performance and extend the service life of your new trailer components, please follow these care guidelines after purchase:
- Before installation, check all parts for shipping damage or missing components. Do not install damaged parts.
- Always use correct tools and torque settings. Improper installation can lead to premature wear or failure.
- For bearings, suspensions, and brake components, apply high-quality trailer grease before first use if not pre-greased.
- Some parts (like brake assemblies) require a short break-in period to achieve full performance. Follow manufacturer instructions for best results.
- Recheck fasteners, grease levels, and moving components after 100 miles of towing, then at regular intervals.
- After exposure to water, road salt, or mud, clean and dry parts thoroughly. Apply anti-rust treatment if needed.
- If storing unused parts, keep them in a dry, sealed container away from moisture and direct sunlight.
Delivery and Shipping
Delivery and Shipping
Handling Time: Orders ship out within 1 business day after payment is received.
Shipping Methods: We use trusted carriers like UPS, FedEx, or USPS based on package size and destination.
Delivery Time: Estimated delivery within 2–6 business days (U.S. domestic orders).
Tracking: A tracking number will be provided once your order is dispatched.
Product Overview:
The RAM TJD2SP-12000SP-F is a heavy-duty square trailer jack designed to provide reliable lifting and stabilizing for car haulers, enclosed trailers, and gooseneck trailers. Featuring a dual-speed gearbox, it allows you to shift into low gear for maximum mechanical advantage under load, or high gear for rapid travel when unladen. The integrated spring-return drop leg ensures swift deployment and automatic retraction to streamline your setup and towing process.
What's Included:
1 x Square Two-Speed Trailer Jack
1 x Sidewind Crank Handle
1 x Integrated Footplate
Specifications:
Brand: RAM
SKU / Model: TJD2SP-12000SP-F
Lift Capacity: 10,000 lbs
Support Capacity: 12,000 lbs
Total Lift: 25-7/8"
Screw Travel: 12-3/8"
Drop Leg Travel: 13-1/2"
Height Retracted: 28"
Height Extended: 40-1/4"
Outer Tube Width: 4"
Inner Tube Width: 3-1/2"
Footplate Dimensions: 8-1/4" x 8"
Adjustment Hole Spacing: 3-3/8"
High Gear Ratio: 6.43 revolutions per inch
Low Gear Ratio: 22.86 revolutions per inch
Jack Weight: around 65 lbs
