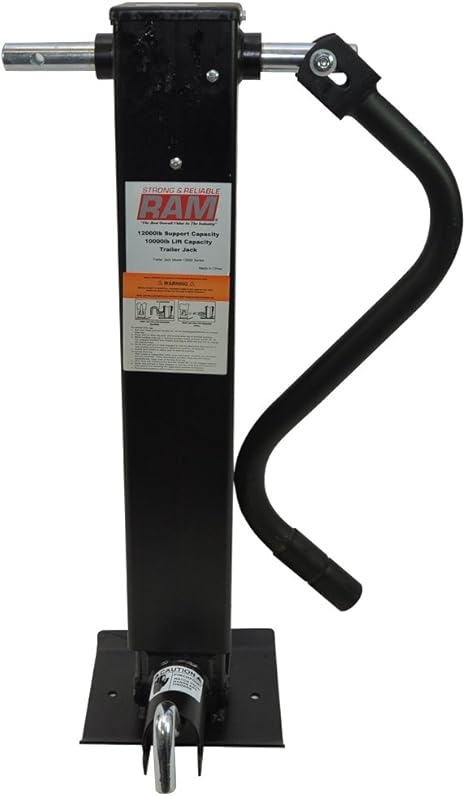

RAM 10,000 Lbs Lift Spring-Loaded Side-Wind Drop-Leg Trailer Jack, Front Pin, Spring-Loard Drop Leg Return with Crank Handle, TJD12000SPF
RAM 10,000 Lbs Lift Spring-Loaded Side-Wind Drop-Leg Trailer Jack, Front Pin, Spring-Loard Drop Leg Return with Crank Handle, TJD12000SPF is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
To ensure optimal performance and extend the service life of your new trailer components, please follow these care guidelines after purchase:
- Before installation, check all parts for shipping damage or missing components. Do not install damaged parts.
- Always use correct tools and torque settings. Improper installation can lead to premature wear or failure.
- For bearings, suspensions, and brake components, apply high-quality trailer grease before first use if not pre-greased.
- Some parts (like brake assemblies) require a short break-in period to achieve full performance. Follow manufacturer instructions for best results.
- Recheck fasteners, grease levels, and moving components after 100 miles of towing, then at regular intervals.
- After exposure to water, road salt, or mud, clean and dry parts thoroughly. Apply anti-rust treatment if needed.
- If storing unused parts, keep them in a dry, sealed container away from moisture and direct sunlight.
Delivery and Shipping
Delivery and Shipping
Handling Time: Orders ship out within 1 business day after payment is received.
Shipping Methods: We use trusted carriers like UPS, FedEx, or USPS based on package size and destination.
Delivery Time: Estimated delivery within 2–6 business days (U.S. domestic orders).
Tracking: A tracking number will be provided once your order is dispatched.
Product Overview:
This heavy-duty drop-leg trailer jack is engineered to deliver reliable lifting power for demanding agricultural, industrial, and commercial trailers. Featuring a smooth sidewind crank mechanism with built-in brass bushings, it reduces operational wear while providing effortless lifting performance. Designed for secure weld-on frame applications, it includes an integrated front-release set pin and a spring-loaded return foot for rapid and efficient retraction.
What's Included:
1 x Drop-Leg Trailer Jack
1 x Crank Handle
1 x Handle Clip
Specifications:
Brand: RAM
Manufacture Part Number: TJD12000SPF
Jack Type: Dropleg Jacks
Static Support Capacity: 12,000 lbs
Lifting Capacity: 10,000 lbs
Jack Travel / Lift: 12.5"
Dropleg Length: 13"
Retracted Height: 28.5"
Extended Height: 54"
Pin Position: Front Pin
Handle Type: Side Wind
Spring Return: Yes
Stabilization: Attached Sand Foot
Mounting Type: Weld-on
Material: Steel
Finish: Black Primer
