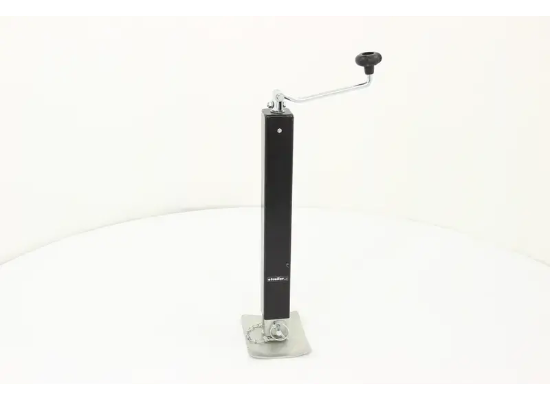

RAM 7,000 Lbs Lift Square Direct Weld Drop Leg Trailer Jack with Footplate Topwind 28-3/4" Lift TJD-7000


Regular price $84.79 USD

Care information

To ensure optimal performance and extend the service life of your new trailer components, please follow these care guidelines after purchase:

  • Before installation, check all parts for shipping damage or missing components. Do not install damaged parts.
  • Always use correct tools and torque settings. Improper installation can lead to premature wear or failure.
  • For bearings, suspensions, and brake components, apply high-quality trailer grease before first use if not pre-greased.
  • Some parts (like brake assemblies) require a short break-in period to achieve full performance. Follow manufacturer instructions for best results.
  • Recheck fasteners, grease levels, and moving components after 100 miles of towing, then at regular intervals.
  • After exposure to water, road salt, or mud, clean and dry parts thoroughly. Apply anti-rust treatment if needed.
  • If storing unused parts, keep them in a dry, sealed container away from moisture and direct sunlight.

Delivery and Shipping

Handling Time: Orders ship out within 1 business day after payment is received.

Shipping Methods: We use trusted carriers like UPS, FedEx, or USPS based on package size and destination.

Delivery Time: Estimated delivery within 2–6 business days (U.S. domestic orders).

Tracking: A tracking number will be provided once your order is dispatched.

Product Overview:

This square direct-weld drop leg trailer jack offers outstanding height control and heavy-duty lifting capacity for utility and commercial towing setups. The stable square frame configuration resists side-load flex on uneven ground, while the integrated drop leg mechanism rapidly cuts down on manual cranking time. Equipped with a built-in grease zerk for smooth gear maintenance and a corrosion-resistant black powder coat finish, it ensures long-term operational durability under demanding loads.

What's Included:

1 x Square Direct Weld Trailer Jack

1 x Attached Footplate

1 x Fold-Away Topwind Handle

Specifications:

Brand: RAM

Manufacture Part Number: TJD-7000

Lift Capacity: 7,000 lbs

Support Capacity: 8,000 lbs

Total Lift: 28-3/4"

Screw Travel: 15-1/4"

Drop Leg Travel: 13-1/2"

Retracted Height: 24-1/4"

Extended Height: 39-1/2"

Outer Tube Width: 2-1/2"

Inner Tube Width: 2-1/4"

Footplate Dimensions: 7-7/8" long x 6" wide

Handle Radius: 9-3/4"

Adjustment Hole Spacing on Drop Leg: 3-3/8"

Handle Type: Topwind

Finish: Black powder coat outer with zinc-plated internals
