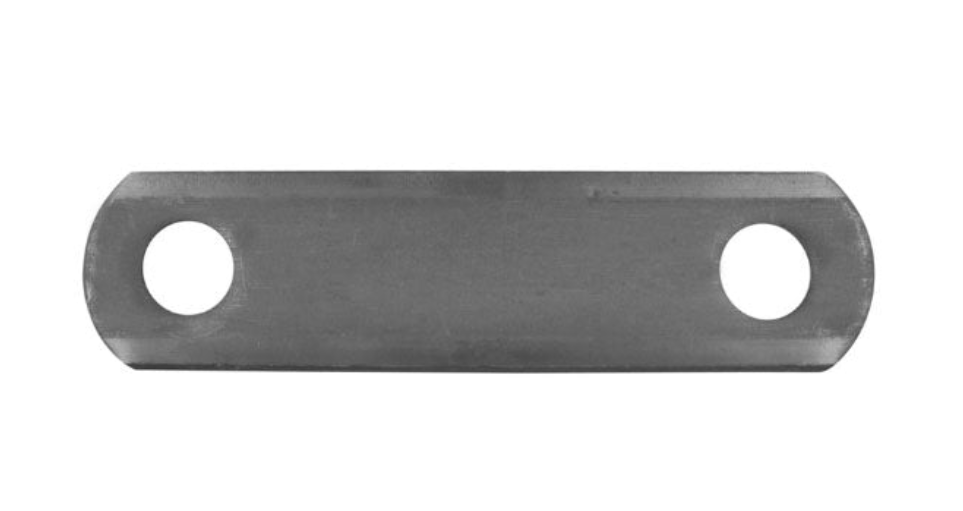

RPG 3" Trailer Leaf Spring Shackle Strap - 2-1/4" Center-to-Center-3" Length

$4.49 USD

Shipping calculated at checkout.

Quantity

Single Piece Pack of 4 Pack of 8

Product variants

Care information

To ensure optimal performance and extend the service life of your new trailer components, please follow these care guidelines after purchase:

Before installation, check all parts for shipping damage or missing components. Do not install damaged parts.
Always use correct tools and torque settings. Improper installation can lead to premature wear or failure.
For bearings, suspensions, and brake components, apply high-quality trailer grease before first use if not pre-greased.
Some parts (like brake assemblies) require a short break-in period to achieve full performance. Follow manufacturer instructions for best results.
Recheck fasteners, grease levels, and moving components after 100 miles of towing, then at regular intervals.
After exposure to water, road salt, or mud, clean and dry parts thoroughly. Apply anti-rust treatment if needed.
If storing unused parts, keep them in a dry, sealed container away from moisture and direct sunlight.

Delivery and Shipping

Handling Time: Orders ship out within 1 business day after payment is received.

Shipping Methods: We use trusted carriers like UPS, FedEx, or USPS based on package size and destination.

Delivery Time: Estimated delivery within 2–6 business days (U.S. domestic orders).

Tracking: A tracking number will be provided once your order is dispatched.

Q1 Will this brake fit my trailer?

This brake assembly fits most standard 7,000 lb trailer axles that use 12" × 2" electric brakes with a 5-bolt mounting flange. Please verify your axle rating and brake dimensions before ordering. If you're unsure, send us your axle tag or hub information and we'll help confirm compatibility.

Q2 Does it fit Dexter or Lippert axles?

Yes. It is compatible with many standard Dexter, Lippert, Rockwell American, AL-KO, and other 7,000 lb trailer axles that use a standard 12" × 2" brake assembly. Always verify your axle specifications before purchasing.

Q3 Is this a self-adjusting brake?

Yes. This is a self-adjusting electric brake assembly, which automatically maintains proper brake shoe clearance during normal operation. This reduces maintenance and helps provide consistent braking performance.

Specifications:

Overall Length: 3"
Center-to-Center Hole Distance: 2-1/4"
Hole Inside Diameter: 9/16"
Strap Width: 1-1/4"
Material Thickness: 1/4"
Material Type: Raw Metal

What's Included by Kit Option

Single Piece:

1 x Raw Steel 3" Trailer Leaf Spring Shackle Strap (2-1/4" Center-to-Center)

Pack of 4:

4 x Raw Steel 3" Trailer Leaf Spring Shackle Strap (2-1/4" Center-to-Center)

Pack of 8:

8 x Raw Steel 3" Trailer Leaf Spring Shackle Strap (2-1/4" Center-to-Center)

Product Overview:

Overloaded trailers and harsh road conditions put immense pressure on your suspension's pivot points. Shackle straps are designed to absorb this movement, but over time, their bolt holes can become elongated ("egged-out") or the metal can corrode and weaken.

Engineered from robust 1/4" thick raw structural steel, this replacement shackle link is built to resist bending and stretching under heavy towing loads. The raw metal finish provides a clean slate, allowing you to easily weld it if needed, or apply your own protective coat of paint or primer to match your trailer's frame. Precision-stamped with standard 2-1/4" center-to-center spacing, it restores stable, squeak-free suspension movement on utility trailers, boat trailers, and cargo haulers.
