Product Overview
Designed for 12,000 lb trailer axles, this hydraulic drum brake assembly features a 12-1/4" x 5" brake size, forward self-adjusting operation, and a 7-bolt mounting configuration.
Available in left-hand, right-hand, and one-pair configurations, these brake assemblies provide replacement options for compatible heavy-duty trailer axle braking systems. The left-hand version cross-references Dexter 023-408-00 / K23-408-00, while the right-hand version cross-references 023-409-00 / K23-409-00.
Compatible applications include select Dexter, Lippert, and Besser Pro axle setups using the same 12,000 lb axle rating, brake dimensions, and 7-hole mounting configuration.
Always verify axle capacity, brake size, mounting flange pattern, and brake position before ordering.
Specifications
Compatible Axle Rating: 12,000 lb
Brake Type: Hydraulic Drum Brake
Adjustment Type: Forward Self-Adjusting

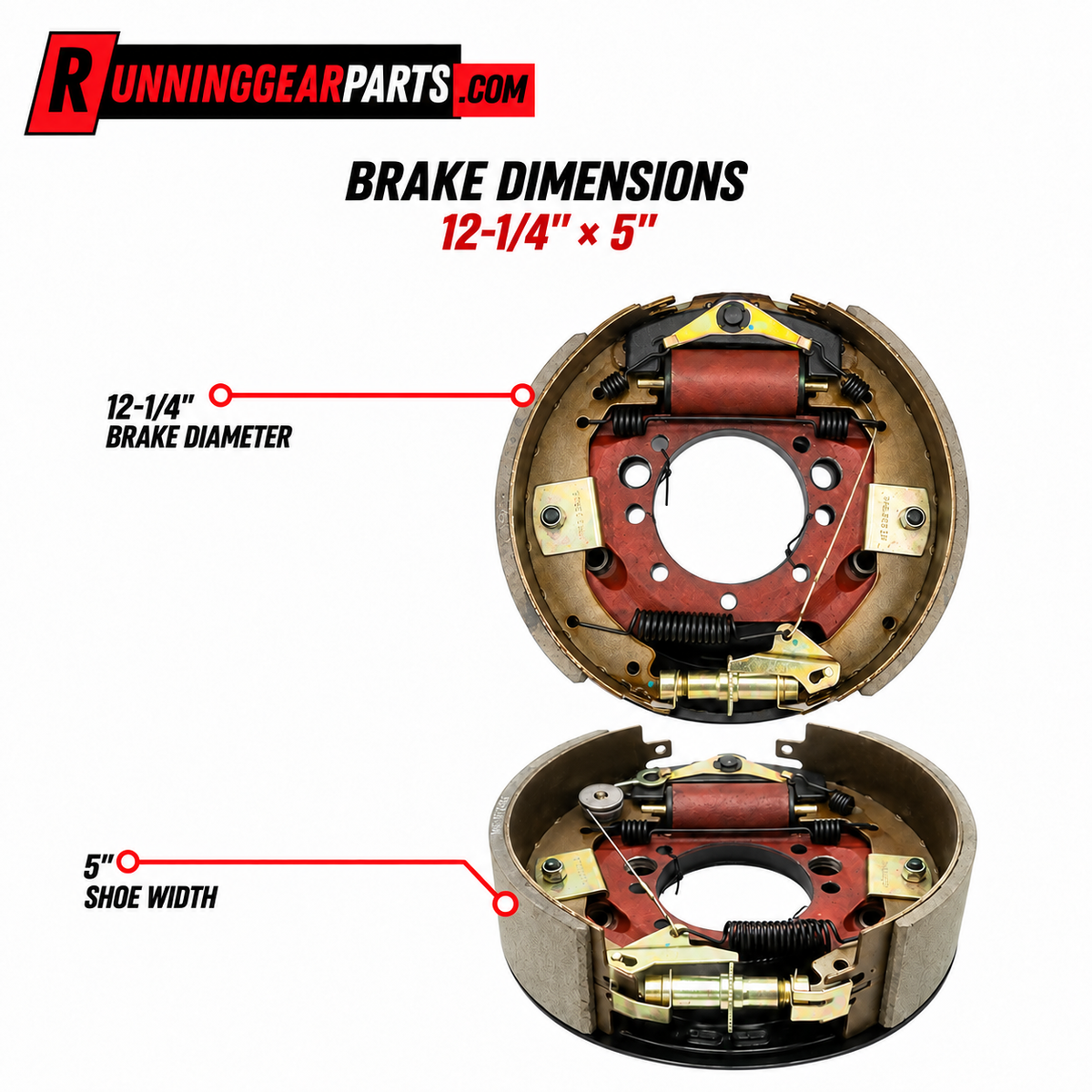

Brake Size: 12-1/4" x 5"
Brake Diameter: 12-1/4"
Brake Width: 5"
Mounting Flange: 7-Bolt / 7-Hole
Wheel Compatibility: 16"–17.5"
Available Positions: Left Hand / Right Hand
Mounting Hardware: Not Included
What’s Included

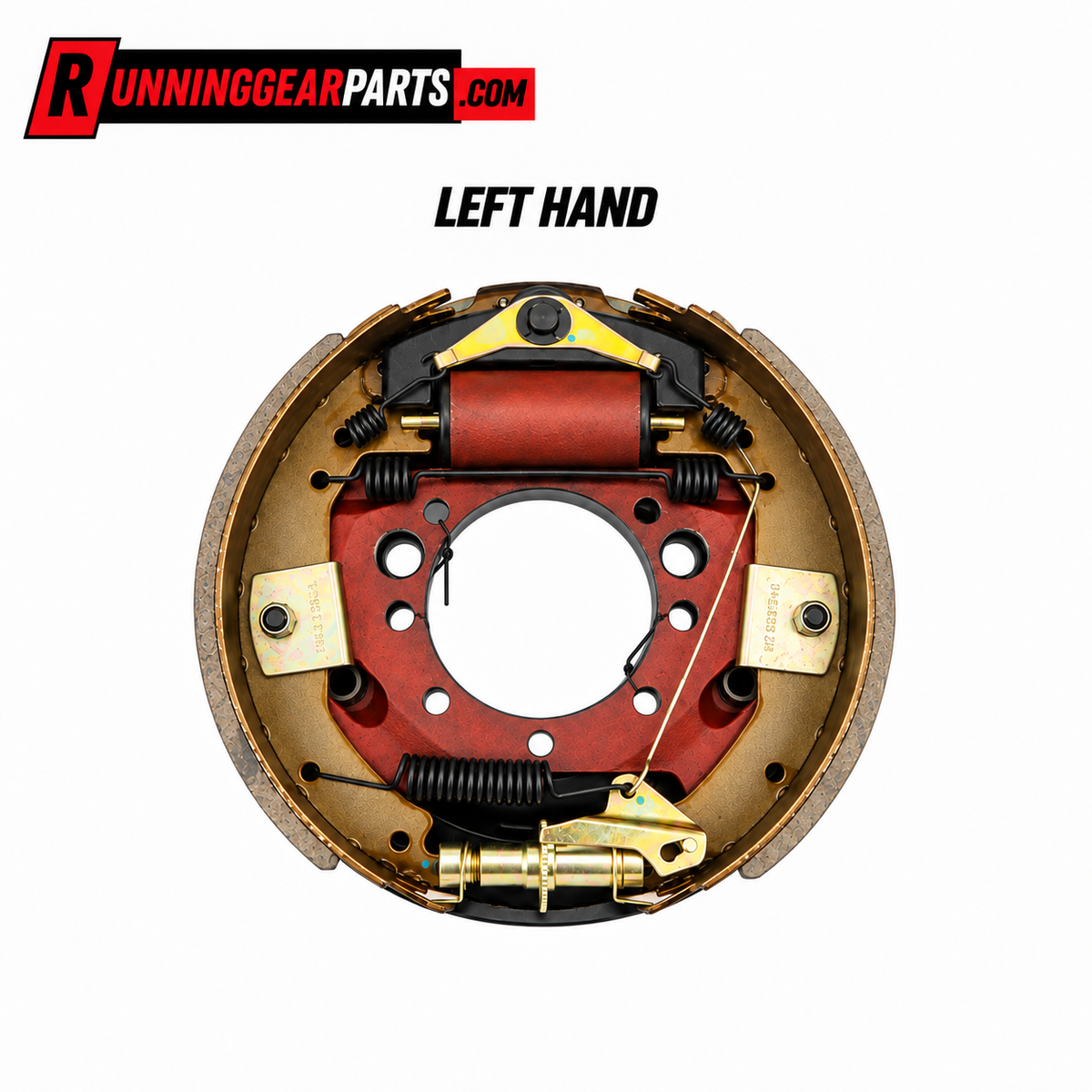

Left-Hand Configuration
1 × Left-Hand / Driver Side Hydraulic Brake Assembly
Brake shoes
Brake magnet
Springs and adjustment components
Backing plate

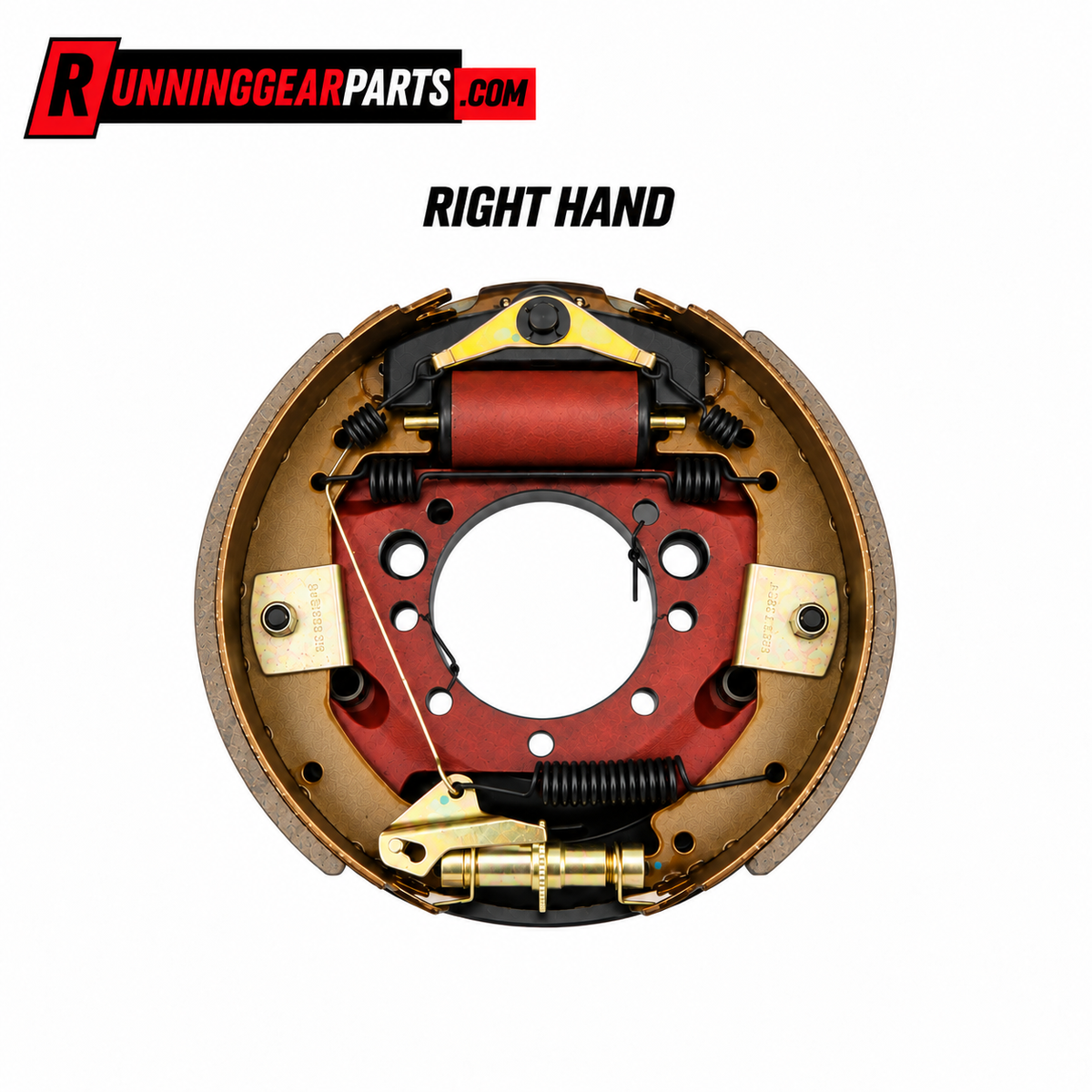

Right-Hand Configuration
1 × Right-Hand / Passenger Side Hydraulic Brake Assembly
Brake shoes
Brake magnet
Springs and adjustment components
Backing plate

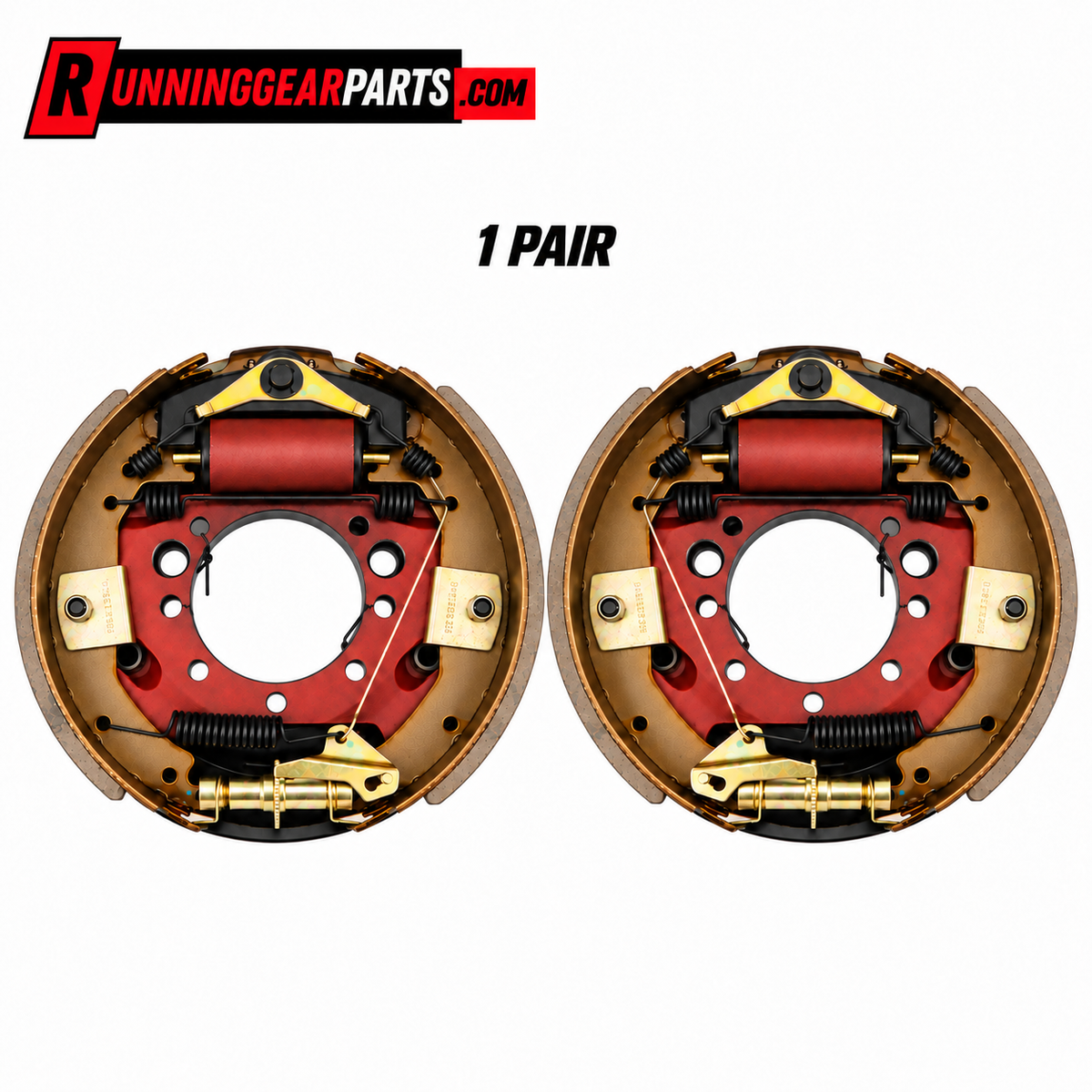

One Pair Configuration
1 × Left-Hand / Driver Side Hydraulic Brake Assembly
1 × Right-Hand / Passenger Side Hydraulic Brake Assembly
Each brake assembly includes the brake shoes, magnet, backing plate, springs, and adjustment components.
OEM / Replacement Reference
Left Hand / Driver Side
Dexter: 023-408-00
Dexter Kit: K23-408-00
Right Hand / Passenger Side
Dexter: 023-409-00
Dexter Kit: K23-409-00
