Trailer Parts Pro 3,500 lb Trailer Axle Pre-Greased Hub-Drum Assembly 5 on 4.5" Bolt Pattern, #84 Spindle,1/2" Studs, HD84546BX
Trailer Parts Pro 3,500 lb Trailer Axle Pre-Greased Hub-Drum Assembly 5 on 4.5" Bolt Pattern, #84 Spindle,1/2" Studs, HD84546BX is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
To ensure optimal performance and extend the service life of your new trailer components, please follow these care guidelines after purchase:
- Before installation, check all parts for shipping damage or missing components. Do not install damaged parts.
- Always use correct tools and torque settings. Improper installation can lead to premature wear or failure.
- For bearings, suspensions, and brake components, apply high-quality trailer grease before first use if not pre-greased.
- Some parts (like brake assemblies) require a short break-in period to achieve full performance. Follow manufacturer instructions for best results.
- Recheck fasteners, grease levels, and moving components after 100 miles of towing, then at regular intervals.
- After exposure to water, road salt, or mud, clean and dry parts thoroughly. Apply anti-rust treatment if needed.
- If storing unused parts, keep them in a dry, sealed container away from moisture and direct sunlight.
Delivery and Shipping
Delivery and Shipping
Handling Time: Orders ship out within 1 business day after payment is received.
Shipping Methods: We use trusted carriers like UPS, FedEx, or USPS based on package size and destination.
Delivery Time: Estimated delivery within 2–6 business days (U.S. domestic orders).
Tracking: A tracking number will be provided once your order is dispatched.
Trailer Parts Pro 3,500 lb Trailer Axle Pre-Greased Hub-Drum Assemb...

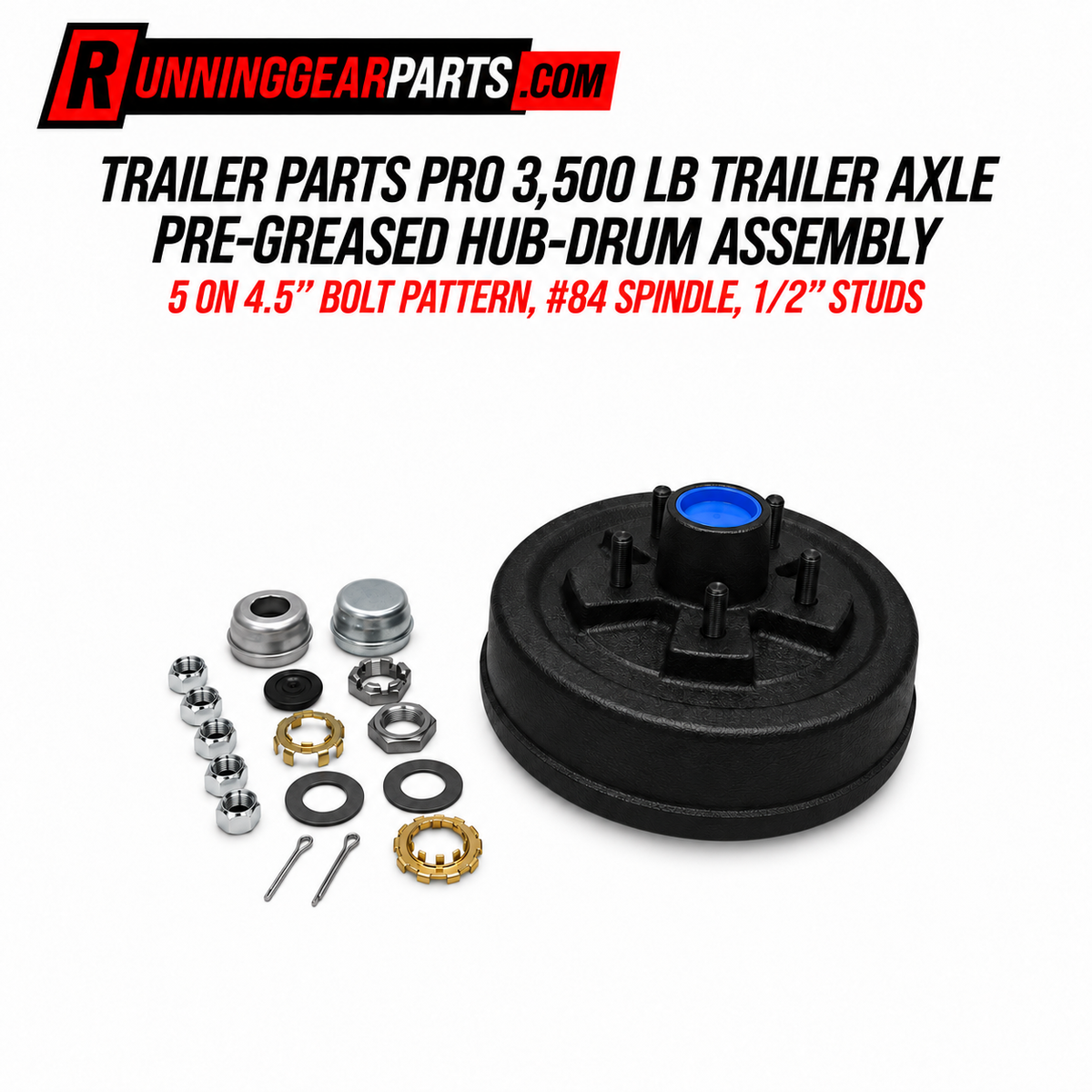

Product Overview:
This complete pre-greased trailer hub-drum assembly offers a streamlined replacement solution for 3,500 lb capacity axles equipped with #84 spindles. Designed with a 5 on 4.5" bolt pattern and 1/2"-20 studs, the assembly delivers peak convenience by arriving ready to install with the inner and outer bearing cups already preinstalled into the hub body. The retail-boxed kit features dual grease or Zerk-lube compatibility and integrates seamlessly with 10-inch electric or hydraulic drum brake systems to restore optimal braking performance.
What's Included by Kit Option:
Pre-greased Hub and Drum
Inner Bearing
Outer Bearing
Preinstalled Inner Bearing Cup
Preinstalled Outer Bearing Cup
Grease Seal
Grease Cap
Rubber Plug
Wheel Nuts
Specifications
Brand: Trailer Parts Pro
Manufacture Part Number: HD84546BX
Reference Number: 116629
Alternate Item Numbers: PP94545, PPG94545, 7650030-03B
Bolt Pattern: 5 on 4.5"
Axle Capacity Rating Per Pair: 3.5K
Capacity Per Hub-Drum: 1,750 lbs
Fits Spindle: #84
Stud Size: 1/2"-20
Thread Count: 20
Nut Type: Cone Nut
Inner Bearing Part Number: L68149
Outer Bearing Part Number: L44649
Seal Inner Diameter: 1.719"
Compatible Brake Size & Type: 10-Inch Electric or Hydraulic Drum Brakes
Lubrication: Grease or Zerk-Lube
Finish: Painted
Attachment Type: Bolt-On
Orientation: Left or Right Side
Pre-greased: Yes
Spindle Components Included: No
Application: Trailer Use Only
Brand Fitment: Dexter, Rockwell, Hayes / ALKO, and more
