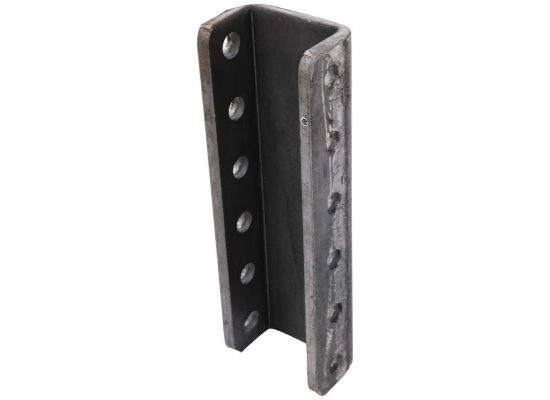

RGP 15,000 lbs Capacity, 5-Position Adjustable Channel Bracket - Weld-On, 12" Tall
RGP 15,000 lbs Capacity, 5-Position Adjustable Channel Bracket - Weld-On, 12" Tall is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
To ensure optimal performance and extend the service life of your new trailer components, please follow these care guidelines after purchase:
- Before installation, check all parts for shipping damage or missing components. Do not install damaged parts.
- Always use correct tools and torque settings. Improper installation can lead to premature wear or failure.
- For bearings, suspensions, and brake components, apply high-quality trailer grease before first use if not pre-greased.
- Some parts (like brake assemblies) require a short break-in period to achieve full performance. Follow manufacturer instructions for best results.
- Recheck fasteners, grease levels, and moving components after 100 miles of towing, then at regular intervals.
- After exposure to water, road salt, or mud, clean and dry parts thoroughly. Apply anti-rust treatment if needed.
- If storing unused parts, keep them in a dry, sealed container away from moisture and direct sunlight.
Delivery and Shipping
Delivery and Shipping
Handling Time: Orders ship out within 1 business day after payment is received.
Shipping Methods: We use trusted carriers like UPS, FedEx, or USPS based on package size and destination.
Delivery Time: Estimated delivery within 2–6 business days (U.S. domestic orders).
Tracking: A tracking number will be provided once your order is dispatched.
RGP 15,000 lbs Capacity, 5-Position Adjustable Channel Bracket - We...
Replacement & Compatibility:
-
Fitment: Welds directly onto the trailer tongue structure.
-
Compatibility: Designed to mount height-adjustable trailer couplers, lunette rings, or clevis mounts (all compatible attachments sold separately).
Specifications:
-
Weight Capacity: 15,000 lbs
-
Total Height: 12"
-
Adjustment Positions: 5 mounting positions (6 pre-drilled holes)
-
Range of Height Adjustment: 8" vertical travel
-
Hole Spacing: 2" (measured from center of hole to center of hole)
-
Hole Diameter: 5/8"
-
Inside Channel Width: 3"
-
Bracket Thickness (Depth): 2-1/4"
-
Mount Type: Weld-on
-
Material: Heavy-duty sturdy steel
-
Finish: Raw steel with a light protective oil coating (optimized for clean, effortless welding)
What's Included:
-
1 x 6-Hole, 5-Position Weld-On Adjustable Channel Bracket
Note: Adjustable couplers, lunette rings, mounting bolts, and hitch pins are NOT included and must be purchased separately.
Product Overview
This heavy-duty, 6-hole channel bracket provides 5 adjustable mounting positions to easily customize your trailer's coupling height, delivering up to 8" of vertical travel. Built from high-strength, sturdy steel with a robust 15,000 lb capacity, this bracket is designed to accommodate standard 3" wide adjustable couplers, clevis mounts, or lunette rings with 5/8" mounting pins. It features a raw steel finish coated in a light rust-preventative oil, allowing you to prep and weld the bracket directly onto your trailer tongue without hassle.
