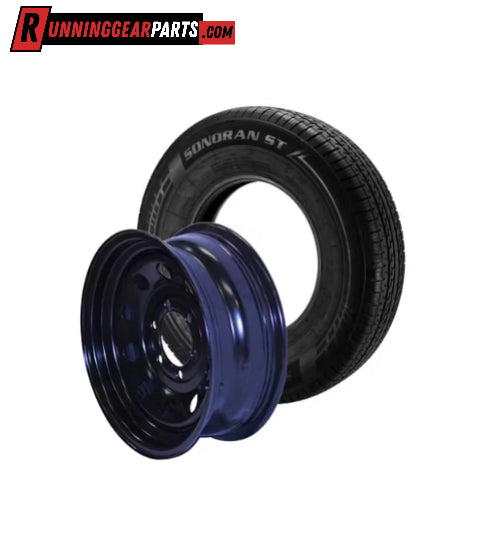

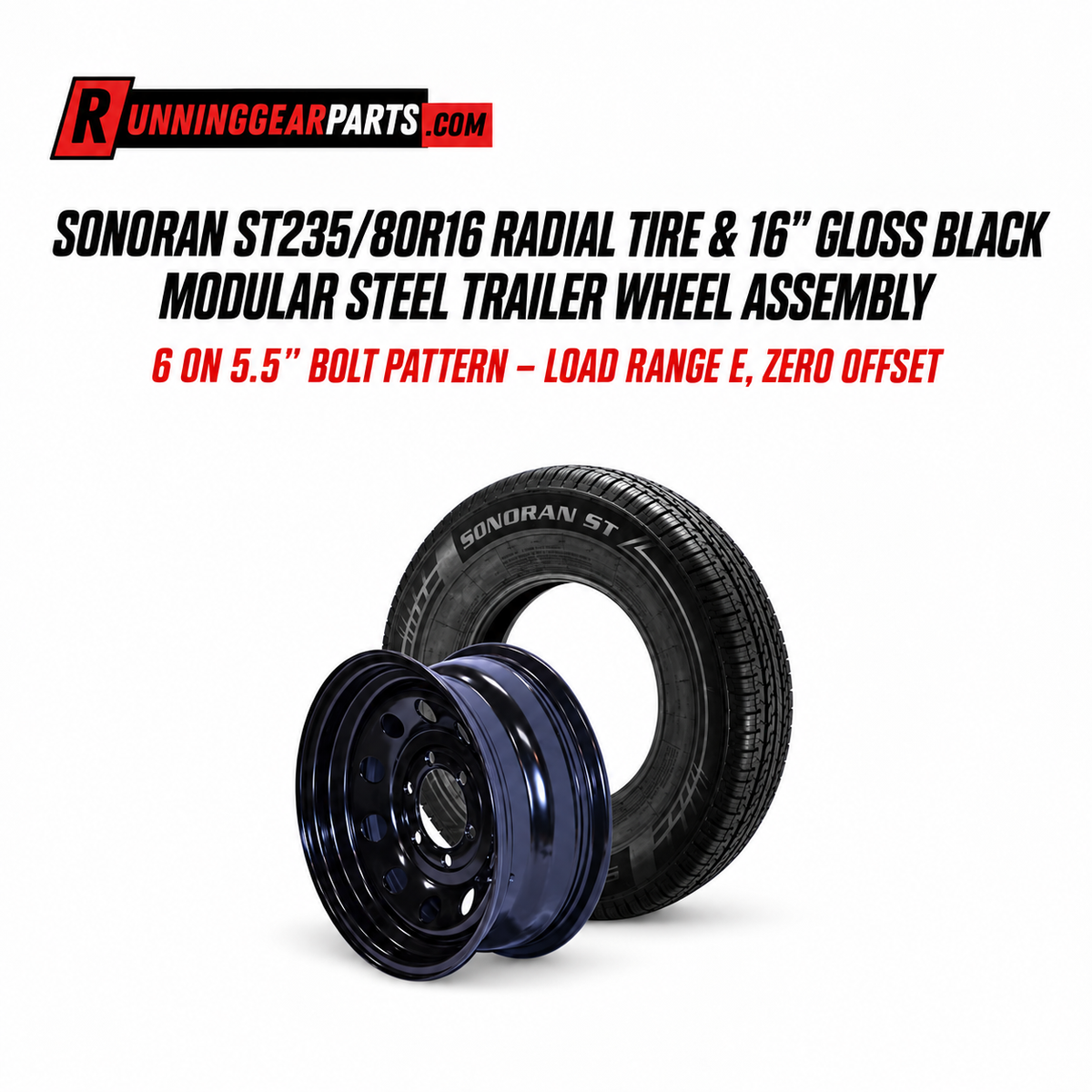

Sonoran ST235/80R16 Radial Tire & 16" Gloss Black Modular Steel Trailer Wheel Assembly -6 on 5.5" Bolt Pattern- Load Range E, Zero Offset,916-655-028

Name: Sonoran ST235/80R16 Radial Tire & 16" Gloss Black Modular Steel Trailer Wheel Assembly -6 on 5.5" Bolt Pattern- Load Range E, Zero Offset,916-655-028
Brand: Sonoran
SKU: 916-655-028
Price: 243.74 USD
Availability: InStock

$243.74 USD

Shipping calculated at checkout.

Care information

To ensure optimal performance and extend the service life of your new trailer components, please follow these care guidelines after purchase:

Before installation, check all parts for shipping damage or missing components. Do not install damaged parts.
Always use correct tools and torque settings. Improper installation can lead to premature wear or failure.
For bearings, suspensions, and brake components, apply high-quality trailer grease before first use if not pre-greased.
Some parts (like brake assemblies) require a short break-in period to achieve full performance. Follow manufacturer instructions for best results.
Recheck fasteners, grease levels, and moving components after 100 miles of towing, then at regular intervals.
After exposure to water, road salt, or mud, clean and dry parts thoroughly. Apply anti-rust treatment if needed.
If storing unused parts, keep them in a dry, sealed container away from moisture and direct sunlight.

Delivery and Shipping

Handling Time: Orders ship out within 1 business day after payment is received.

Shipping Methods: We use trusted carriers like UPS, FedEx, or USPS based on package size and destination.

Delivery Time: Estimated delivery within 2–6 business days (U.S. domestic orders).

Tracking: A tracking number will be provided once your order is dispatched.

Q1 Will this brake fit my trailer?

This brake assembly fits most standard 7,000 lb trailer axles that use 12" × 2" electric brakes with a 5-bolt mounting flange. Please verify your axle rating and brake dimensions before ordering. If you're unsure, send us your axle tag or hub information and we'll help confirm compatibility.

Q2 Does it fit Dexter or Lippert axles?

Yes. It is compatible with many standard Dexter, Lippert, Rockwell American, AL-KO, and other 7,000 lb trailer axles that use a standard 12" × 2" brake assembly. Always verify your axle specifications before purchasing.

Q3 Is this a self-adjusting brake?

Yes. This is a self-adjusting electric brake assembly, which automatically maintains proper brake shoe clearance during normal operation. This reduces maintenance and helps provide consistent braking performance.

Replacement & Compatibility:

This complete pre-mounted tire and wheel assembly serves as a direct cross-reference or replacement for the following part numbers:

MNP: 916-655-028
Interchange Codes: 166BM-ST23580RBE-S801, 23516ER655MB-RR, 23516ER655MB-TQ,, 2358016ER655MB-AT, 916-655-002, 9400923, 9400923-TT, ASR16655BM-R, TW23580R16E655SBLMO060A0000

Specifications:

Wheel Details:

Finish / Material: Gloss Black Painted / Steel
Bolt Pattern: 6 on 5.5"
Center Bore (Pilot): 4.25"
Offset: Zero
Diameter / Design: 16" / Modular (Single)

Tire Details:

Speed Rating: N (87 MPH)
Tread Construction: 2P + 2S + 1N
Sidewall Construction: 2P
Max Load / Pressure: 3,520 lbs @ 80 PSI
Size / Design: ST235/80R16 (Specs note: 235/85) / Radial
Load Range / Tread Depth: E / 7/32"

What's Include:

Each ordered unit delivers a fully integrated, road-ready setup:

1 x Sonoran ST235/80R16 Radial Trailer Tire (Load Range E)
1 x 16" Gloss Black Painted Modular Steel Wheel (6 on 5.5" Fitting)

Note: The tire is professionally pre-mounted to the rim, inflated, and ready to bolt onto your hub immediately. Lug nuts and center hub caps are not included.

Product Overview:

Simplify your trailer maintenance with this heavy-duty, pre-mounted trailer tire and wheel assembly. The 16-inch heavy-duty steel wheel features a sleek gloss black painted finish built to withstand demanding towing environments. Engineered with a classic modular cutout layout, a 4.25-inch center bore, and a zero-offset profile, it ensures balanced weight distribution across your axle system. The standard 6 on 5.5-inch bolt pattern makes it an easy fit for common mid-to-heavy duty trailer hubs.

The wheel is paired with a high-performance Sonoran radial trailer tire. Upgraded to a robust Load Range E rating, this tire safely supports a higher maximum load capacity of up to 3,520 lbs at 80 PSI. It features a heavy-duty 2P sidewall and a reinforced 2P+2S+1N tread design that provides excellent puncture resistance and lateral stability at highway speeds up to 87 MPH. Ideal for cargo carriers, utility haulers, stock trailers, and boat trailers, this integrated combination eliminates local mounting hassles so you can confidently hook up and tow.
