How Do Trailer Brakes Work? Electric, Hydraulic, Controllers & Brake Shoes Explained
Trailer drum brakes slow the trailer by pressing brake shoes against a rotating drum. Electric brakes use current, a magnet and a lever; hydraulic brakes use fluid pressure and a wheel cylinder. Both work with the tow vehicle’s brakes. Compare trailer brake assemblies for your existing system.
How Does a Trailer Brake Work?
Think of a drum brake as two interacting sections: a brake assembly attached to the axle flange and a drum that turns with the wheel. Applying the brake pushes the shoes toward the drum’s inner braking surface, creating friction that converts motion into heat. The wheel-end assembly and hub and drum must be compatible; a similar-looking drum does not establish fitment.
At a glance, the electric sequence is controller → current → magnet → actuating lever → shoes → drum. The hydraulic sequence is actuator → fluid pressure → wheel cylinder → shoes → drum. The different inputs explain why an electric assembly cannot simply replace a hydraulic one without evaluating the complete system. Start with the brake type already installed when comparing RGP trailer brake options.
How Do Electric Trailer Brakes Work?
1. The controller supplies current
A tow-vehicle brake controller provides the electrical output for the trailer’s electric brakes. Output depends on the controller design and its settings. The Trailer Parts Pro TA1200 controller is a time-delayed model; it increases braking output according to its timed response.
2. The magnet engages the rotating drum
Current energizes the brake magnet, attracting it to the drum’s armature surface. As the drum rotates, friction at that contact moves the actuating lever. The magnet initiates application; it does not directly pull both shoes outward. When servicing this part, match the exact brake design and manufacturer part number before ordering a replacement brake magnet.
3. The lever applies the shoes
The lever presses the primary shoe toward the drum. Force transfers through the shoe mechanism to apply the secondary shoe. The resulting friction slows the wheel. A complete self-adjusting electric brake assembly combines the shoes, magnet, springs, adjuster and backing plate, which can simplify replacement when several components are worn.

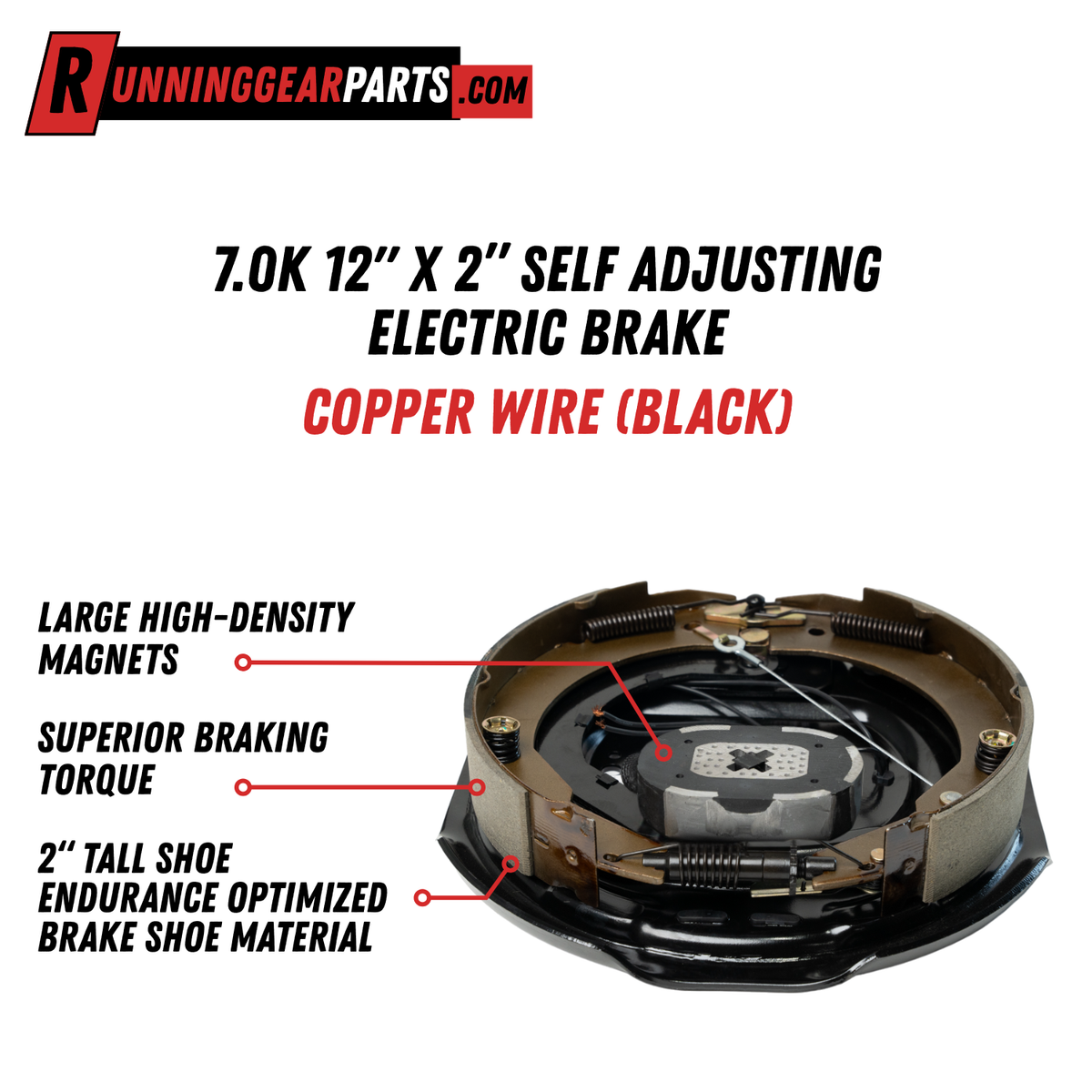

What Are the Main Parts of a Trailer Drum Brake?
Brake shoes and friction linings
Brake shoes are curved components carrying the friction linings that contact the drum. Shoe kits are specific to brake size, design and sometimes left or right orientation. Dexter identifies K71-675-00 and K71-676-00 for left- and right-hand 12-inch × 2-inch 7K self-adjusting electric brakes. Use the exact assembly identification when selecting a Dexter shoe and lining replacement kit.
Magnet, actuating lever and return springs
The magnet provides the electric brake’s input force, the lever transfers it, and the springs help return the shoes when application ends. A magnet must match the brake assembly it serves. Dexter’s BP01-330 listing identifies selected 12-1/4-inch electric brake applications; it is not a universal magnet for every axle with that drum diameter. Confirm the detailed application before buying the BP01-330 electric brake magnet.
Adjuster and backing plate
The adjuster controls shoe position relative to the drum, while the backing plate supports the components and mounts to the axle flange. Excessive clearance can delay contact; incorrect adjustment can cause drag. Manufacturer data for the BP10-060 drum brake adjuster distinguishes selected 10- and 12-inch electric applications from selected 10-inch hydraulic applications. For hydraulic brakes, confirm that the assembly is one of the listed 10-inch applications.
Hub and drum
The hub carries the wheel, and the drum supplies the brake’s rotating friction surface. Identify drum diameter and width, spindle and bearing arrangement, seal fit, wheel bolt pattern and stud size together. Wheel bolt pattern and brake mounting-flange pattern are separate measurements. Also confirm hub/drum depth, bearing spacing and brake clearance against the original part or manufacturer drawing; a matching diameter alone is insufficient. Review the hub and drum assembly against the original wheel-end components before ordering.
Selecting the Right Trailer Brake Controller
What does a trailer brake controller do?
The controller manages the electrical braking output from the tow vehicle. It is usually installed in the cab; the brake assemblies are mounted at the trailer wheels. Dexter’s official product data describes the TA1200 Pilot brake controller as a 12-volt, time-delayed unit for one to three axles, with a manual override and digital display.
Proportional vs. time-delayed controllers
Time-delayed controllers increase output according to a timed response. Proportional controllers respond to sensed deceleration. These are different control methods, so a digital display does not by itself make a controller proportional. For the TA1200, Dexter specifies gradual application at preset rates, with full actuation in about 2.5 seconds.
Match axle count, voltage and actuator compatibility
Controller and actuator compatibility is a separate selection step. Dexter states that the TA1200 brake controller is not recommended for electric-over-hydraulic systems. A controller suitable for electric drum brakes should therefore not be assumed to operate an electric hydraulic pump correctly.
Confirm the tow-vehicle connection. Not recommended for electric-over-hydraulic systems.
View controller details
Electric trailer brake wiring: choose wire size by the system
Wire size depends on brake count and cable distance. Dexter’s service manual gives the following minimum copper hookup sizes for the listed configurations. Apply the exact axle/controller instructions, rather than a blanket 10–12 AWG rule, when selecting electric brake components.
| Number of brakes | Hitch-to-axle distance | Minimum copper wire |
|---|---|---|
| 4 | Under 30 ft | 12 AWG |
| 4 | 30–50 ft | 10 AWG |
| 6 | Under 30 ft | 10 AWG |
| 6 | 30–50 ft | 8 AWG |
How Do Hydraulic Trailer Brakes Work?
Hydraulic drum brakes use fluid pressure to operate a wheel cylinder, which applies the shoes against the drum. There is no electric brake magnet at that wheel end. Hydraulic lines, wheel cylinders and a compatible source of pressure are essential parts of the system. RGP offers hydraulic drum brake assemblies for replacement work.
A hydraulic assembly describes the wheel-end brake; it does not identify the complete actuation system. A surge actuator creates pressure mechanically as the trailer compresses the coupler mechanism during deceleration. An electric-over-hydraulic actuator uses an electrically controlled pump. Verify the actuator’s drum-brake compatibility and the brake manufacturer’s requirements when choosing hydraulic brake components.
What are surge trailer brakes?
Surge brakes are hydraulically actuated brakes using trailer-to-tow-vehicle compression to operate an actuator’s master cylinder. “Surge” describes the method of generating hydraulic pressure, rather than a third shoe-and-drum construction. A hydraulic drum brake assembly alone is not a complete surge system.
Electric vs. Hydraulic Brakes: Which Do You Need?
Both designs use shoes and a drum. Their main difference is the input mechanism, followed by the supporting controls and connections. Use the existing trailer’s system as the starting point when comparing electric and hydraulic trailer brakes.
| Feature | Electric drum brake | Hydraulic drum brake |
|---|---|---|
| Wheel-end input | Electromagnet and actuating lever | Hydraulic wheel cylinder |
| Connection | Electrical wiring | Hydraulic line |
| Actuation | Compatible brake controller | Compatible hydraulic actuator |
| Friction components | Shoes and drum | Shoes and drum |
| Selection checks | Brake size, rating, flange, controller and wiring | Brake size, rating, flange, actuator and hydraulic compatibility |
| Maintenance focus | Wiring, connections, magnet condition and shoe clearance | Hydraulic lines, fluid system, wheel cylinder and shoe clearance |
| Marine use | Confirm the specific assembly and electrical installation are approved for the application | Confirm actuator type, corrosion protection and assembly design; hydraulic alone does not establish marine suitability |
| Heavy loads | Match the rated assembly and controller to the trailer | Match the rated assembly and actuator to the trailer |
| Cost comparison | Include assemblies, drums, controller, wiring and installation | Include assemblies, drums, actuator, plumbing and installation |
Manual-Adjust vs. Self-Adjusting Brakes
A manual-adjust brake requires periodic clearance adjustment according to its service instructions. A self-adjusting brake uses an internal mechanism to compensate for lining wear. RGP lists manual-adjust electric brakes and self-adjusting electric brakes; choose the version that matches the trailer and maintenance requirements.
Self-adjusting does not mean maintenance-free. Inspection is still needed for worn linings, contamination, damaged springs, magnet condition and drum wear. Follow the exact assembly’s setup and service instructions. Dexter’s Nev-R-Adjust brake assemblies are a manufacturer-specific design; do not assume every self-adjusting brake operates identically.
Trailer Brake Maintenance and Part Replacement
Inspect shoes when braking performance changes or during scheduled wheel-end service. Wear, scoring, damage and grease or oil contamination require evaluation under the brake manufacturer’s criteria. A shoe and lining kit is an option when the remaining brake components are serviceable and the kit matches the assembly.
If the magnet, springs, adjuster and shoes all need work, compare the parts required with a complete replacement brake assembly. Replacing the assembly does not eliminate the need to inspect the drum, bearings, seals, wiring or hydraulic system. Correct the source of contamination or poor operation before putting new parts into service.
Match left/right orientation and confirm the selected package quantity.
Check shoe kit options
Brake shoe and drum inspection checklist
- Identify the brake assembly and obtain its service instructions.
- Inspect lining wear, contamination, scoring and loose or damaged hardware.
- Measure drum wear against the marked limit or manufacturer specification.
- Record brake diameter, lining width, flange pattern and left/right orientation before ordering.
Use the assembly’s inspection limits and service procedure when choosing a replacement shoe kit. During wheel-end service, support the trailer as instructed and avoid dispersing brake dust.
Electric trailer brake troubleshooting and magnet replacement
Weak electric braking can involve controller setup, wiring, connections, adjustment or magnet wear. A technician should compare voltage and current with the exact brake model’s specification before selecting a replacement magnet. One amperage value does not apply to every magnet.
What Is Included in a Trailer Brake Kit?
“Brake kit” can mean a single wheel-end assembly, a left/right pair, a shoe kit or a bundle with drums. The name alone does not establish what is supplied. RGP’s electric brake listing offers several assembly and drum combinations, so review the selected variant and confirm its actual contents.
For a complete job, identify separately whether you need mounting hardware, bearings, seals, caps, wheel lug nuts, a controller or hydraulic actuation parts. A brake-and-drum bundle is not automatically a complete vehicle braking system. Use the brake parts collection to compare the required components, then confirm quantities before purchase.
How Do I Know Which Trailer Brake I Need?
Start with the axle identification and the existing brake assembly’s part number. Then confirm brake type, drum diameter and lining width, brake mounting-flange pattern, left/right orientation and adjustment design. For the drum, also identify the spindle, bearings, seal and wheel bolt pattern. Keep this checklist beside the trailer brake catalog while comparing parts.
- Rating: distinguish axle or pair capacity from an individual brake’s rating.
- Size: match diameter and width; a diameter match alone is insufficient.
- Mounting: compare flange hole count, spacing and hardware.
- Orientation: order the correct left- and right-hand assemblies.
- System: verify electric controller or hydraulic actuator compatibility.
- Kit contents: confirm the selected variant and quantity required.
Frequently Asked Questions
Do I need trailer brakes?
Requirements depend on the trailer, its loaded weight, manufacturer instructions and the jurisdiction where it is operated. There is no single weight threshold that applies everywhere. Check the applicable official requirements. If an existing brake system needs replacement, identify it before selecting trailer brake parts.
Do electric trailer brakes work without a controller?
Normal electric drum brake operation requires a compatible controller or an equivalent integrated tow-vehicle control system. A breakaway circuit serves a different emergency function and does not replace normal brake control. Confirm the tow vehicle’s equipment before choosing an in-cab trailer brake controller.
Can electric and hydraulic brake assemblies be interchanged?
A conversion requires evaluation of the whole system, including controls, wiring or plumbing, actuation, drum compatibility and mounting. It is not established by choosing two assemblies with matching diameters. Compare the complete requirements with the available brake assemblies and the manufacturer’s instructions.
Are all 12-inch brake shoes interchangeable?
No. Width, brake design, adjustment mechanism, rating and side can change the required shoe kit. Dexter’s K71-675-00 and K71-676-00 are identified for specific self-adjusting applications. Confirm the original part number before selecting replacement brake shoes.
How do I use trailer brakes correctly?
Set up the controller according to its own instructions and synchronize the trailer’s braking with the tow vehicle. Recheck performance after load changes and follow the brake manufacturer’s break-in procedure after replacement. Use the appropriate brake controller and investigate weak, harsh or uneven braking before towing.
