Will this RGP hub and drum fit Dexter 9,000–10,000 lb axles?

It is designed for 9,000–10,000 lb General Duty trailer axles manufactured after July 2009 and fits Dexter axles from that period. Check your axle’s specifications and the listed dimensions to confirm compatibility.

What bolt pattern and wheel stud size does the hub have?

The hub has an 8 on 6.5-inch bolt pattern and 5/8-inch wheel studs. Wheel studs are installed with the Hub Only and Hub & Drum options.

What size brake drum is included?

The brake drum measures 12.25 inches by 3.375 inches. The Drum Only option includes one drum, while the Hub & Drum option includes one hub and one drum.

Which option should I choose: Hub Only, Drum Only, or Hub & Drum?

Choose Hub Only for one 9K–10K General Duty trailer hub, Drum Only for one 12.25-inch by 3.375-inch brake drum, or Hub & Drum for both components. The hub options include installed wheel studs.

Are bearings, seals, oil caps, and lug nuts included?

No. Bearings, bearing races, seals, oil caps, and lug nuts are not included with this RGP hub and drum product.

1 4

RunningGearParts.com

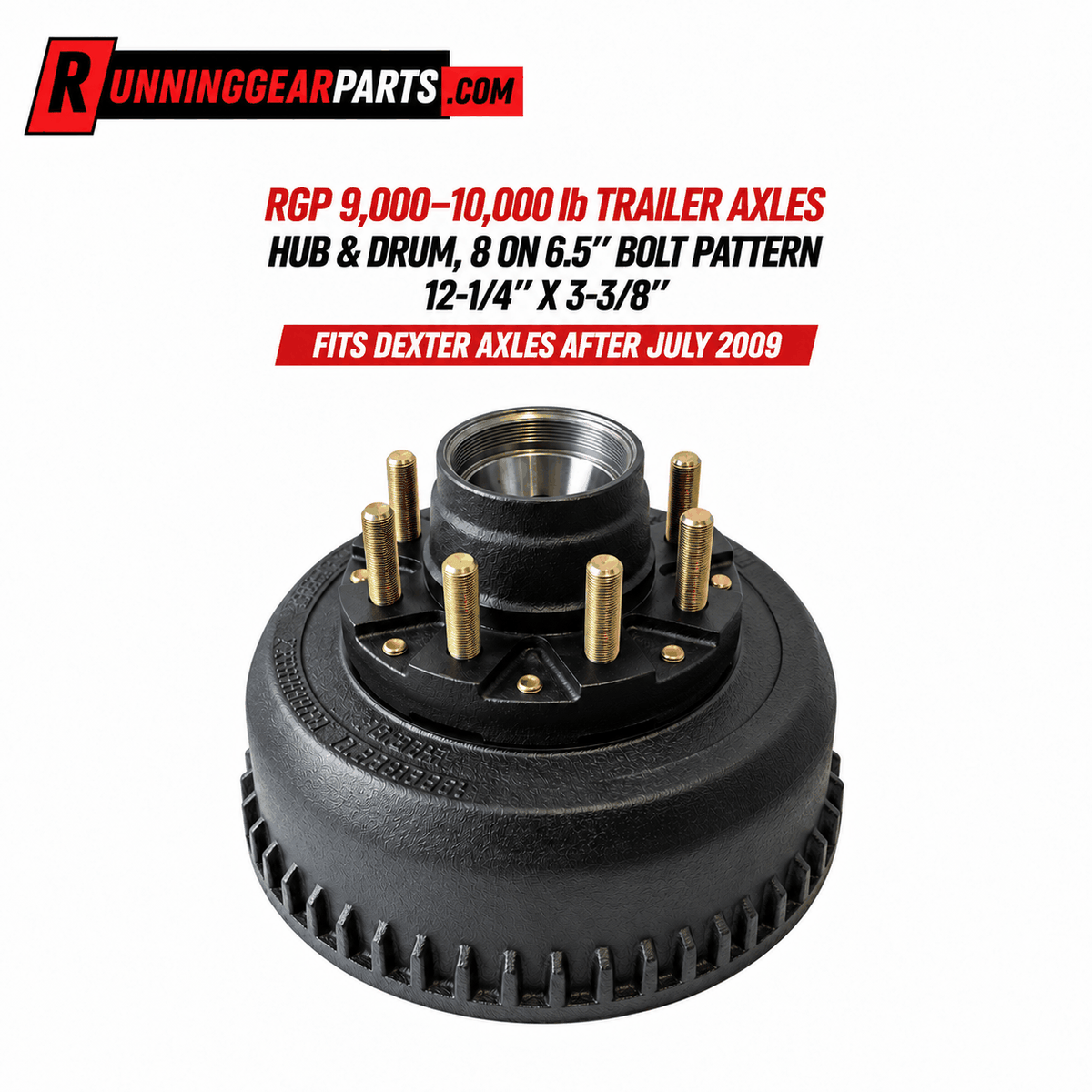

RGP 9,000–10,000 lb Trailer Axles Hub & Drum, 8 on 6.5" Bolt Pattern, 12.25" x 3.375", Fits Dexter Axles After July 2009

$129.89 USD

Shipping calculated at checkout.

kit

Drum Hub Drum Hub Assembly

Product variants

Care information

To ensure optimal performance and extend the service life of your new trailer components, please follow these care guidelines after purchase:

Before installation, check all parts for shipping damage or missing components. Do not install damaged parts.
Always use correct tools and torque settings. Improper installation can lead to premature wear or failure.
For bearings, suspensions, and brake components, apply high-quality trailer grease before first use if not pre-greased.
Some parts (like brake assemblies) require a short break-in period to achieve full performance. Follow manufacturer instructions for best results.
Recheck fasteners, grease levels, and moving components after 100 miles of towing, then at regular intervals.
After exposure to water, road salt, or mud, clean and dry parts thoroughly. Apply anti-rust treatment if needed.
If storing unused parts, keep them in a dry, sealed container away from moisture and direct sunlight.

Delivery and Shipping

Handling Time: Orders ship out within 1 business day after payment is received.

Shipping Methods: We use trusted carriers like UPS, FedEx, or USPS based on package size and destination.

Delivery Time: Estimated delivery within 2–6 business days (U.S. domestic orders).

Tracking: A tracking number will be provided once your order is dispatched.

Q1 Will this brake fit my trailer?

This brake assembly fits most standard 7,000 lb trailer axles that use 12" × 2" electric brakes with a 5-bolt mounting flange. Please verify your axle rating and brake dimensions before ordering. If you're unsure, send us your axle tag or hub information and we'll help confirm compatibility.

Q2 Does it fit Dexter or Lippert axles?

Yes. It is compatible with many standard Dexter, Lippert, Rockwell American, AL-KO, and other 7,000 lb trailer axles that use a standard 12" × 2" brake assembly. Always verify your axle specifications before purchasing.

Q3 Is this a self-adjusting brake?

Yes. This is a self-adjusting electric brake assembly, which automatically maintains proper brake shoe clearance during normal operation. This reduces maintenance and helps provide consistent braking performance.

Product Overview:

This RGP Hub & Drum is designed as a replacement for 9,000–10,000 lb General Duty trailer axles manufactured after July 2009. Choose from Hub Only, Drum Only, or Hub & Drum Assembly to match your replacement needs.

The hub features an 8 on 6.5" bolt pattern with 5/8" wheel studs. The matching brake drum measures 12.25" x 3.375" and is designed for the newer-style 9K–10K General Duty axle configuration.

Key Specifications

Axle Capacity: 9,000–10,000 lbs General Duty
Application: Fits Dexter axles after July 2009
Bolt Pattern: 8 on 6.5"
Wheel Stud Size: 5/8"
Brake Drum Size: 12.25" x 3.375"
Hub Capacity: 5,000 lbs

IMPORTANT: Bearings, bearing races, seals, oil caps, and lug nuts are NOT included.

What's include by Kit Option:

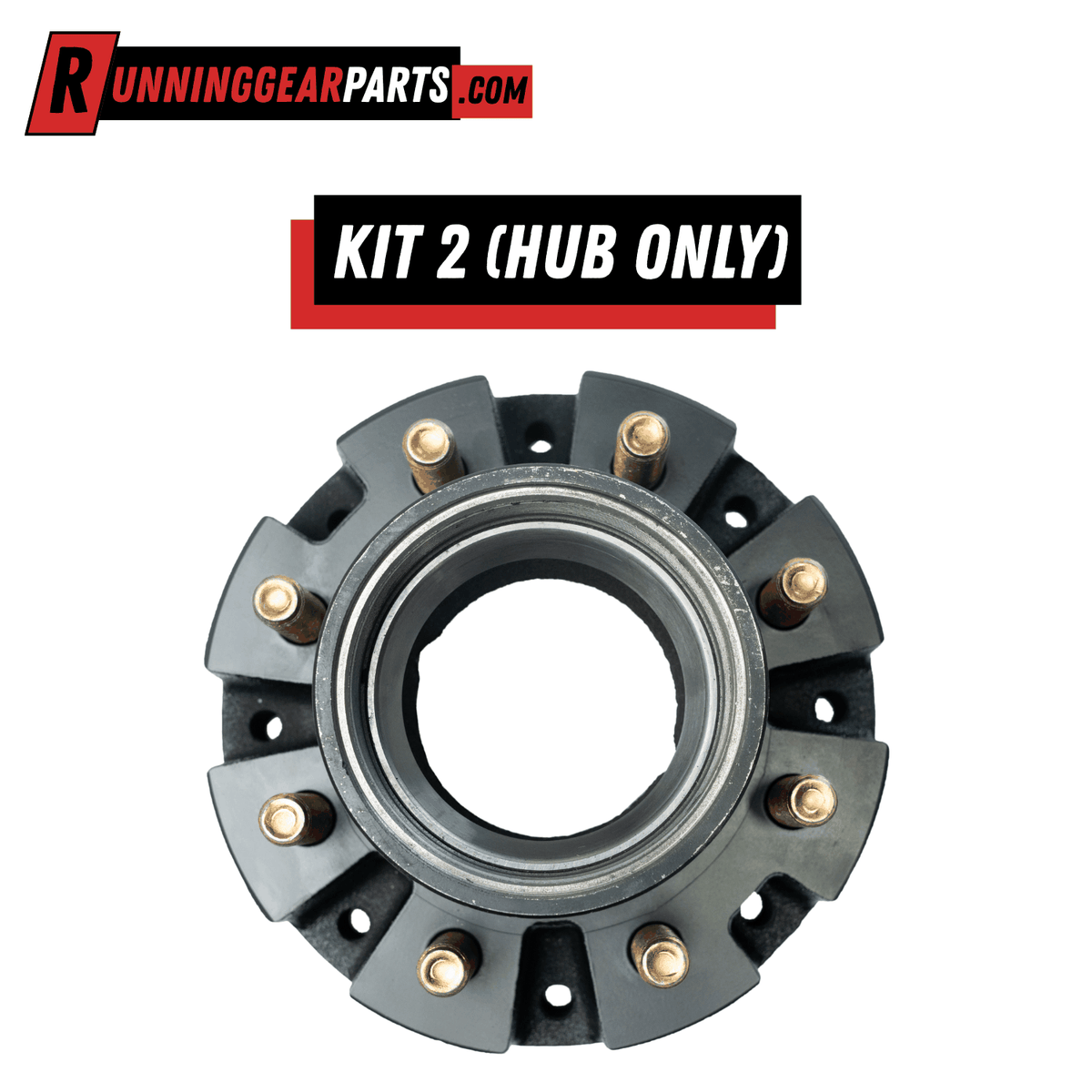

Hub Only:

(1) 9K–10K General Duty Trailer Hub
Wheel studs installed

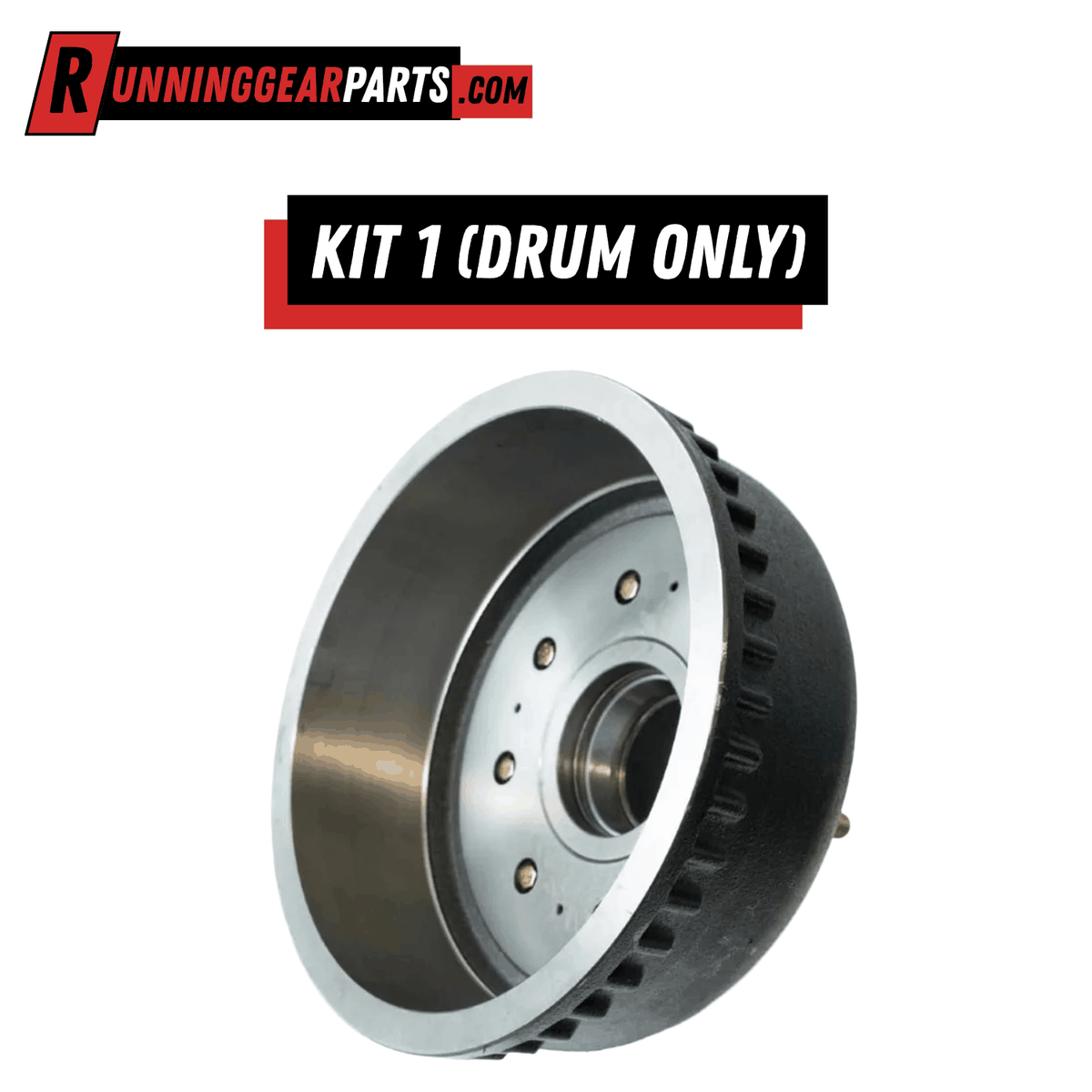

Drum Only:

(1) 12.25" x 3.375" Brake Drum

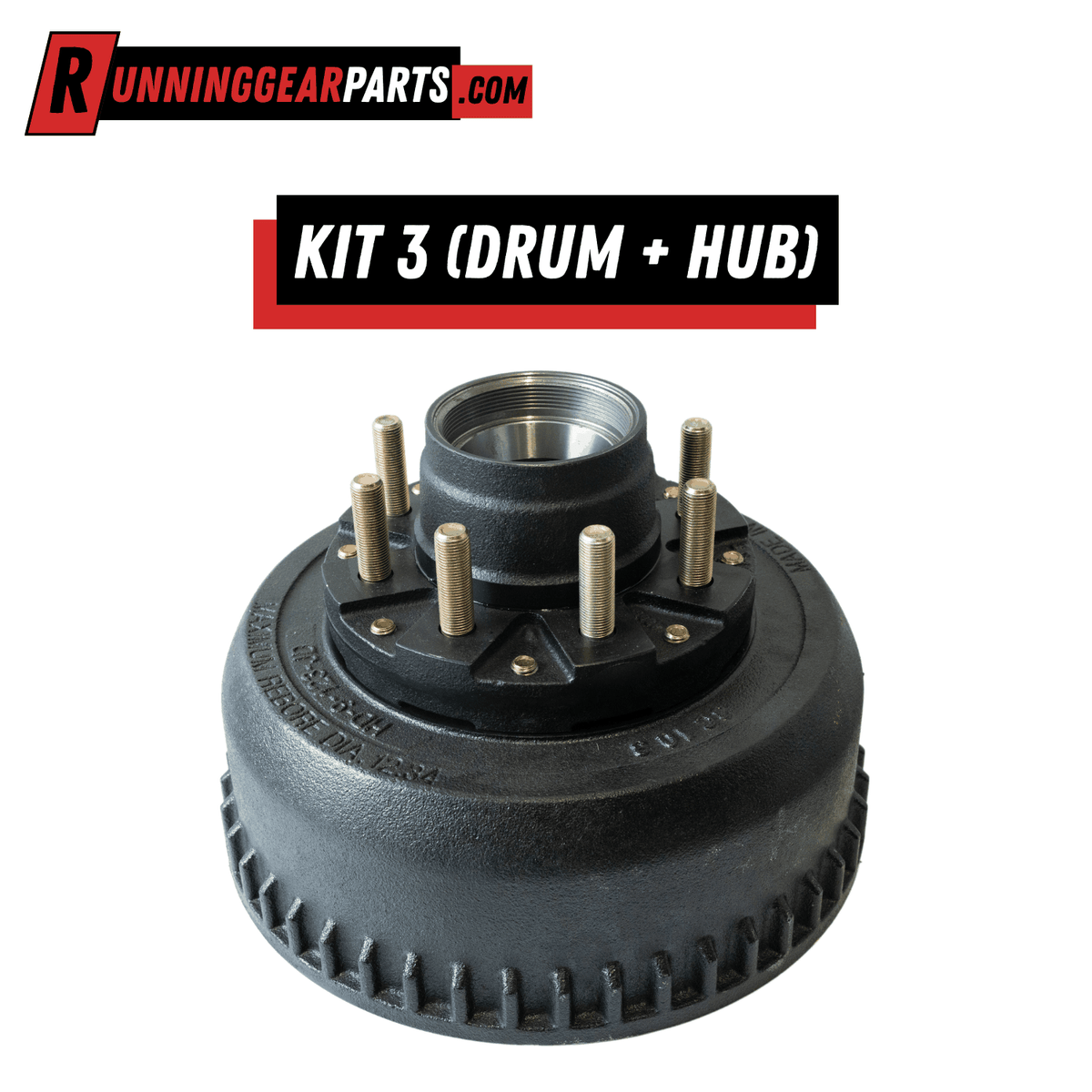

Hub & Drum:

(1) 9K–10K General Duty Trailer Hub
(1) 12.25" x 3.375" Brake Drum
Wheel studs installed

OEM Replacement:

Hub: Compatible with Dexter 8-430-3, 008-430-03, 8-430-03

Brake Drum: Compatible with Dexter 00-123-01, Dexter 008-415-00

Hub & Drum: Compatible with Dexter 008-430-90, Dexter 8-430-5
