7,000 lb Trailer Axles, 12"x2" Hydraulic Brakes, Free Backing
7,000 lb Trailer Axles, 12"x2" Hydraulic Brakes, Free Backing - is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
To ensure optimal performance and extend the service life of your new trailer components, please follow these care guidelines after purchase:
- Before installation, check all parts for shipping damage or missing components. Do not install damaged parts.
- Always use correct tools and torque settings. Improper installation can lead to premature wear or failure.
- For bearings, suspensions, and brake components, apply high-quality trailer grease before first use if not pre-greased.
- Some parts (like brake assemblies) require a short break-in period to achieve full performance. Follow manufacturer instructions for best results.
- Recheck fasteners, grease levels, and moving components after 100 miles of towing, then at regular intervals.
- After exposure to water, road salt, or mud, clean and dry parts thoroughly. Apply anti-rust treatment if needed.
- If storing unused parts, keep them in a dry, sealed container away from moisture and direct sunlight.
Delivery and Shipping
Delivery and Shipping
Handling Time: Orders ship out within 1 business day after payment is received.
Shipping Methods: We use trusted carriers like UPS, FedEx, or USPS based on package size and destination.
Delivery Time: Estimated delivery within 2–6 business days (U.S. domestic orders).
Tracking: A tracking number will be provided once your order is dispatched.
7,000 lb Trailer Axles, 12"x2" Hydraulic Brakes, Free Bac...
Product Overview:

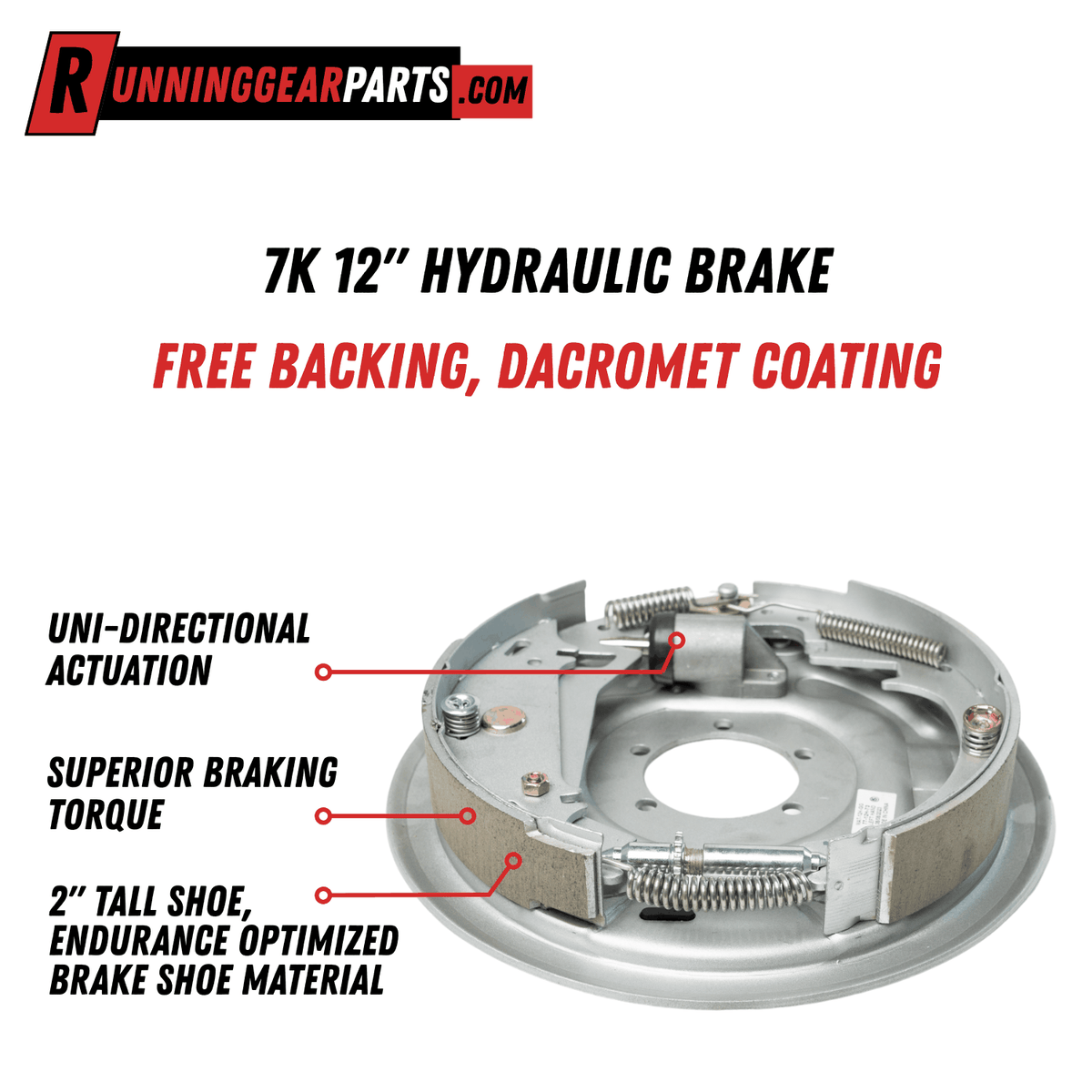

Upgrade your trailer's braking system with this marine coated hydraulic brake kit, built for dependable stopping power on 5,200 - 7,000 lb axles. Designed with 12" x 2" free backing hydraulic drum brakes, this setup automatically disengages when reversing eliminating brake drag and making it ideal for boat ramps, steep driveways, tight turns, and inclined surfaces,
Each brake assembly features a marine grade Dacromet coating that delivers excellent corrosion resistance, helping protect against rust in saltwater and coastal environments. Built for durability and smooth operation, these brakes are a reliable solution for boat trailers and other heavy duty towing applications where exposure to moisture is common. All kits include the required mounting hardware for secure installation. This brake system is available in multiple purchase options to fit your setup, you can either purchase 1 pair or 2 pairs or pair the brakes with 8 on 6.5" bolt pattern drums (available with 1/2" or 9/16" stud sizes).
Whether you're replacing worn components or upgrading for marine use, this hydraulic brake kit provides reliable stopping performance, long service life, and easier maneuvering in reverse.
What's include by Kit option:

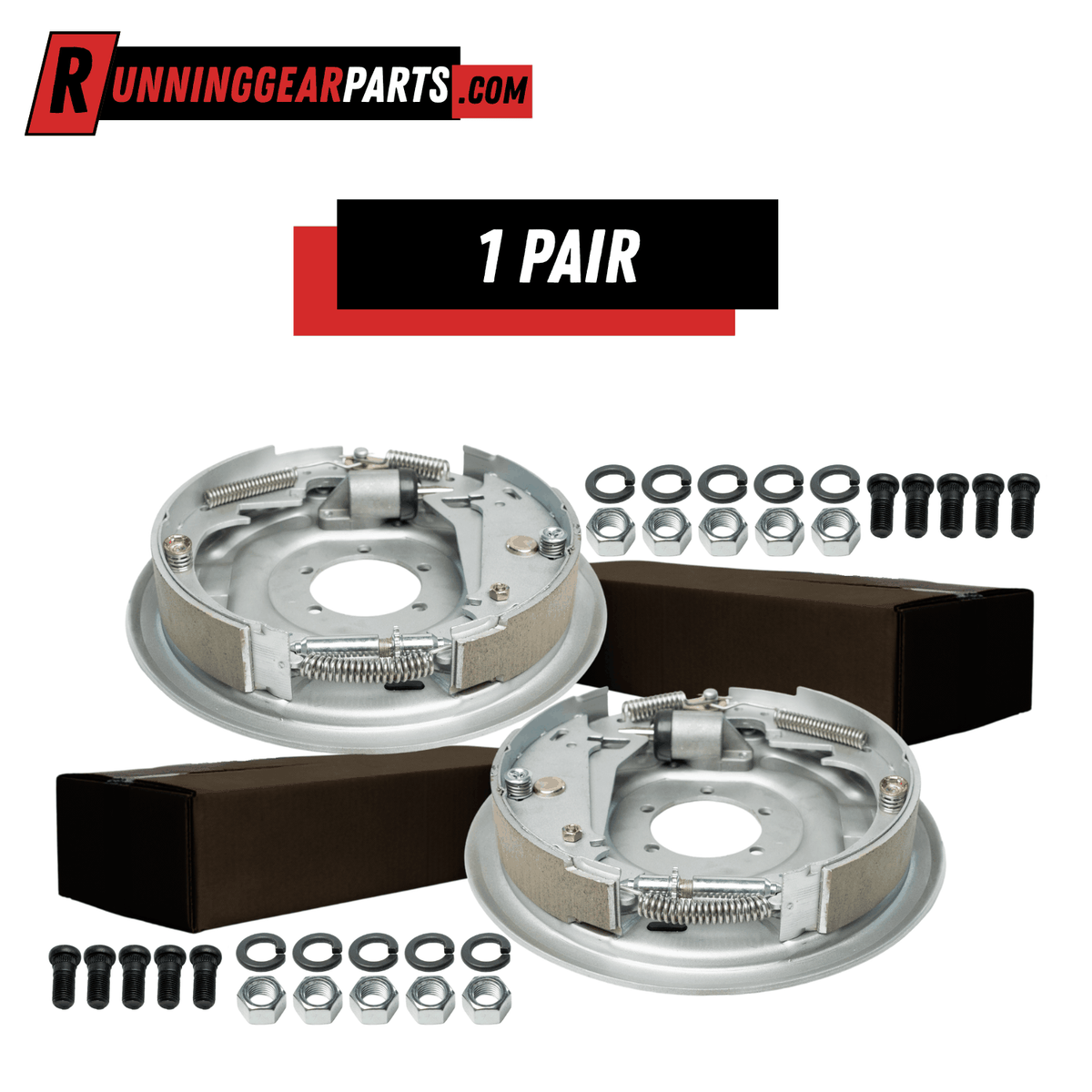

1 Pair Kit Include:

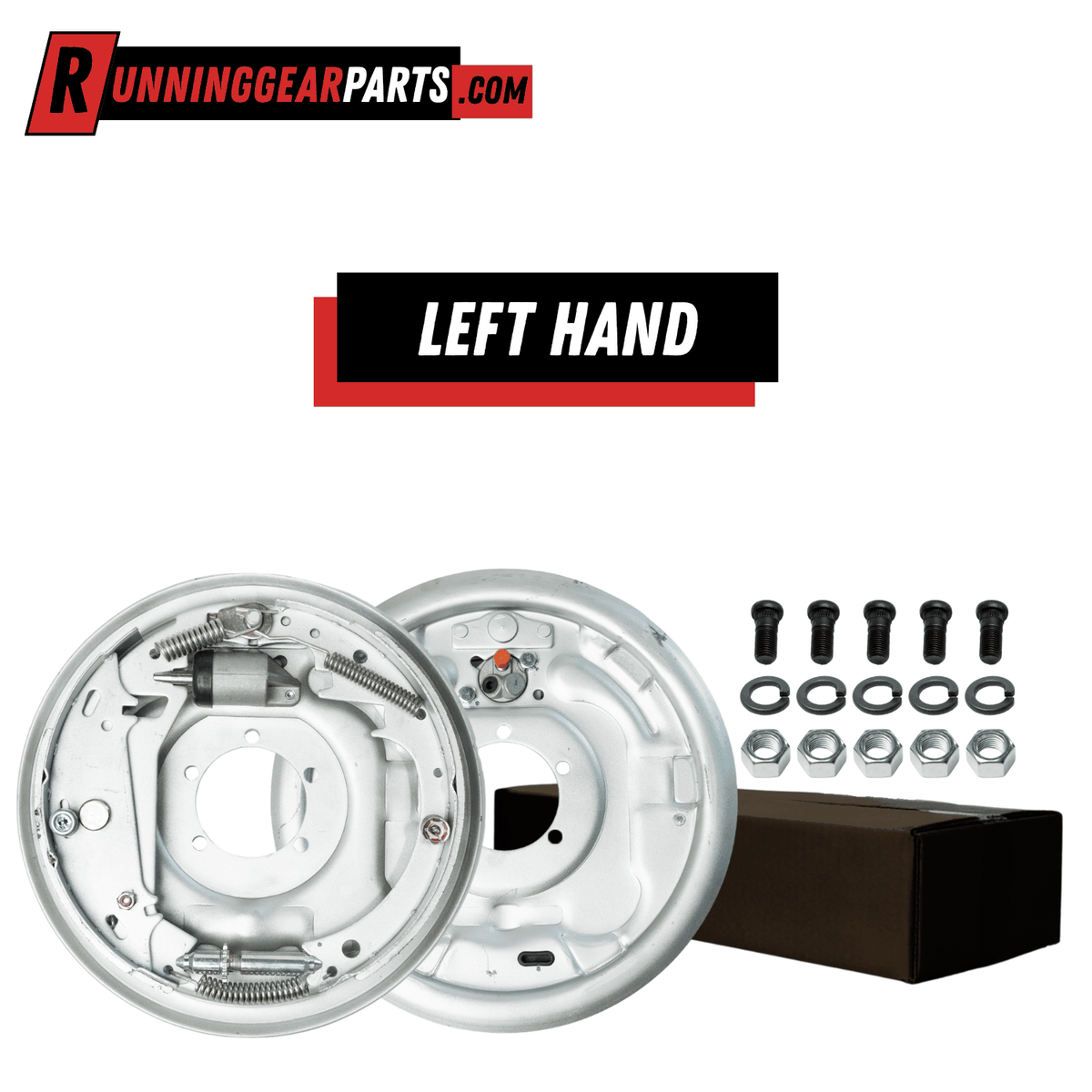

(1) LH Hydraulic Brake Assembly - 12"x2", Free-Backing, 5-Bolt Mount, Marine Coated

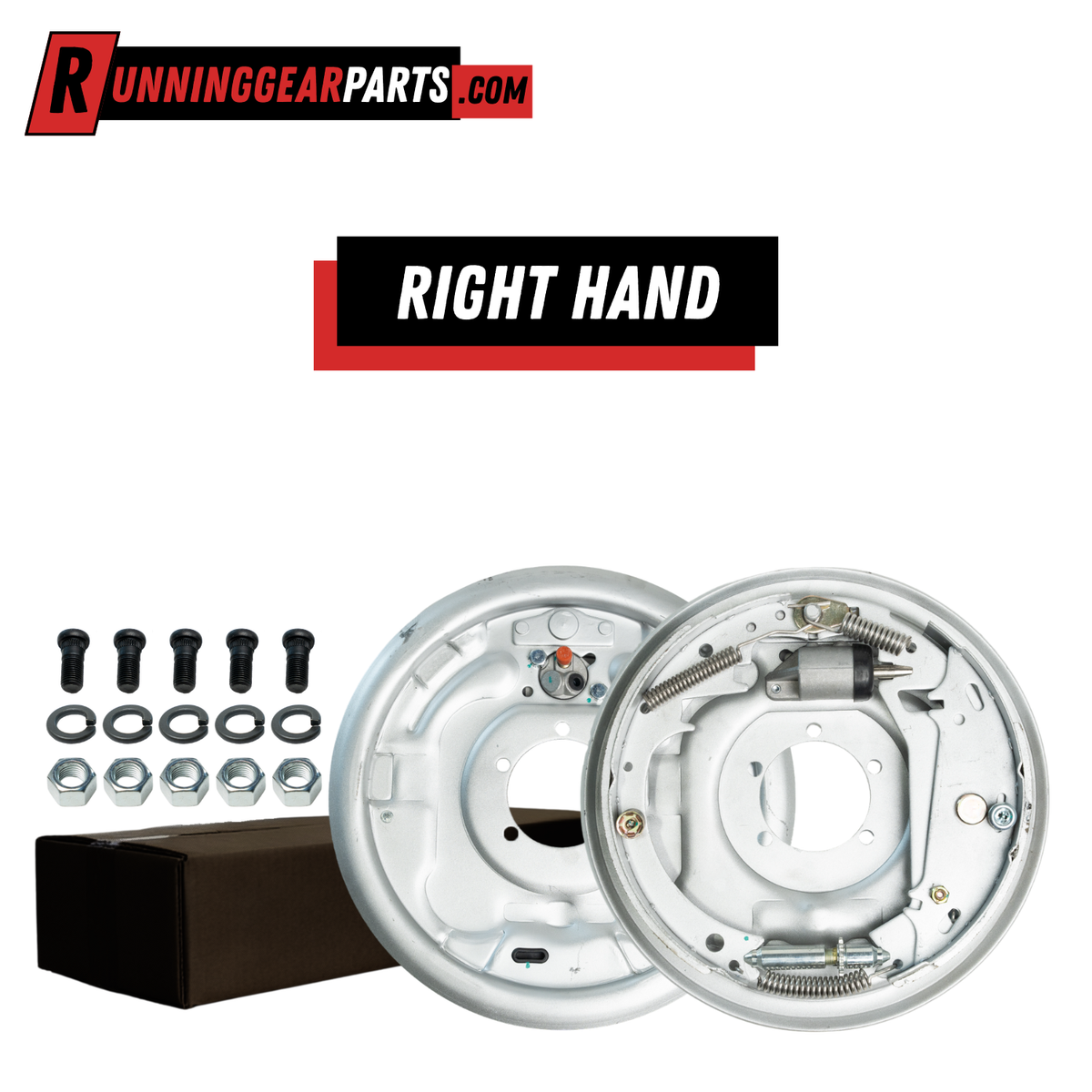

(1) RH Hydraulic Brake Assembly - 12"x2", Free-Backing, 5-Bolt Mount, Marine Coated
(10) Mounting Bolts
(10) Lock Washers
(10) Hex Nuts
(2) D-Washers
2 Pair Kit Include:
(2) LH Hydraulic Brake Assemblies - 12"x2", Free-Backing, 5-Bolt Mount, Marine Coated
(2) RH Hydraulic Brake Assemblies - 12"x2", Free-Backing, 5-Bolt Mount, Marine Coated
(20) Mounting Bolts
(20) Lock Washers
(20) Hex Nuts
(4) D-Washers

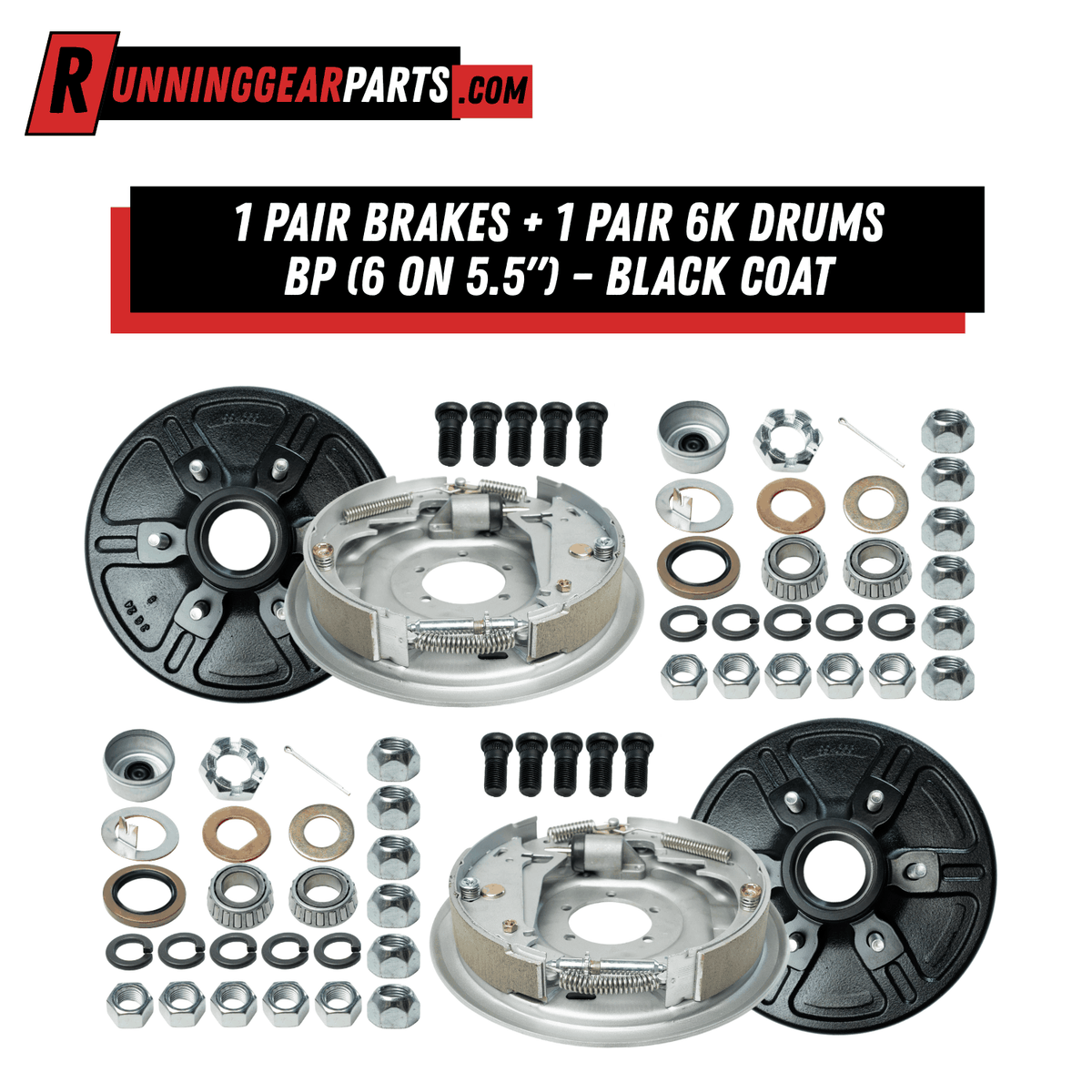

1 Pair Brake + 1 Pair 6,000 lb Drum, 6 on 5.5" Bolt Pattern Kit includes:
(1) LH Hydraulic Brake Assembly - 12"x2", Free-Backing, 5-Bolt Mount, Marine Coated
(1) RH Hydraulic Brake Assembly - 12"x2", Free-Backing, 5-Bolt Mount, Marine Coated
2x 12"x2" hub/drum assemblies, 6 on 5.5" bolt pattern.
2x 25580 inner bearings, 1.75" ID, pre-installed
2x 15123 outer bearings, 1.25" ID, pre-installed
2x 25520 inner races, 3.265" OD, pre-installed
2x 15245 outer races, 2.441" OD, pre-installed
2x double lip grease seals, 2.25" ID x 3.376" OD
2x 6,000 lb grease caps with rubber plugs
2x cotter pins
2x spindle nut retainers
2x cone wheel lug nuts, 1/2"-20 thread

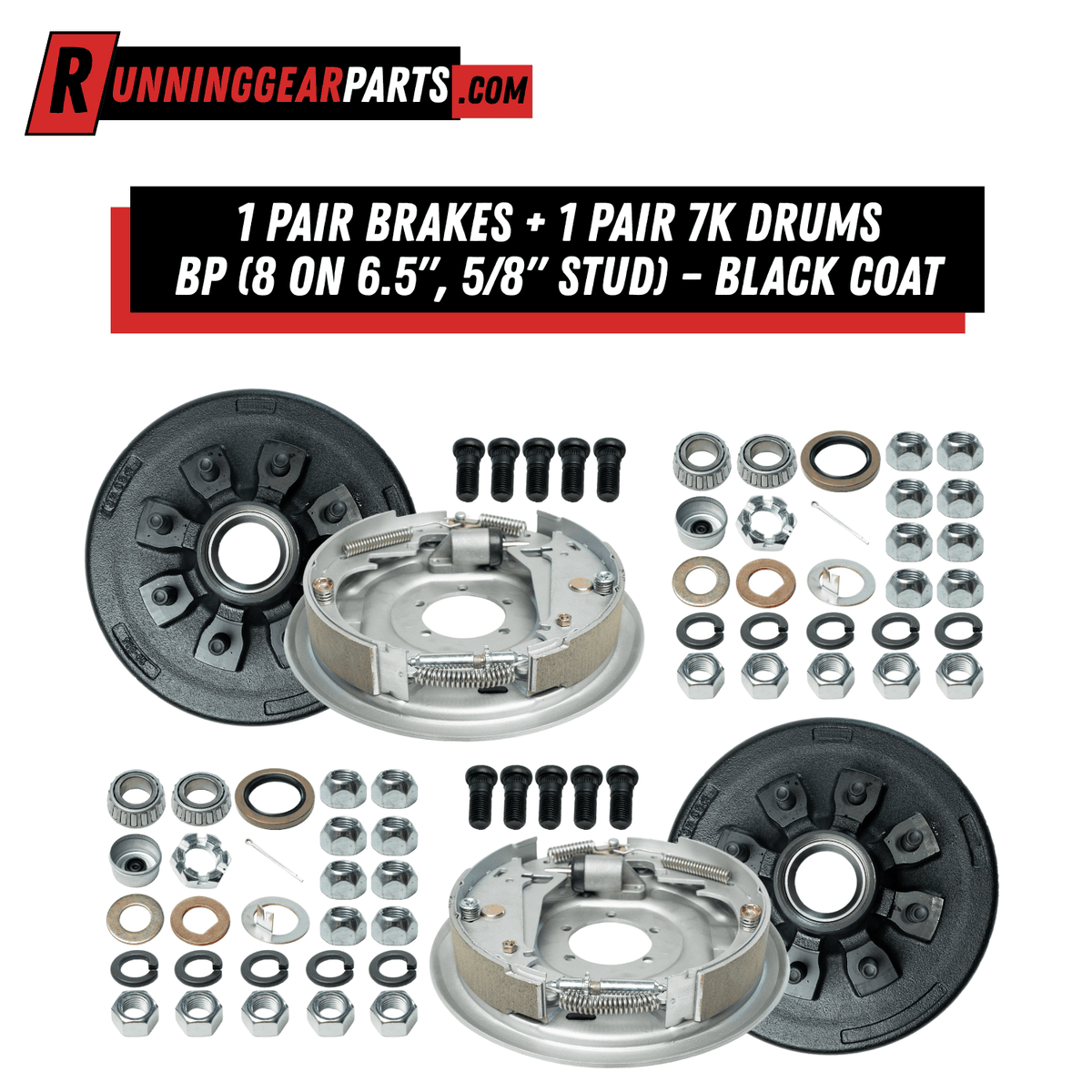

1 Pair Brake + 1 Pair 7,000 lb Drum, 8 on 6.5" Bolt Pattern with 5/8" Studs Kit includes:
(1) LH Hydraulic Brake Assembly - 12"x2", Free-Backing, 5-Bolt Mount, Marine Coated
(1) RH Hydraulic Brake Assembly - 12"x2", Free-Backing, 5-Bolt Mount, Marine Coated
(2) Hub/Drums - 8 on 6.5" Bolt Pattern, pre-installed 5/8"-20 studs & lug nuts
(2) 25580 Inner Bearings - Pre-installed
(2) 10-225 Double Lip Grease Seals - Pre-installed
(2) 14125A Outer Bearings - Loose in drum
(2) Dust Caps + (2) Plastic Hub Covers
(2) Castle Nuts
(2) Cotter Pins
(2) Tang Washers
(2) Flat Washers
(10) Brake Mounting Bolts
(10) Lock Washers
(2) D-Washers

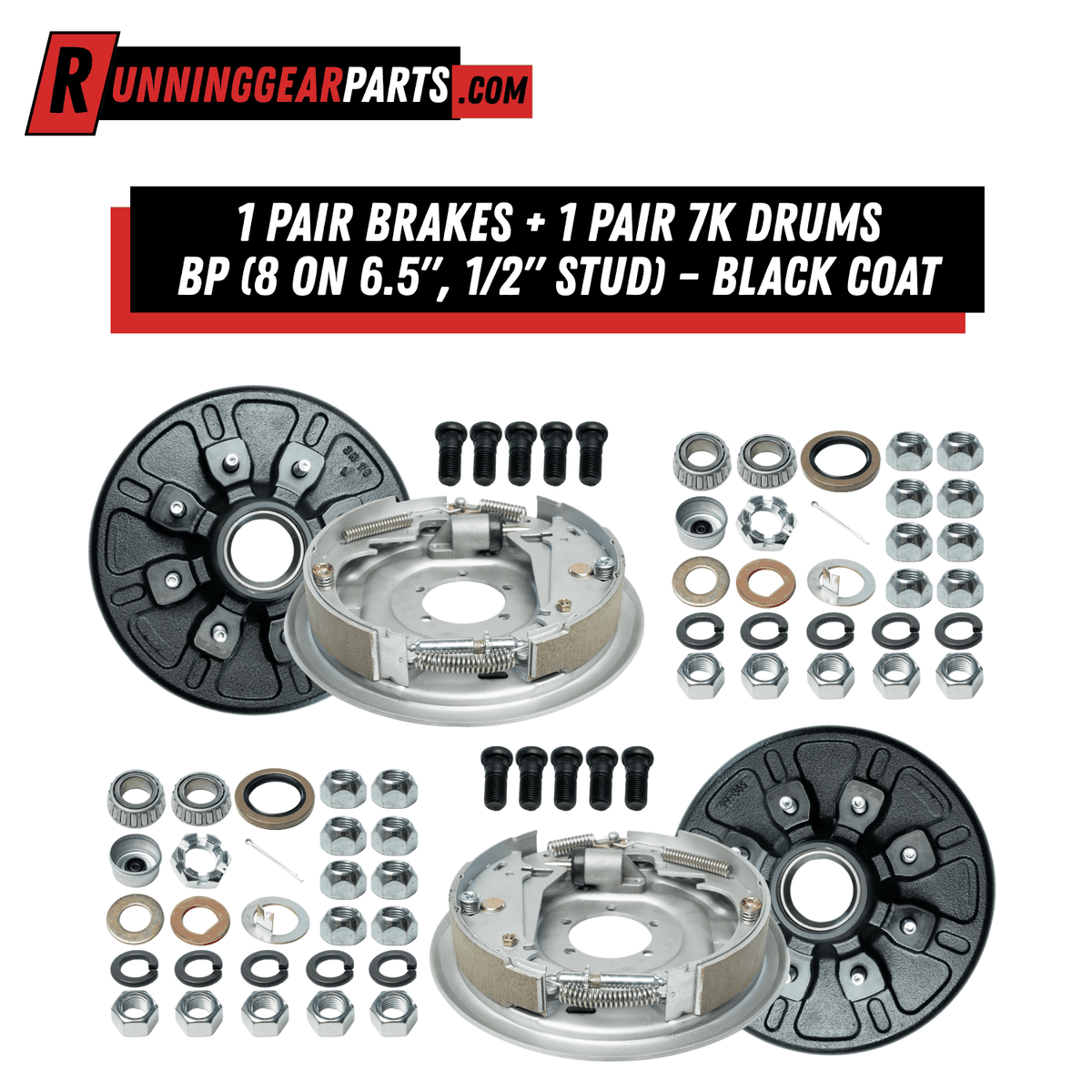

1 Pair Brake + 1 Pair 7,000 lb Drum, 8 on 6.5" Bolt Pattern with 1/2" Studs Kit Includes:
(1) LH Hydraulic Brake Assembly - 12"x2", Free-Backing, 5-Bolt Mount, Marine Coated
(1) RH Hydraulic Brake Assembly - 12"x2", Free-Backing, 5-Bolt Mount, Marine Coated
(2) Hub/Drums - 8 on 6.5" Bolt Pattern, pre-installed 1/2"-20 studs & lug nuts
(2) 25580 Inner Bearings - Pre-installed
(2) 10-225 Double Lip Grease Seals - Pre-installed
(2) 14125A Outer Bearings - Loose in drum
(2) Dust Caps + (2) Plastic Hub Covers
(2) Castle Nuts
(2) Cotter Pins
(2) Tang Washers
(2) Flat Washers
(10) Brake Mounting Bolts
(10) Lock Washers
(2) D-Washers
1 Pair Brake + 1 Pair 7,000 lb Drum, 8 on 6.5" Bolt Pattern with 9/16" Studs Kit Includes:
(1) LH Hydraulic Brake Assembly - 12"x2", Free-Backing, 5-Bolt Mount, Marine Coated
(1) RH Hydraulic Brake Assembly - 12"x2", Free-Backing, 5-Bolt Mount, Marine Coated
(2) Hub/Drums - 8 on 6.5" Bolt Pattern, pre-installed 9/16"-18 heavy-duty studs & lug nuts
(2) 25580 Inner Bearings - Pre-installed
(2) 10-225 Double Lip Grease Seals - Pre-installed
(2) 14125A Outer Bearings - Loose in drum
(2) Dust Caps + (2) Plastic Hub Covers
(2) Castle Nuts
(2) Cotter Pins
(2) Tang Washers
(2) Flat Washers
(10) Brake Mounting Bolts
(10) Lock Washers
(2) D-Washers
OEM Replacements:
Brakes: Dexter 023-580-00 (LH), 023-581-00 (RH)
Drums: Dexter 008-219-04 / 22004K
Compatible with Dexter, AL-KO, Besser Pro, Quality, Lippert, and Rockwell axles.
