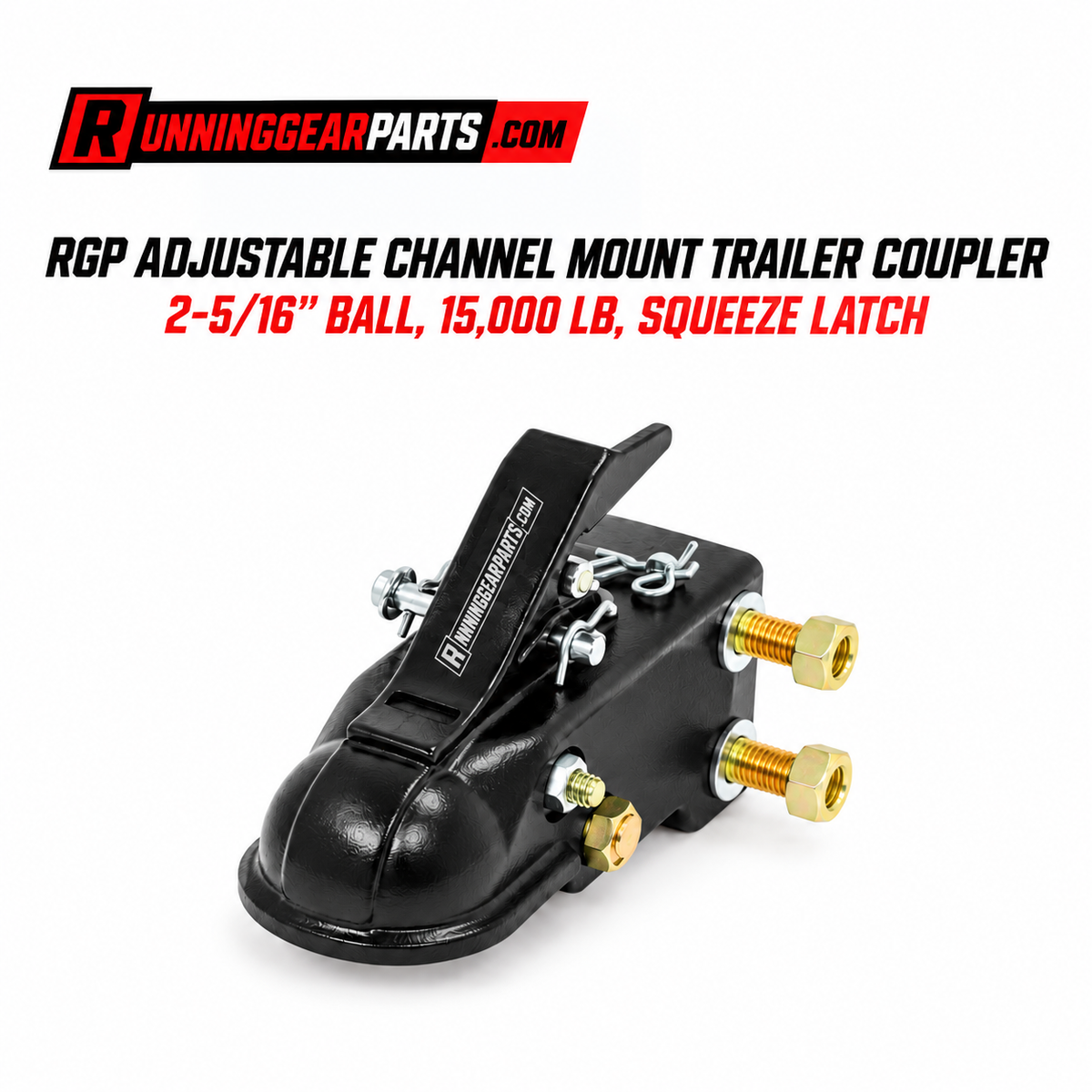

RPG 15,000 lbs | 2-5/16" Adjustable Channel Mount Trailer Coupler - Squeeze Latch
RPG 15,000 lbs | 2-5/16" Adjustable Channel Mount Trailer Coupler - Squeeze Latch is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
To ensure optimal performance and extend the service life of your new trailer components, please follow these care guidelines after purchase:
- Before installation, check all parts for shipping damage or missing components. Do not install damaged parts.
- Always use correct tools and torque settings. Improper installation can lead to premature wear or failure.
- For bearings, suspensions, and brake components, apply high-quality trailer grease before first use if not pre-greased.
- Some parts (like brake assemblies) require a short break-in period to achieve full performance. Follow manufacturer instructions for best results.
- Recheck fasteners, grease levels, and moving components after 100 miles of towing, then at regular intervals.
- After exposure to water, road salt, or mud, clean and dry parts thoroughly. Apply anti-rust treatment if needed.
- If storing unused parts, keep them in a dry, sealed container away from moisture and direct sunlight.
Delivery and Shipping
Delivery and Shipping
Handling Time: Orders ship out within 1 business day after payment is received.
Shipping Methods: We use trusted carriers like UPS, FedEx, or USPS based on package size and destination.
Delivery Time: Estimated delivery within 2–6 business days (U.S. domestic orders).
Tracking: A tracking number will be provided once your order is dispatched.
RPG 15,000 lbs | 2-5/16" Adjustable Channel Mount Trailer Coup...
Replacement Fitment:
Part Number Cross-Reference: CTA-280
Specifications:
-
Ball Size: 2-5/16"
-
Gross Trailer Weight (GTW): 15,000 lbs
-
Channel Width Application: 3" Wide Channel Bracket
-
Latch Style: Squeeze Latch (Trigger Latch) with Safety Pin Assembly
-
Length: 8-1/2" (measured from center of mounting hole to front edge)
-
Mounting Hole Spacing: 2" on center
-
Pin Hole Diameter: 5/16" (requires a minimum pin/pin lock span of 1-3/16")
-
Material: Heavy-duty structural steel construction
-
Finish: Black powder coat (rust and corrosion-resistant)
-
Standards: SAE J684 Certified
What's Included by Kit Option:
-
1x 2-5/16" Adjustable Channel Mount Squeeze Latch Coupler (15,000 lbs)
-
2x Grade 8 High-Tensile Mounting Bolts with Nuts
-
(Please Note: The 3" wide channel bracket that mounts to the trailer tongue is sold separately).
Product Overview:
Towing a heavy trailer with vehicles of varying ride heights usually forces you to swap out drawbars or deal with unsafe, uneven towing angles. This heavy-duty adjustable channel coupler solves that issue by letting you adjust your trailer's connection point up or down within your existing channel sleeve. Rated at a massive 15,000 lbs GTW, it is built to handle the constant tongue weights of commercial dump trailers, flatbeds, and heavy machinery haulers.
Coupling and uncoupling is incredibly smooth thanks to the dual-lever squeeze latch. Instead of wrestling with stiff, traditional latches that jam under pressure, you simply pull the safety pin and squeeze both levers together to open the 2-5/16" ball socket.
To ensure maximum safety under heavy sheer stress, this coupler comes complete with high-strength Grade 8 mounting bolts. The entire assembly is constructed from solid structural steel, coated in a thick, baked-on black powder coat to seal out moisture, road grime, and salt. Fully SAE J684 certified, it is a fleet-grade suspension and hitch upgrade designed to keep your load tracking flat and secure on any road.
