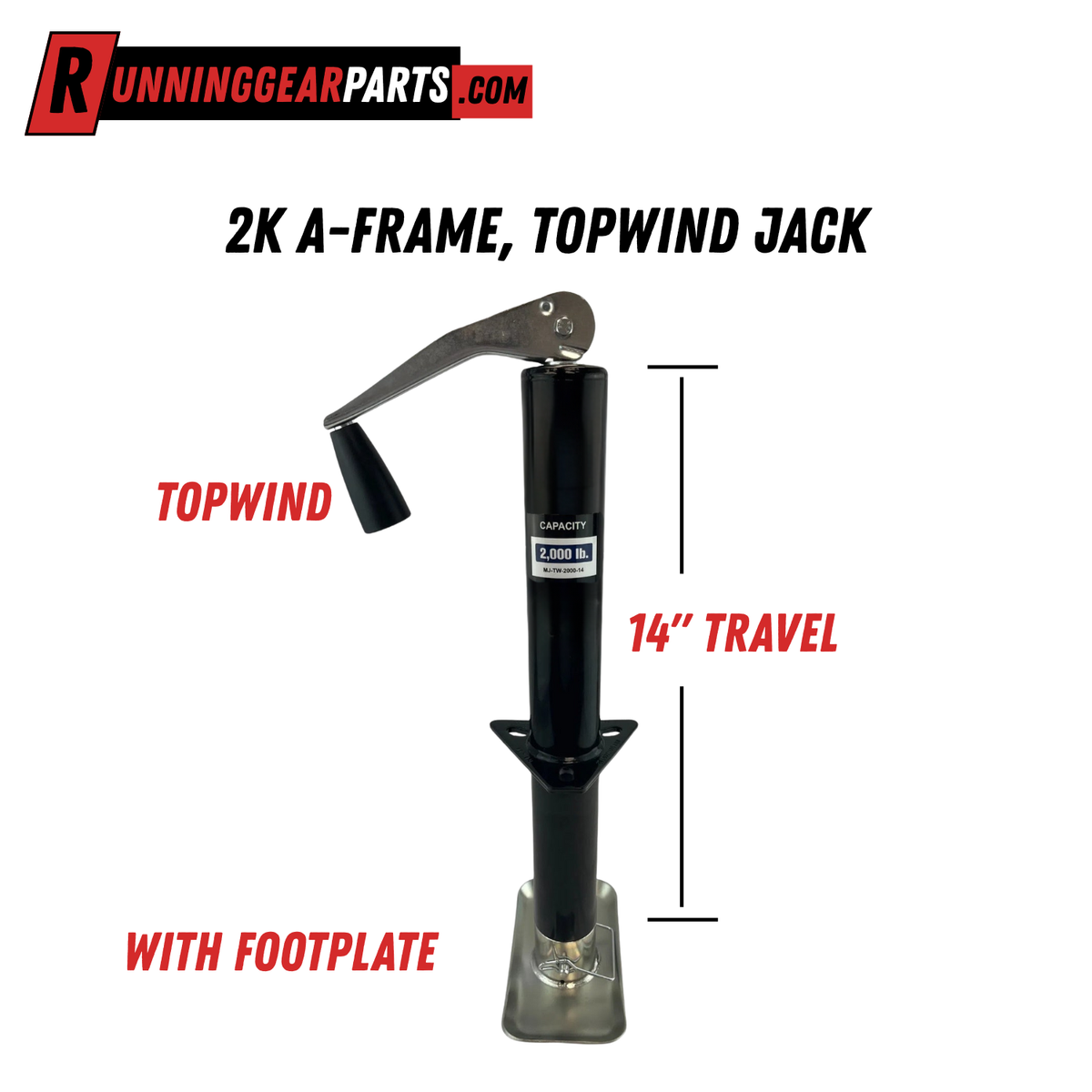

2000 lb A-Frame Trailer Jack 14" Vertical Travel Topwind Handle Foot Plate Black Powder Coat
2000 lb A-Frame Trailer Jack 14" Vertical Travel Topwind Handle Foot Plate Black Powder Coat is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
To ensure optimal performance and extend the service life of your new trailer components, please follow these care guidelines after purchase:
- Before installation, check all parts for shipping damage or missing components. Do not install damaged parts.
- Always use correct tools and torque settings. Improper installation can lead to premature wear or failure.
- For bearings, suspensions, and brake components, apply high-quality trailer grease before first use if not pre-greased.
- Some parts (like brake assemblies) require a short break-in period to achieve full performance. Follow manufacturer instructions for best results.
- Recheck fasteners, grease levels, and moving components after 100 miles of towing, then at regular intervals.
- After exposure to water, road salt, or mud, clean and dry parts thoroughly. Apply anti-rust treatment if needed.
- If storing unused parts, keep them in a dry, sealed container away from moisture and direct sunlight.
Delivery and Shipping
Delivery and Shipping
Handling Time: Orders ship out within 1 business day after payment is received.
Shipping Methods: We use trusted carriers like UPS, FedEx, or USPS based on package size and destination.
Delivery Time: Estimated delivery within 2–6 business days (U.S. domestic orders).
Tracking: A tracking number will be provided once your order is dispatched.
2000 lb A-Frame Trailer Jack 14" Vertical Travel Topwind Handl...
Product Overview
This A-frame trailer jack is engineered to safely raise and lower your trailer tongue, making hitching and unhitching easier and more efficient. Rated for up to 2,000 lbs of lift capacity, it's ideal for utility trailers, enclosed trailers, campers, and other light-to-medium duty applications where reliable tongue support is a must.
Constructed with a black powder-coated A-frame tube and a zinc-finished topwind handle arm, this jack resists corrosion and holds up well in outdoor environments. The topwind design and internal gearbox provide smooth, controlled operation, while the textured handle gives you a comfortable grip during use.
With a 14-1/4" travel range from 8-1/4" (retracted) to 22-1/2" (extended), this jack offers plenty of adjustment for leveling your trailer and connecting to the ball hitch. Bolt-on or weld-on mounting options give you flexibility during installation, and the included jack foot adds stability when parked.
Specifications
Lift Capacity: 2,000 lb
Support Capacity: 3,000 lb
Handle Type: Topwind
Travel: 14"
Bracket height (from bottom of inner tube-with hole still usable-to bottom of bracket): 8-1/4" retracted
Bracket height (from bottom of inner tube-with hole still usable-to bottom of bracket): 22-1/2" extended
Clearance (from bottom of bracket to top of handle mount): 13"
Clearance (from bottom of bracket to top of handle): 16-1/8"
Outer Tube diameter: 2-1/4"
Inner Tube diameter: 2"
Handle Length: 6-1/2"
Handle Radius: 6-3/8"
Mount Type: Bolt-on or Weld-on
Construction: Durable Steel
Finish: Black Powder Coat
