3,500 lbs Trailer Axle Hub & Drum- 5 on 4.5" Bolt Circle, Pre-Greased
3,500 lbs Trailer Axle Hub & Drum- 5 on 4.5" Bolt Circle, Pre-Greased - is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
To ensure optimal performance and extend the service life of your new trailer components, please follow these care guidelines after purchase:
- Before installation, check all parts for shipping damage or missing components. Do not install damaged parts.
- Always use correct tools and torque settings. Improper installation can lead to premature wear or failure.
- For bearings, suspensions, and brake components, apply high-quality trailer grease before first use if not pre-greased.
- Some parts (like brake assemblies) require a short break-in period to achieve full performance. Follow manufacturer instructions for best results.
- Recheck fasteners, grease levels, and moving components after 100 miles of towing, then at regular intervals.
- After exposure to water, road salt, or mud, clean and dry parts thoroughly. Apply anti-rust treatment if needed.
- If storing unused parts, keep them in a dry, sealed container away from moisture and direct sunlight.
Delivery and Shipping
Delivery and Shipping
Handling Time: Orders ship out within 1 business day after payment is received.
Shipping Methods: We use trusted carriers like UPS, FedEx, or USPS based on package size and destination.
Delivery Time: Estimated delivery within 2–6 business days (U.S. domestic orders).
Tracking: A tracking number will be provided once your order is dispatched.
3,500 lbs Trailer Axle Hub & Drum- 5 on 4.5" Bolt Circle, ...
Product Overview

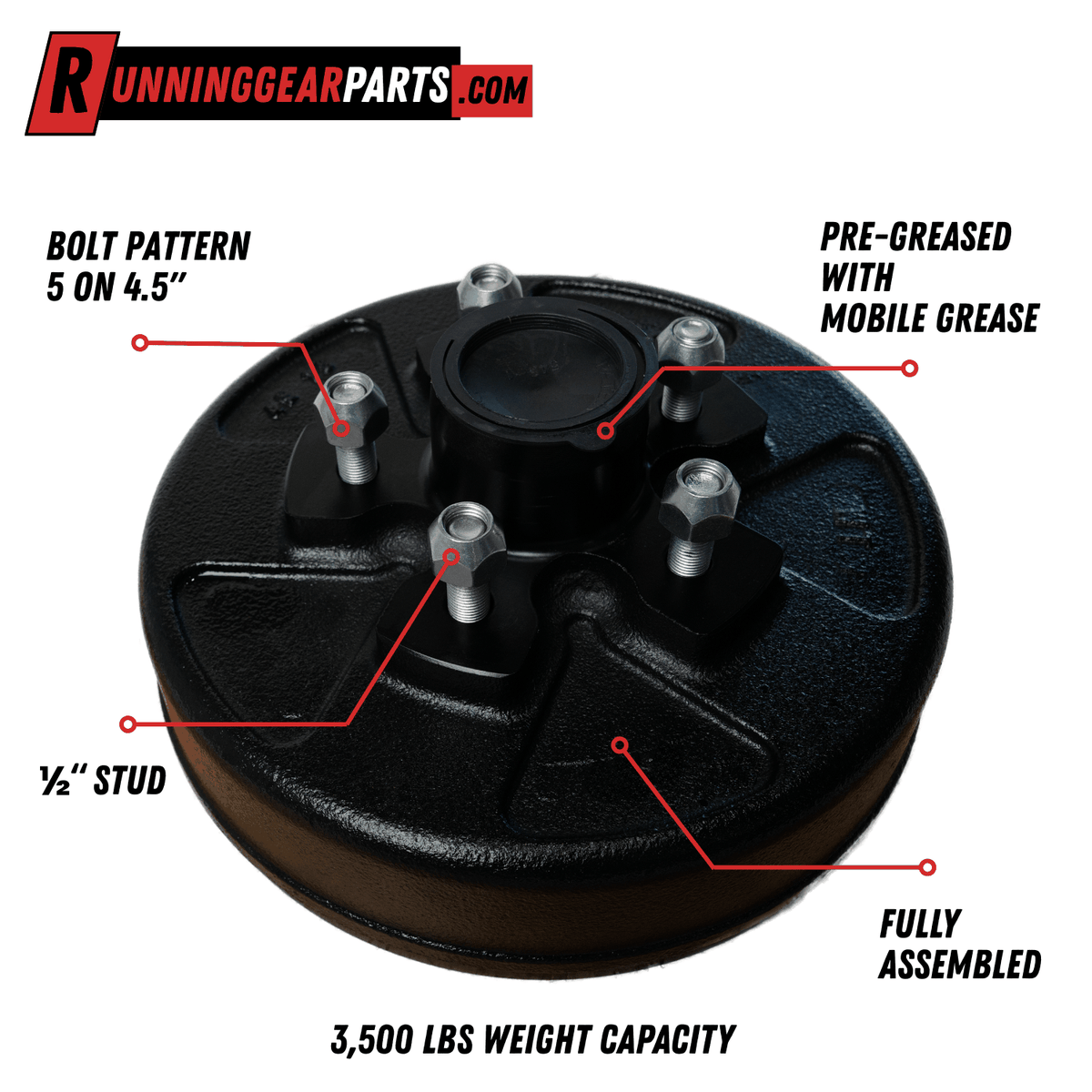

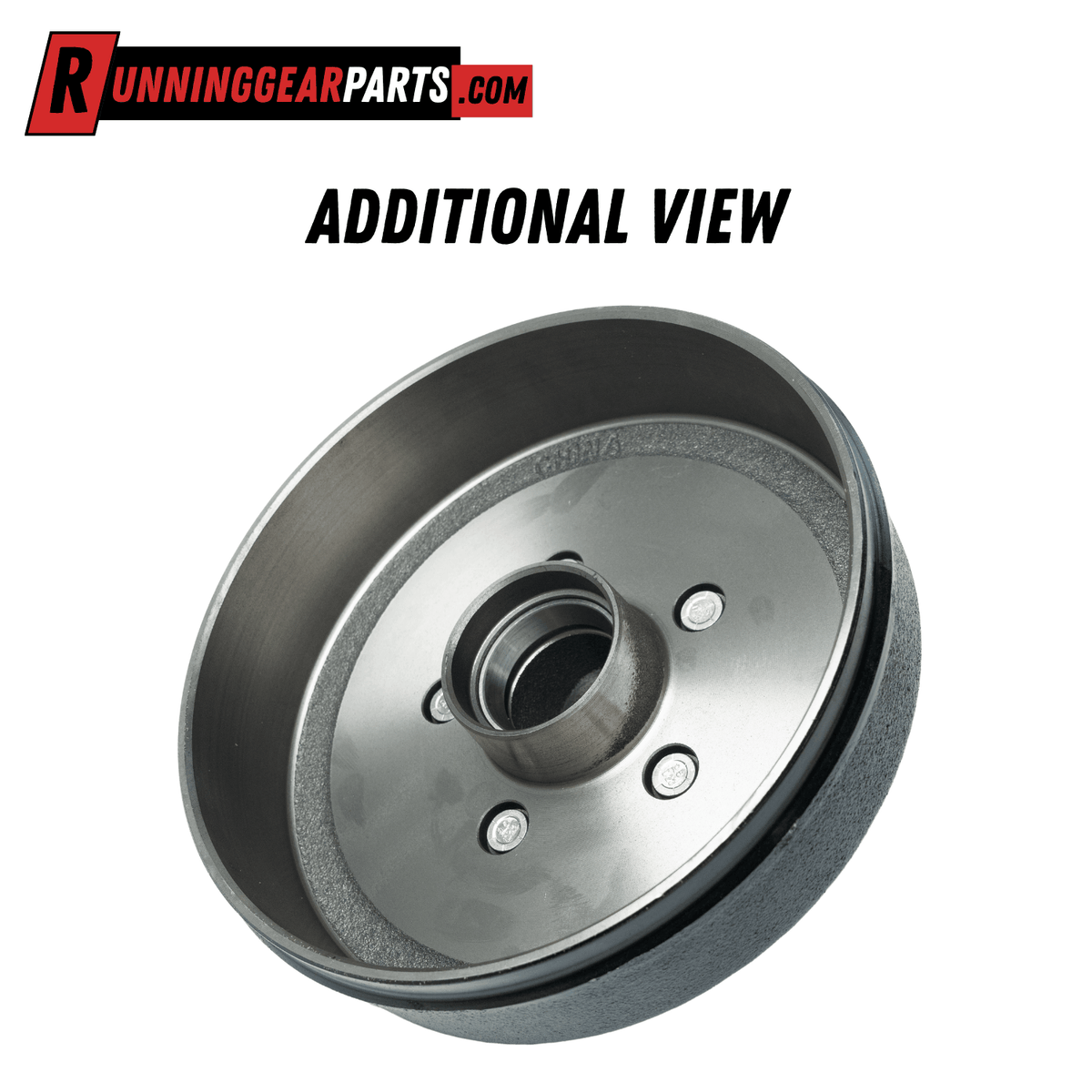

Upgrade your trailer braking system with this 3,500 lb black painted hub and drum assembly, designed for standard 3,500 lb trailer axles with a 5 on 4.5" bolt pattern. Built for utility trailers, cargo trailers, boat trailers, and light equipment trailers, this complete assembly provides reliable braking performance and dependable wheel-end operation.
The durable black painted finish helps protect against everyday wear and corrosion, making it a practical replacement solution for standard towing applications. The assembly arrives pre-greased and boxed complete with matched bearings, races, grease seal, wheel studs, dust cap, lug nuts, and spindle hardware included for a straightforward installation.

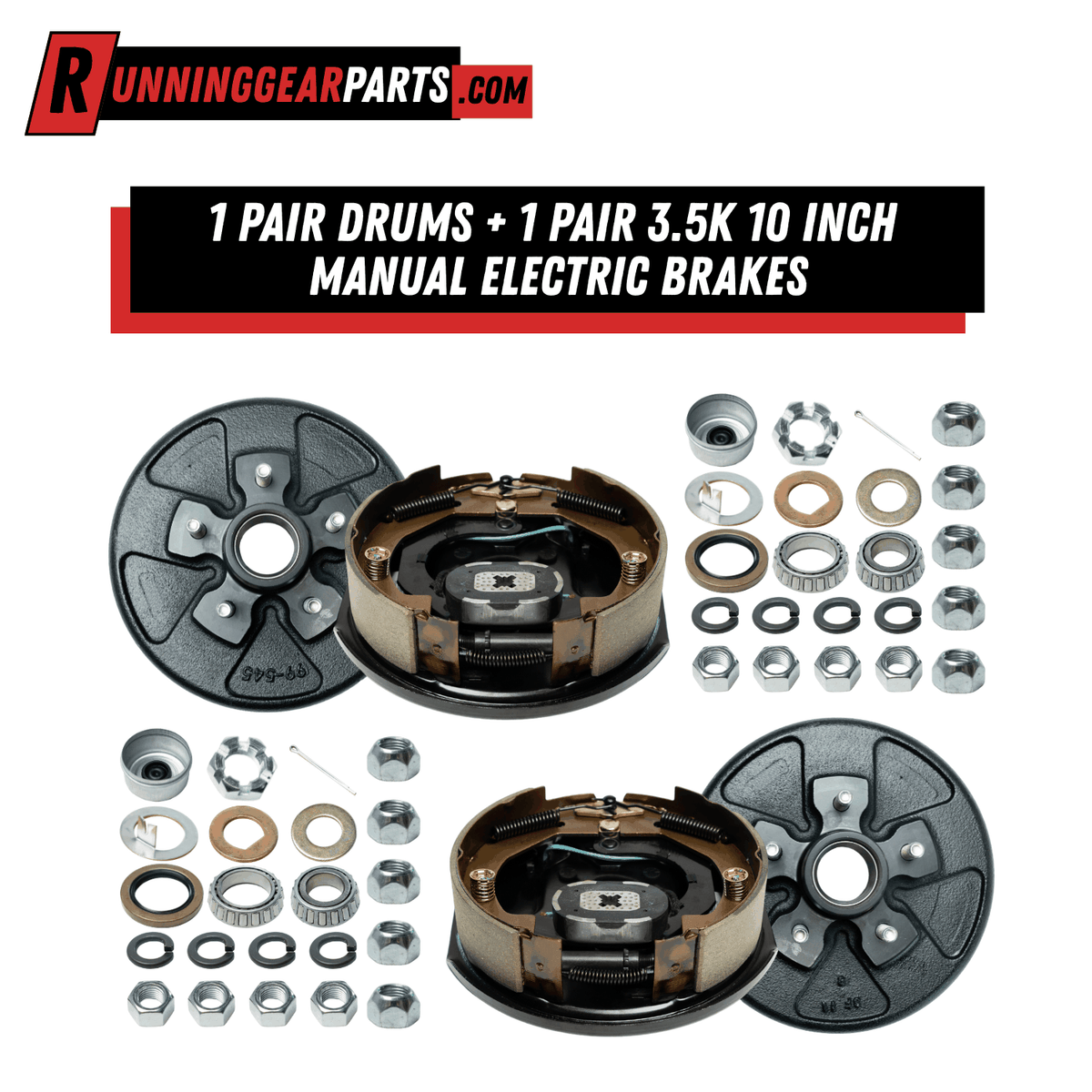

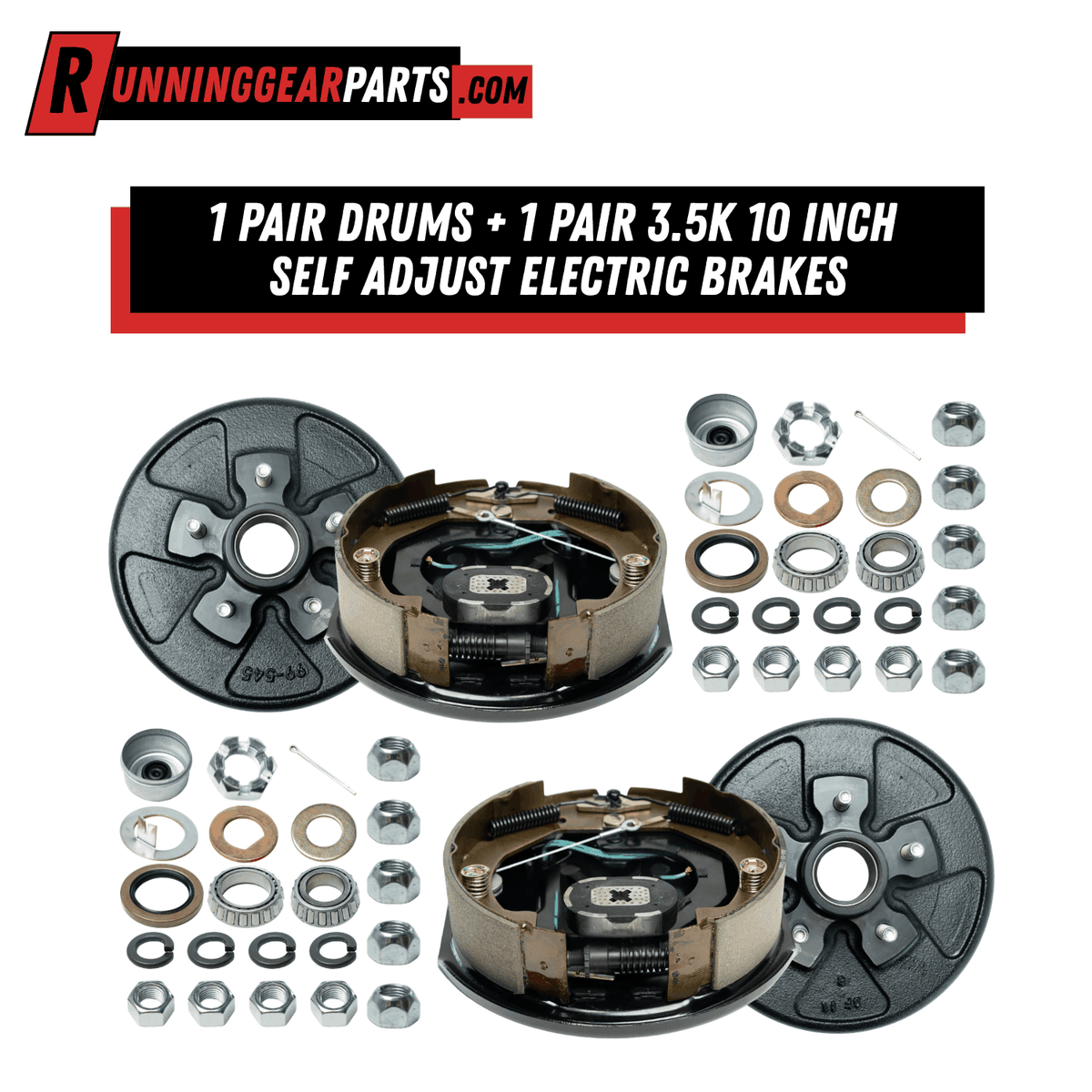

Compatible with standard 10" electric or hydraulic brake systems, this hub and drum assembly helps restore smooth trailer operation while reducing installation time by including the essential components needed for replacement.

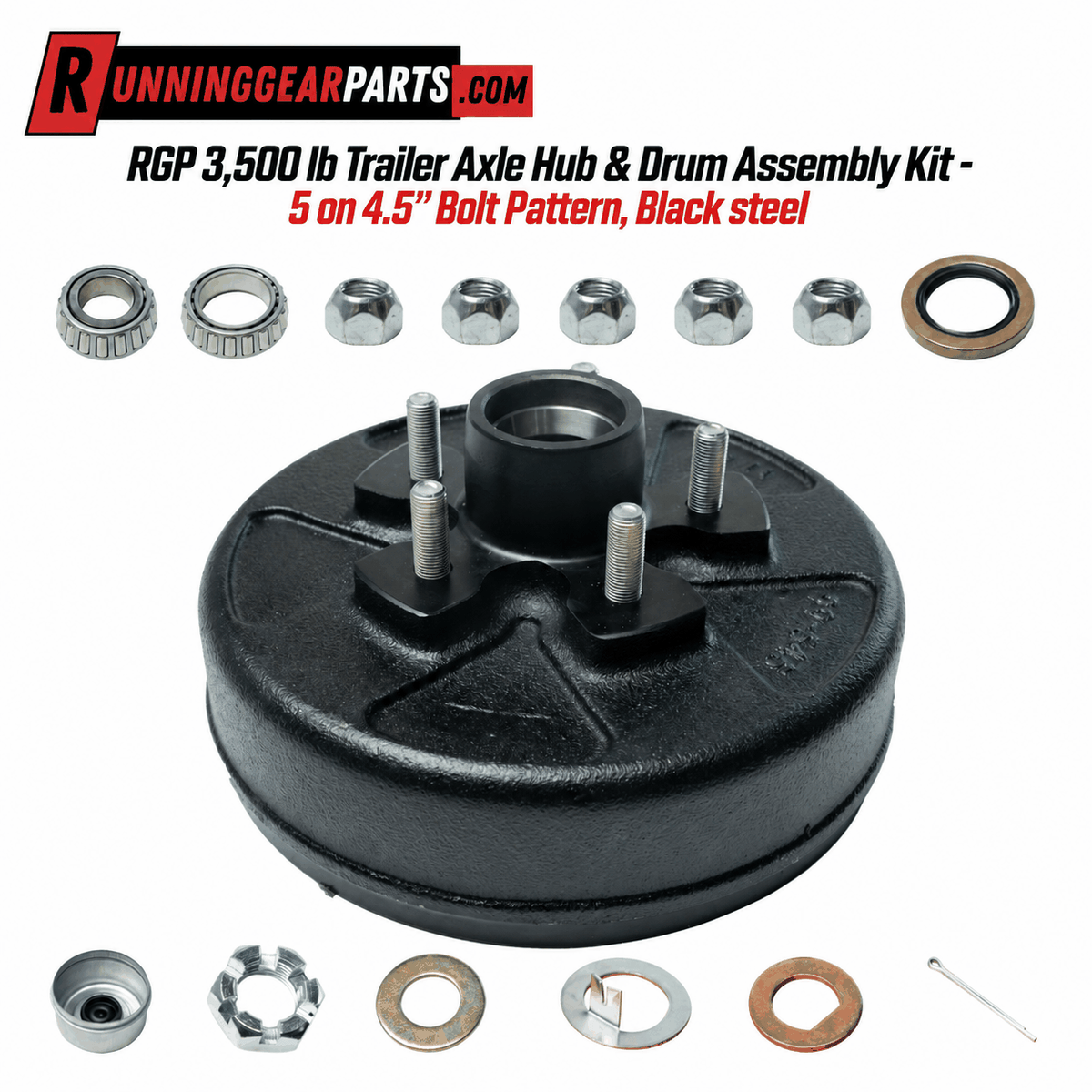

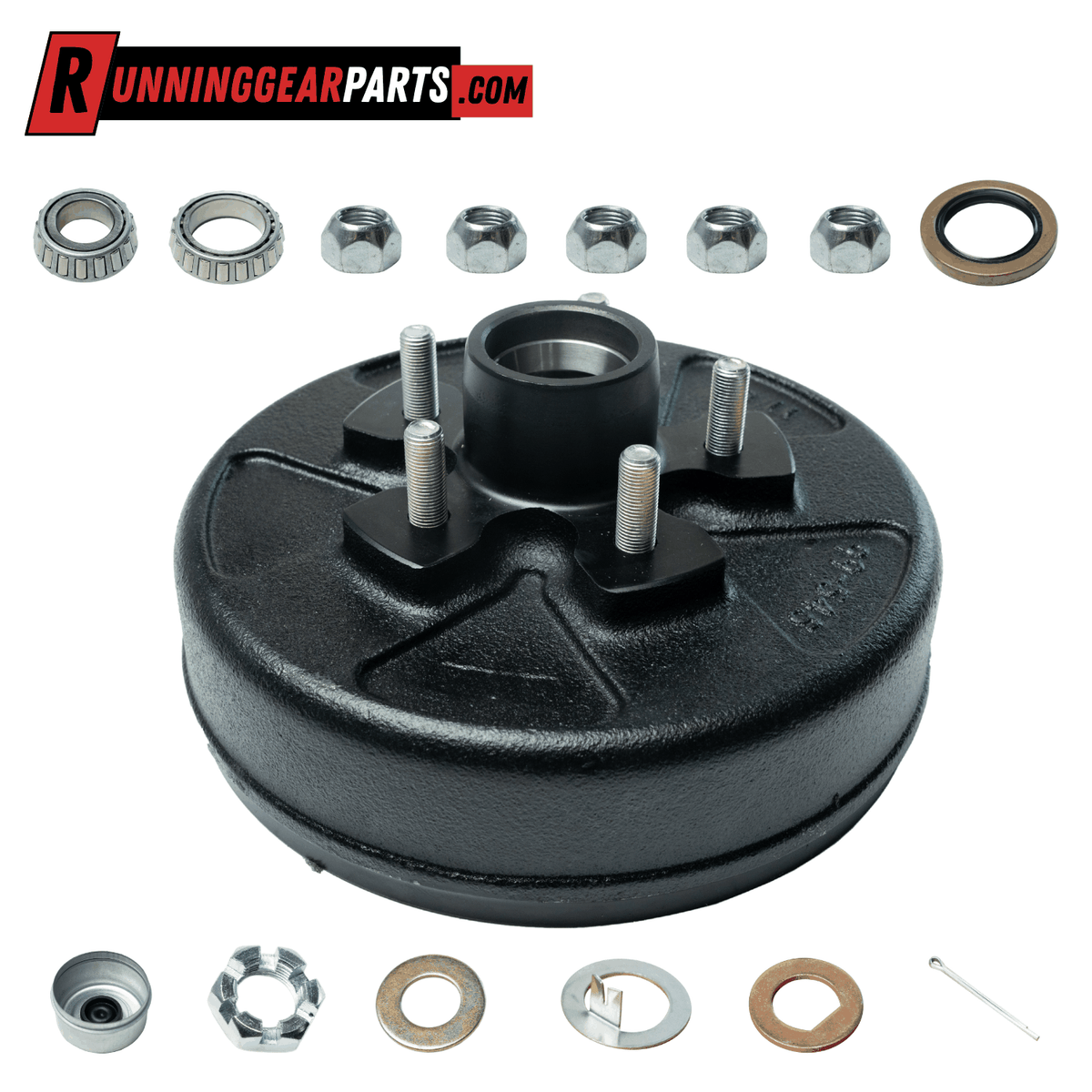

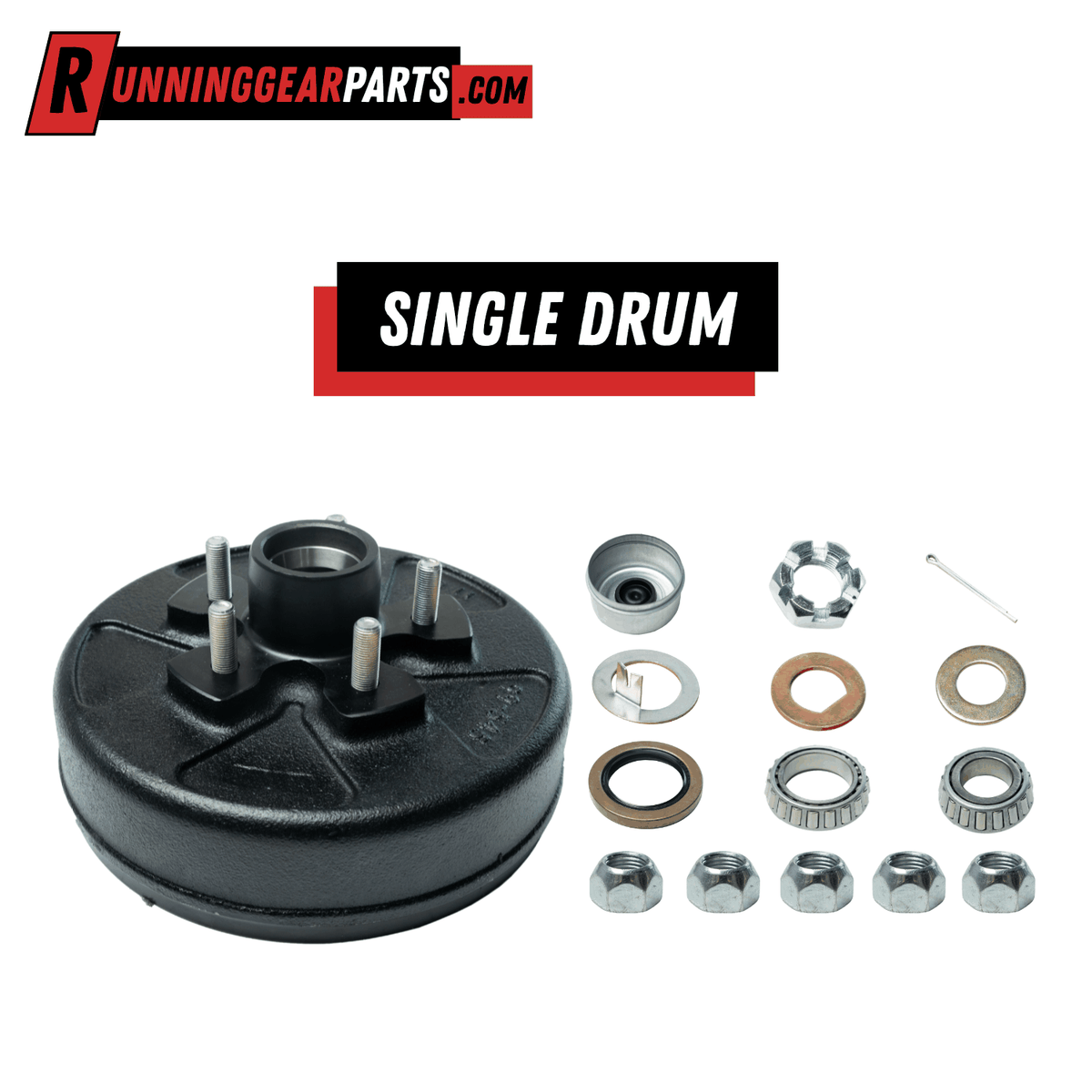

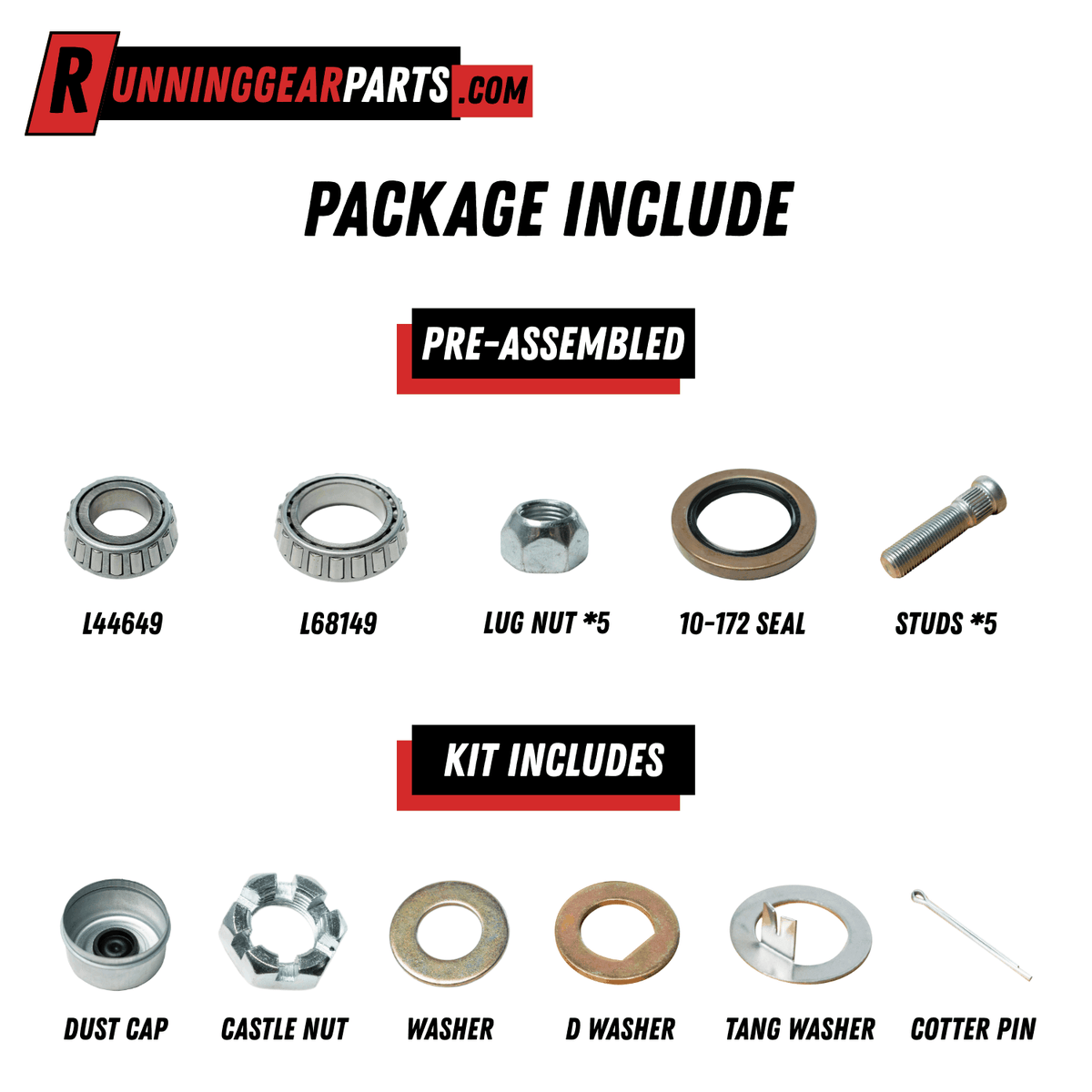

What's Included
Pre-Assembled:
- 1 × 3,500 lb Hub & Drum Assembly
- 1 × L68149 Inner Bearing (Installed)
- 1 × 10-172 Grease Seal (Installed)
- 5 × 1/2" Wheel Studs (Pressed-in)
- Pre-greased hub assembly
In Box:
- 1 × L44649 Outer Bearing
- 1 × Dust Cap with Rubber Plug
- 1 × Castle Nut
- 1 × Washer
- 1 × Tang Washer
- 1 × D Washer
- 1 × Cotter Pin
- 5 × Lug Nuts
- 2 × Plastic Covers
Specifications
Assembly Type: Hub & Drum Assembly
Brake Compatibility: 10" Electric or Hydraulic Drum Brakes
Axle Capacity: 3,500 lbs
Hub Capacity: 1,750 lbs
Bolt Pattern: 5 on 4.5"
Wheel Size Compatibility:8", 10", 12", 13", 14", 15"
Inner Bearing: L68149 (1.378" ID)
Outer Bearing: L44649 (1.063" ID)
Inner Race: L68111
Outer Race: L44610
Grease Seal: 10-172(1.719" ID × 2.565" OD)
Stud Size: 1/2"
Finish: Black steel
Condition: Brand new, boxed complete kit.
OEM & Replacement Part Numbers
Dexter 008-247-05
Dexter K08-247-90
Dexter K08-247-94
Compatible with Dexter, AL-KO, Lippert, Rockwell, and Besser Pro trailer axles.
