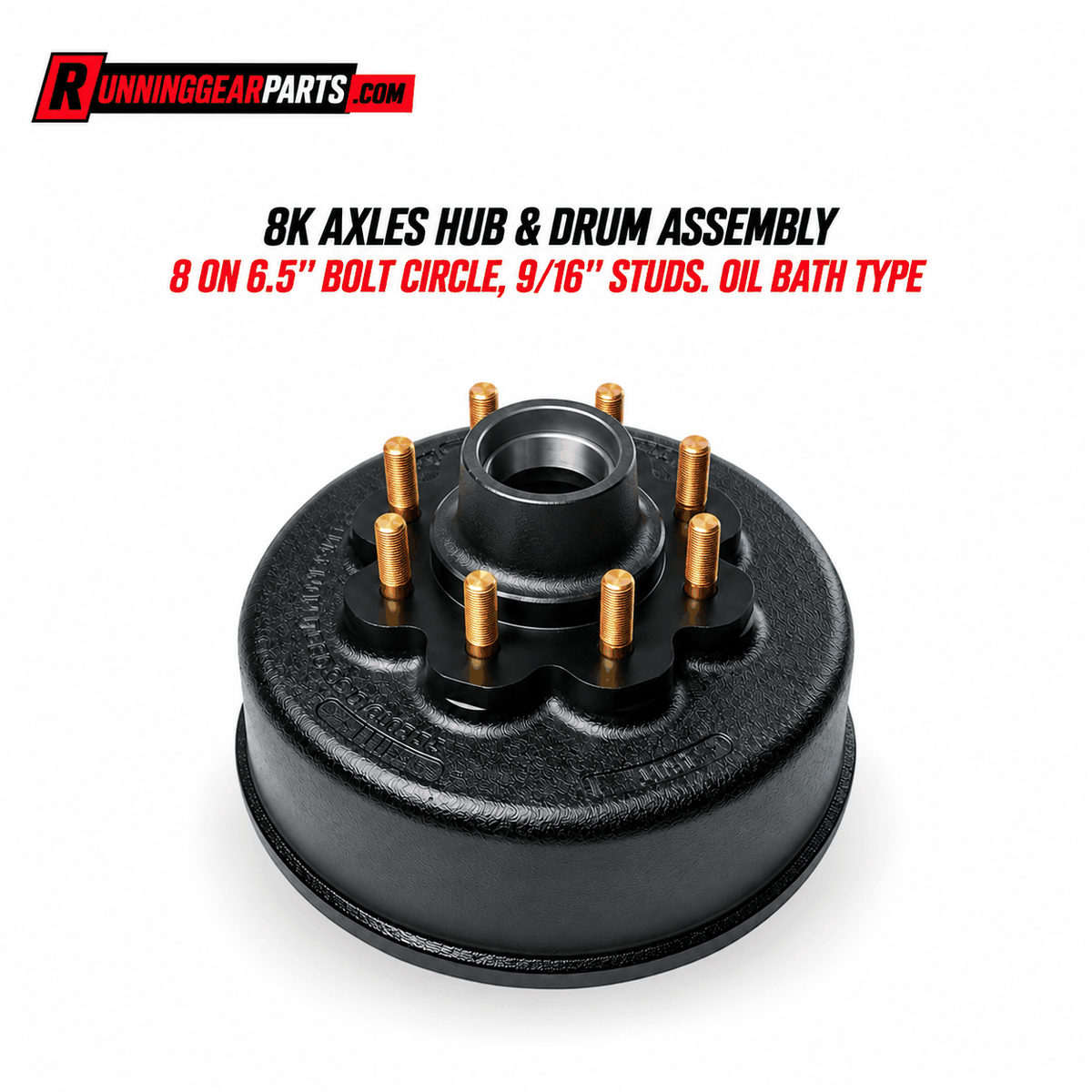

8,000 lb Oil Bath Trailer Hub & Drum Assembly, 8 on 6.5", 9/16" Studs, 12-1/4" x 3-3/8" Brakes

Name: 8,000 lb Oil Bath Trailer Hub & Drum Assembly, 8 on 6.5", 9/16" Studs, 12-1/4" x 3-3/8" Brakes
Brand: RunningGearParts.com
Price: 171.25 USD
Availability: InStock

$171.25 USD

Shipping calculated at checkout.

Care information

To ensure optimal performance and extend the service life of your new trailer components, please follow these care guidelines after purchase:

Before installation, check all parts for shipping damage or missing components. Do not install damaged parts.
Always use correct tools and torque settings. Improper installation can lead to premature wear or failure.
For bearings, suspensions, and brake components, apply high-quality trailer grease before first use if not pre-greased.
Some parts (like brake assemblies) require a short break-in period to achieve full performance. Follow manufacturer instructions for best results.
Recheck fasteners, grease levels, and moving components after 100 miles of towing, then at regular intervals.
After exposure to water, road salt, or mud, clean and dry parts thoroughly. Apply anti-rust treatment if needed.
If storing unused parts, keep them in a dry, sealed container away from moisture and direct sunlight.

Delivery and Shipping

Handling Time: Orders ship out within 1 business day after payment is received.

Shipping Methods: We use trusted carriers like UPS, FedEx, or USPS based on package size and destination.

Delivery Time: Estimated delivery within 2–6 business days (U.S. domestic orders).

Tracking: A tracking number will be provided once your order is dispatched.

Q1 Will this brake fit my trailer?

This brake assembly fits most standard 7,000 lb trailer axles that use 12" × 2" electric brakes with a 5-bolt mounting flange. Please verify your axle rating and brake dimensions before ordering. If you're unsure, send us your axle tag or hub information and we'll help confirm compatibility.

Q2 Does it fit Dexter or Lippert axles?

Yes. It is compatible with many standard Dexter, Lippert, Rockwell American, AL-KO, and other 7,000 lb trailer axles that use a standard 12" × 2" brake assembly. Always verify your axle specifications before purchasing.

Q3 Is this a self-adjusting brake?

Yes. This is a self-adjusting electric brake assembly, which automatically maintains proper brake shoe clearance during normal operation. This reduces maintenance and helps provide consistent braking performance.

Product Overview

Restore reliable braking performance and towing safety with this 8,000 lb oil bath trailer hub and drum assembly. Designed for heavy-duty trailer axle systems, this complete hub and drum assembly features pre-installed 9/16" wheel studs for secure wheel mounting and easier installation.

Engineered for 12-1/4" x 3-3/8" electric or hydraulic brake assemblies, this hub and drum assembly features a precision-machined braking surface that provides smooth and consistent contact with trailer brake shoes. The optimized friction surface helps reduce uneven wear while delivering dependable stopping performance during heavy towing applications.

Designed for oil bath lubrication systems, this 8,000 lb trailer hub and drum assembly works with compatible bearings, oil seals, and oil caps to maintain continuous lubrication and support long-term towing reliability. The oil bath design helps reduce bearing heat buildup and provides enhanced lubrication performance compared with traditional grease-lubricated configurations when properly installed.

Featuring an 8 on 6-1/2" bolt pattern, 4-3/4" hub pilot, and pre-installed 9/16" wheel studs, this complete hub and drum assembly is an ideal replacement solution for flatbed trailers, car haulers, dump trailers, equipment trailers, and other heavy-duty towing applications requiring an 8,000 lb axle braking system.

What's Included

1 x 8,000 lb Oil Bath Trailer Hub & Drum Assembly with Pre-installed 9/16" Wheel Studs

Note: This product includes the complete hub and drum assembly with installed wheel studs. Bearings, races, oil seal, oil cap, lug nuts, and spindle hardware are sold separately.

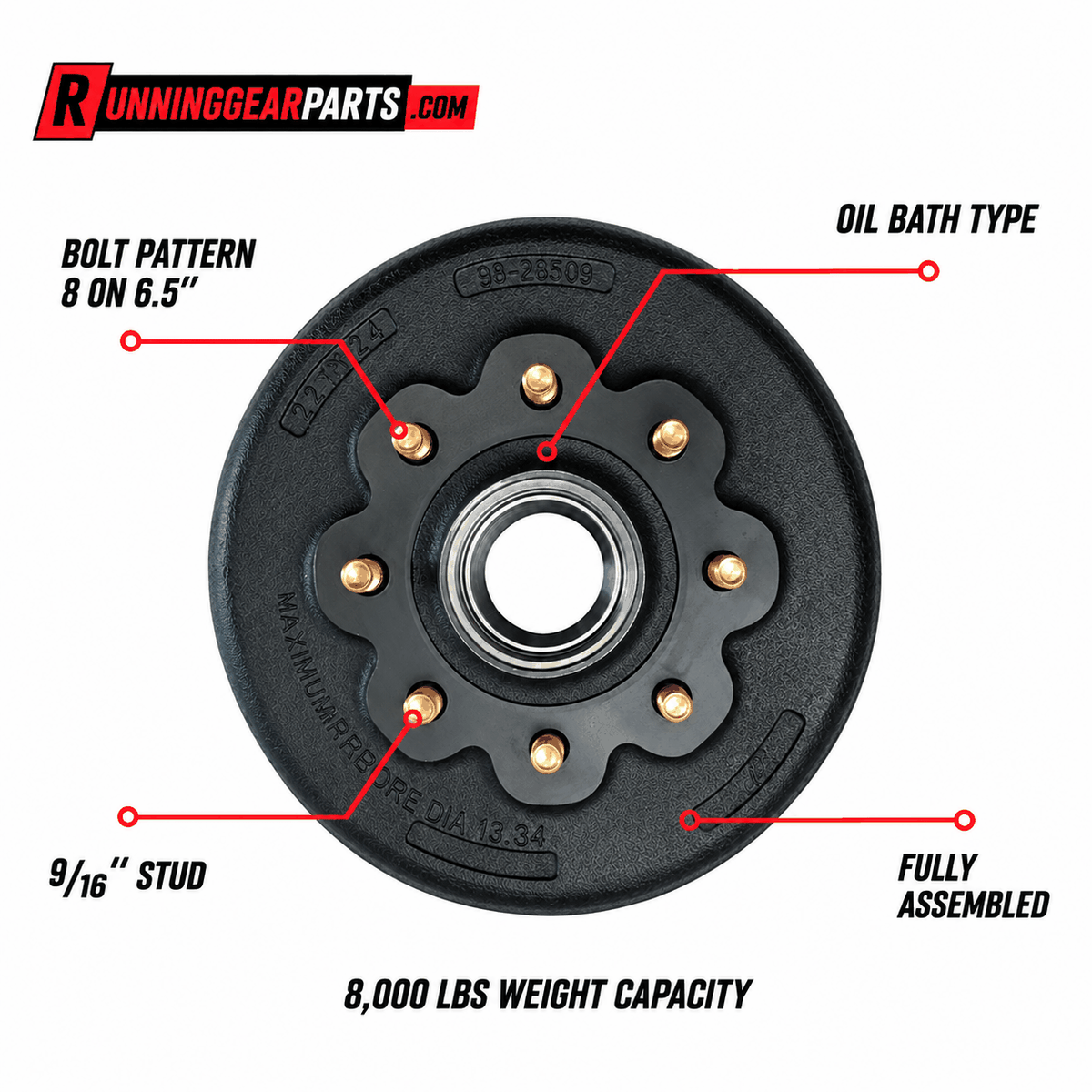

Specifications

Hub & Drum Details:

Axle Capacity: 8,000 lbs Trailer Axle Applications

Bolt Pattern: 8 on 6-1/2"

Wheel Studs: 9/16" Pre-installed Wheel Studs

Brake Assembly Size: 12-1/4" Diameter x 3-3/8" Width

Wheel Compatibility: Fits 16" and 17.5" Trailer Wheels

Hub Pilot Diameter: 4-3/4"

Lubrication Type: Oil Bath

Bearing & Component Compatibility (Sold Separately):

Inner Bearing: 25580 (1.75" ID)

Outer Bearing: 02475 (1.25" ID)

Inner Race: 25520

Outer Race: 02420

Oil Seal: 10-63
(2.25" ID x 3.371" OD)

Oil Cap: OC-86580-26
(2-7/8" OD)

Replacement & Compatibility

This 8,000 lb oil bath trailer hub and drum assembly is designed for applications using the following Dexter OEM specification:

OEM Compatibility / Cross Reference:

Dexter K08-285-92
