RGP 8,000 lb Trailer Axle Hub & Drum Kit – 8 on 6.5", 9/16"-18 Studs, Oil Bath
RGP 8,000 lb Trailer Axle Hub & Drum Kit – 8 on 6.5", 9/16"-18 Studs, Oil Bath is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
To ensure optimal performance and extend the service life of your new trailer components, please follow these care guidelines after purchase:
- Before installation, check all parts for shipping damage or missing components. Do not install damaged parts.
- Always use correct tools and torque settings. Improper installation can lead to premature wear or failure.
- For bearings, suspensions, and brake components, apply high-quality trailer grease before first use if not pre-greased.
- Some parts (like brake assemblies) require a short break-in period to achieve full performance. Follow manufacturer instructions for best results.
- Recheck fasteners, grease levels, and moving components after 100 miles of towing, then at regular intervals.
- After exposure to water, road salt, or mud, clean and dry parts thoroughly. Apply anti-rust treatment if needed.
- If storing unused parts, keep them in a dry, sealed container away from moisture and direct sunlight.
Delivery and Shipping
Delivery and Shipping
Handling Time: Orders ship out within 1 business day after payment is received.
Shipping Methods: We use trusted carriers like UPS, FedEx, or USPS based on package size and destination.
Delivery Time: Estimated delivery within 2–6 business days (U.S. domestic orders).
Tracking: A tracking number will be provided once your order is dispatched.
Product Overview
Designed for compatible 8,000 lb trailer axle applications, this heavy-duty hub and drum kit features an 8 on 6.5" bolt pattern, 9/16"-18 wheel studs, and a threaded hub configuration designed for use with an oil cap.
The assembly uses a 25580 inner bearing and 02475 outer bearing configuration with a 10-225-15 oil seal. It is designed for compatible Lippert Hybrid-style 8K applications using the same bearing, stud, bolt-pattern, and hub configuration.
The kit includes an oil cap, flanged lug nuts, spindle retention hardware, and comes pre-greased as supplied. Always verify axle capacity, bearing numbers, seal type, wheel stud size, bolt pattern, and hub configuration before ordering.

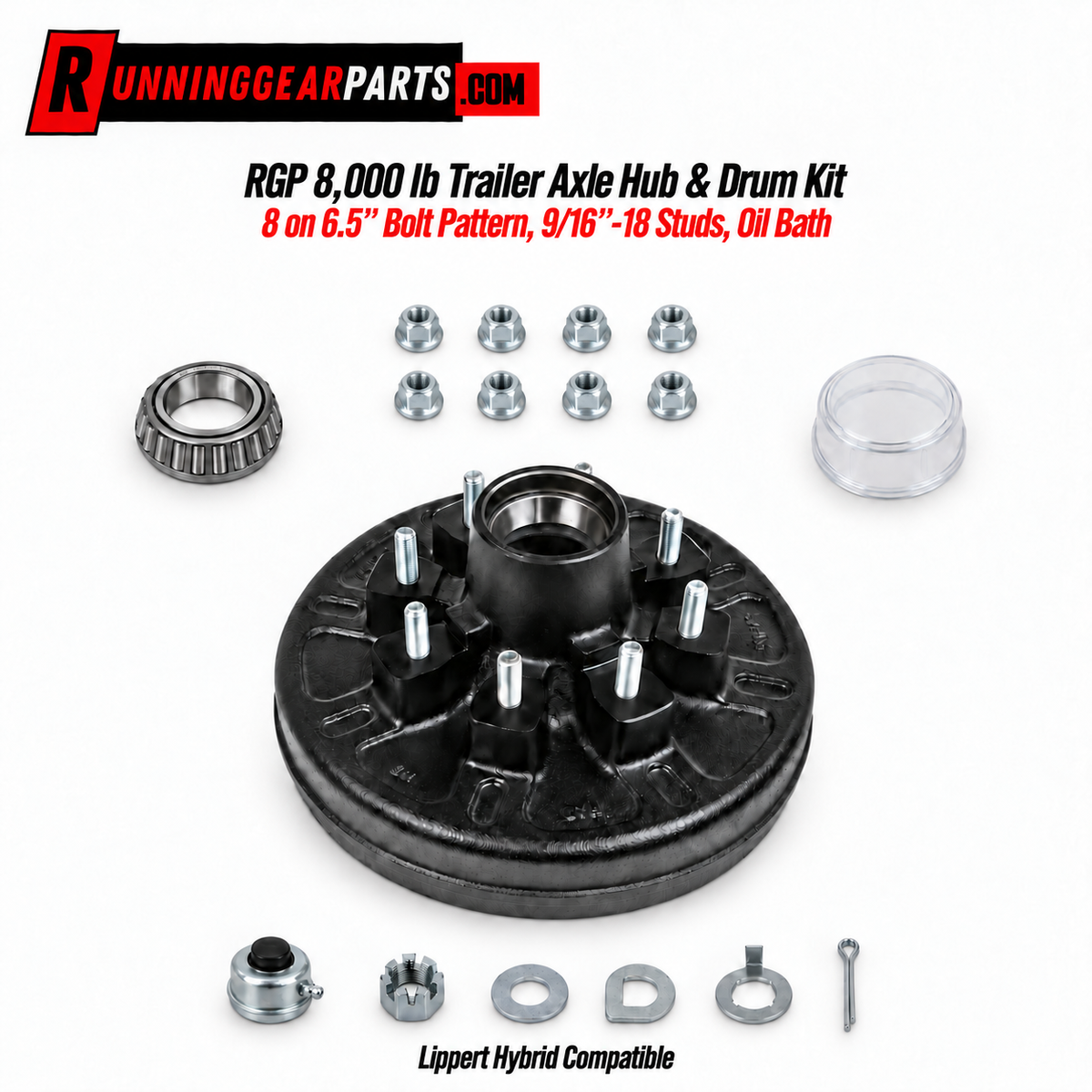

What’s Included by Kit Option:
1 × 8,000 lb Heavy-Duty Hub & Drum Assembly
1 × 25580 Inner Bearing – Installed
1 × 02475 Outer Bearing – Included Loose
1 × 10-225-15 Oil Seal – Installed
8 × 9/16"-18 Wheel Studs – Installed
8 × Flanged Lug Nuts – Installed / Included
1 × Plastic Cover
1 × Oil Cap with Rubber Plug / Screw
1 × Castle Nut
1 × Standard Washer
1 × D Washer
1 × Tang Washer
1 × Cotter Pin
Specifications:
Compatible Axle Rating: 8,000 lb
Duty Rating: Heavy Duty
Product Type: Trailer Hub & Drum Kit
Bolt Pattern: 8 on 6.5"
Number of Wheel Studs: 8
Stud Size: 9/16"-18
Wheel Nut Type: Flanged Lug Nut
Inner Bearing: 25580
Outer Bearing: 02475
Outer Race: 02420
Seal: 10-225-15
Seal Type: Oil Seal
Hub Configuration: Threaded
Cap Type: Oil Cap with Rubber Plug / Screw
Supplied Lubrication Condition: Pre-Greased
Finish: Black Painted
Application: Lippert Hybrid Compatible 8K Trailer Axle Applications
OEM / Replacement Reference
Application Reference: Lippert Hybrid Compatible
