5000 lb A-Frame Trailer Jack Topwind Handle 15" Vertical Travel Foot Plate Black Powder Coat
5000 lb A-Frame Trailer Jack Topwind Handle 15" Vertical Travel Foot Plate Black Powder Coat is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
To ensure optimal performance and extend the service life of your new trailer components, please follow these care guidelines after purchase:
- Before installation, check all parts for shipping damage or missing components. Do not install damaged parts.
- Always use correct tools and torque settings. Improper installation can lead to premature wear or failure.
- For bearings, suspensions, and brake components, apply high-quality trailer grease before first use if not pre-greased.
- Some parts (like brake assemblies) require a short break-in period to achieve full performance. Follow manufacturer instructions for best results.
- Recheck fasteners, grease levels, and moving components after 100 miles of towing, then at regular intervals.
- After exposure to water, road salt, or mud, clean and dry parts thoroughly. Apply anti-rust treatment if needed.
- If storing unused parts, keep them in a dry, sealed container away from moisture and direct sunlight.
Delivery and Shipping
Delivery and Shipping
Handling Time: Orders ship out within 1 business day after payment is received.
Shipping Methods: We use trusted carriers like UPS, FedEx, or USPS based on package size and destination.
Delivery Time: Estimated delivery within 2–6 business days (U.S. domestic orders).
Tracking: A tracking number will be provided once your order is dispatched.
Product Overview

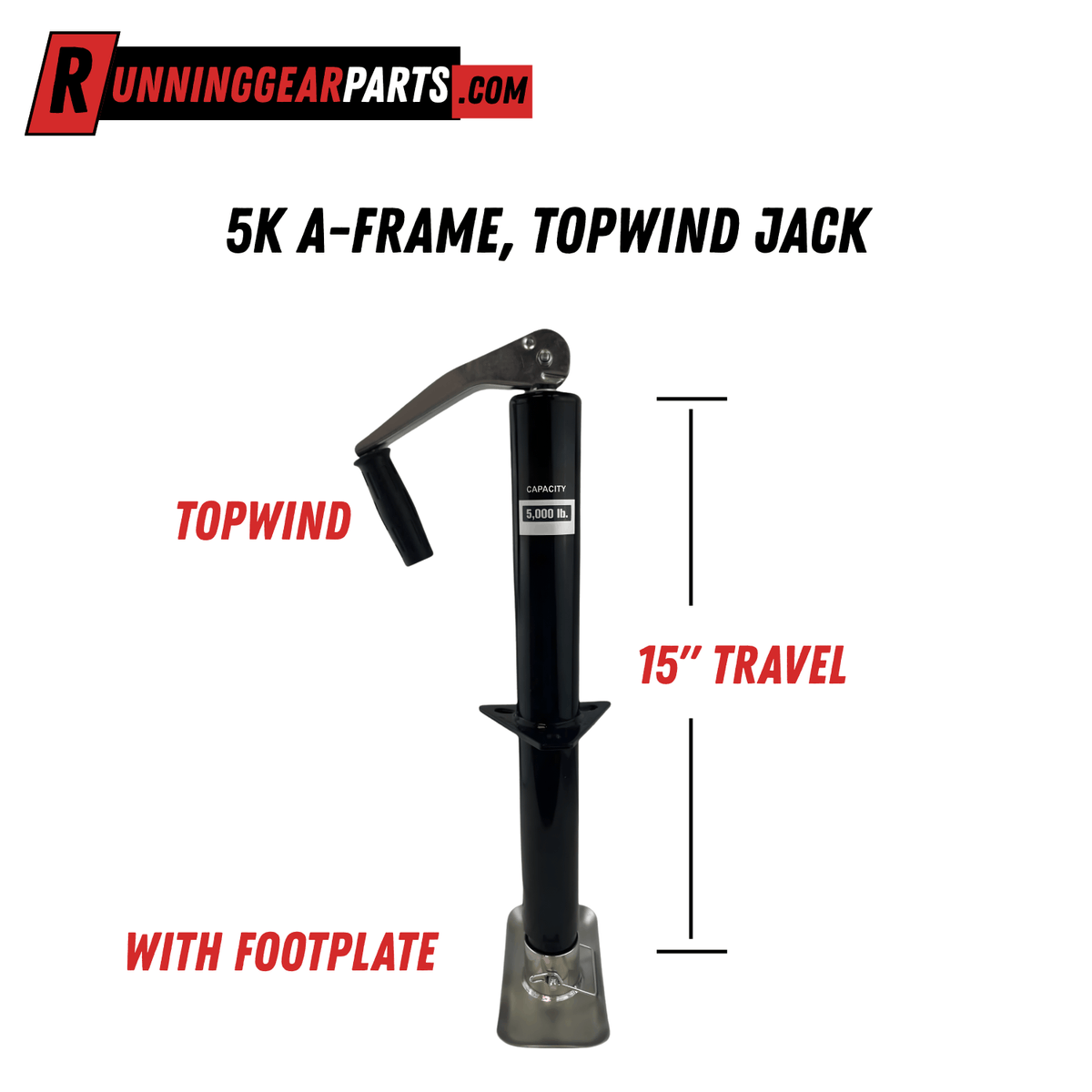

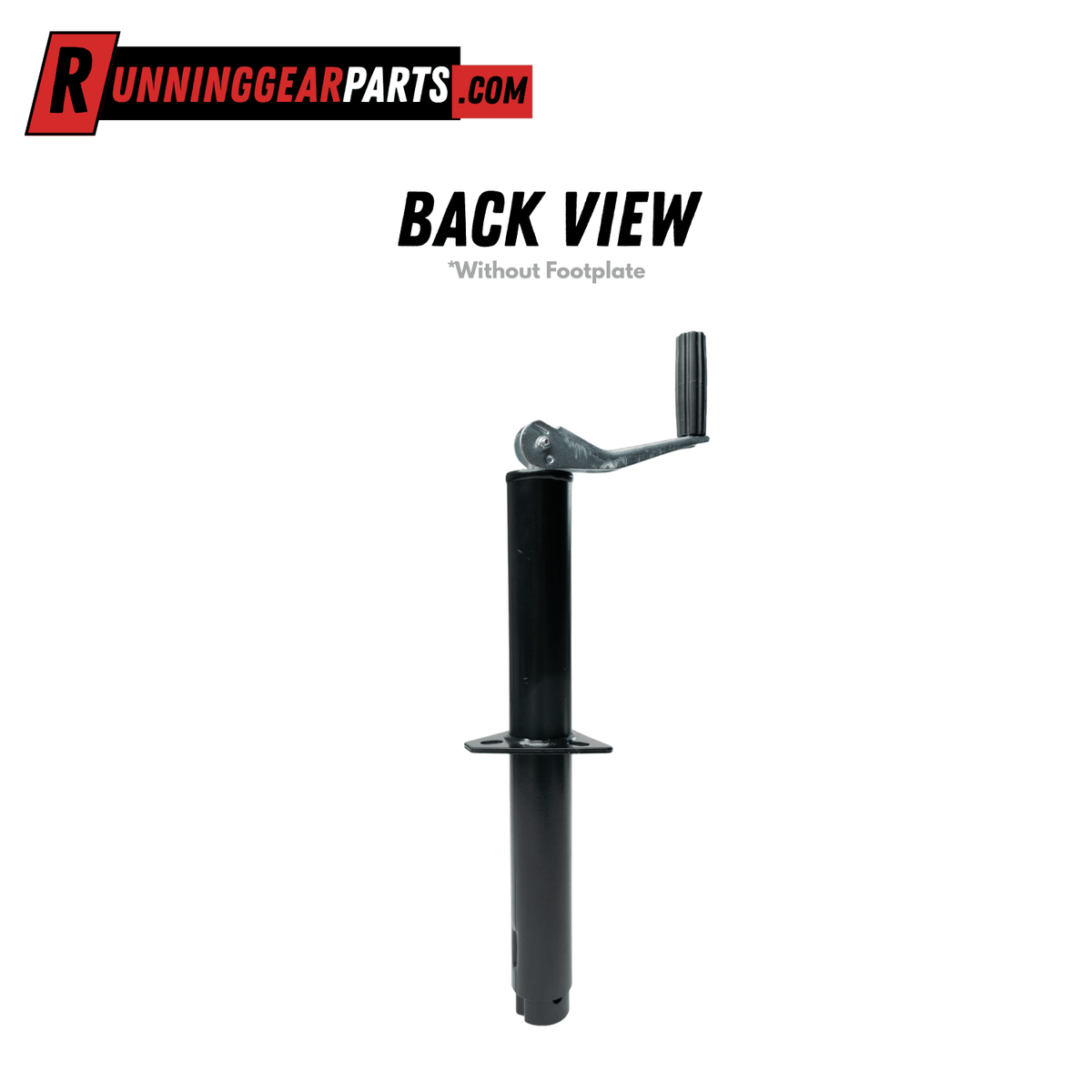

This A-frame trailer jack is designed to lift the trailer tongue, allowing you to easily attach the coupler to the ball hitch.

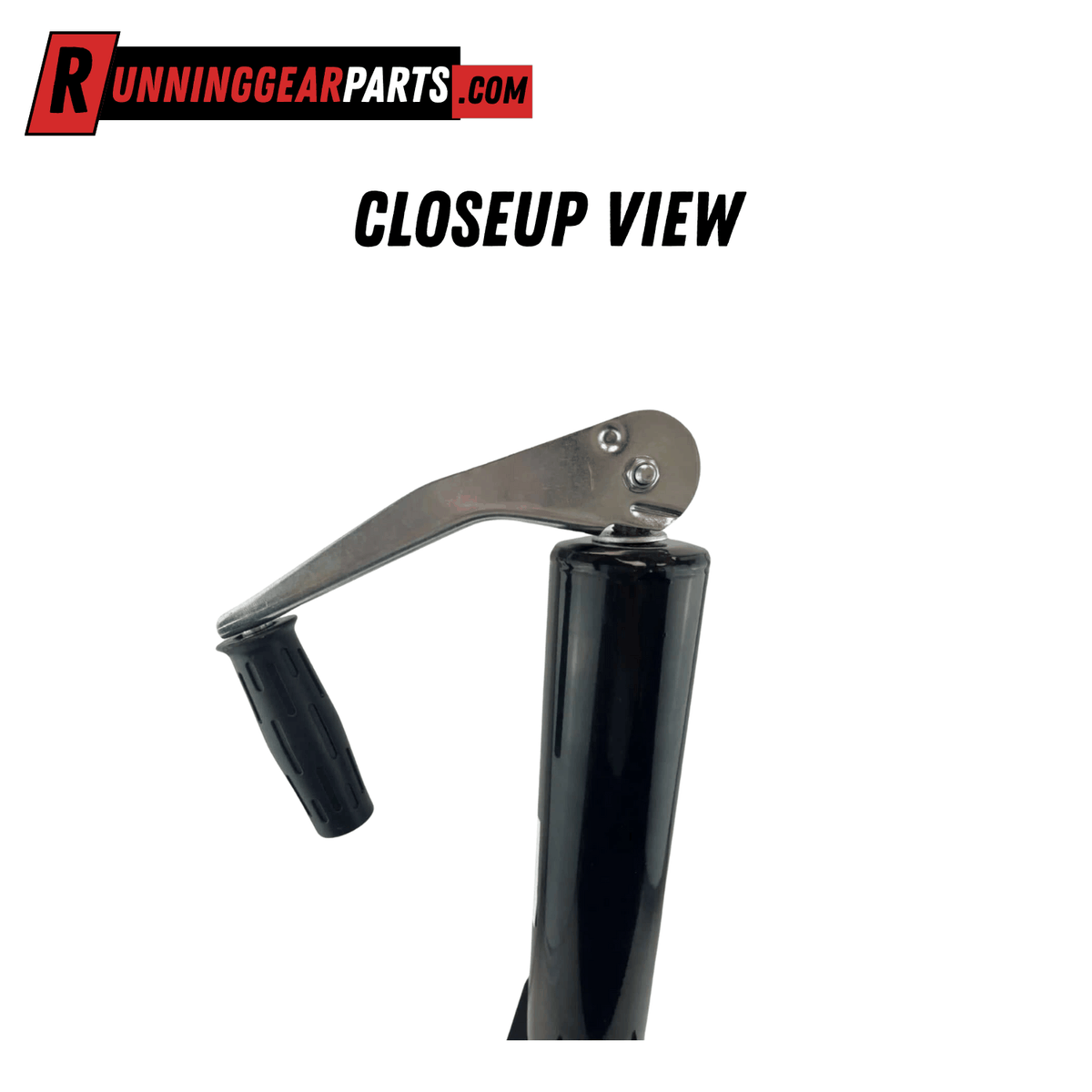

The topwind handle arm is constructed from durable steel with a zinc finish and features a large grooved handle for comfortable operation. Both the outer and inner tubes are finished with a black powder coat to provide enhanced corrosion resistance and long-term durability.
Pre-drilled holes at the bottom of the inner tube allow for jack foot installation. This jack supports both bolt-on and weld-on mounting applications, offering flexible installation options for a wide range of trailer setups.
Jack foot included.
Commonly used on Utility Trailers, Flatbed Trailers, Equipment Trailers, Snow Mobile Trailers, Car Hauler Trailers, Camper Trailers, Cattle Trailers, and Horse Trailers.
Specifications
Lift Capacity: 3,000 lb
Support Capacity: 5,000 lb
Handle Type: Topwind
Travel: 14"
Bracket Height (Top of Mounting Bracket to Bottom of Inner Tube)
Retracted: 10-1/4"
Extended: 24-3/8"
Tube Diameter
Outer Tube: 2-1/4"
Inner Tube: 2"
Handle Length: 6-1/2"
Mount Type: Bolt-on or Weld-on
Construction: Durable Steel
Finish: Black Powder Coat
