Dexter 3,500 lb Brake & Hub Drum Combo Kit — 10″ × 2-1/4″ Nev-R-Adjust, 5 on 5.5″, 1/2″ Studs — One Axle

Name: Dexter 3,500 lb Brake & Hub Drum Combo Kit — 10″ × 2-1/4″ Nev-R-Adjust, 5 on 5.5″, 1/2″ Studs — One Axle
Brand: RunningGearParts.com
Price: 526.79 USD
Availability: InStock

$526.79 USD

Shipping calculated at checkout.

Care information

To ensure optimal performance and extend the service life of your new trailer components, please follow these care guidelines after purchase:

Before installation, check all parts for shipping damage or missing components. Do not install damaged parts.
Always use correct tools and torque settings. Improper installation can lead to premature wear or failure.
For bearings, suspensions, and brake components, apply high-quality trailer grease before first use if not pre-greased.
Some parts (like brake assemblies) require a short break-in period to achieve full performance. Follow manufacturer instructions for best results.
Recheck fasteners, grease levels, and moving components after 100 miles of towing, then at regular intervals.
After exposure to water, road salt, or mud, clean and dry parts thoroughly. Apply anti-rust treatment if needed.
If storing unused parts, keep them in a dry, sealed container away from moisture and direct sunlight.

Delivery and Shipping

Handling Time: Orders ship out within 1 business day after payment is received.

Shipping Methods: We use trusted carriers like UPS, FedEx, or USPS based on package size and destination.

Delivery Time: Estimated delivery within 2–6 business days (U.S. domestic orders).

Tracking: A tracking number will be provided once your order is dispatched.

Q1 Will this brake fit my trailer?

This brake assembly fits most standard 7,000 lb trailer axles that use 12" × 2" electric brakes with a 5-bolt mounting flange. Please verify your axle rating and brake dimensions before ordering. If you're unsure, send us your axle tag or hub information and we'll help confirm compatibility.

Q2 Does it fit Dexter or Lippert axles?

Yes. It is compatible with many standard Dexter, Lippert, Rockwell American, AL-KO, and other 7,000 lb trailer axles that use a standard 12" × 2" brake assembly. Always verify your axle specifications before purchasing.

Q3 Is this a self-adjusting brake?

Yes. This is a self-adjusting electric brake assembly, which automatically maintains proper brake shoe clearance during normal operation. This reduces maintenance and helps provide consistent braking performance.

Product Description

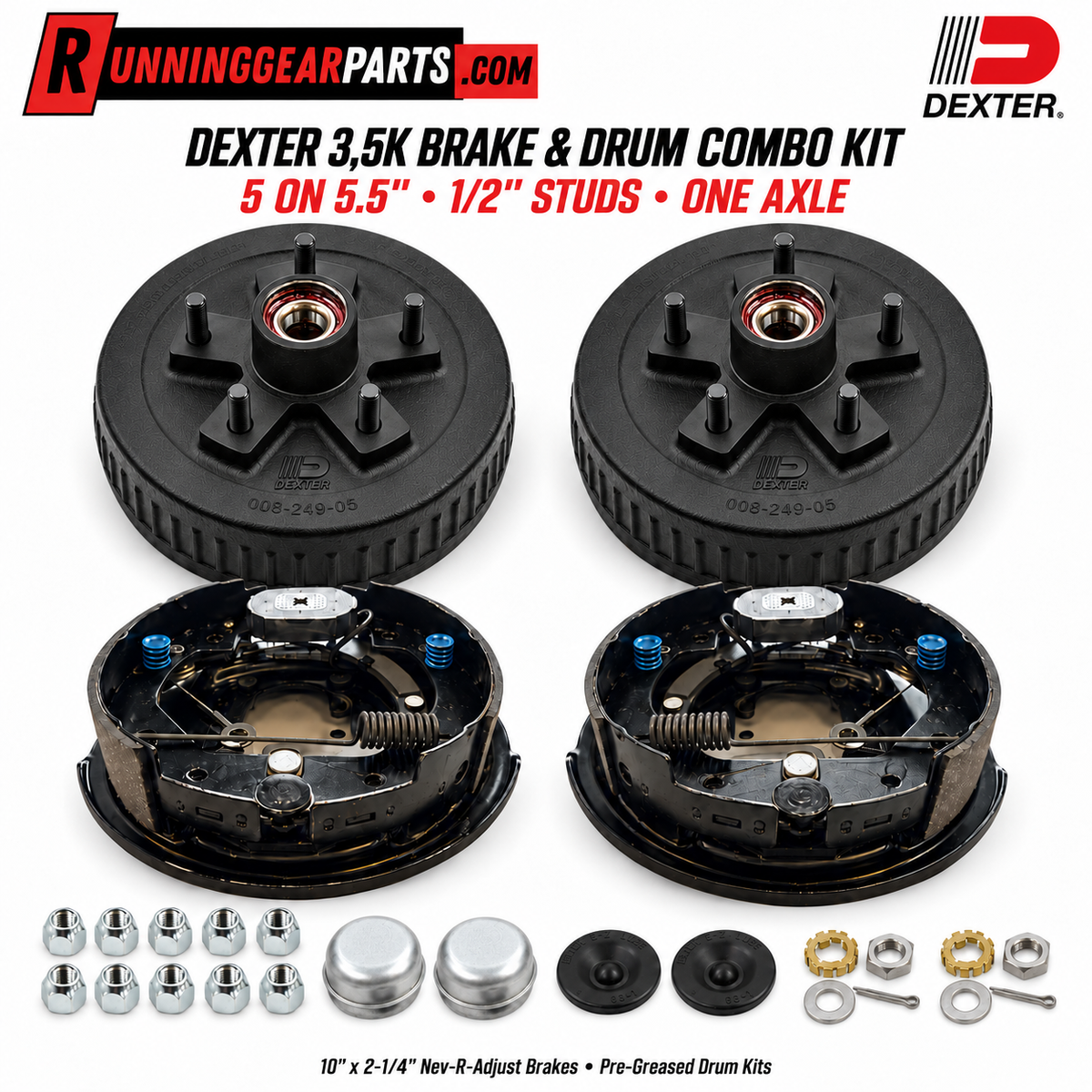

Replace the brakes and hub/drum assemblies on one compatible 3,500 lb trailer axle with this bundle of genuine Dexter components. Includes two K08-249-2G pre-greased hub/drum kits and one left/right pair of 10″ × 2-1/4″ Nev-R-Adjust® electric brakes.

The hub/drum assemblies feature a 5 on 5.5″ wheel bolt pattern and 1/2″-20 studs. Bearings, races, and grease seals come installed. Matching lug nuts, grease caps, and spindle-retention hardware are included.

Dexter’s forward self-adjusting brake system maintains shoe clearance as the brake linings wear, reducing routine manual adjustment.

Specifications:

Component brand: Dexter

Coverage: Two wheels/one axle
Axle capacity: 3,500 lb
Hub capacity: 1,750 lb each

Brake size: 10" diameter x 2-1/4" wide
Brake type: Electric
Adjustment: Nev-R-Adjust forward self-adjusting
Brake Mounting: 4-bolt flange

Wheel bolt pattern: 5 on 5.5"
Wheel stud threads: 1/2"-20
Spindle application: Compatible #84 spindles

Inner bearings: L68149, 1.378" bore
Outer bearings: L44649, 1.063" bore
Inner races: L68111
Outer races: L44610
Grease seals: Dexter 010-019-00
Seal dimensions: 1.719" ID x 2.565" OD

Lubrication: Pre-greased

Hub/drum kit: K08-249-02G
Hub/drum assembly: 008-249-05
Left brake assembly: K23-468-00
Right brake assembly: K23-469-00

What's Included by Kit Option:

One-Axle Kit:

2 × Dexter K08-249-2G pre-greased hub/drum kits
1 × Dexter K23-468-00 left-hand electric brake assembly
1 × Dexter K23-469-00 right-hand electric brake assembly

Included Within the Two Hub/Drum Kits

2 × Hub/drum assemblies with five 1/2″-20 studs each
2 × Installed L68149 inner bearings
2 × Installed L44649 outer bearings
2 × Installed L68111 inner races
2 × Installed L44610 outer races
2 × Installed double-lip grease seals
10 × 1/2″-20, 60-degree cone lug nuts
2 × Standard grease caps
2 × Rubber grease-cap plugs
2 × Spindle nut retainers
2 × Spindle hex nuts
2 × Slotted spindle nuts
2 × D-washers
2 × Spindle washers
2 × Cotter pins

Compatibility

For compatible 3,500 lb trailer axles using #84 spindles, 10″ × 2-1/4″ electric brakes, and four-bolt brake flanges. Wheels must match the 5 on 5.5″ bolt pattern, 1/2″-20 studs, and included lug-nut seating style.

Confirm bearing numbers, seal-journal diameter, brake flange, and wheel fitment before ordering. This listing is specifically for 5 on 5.5″ wheels, not 5 on 4.5″ or 5 on 5″.
