To ensure optimal performance and extend the service life of your new trailer components, please follow these care guidelines after purchase:
- Before installation, check all parts for shipping damage or missing components. Do not install damaged parts.
- Always use correct tools and torque settings. Improper installation can lead to premature wear or failure.
- For bearings, suspensions, and brake components, apply high-quality trailer grease before first use if not pre-greased.
- Some parts (like brake assemblies) require a short break-in period to achieve full performance. Follow manufacturer instructions for best results.
- Recheck fasteners, grease levels, and moving components after 100 miles of towing, then at regular intervals.
- After exposure to water, road salt, or mud, clean and dry parts thoroughly. Apply anti-rust treatment if needed.
- If storing unused parts, keep them in a dry, sealed container away from moisture and direct sunlight.
Delivery and Shipping
Delivery and Shipping
Handling Time: Orders ship out within 1 business day after payment is received.
Shipping Methods: We use trusted carriers like UPS, FedEx, or USPS based on package size and destination.
Delivery Time: Estimated delivery within 2–6 business days (U.S. domestic orders).
Tracking: A tracking number will be provided once your order is dispatched.
Dexter 7,000 lb Brake & Hub Drum Combo Kit, 12″ × 2″ Nev-R-Adju...
Product Description:

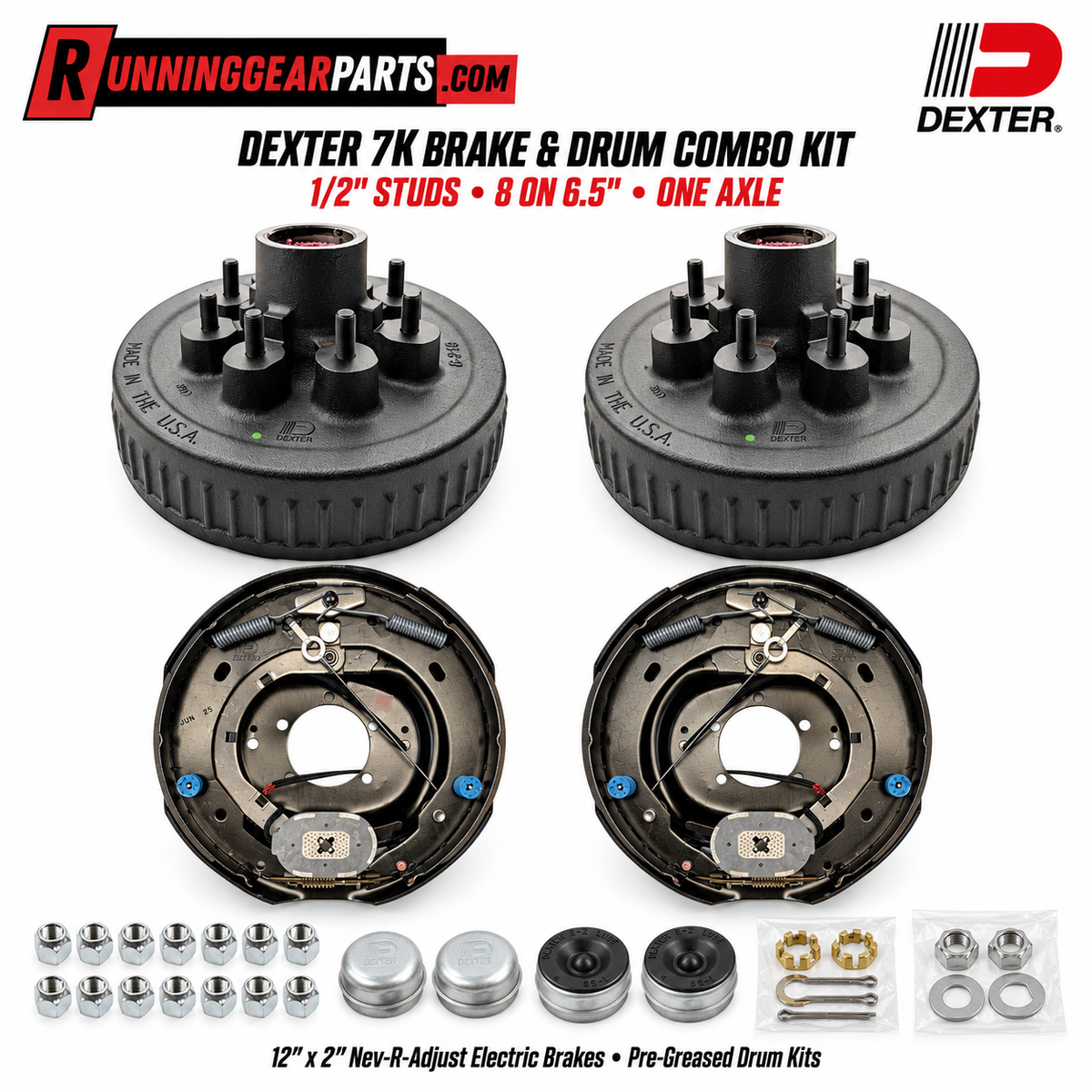

Replace the brakes and hub/drum assemblies on one compatible 7,000 trailer axle with this genuine Dexter component bundle. Includes two pre-greased hub/drum kits and one left/right pair of 12" x 2" Nev-R-Adjust® electric brakes.
The hub/drum assemblies feature an 8 on 6.5" wheel bolt pattern and 1/2"-20 studs. Bearings, races, and grease seals come installed, while the included caps, lug nuts and spindle hardware support installation on compatible standard grease-lube and E-Z Lube spindles.
Dexter's forward self-adjusting brake system maintains shoe clearance as the linings wear, reducing routine manual adjustment.
Specifications:
Component brand: Dexter
Coverage: Two wheel/One axle
Axle capacity: 7,000 lb
Hub capacity: 3,500 lb each
Brake size: 12" diameter x 2" wide
Brake type: Electric drum
Adjustment: Never-R-Adjust forward self-adjusting
Brake flange: 5-bolt mounting pattern
Wheel bolt pattern: 8 on 6.5"
Wheel stud threads: 1/2"-20
Spindle application: Compatible #42 spindles
Inner bearings: 25580, 1.75" bore
Outer bearings: 14125A, 1.25" bore
Inner race: 25520
Outer race: 14276
Grease seals: Dexter 010-036-00, 2.25“ inside diameter
Lubrication: Pre-greased
Hub/drum kit number: K08-219-1G
Left brake number: K23-464-00
Right brake number: K23-465-00
What's Included by Kit Option:
One-Axle Kit:
2 x Dexter K08-219-1G pre-greased hub/drum kits
1 x Dexter K23-464-00 left-hand electric brake assembly
1 x Dexter K23-465-00 right-hand electric brake assembly
Included within the Two Hub/Drum Kits:
2 × Hub/drum assemblies with 1/2″-20 studs
2 × Installed 25580 inner bearings
2 × Installed 14125A outer bearings
2 × Installed 25520 inner races
2 × Installed 14276 outer races
2 × Installed grease seals
16 × 1/2″-20, 60-degree cone lug nuts
2 × Standard grease caps
2 × Rubber grease-cap plugs
2 × Spindle nut retainers
2 × Spindle hex nuts
2 × Slotted spindle nuts
2 × D-washers
2 × Spindle washers
2 × Cotter pins
Use the cap and spindle-retention hardware appropriate for your axle configuration.
Compatibility:
For compatible 7,000 lb trailer axles using #42 spindles, 12″ × 2″ electric brakes, and five-bolt brake flanges. Wheels must match the 8 on 6.5″ bolt pattern and 1/2″-20 studs.
Confirm bearing numbers, seal-journal diameter, brake flange, and wheel fitment before ordering. Axle capacity alone does not confirm compatibility.
Bundle Identification:
This is a retailer-assembled bundle of genuine Dexter components. The component part numbers identify the included products; there is no separate Dexter factory part number for this combined bundle.
