Dexter 6,000 lb Trailer Axle Pre-Greased Hub Drum Assembly, 6 on 5-1/2" Bolt Pattern, #42 Spindle, 1/2" Studs, 2.250" Seal, K08-201-2G
Dexter 6,000 lb Trailer Axle Pre-Greased Hub Drum Assembly, 6 on 5-1/2" Bolt Pattern, #42 Spindle, 1/2" Studs, 2.250" Seal, K08-201-2G is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
To ensure optimal performance and extend the service life of your new trailer components, please follow these care guidelines after purchase:
- Before installation, check all parts for shipping damage or missing components. Do not install damaged parts.
- Always use correct tools and torque settings. Improper installation can lead to premature wear or failure.
- For bearings, suspensions, and brake components, apply high-quality trailer grease before first use if not pre-greased.
- Some parts (like brake assemblies) require a short break-in period to achieve full performance. Follow manufacturer instructions for best results.
- Recheck fasteners, grease levels, and moving components after 100 miles of towing, then at regular intervals.
- After exposure to water, road salt, or mud, clean and dry parts thoroughly. Apply anti-rust treatment if needed.
- If storing unused parts, keep them in a dry, sealed container away from moisture and direct sunlight.
Delivery and Shipping
Delivery and Shipping
Handling Time: Orders ship out within 1 business day after payment is received.
Shipping Methods: We use trusted carriers like UPS, FedEx, or USPS based on package size and destination.
Delivery Time: Estimated delivery within 2–6 business days (U.S. domestic orders).
Tracking: A tracking number will be provided once your order is dispatched.
Dexter 6,000 lb Trailer Axle Pre-Greased Hub Drum Assembly, 6 on 5-...
Product Overview:

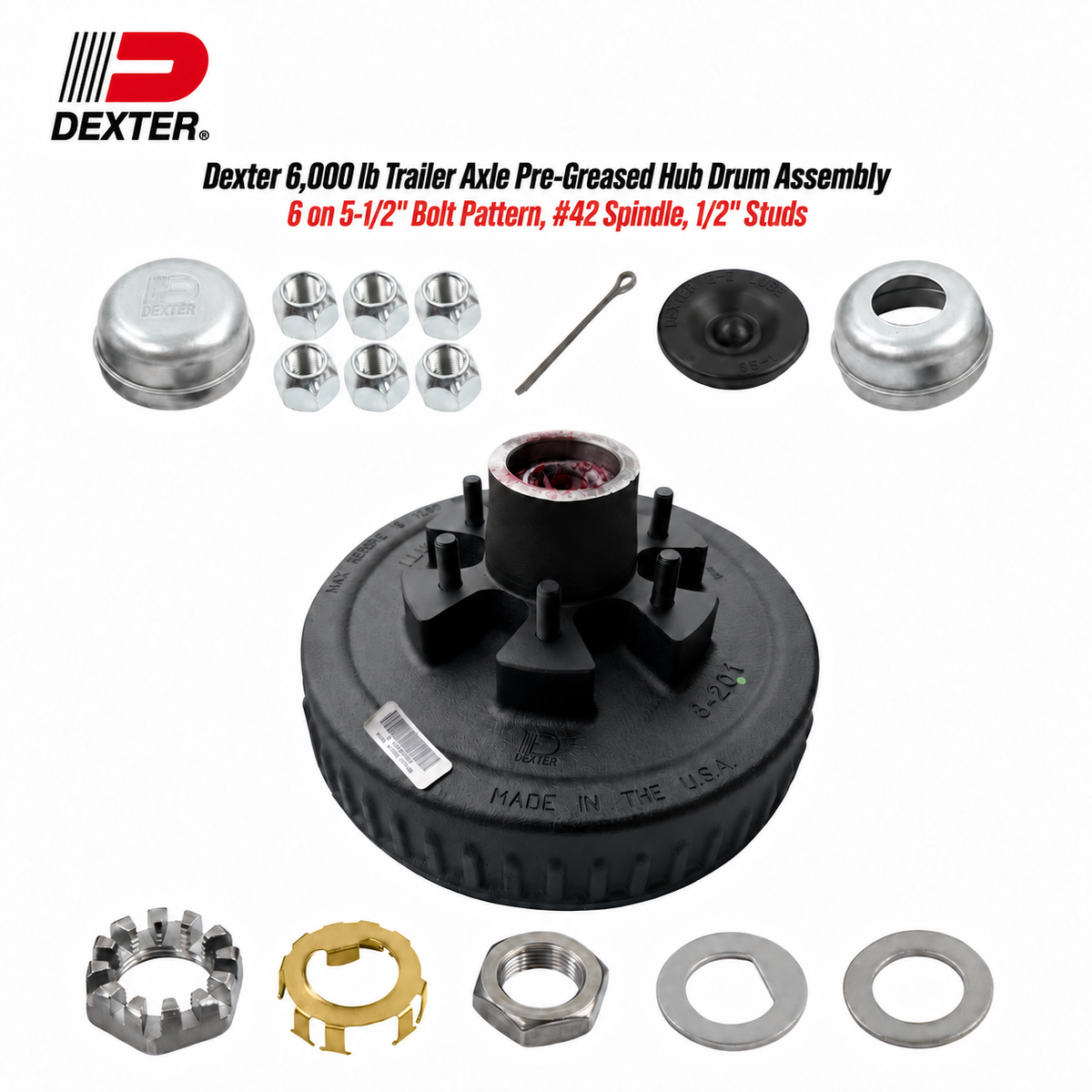

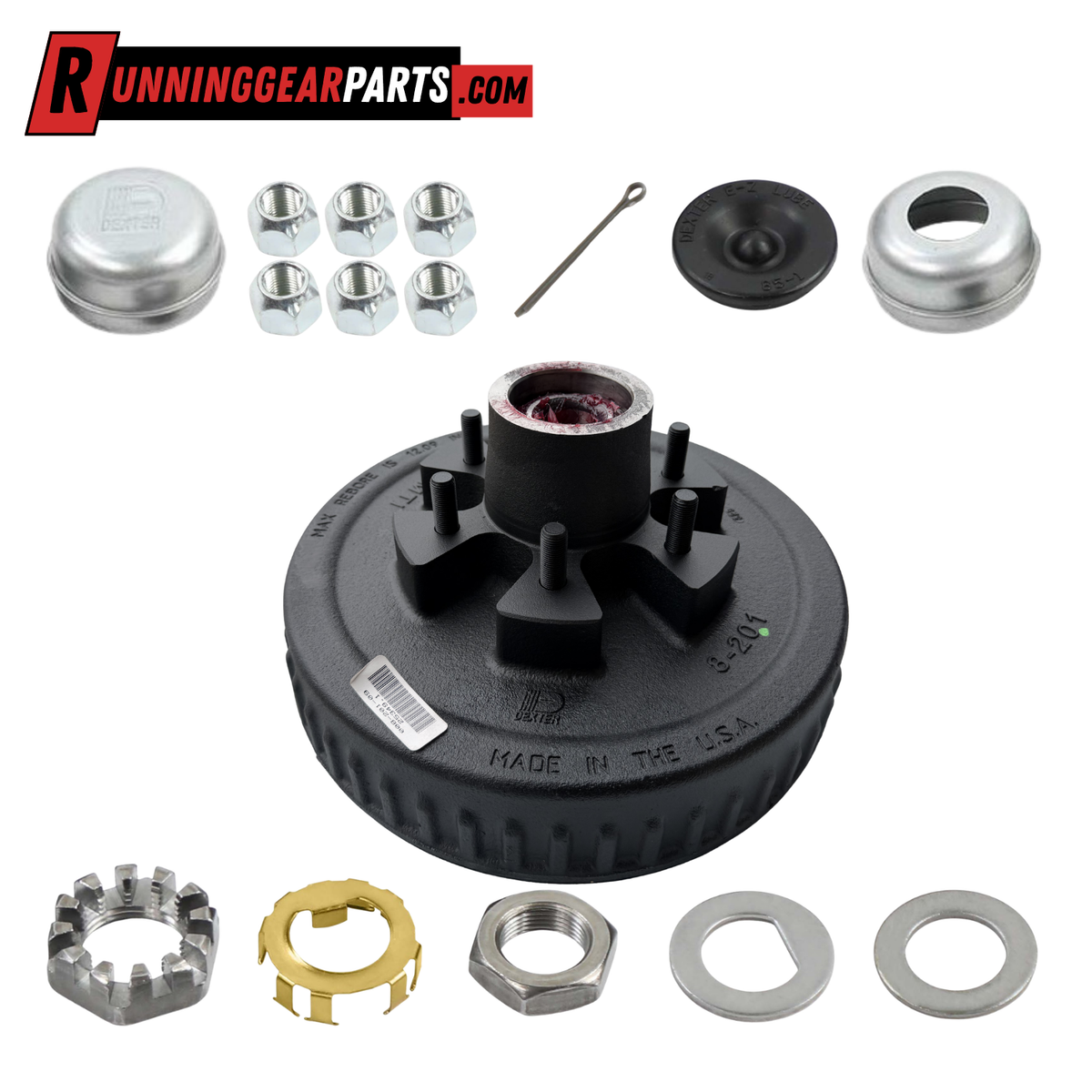

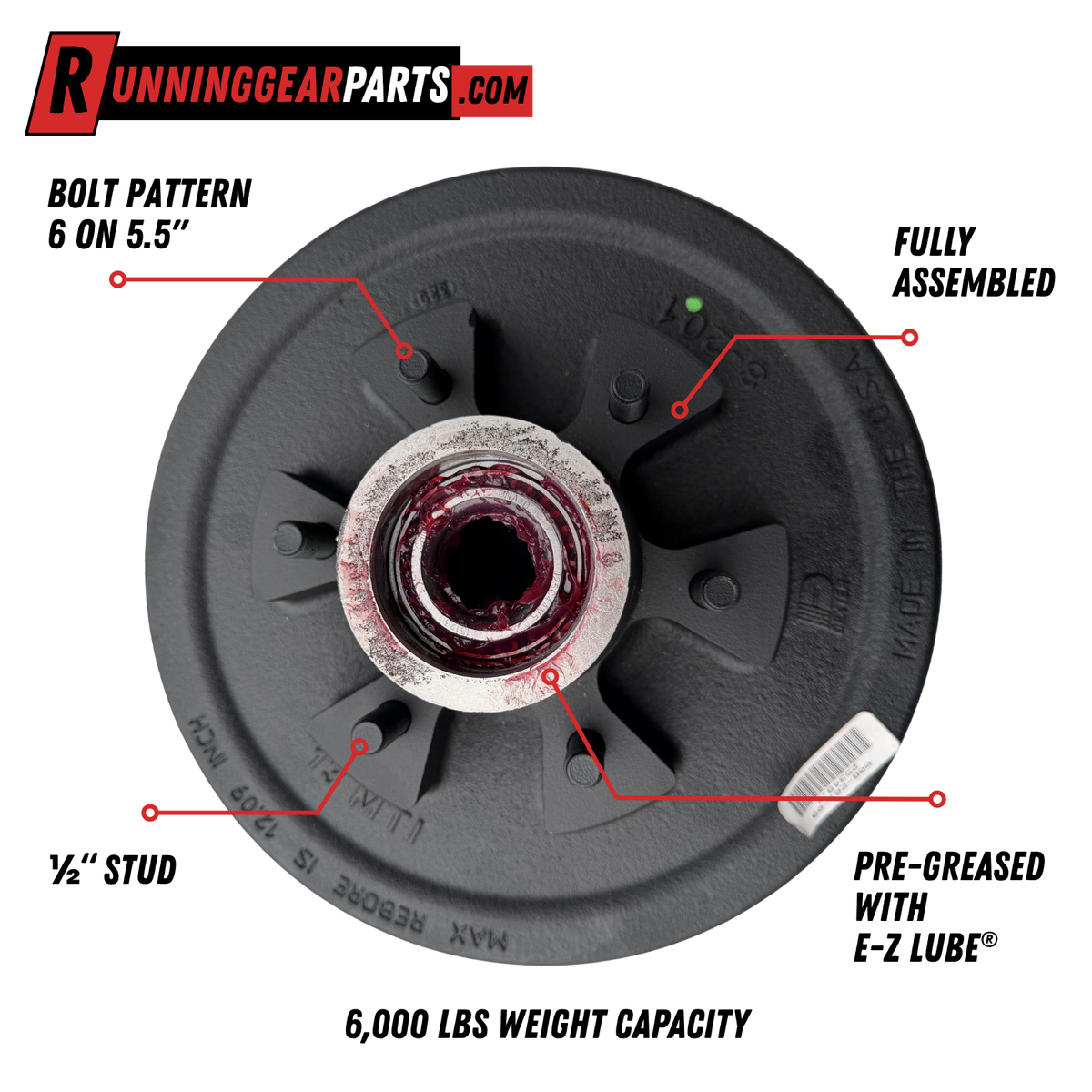

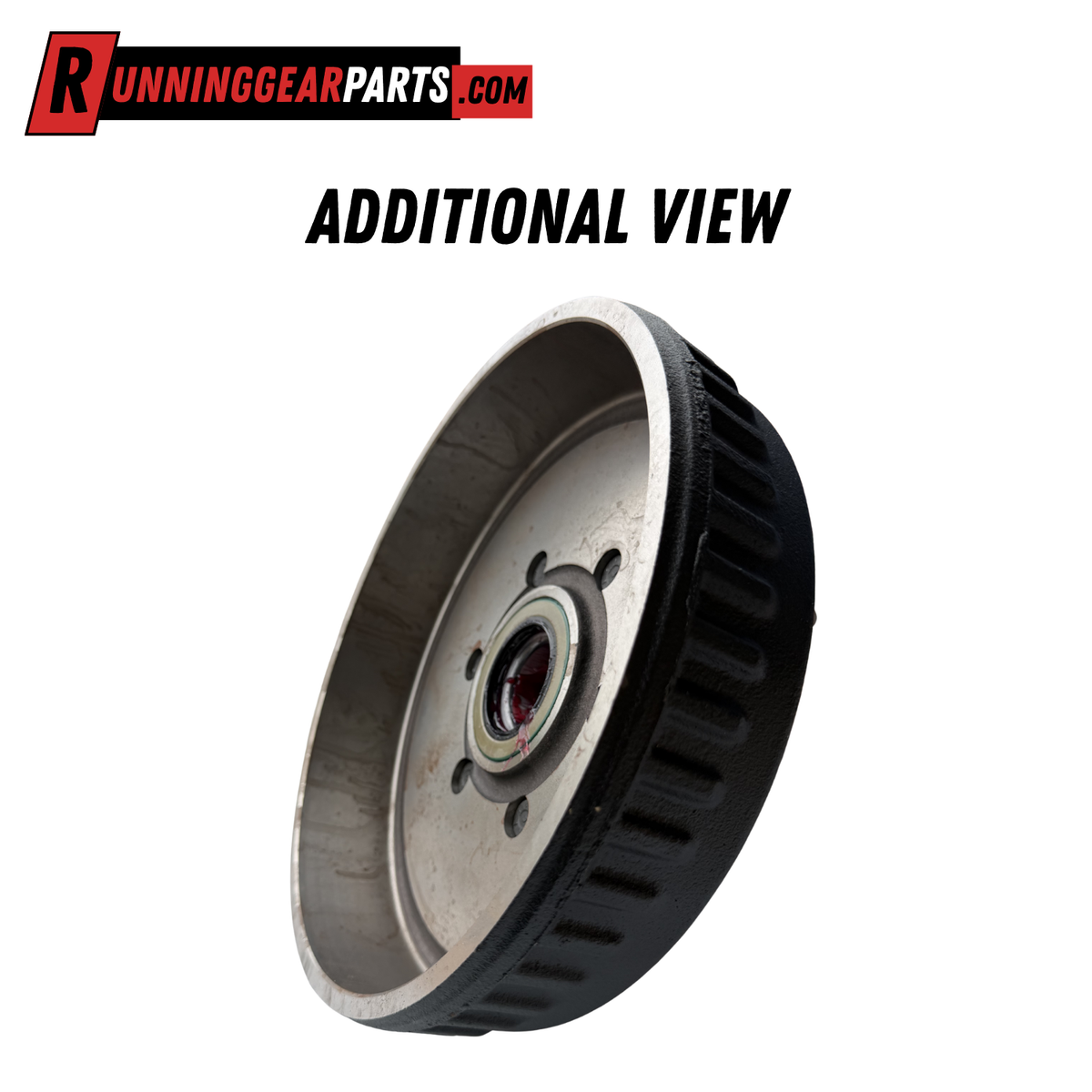

Replace or service your 6,000 lb trailer axle hub and drum assembly with the Dexter K08-201-2G 6K Pre-Greased Hub & Drum Kit. Designed for 6K trailer axle applications using a #42 spindle, this complete assembly features a 6 on 5.5" wheel bolt pattern, 1/2"-20 wheel studs, and a 12" x 2" brake drum configuration. The hub uses Dexter part number 008-201-09 and comes pre-greased with the bearings supplied as part of the complete replacement kit.
The assembly uses a 25580 inner bearing and 15123 outer bearing, matched with a 25520 inner race and 15245 outer race. The bearing races are pressed into the hub and drum, while the included 2.250" grease seal (010-036-00) has a 3.376" outside diameter to help retain lubricant and protect the bearing area from outside contamination.
The K08-201-2G also includes six 1/2"-20 60-degree cone nuts, standard and E-Z Lube® grease caps, a rubber plug, and spindle retention hardware including a retainer nut, hex nut, slotted nut, D-washer, washer, and cotter pin. The pre-greased configuration reduces the bearing preparation required during hub and drum replacement while providing the components needed for compatible Dexter 6K applications.

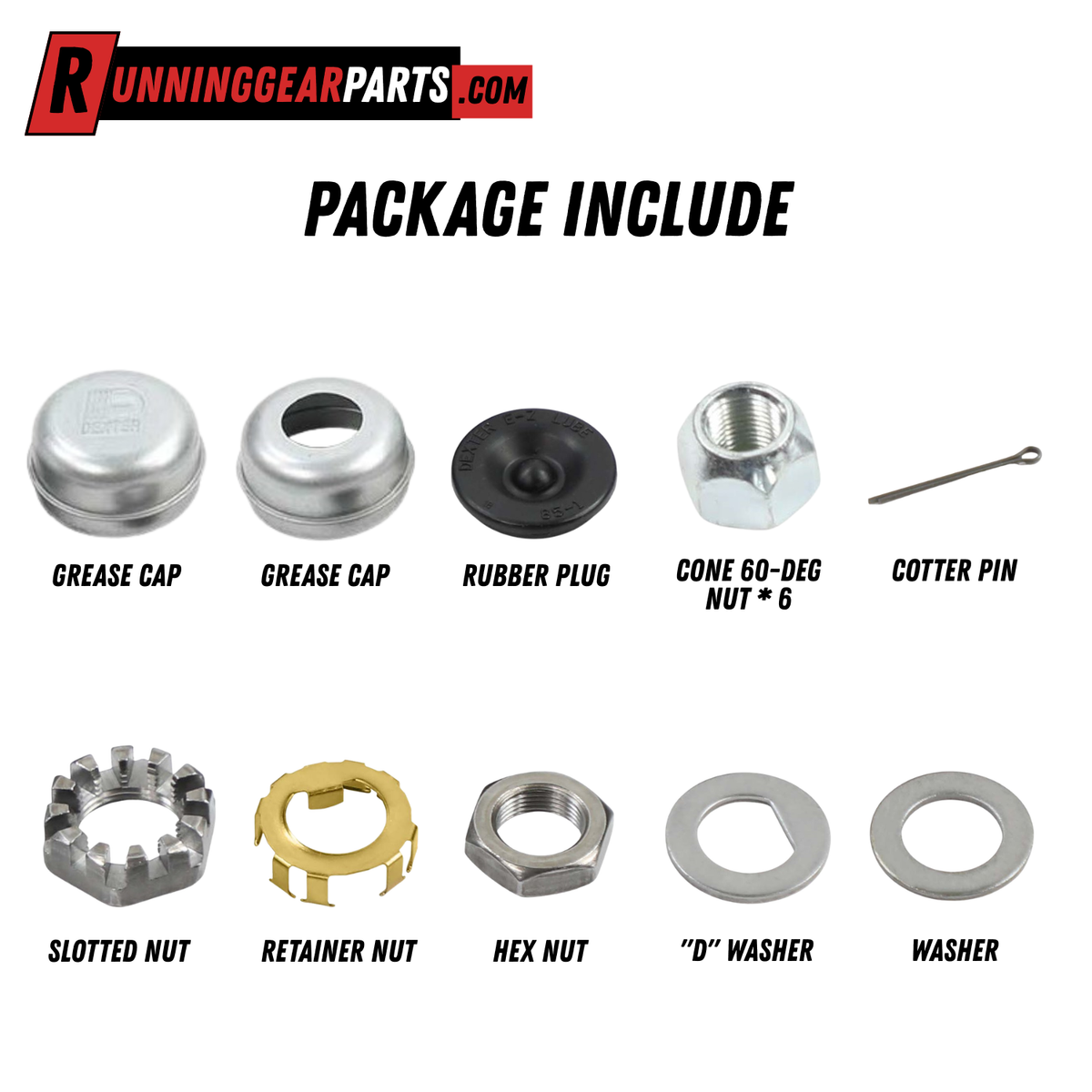

What's Include by Kit Option:
1 Kit:
1 x Hub & Drum, 6K, with 15245 Outer Cup (008-201-09)
1 x Bearing Cone 25580 (031-030-02)
1 x Bearing Cone 15123 (031-029-02)
1 x Seal, Grease 2.25" (010-036-00)
6 x Nut, Cone 60-deg (006-080-00)
1 x Grease Cap (021-001-00)
1 x Grease Cap (021-042-01)
1 x Rubber Plug (085-001-00)
1 x Nut, Retainer (006-190-00)
1 x Nut, Hex (006-191-00)
1 x Nut, Slotted (006-176-00)
1 x Washer, "D" (005-057-00)
1 x Washer (005-223-00)
1 x Cotter Pin (019-002-00)
1 x Instruction Sheet (059-831-00)
Specifications:
Brand: Dexter
Product type: Pre-Greased Trailer Hub & Drum Kit
MPN: K08-201-2G
Application: 6,000 lb trailer axles with #42 spindles
Hub capacity: 3,000 lbs each
Brake size: 12" x 2"
Bolt pattern: 6 on 5-1/2"
Wheel stud size: 1/2"-20
Lubrication: Pre-greased
Inner bearing: 25580 (1.75" inner diameter)
Outer bearing: 15123 (1.25" inner diameter)
Inner race: 25520
Outer race: 15245
Grease seal part number: 010-036-00
Grease seal inner diameter: 2.250"
Grease seal outer diameter: 3.376"
Grease seal type: Double lip
Grease caps: Standard and E-Z Lube® grease caps included
Wheel nuts: 6 x 1/2"-20 60-degree cone nuts
