Dexter 5,200 - 7,000 lb Trailer Axles Pre-Greased Hub Drum Assembly...
Product Overview:

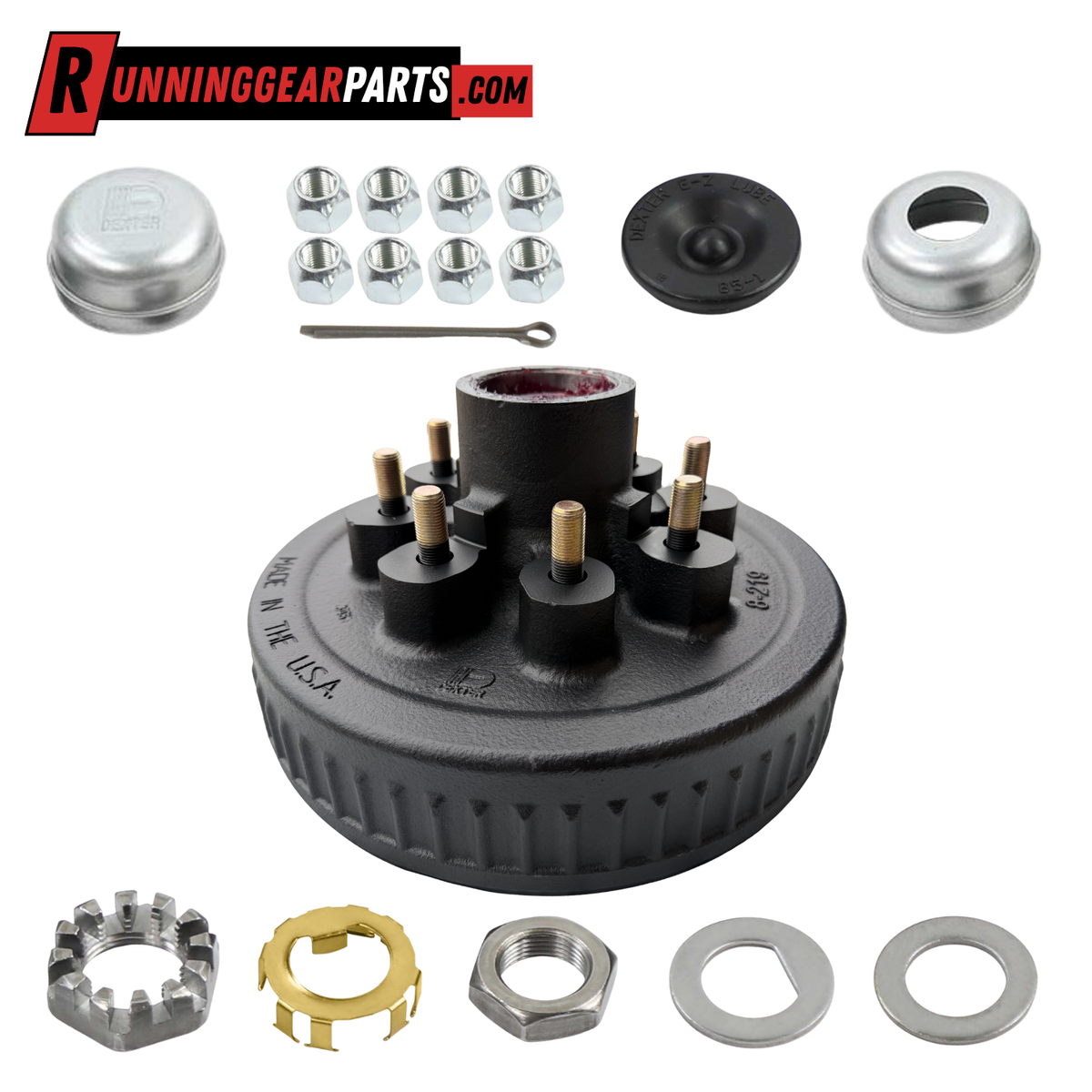

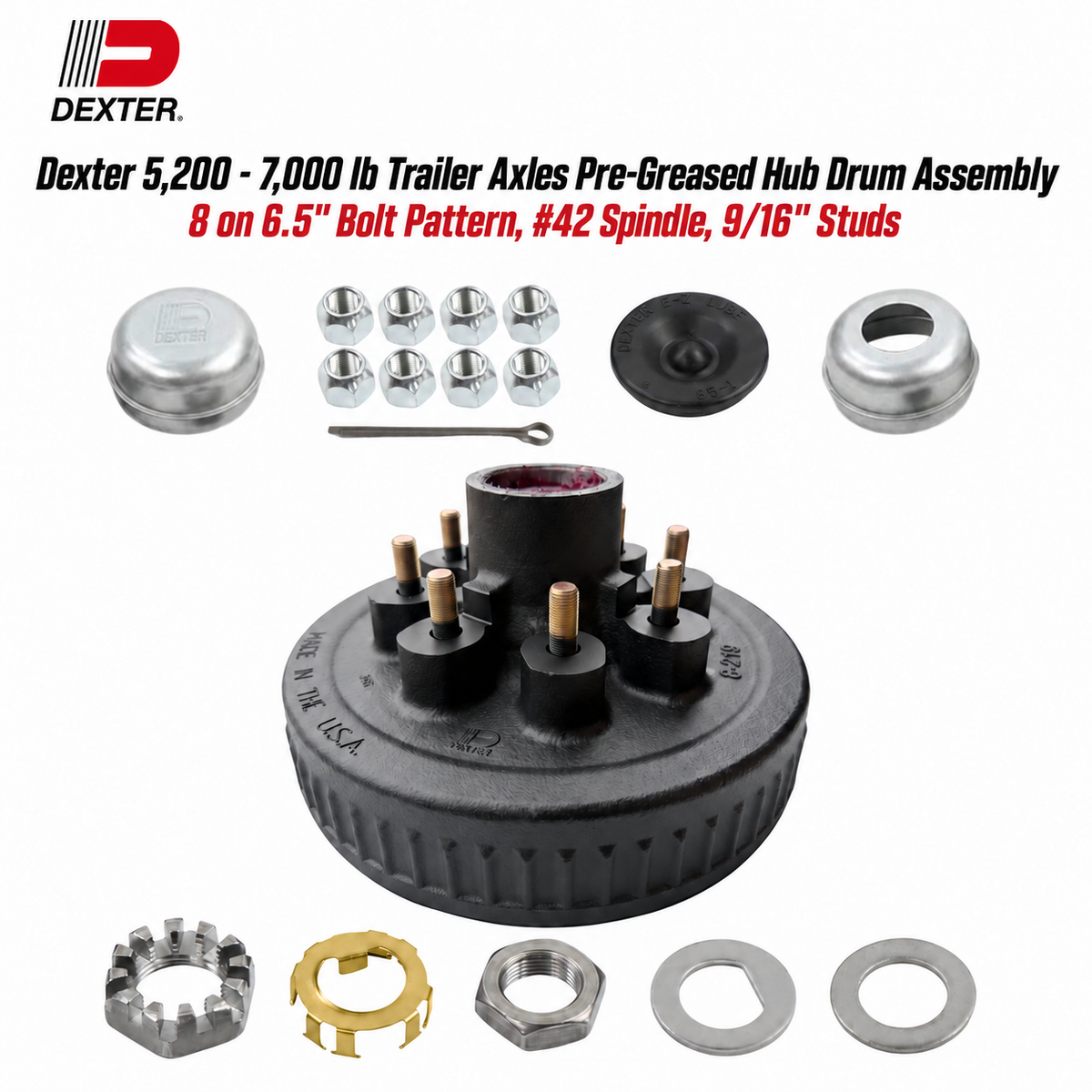

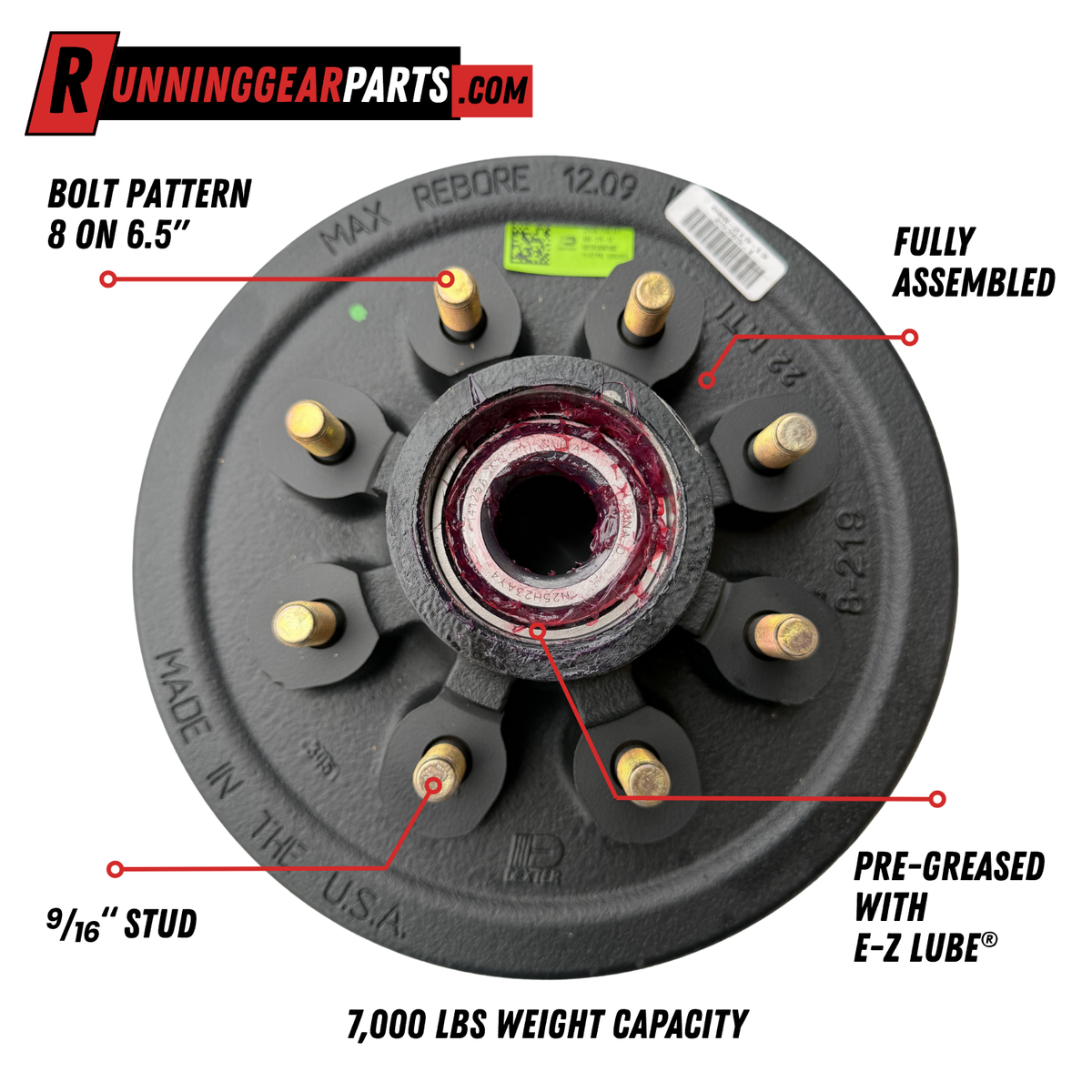

Replace or service your heavy-duty trailer hub and drum assembly with the Dexter K08-219-2G 5.2K-7K Pre-Greased Hub & Drum Kit. Designed for trailer axle applications using a #42 spindle, this complete assembly features an 8 on 6.5" wheel bolt pattern, 9/16"-18 wheel studs, and a 12" x 2" brake drum configuration. Dexter lists this kit for 5.2K-7K capacity applications.
The assembly comes pre-greased with a 25580 inner bearing and 14125A outer bearing, matched with a 25520 inner race and 14276 outer race. A 2.25" double-lip grease seal helps retain grease around the bearing assembly, while the pre-lubricated configuration reduces the preparation required during installation.
The K08-219-2G includes both a standard grease cap and an E-Z Lube® grease cap with rubber plug, eight 60-degree cone wheel nuts, and multiple spindle retention components including a retainer nut, hex nut, slotted nut, D-washer, washer, and cotter pin. This provides the hardware needed to accommodate common Dexter #42 spindle configurations while replacing the hub and drum assembly.

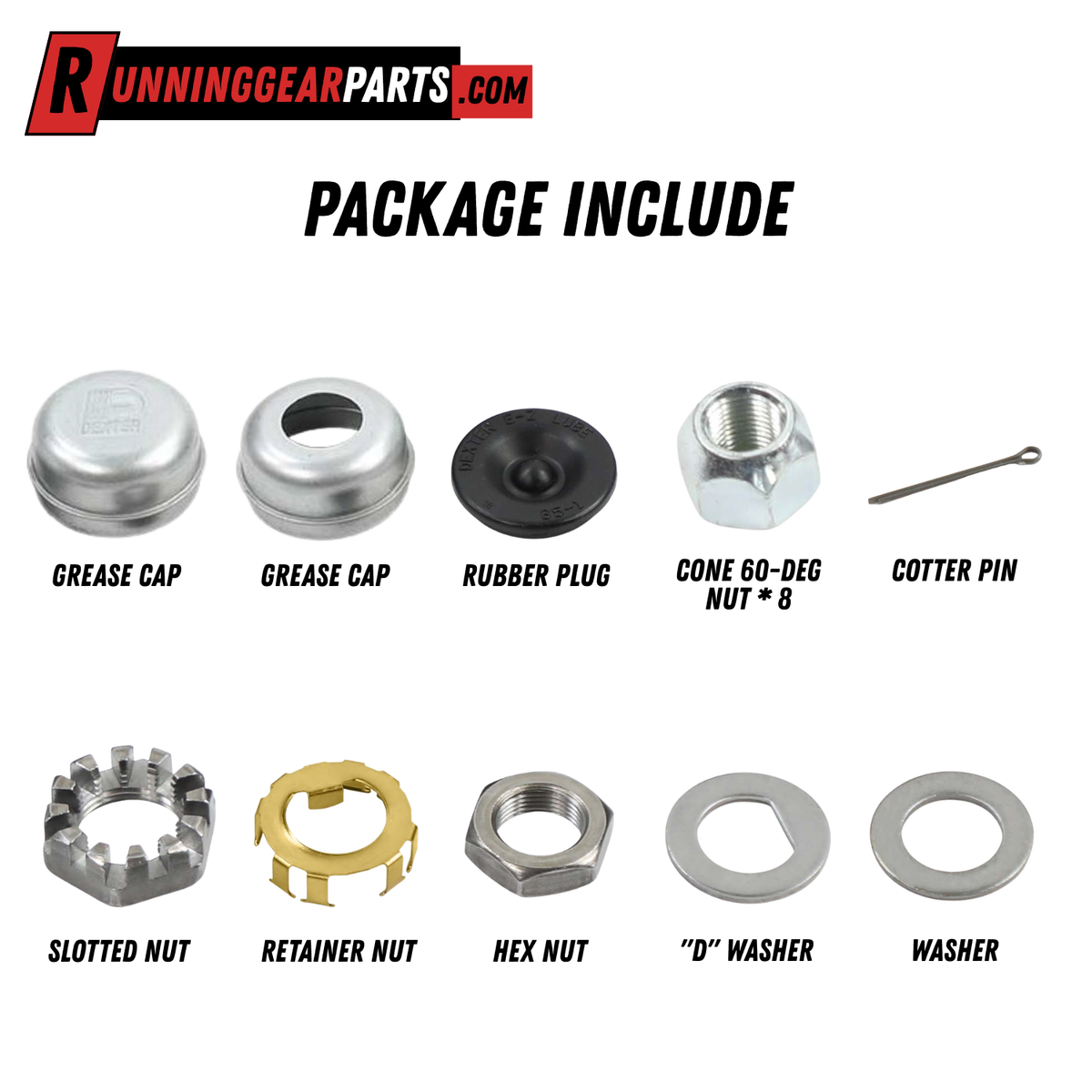

What's Include by Kit Option:
1 Kit:
1 x Hub & Drum, 7K, 9/16" (008-219-13)
1 x Bearing Cone 25580 (031-030-02)
1 x Bearing Cone 14125A (031-017-02)
1 x Grease Cap (021-039-00)
1 x Grease Cap (021-043-01)
1 x Seal, Grease 2.25" (010-036-00)
8 x Nut, Cone 60-deg (006-053-00)
1 x Rubber Plug (085-001-00)
1 x Nut, Retainer (006-190-00)
1 x Nut, Hex (006-191-00)
1 x Nut, Slotted (006-176-00)
1 x Washer, "D" (005-057-00)
1 x Washer (005-223-00)
1 x Cotter Pin (019-002-00)
Specifications:
Brand: Dexter
MPN: K08-219-2G
Axle capacity: 5,200 lb to 7,000 lb trailer axles with #42 spindles
Compatible brake types: Electric and hydraulic drum brakes
Drum dimensions: 12" diameter x 2" wide
Works with: 12" brake assembly
Grease cap flange diameter: 2.72"
Bolt pattern: 8 on 6-1/2"
Wheel stud diameter: 9/16"
Weight capacity: 3,500 lbs
Bearings:
Inner bearing: 25580 (1.75" inner diameter)
Outer bearing: 14125A (1.25" inner diameter)
Races:
Inner race: 25520
Outer race: 14276
Grease seal: GS-2550DL
Inner diameter: 2.25"
Outer diameter: 3.376"
