Dexter 3,500 lbs Axles Hub & Drum Assembly Kit, 5 on 4-1/2" Bolt Pattern, 1/2" Stud, Pre-Greased, K08-247-1G
Dexter 3,500 lbs Axles Hub & Drum Assembly Kit, 5 on 4-1/2" Bolt Pattern, 1/2" Stud, Pre-Greased, K08-247-1G is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
To ensure optimal performance and extend the service life of your new trailer components, please follow these care guidelines after purchase:
- Before installation, check all parts for shipping damage or missing components. Do not install damaged parts.
- Always use correct tools and torque settings. Improper installation can lead to premature wear or failure.
- For bearings, suspensions, and brake components, apply high-quality trailer grease before first use if not pre-greased.
- Some parts (like brake assemblies) require a short break-in period to achieve full performance. Follow manufacturer instructions for best results.
- Recheck fasteners, grease levels, and moving components after 100 miles of towing, then at regular intervals.
- After exposure to water, road salt, or mud, clean and dry parts thoroughly. Apply anti-rust treatment if needed.
- If storing unused parts, keep them in a dry, sealed container away from moisture and direct sunlight.
Delivery and Shipping
Delivery and Shipping
Handling Time: Orders ship out within 1 business day after payment is received.
Shipping Methods: We use trusted carriers like UPS, FedEx, or USPS based on package size and destination.
Delivery Time: Estimated delivery within 2–6 business days (U.S. domestic orders).
Tracking: A tracking number will be provided once your order is dispatched.
Dexter 3,500 lbs Axles Hub & Drum Assembly Kit, 5 on 4-1/2"...
Product Overview:

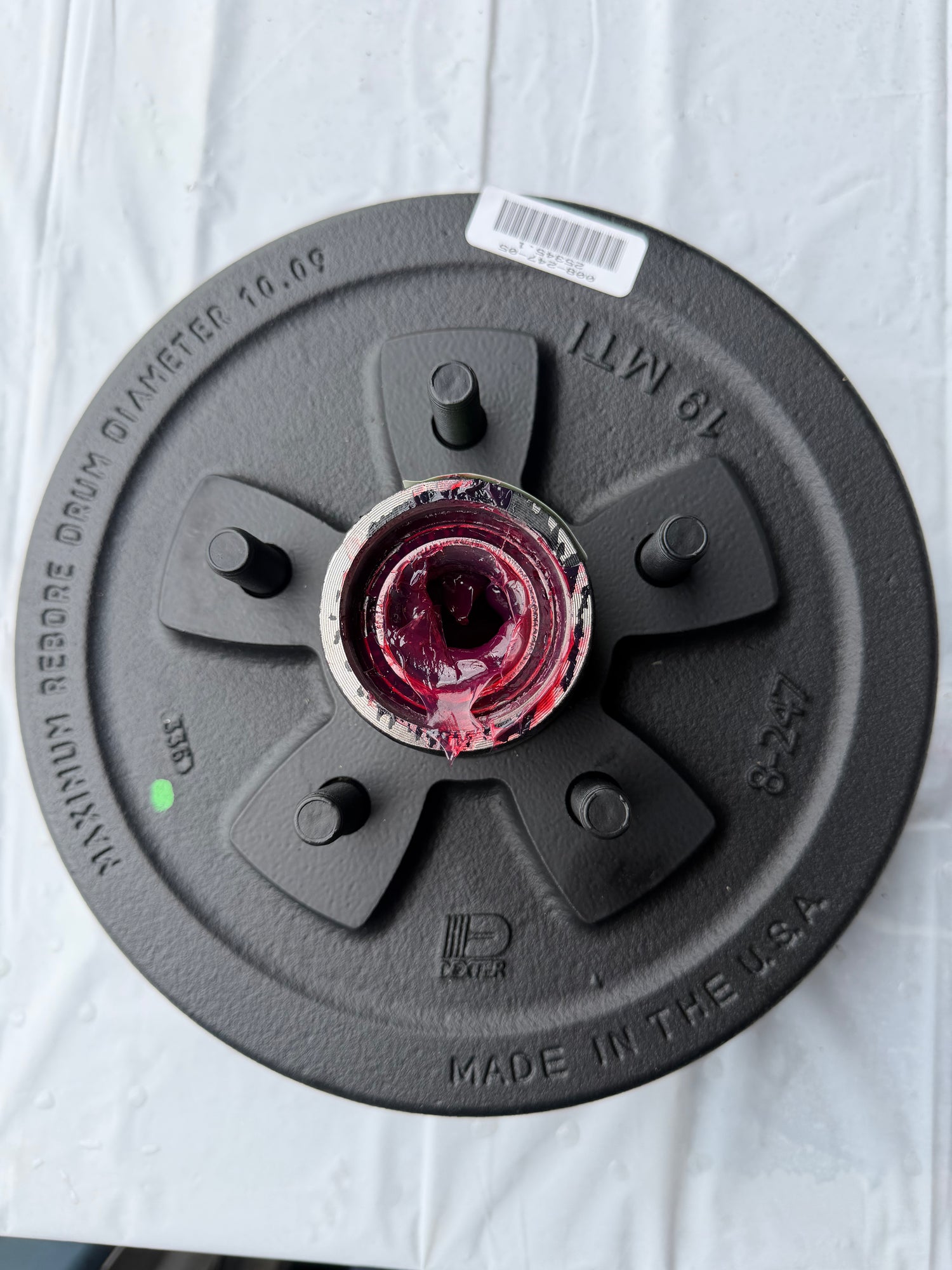

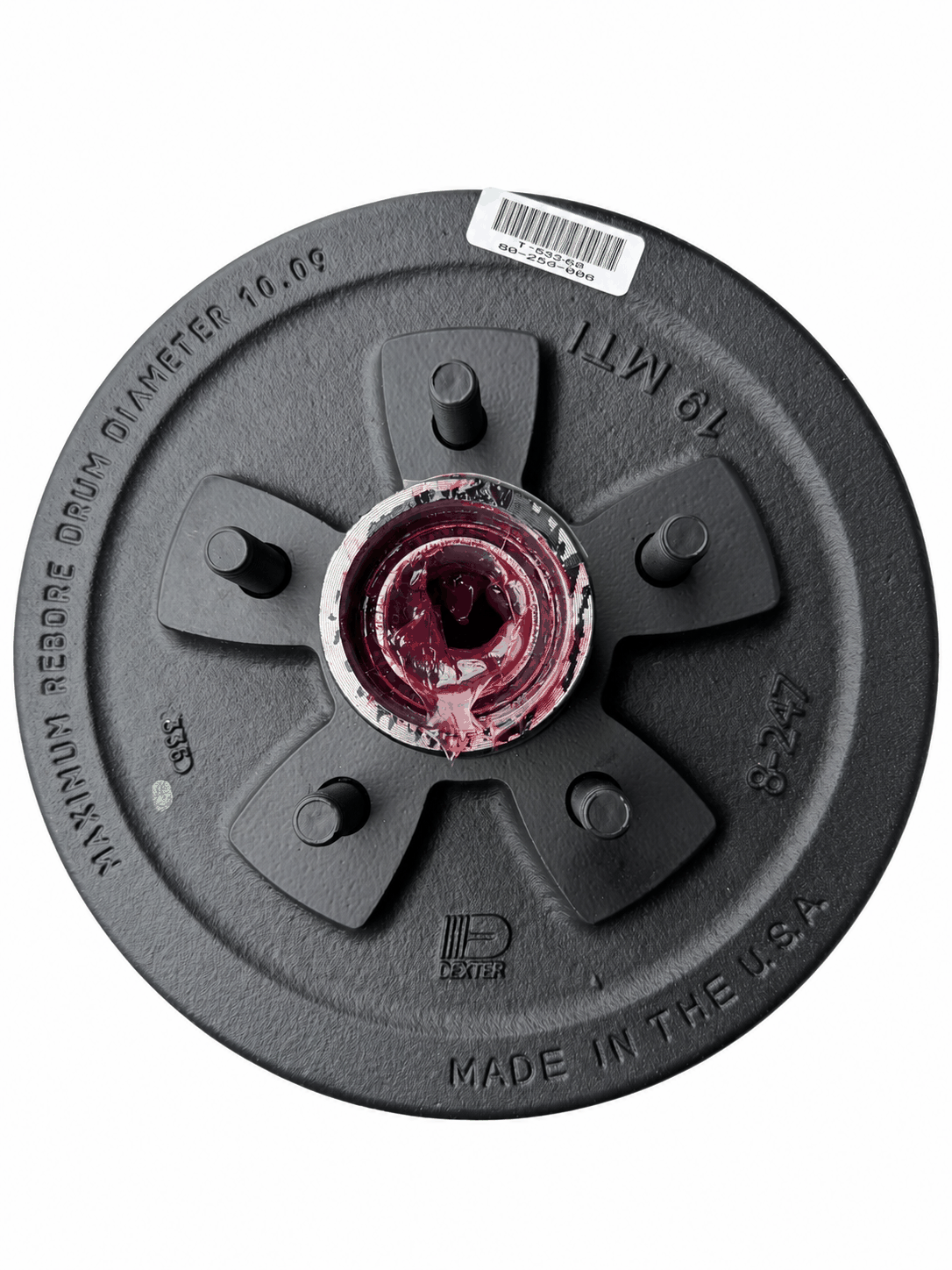

Replace or service your 3,500 lb trailer axle hub and drum assembly with the Dexter K08-247-1G 3.5K Pre-Greased Hub & Drum Kit. Designed for compatible 3.5K trailer axles using a #84 spindle, this complete assembly features a 5 on 4.5" wheel bolt pattern, 1/2"-20 wheel studs, and a 10" x 2-1/4" brake configuration. The hub and drum component is Dexter 008-247-05, rated at 1,750 lbs per hub.
The assembly uses an L68149 inner bearing and L44649 outer bearing, matched with pre-installed L68111 inner and L44610 outer races. The bearings and 010-019-00 double-lip grease seal come installed and pre-greased with Dexter grease, reducing the preparation and manual bearing-packing required during replacement. The seal measures 1.719" ID x 2.565" OD.

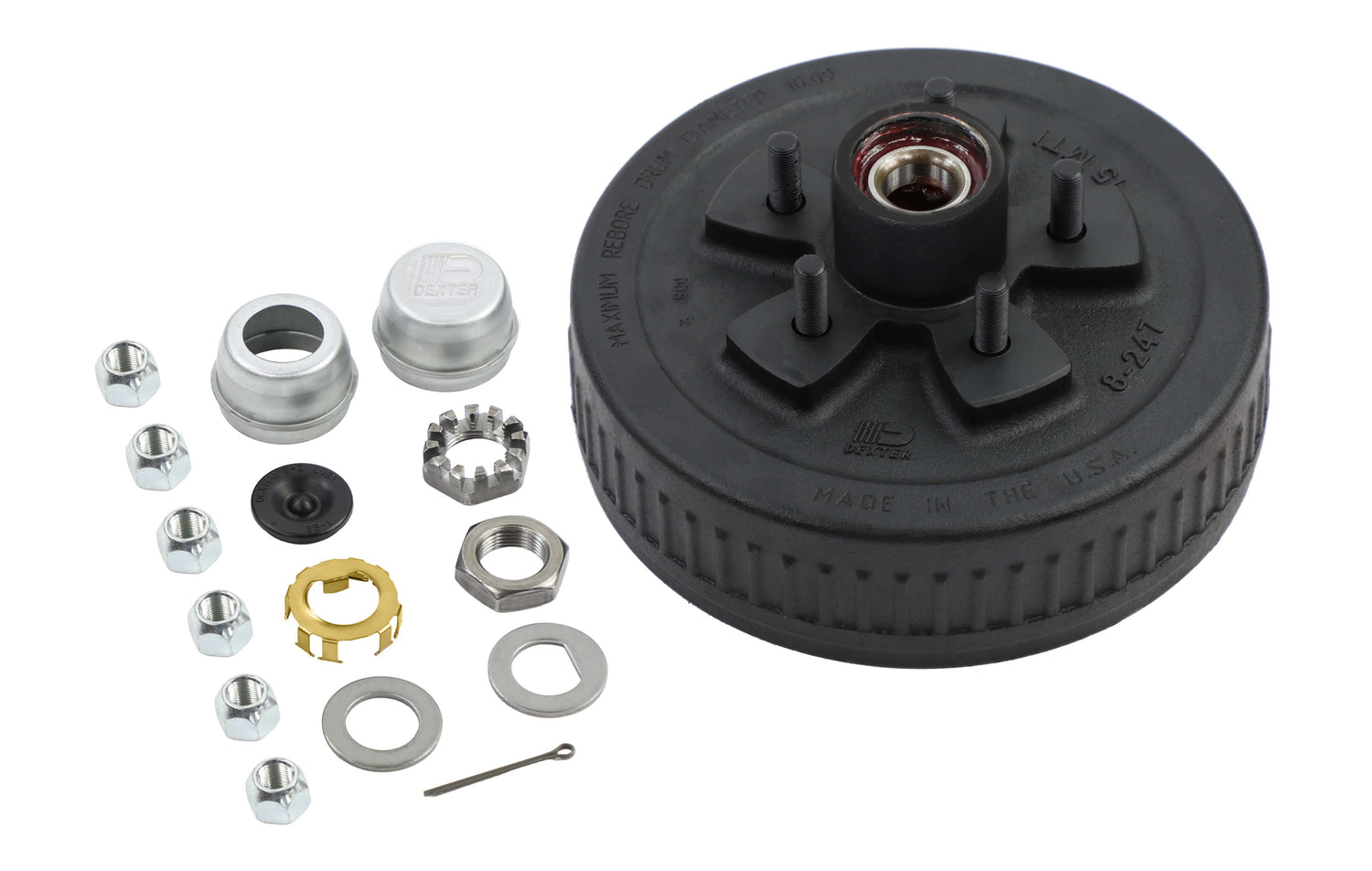

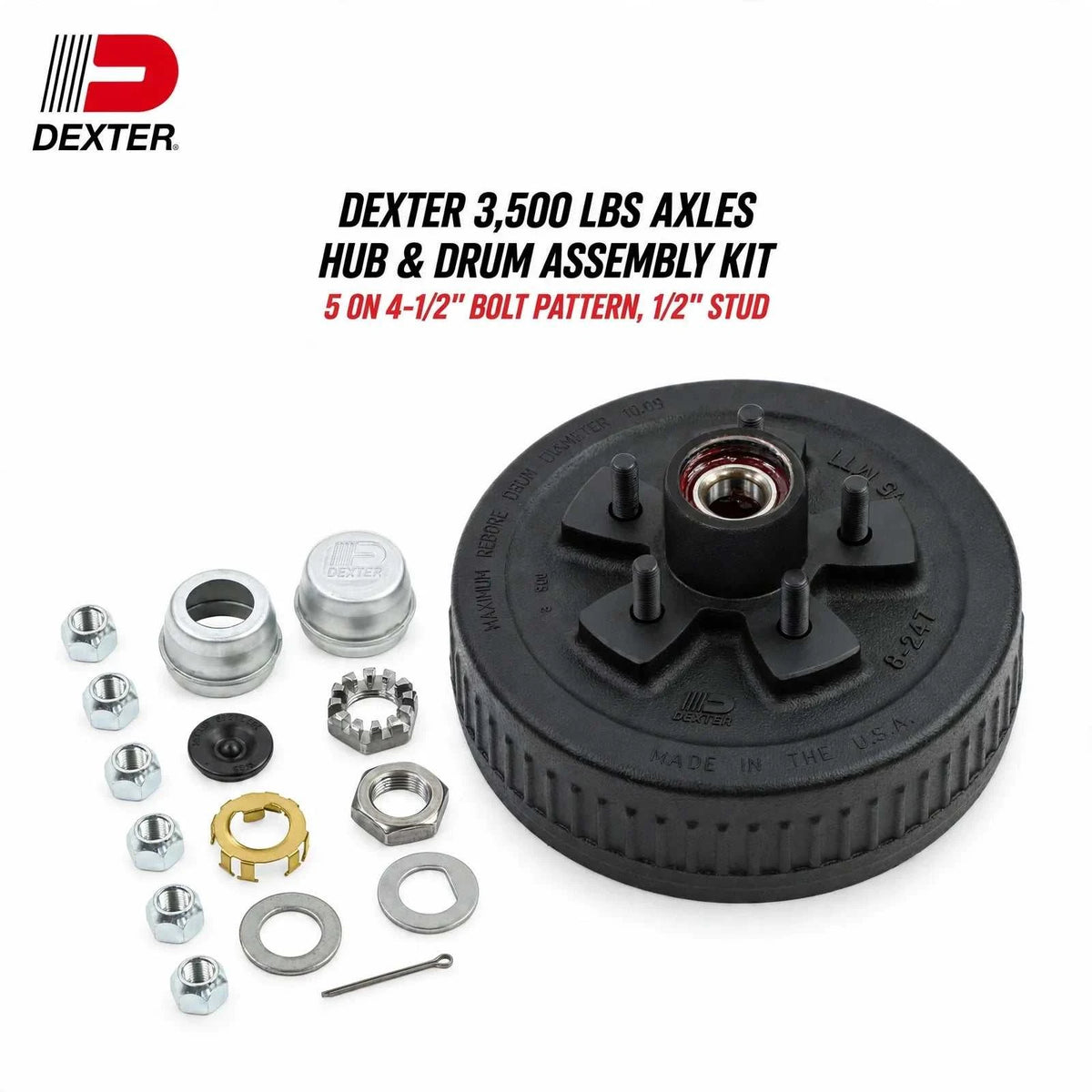

The K08-247-1G includes both standard and E-Z Lube® grease caps, an E-Z Lube® rubber plug, five 60-degree cone wheel nuts, and spindle retention hardware including a slotted nut, retainer nut, hex nut, D-washer, washer, and cotter pin. Dexter also includes an instruction sheet with the retail-packaged kit.
What's Include by Kit Option:
1 Kit:
1 x Hub & Drum, 3.5K, Cupped & Studded (008-247-05)
1 x Bearing Cone L44649 (031-031-02)
1 x Bearing Cone L68149 (031-033-02)
1 x Double-Lip Grease Seal, 1.72" (010-019-00)
5 x Nut, Cone 60-Degree (006-080-00)
1 x Standard Grease Cap (021-003-00)
1 x E-Z Lube® Grease Cap (021-041-01)
1 x E-Z Lube® Rubber Plug (085-001-00)
1 x Nut, Retainer (006-190-00)
1 x Nut, Hex (006-191-00)
1 x Nut, Slotted (006-176-00)
1 x Washer, "D" (005-023-00)
1 x Washer (005-027-00)
1 x Cotter Pin (019-002-00)
1 x Instruction Sheet (059-831-00)
SPECIFICATIONS:
Brand: Dexter
Product type: Pre-Greased Trailer Hub & Drum Kit
MPN: K08-247-1G
Hub & drum part number: 008-247-05
Axle capacity rating per pair: 3,500 lbs
Hub capacity: 1,750 lbs each
Fits spindle: #84 spindle
Brake size: 10" x 2-1/4"
Bolt pattern: 5 on 4-1/2"
Wheel stud size: 1/2"-20
Thread count: 20
Lubrication: Factory pre-greased
Lubrication compatibility: E-Z Lube® or Grease Lube
Inner bearing: L68149
Inner race: L68111
Outer bearing: L44649
Outer race: L44610
Grease seal part number: 010-019-00
Grease seal inner diameter: 1.719"
Grease seal outer diameter: 2.565"
Grease seal type: Double lip
Grease caps: Standard and E-Z Lube® grease caps included
Finish: Painted
Package type: Retail packaged
