Dexter 3,500 lb Trailer Axles Bearing Kit, #84 Spindles, Inner and Outer Bearing L44649/L68149,K71-717-00
Dexter 3,500 lb Trailer Axles Bearing Kit, #84 Spindles, Inner and Outer Bearing L44649/L68149,K71-717-00 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
To ensure optimal performance and extend the service life of your new trailer components, please follow these care guidelines after purchase:
- Before installation, check all parts for shipping damage or missing components. Do not install damaged parts.
- Always use correct tools and torque settings. Improper installation can lead to premature wear or failure.
- For bearings, suspensions, and brake components, apply high-quality trailer grease before first use if not pre-greased.
- Some parts (like brake assemblies) require a short break-in period to achieve full performance. Follow manufacturer instructions for best results.
- Recheck fasteners, grease levels, and moving components after 100 miles of towing, then at regular intervals.
- After exposure to water, road salt, or mud, clean and dry parts thoroughly. Apply anti-rust treatment if needed.
- If storing unused parts, keep them in a dry, sealed container away from moisture and direct sunlight.
Delivery and Shipping
Delivery and Shipping
Handling Time: Orders ship out within 1 business day after payment is received.
Shipping Methods: We use trusted carriers like UPS, FedEx, or USPS based on package size and destination.
Delivery Time: Estimated delivery within 2–6 business days (U.S. domestic orders).
Tracking: A tracking number will be provided once your order is dispatched.
Dexter 3,500 lb Trailer Axles Bearing Kit, #84 Spindles, Inner and ...
Product Overview:

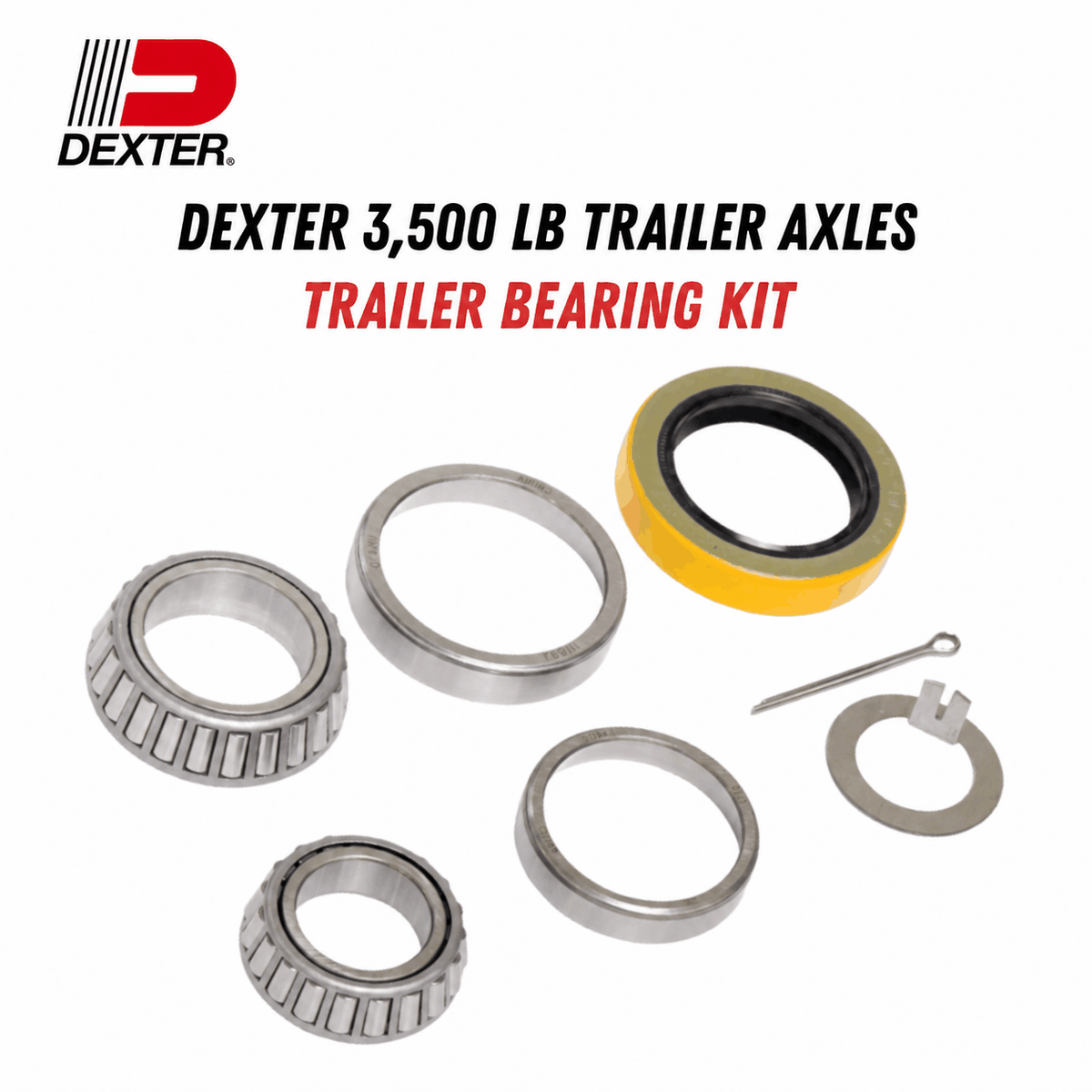

Service the wheel bearings on your 3,500 lb trailer axle with the Dexter K71-717-00 Bearing & Seal Kit. Designed for Dexter 3.5K axle applications using a #84 spindle, this kit includes the inner and outer bearings, matching bearing races, grease seal, tang washer, and cotter pin required to service one wheel hub.
The kit uses an L68149 inner bearing with L68111 inner race and an L44649 outer bearing with L44610 outer race. The included 010-019-00 grease seal has a nominal 1.72" inner diameter, providing the correct bearing and sealing combination for compatible Dexter 3.5K #84 spindle hub applications.
The kit also includes a 005-101-00 tang washer and 019-002-00 cotter pin. With both bearing cones, matching cups, grease seal, washer, and cotter pin packaged together, the K71-717-00 provides a convenient replacement solution for trailer wheel bearing service and maintenance.

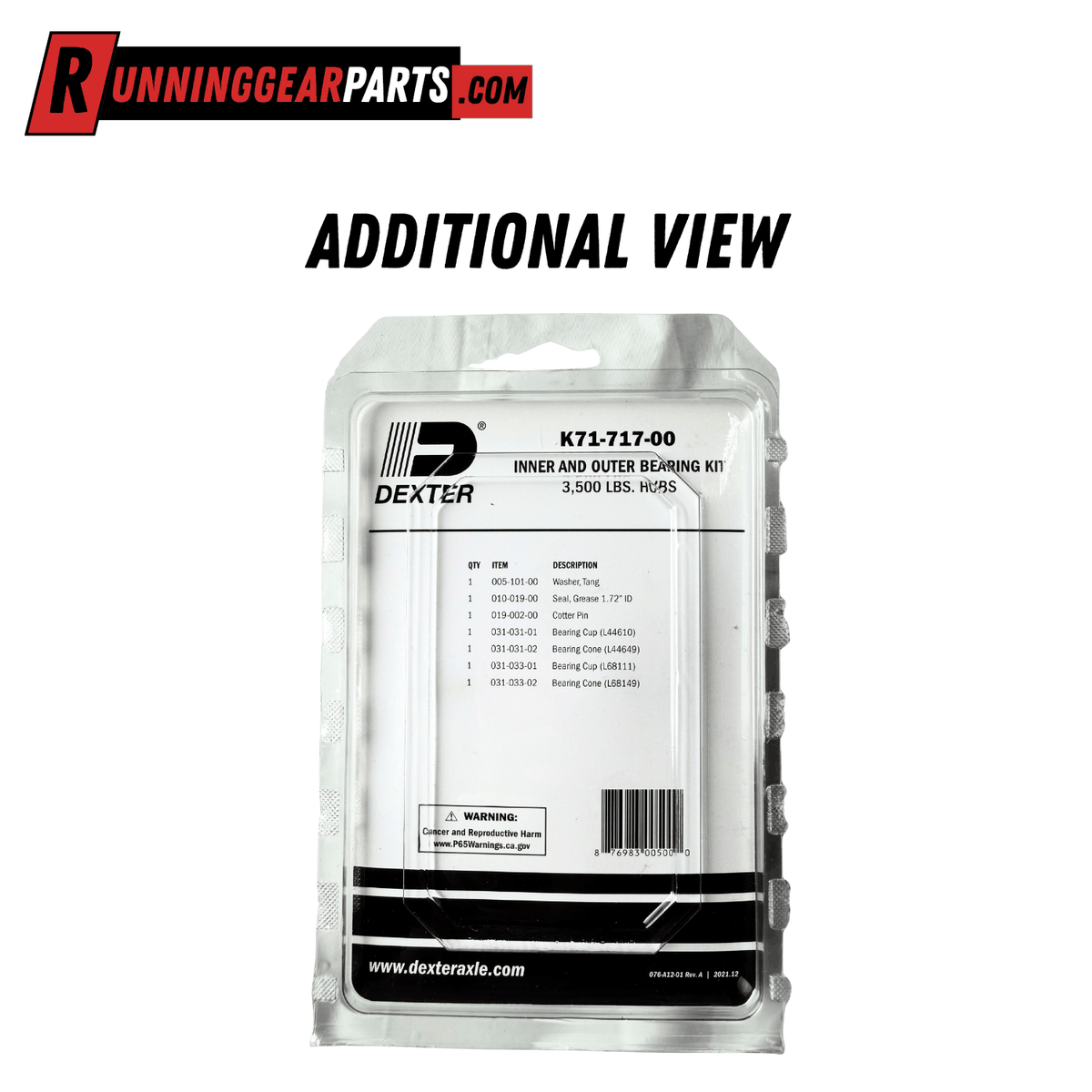

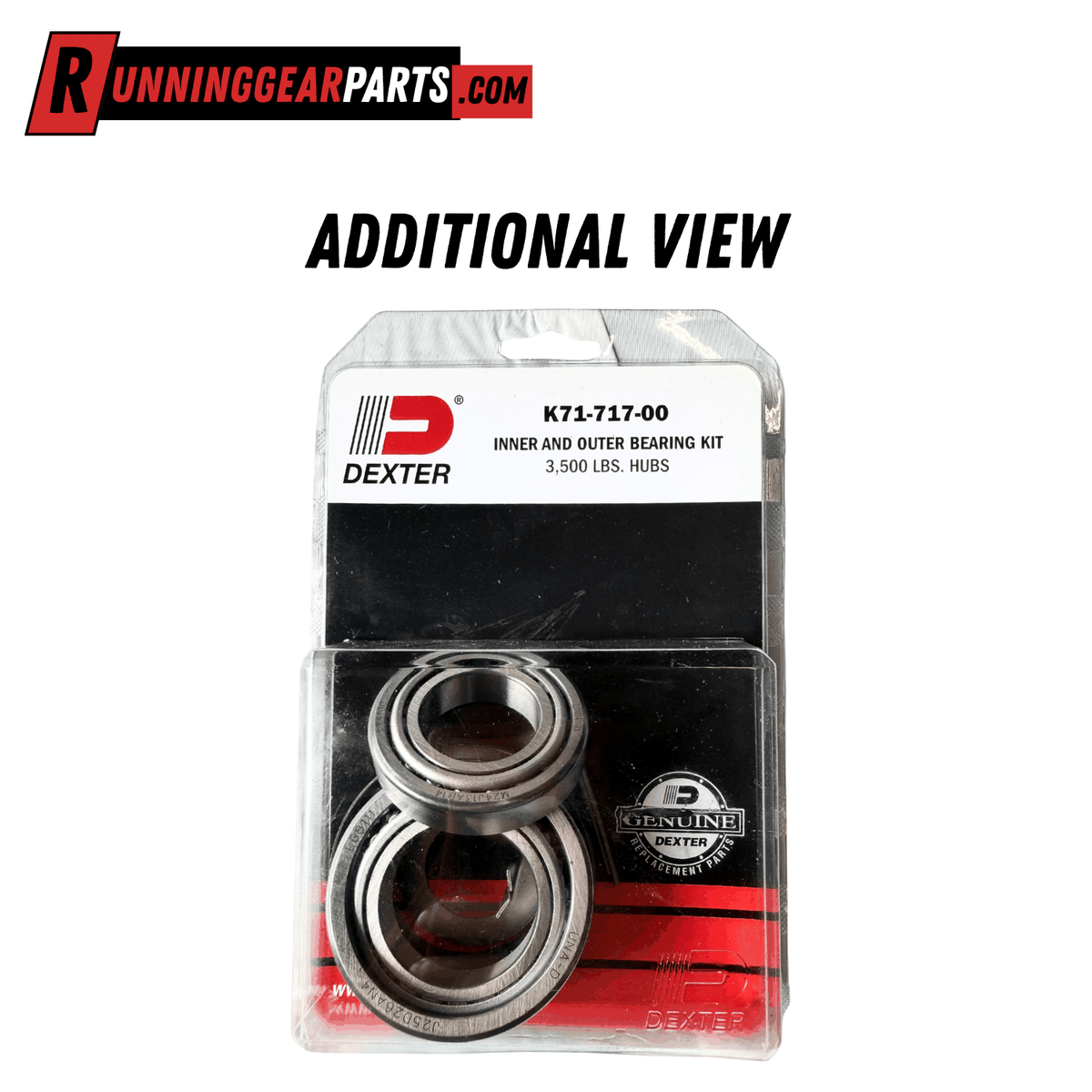

What's Include by Kit Option:
1 Kit:
1 x Washer, Tang (005-101-00)
1 x Seal, Grease 1.72" (010-019-00)
1 x Cotter Pin (019-002-00)
1 x Bearing Cup L44610 (031-031-01)
1 x Bearing Cone L44649 (031-031-02)
1 x Bearing Cup L68111 (031-033-01)
1 x Bearing Cone L68149 (031-033-02)
Specifications:
Brand: Dexter
Product type: Trailer Wheel Bearing & Seal Kit
MPN: K71-717-00
Axle compatibility: 3,500 lb trailer axles
Fits spindle: #84 spindle
Wheel coverage: Services 1 wheel
Inner bearing: L68149
Inner bearing part number: 031-033-02
Inner bearing inner diameter: 1.378"
Inner race: L68111
Inner race part number: 031-033-01
Outer bearing: L44649
Outer bearing part number: 031-031-02
Outer bearing inner diameter: 1.063"
Outer race: L44610
Outer race part number: 031-031-01
Grease seal part number: 010-019-00
Grease seal inner diameter: 1.72"
Grease seal type: Double lip
Tang washer part number: 005-101-00
Cotter pin part number: 019-002-00
