JAMMY Trailer Breakaway & 7-Way Wiring Kit, 12V 5Ah Battery, Sw...
Product Description
Refresh your trailer’s breakaway equipment and tow-vehicle connection with this bundle of Jammy components. Includes a battery-powered breakaway system and a 6′ 7-way RV cord prewired to a weatherproof junction box.
The top-load battery box provides convenient battery access, while the steel mounting plate and safety strap secure the assembly. The junction box provides a central connection point for the trailer’s existing wiring.
Specifications
Component brand: Jammy
Breakaway system: J-BBK
Battery voltage: 12V
Battery capacity: 5Ah
Battery box: Removable, top-load plastic box
Battery mounting: Black powder-coated mounting plate and safety strap
Bracket installation: Bolt-on or weld-on
Cord and junction box: J-5067-JB
Cord length: 6′
Plug: 7-way RV flat-blade trailer plug
Junction box: Weatherproof ABS with seven connection points
Cable conductors: Two 10 AWG, one 12 AWG, and four 14 AWG wires
Junction box mounting-hole spacing: 7.35″ center to center

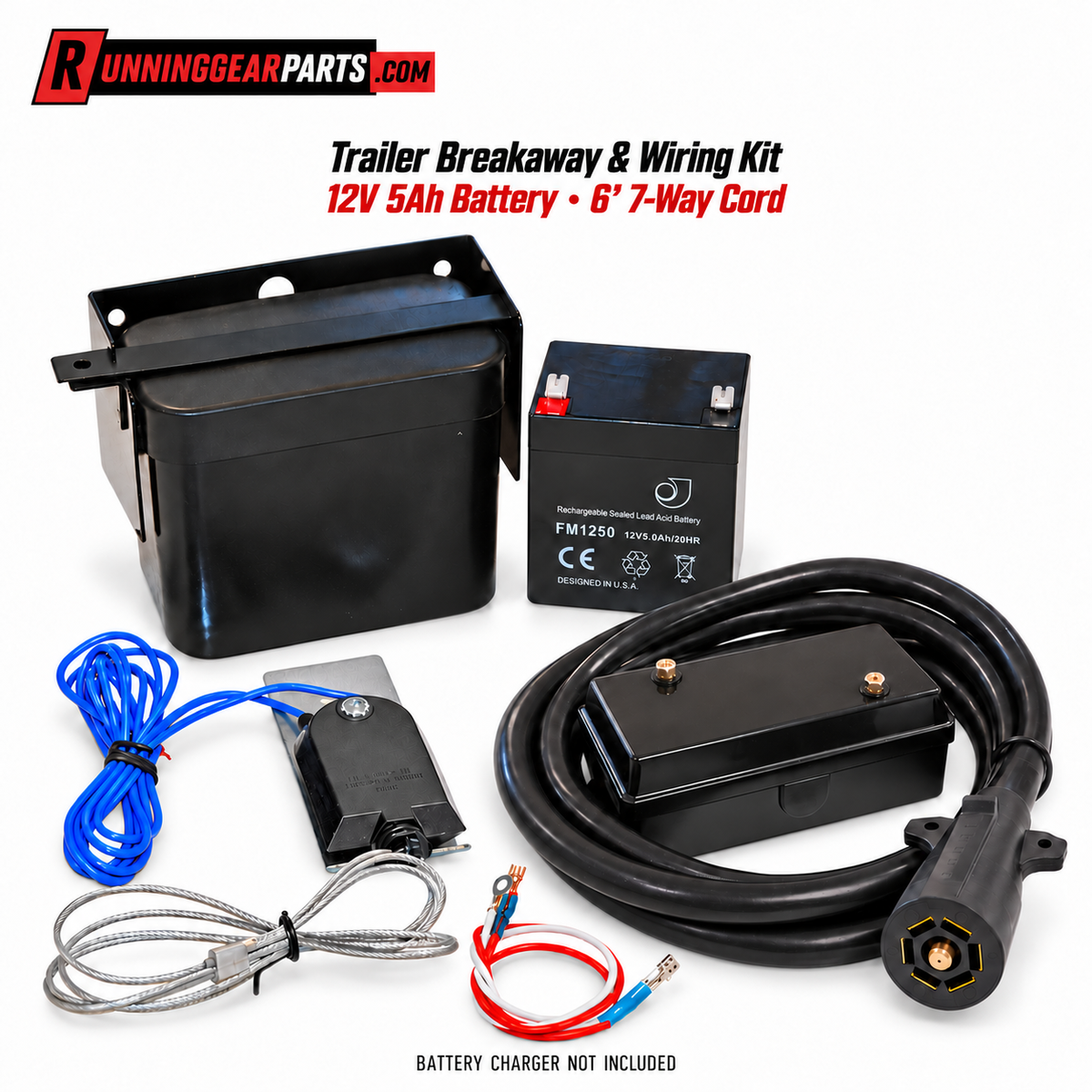

What‘s Included by Kit Option:
One-Trailer Bundle:
1 × 12V 5Ah breakaway battery
1 × Removable plastic battery box
1 × Black powder-coated mounting plate
1 × Battery-box safety strap
1 × Breakaway switch with pull cable
1 × Hot wire lead
1 × Ground wire lead
1 × 6′ cord with molded 7-way RV blade plug, prewired to the junction box
1 × Seven-pole ABS junction box
Additional junction-box cable clamps and open grommets supplied with J-5067-JB
Compatibility
For compatible trailers equipped with electric brakes and a 7-way RV blade connection. Confirm the breakaway system’s suitability for the installed brake system and available mounting space. Identify circuits by function and follow the supplied wiring instructions.
Not Included:
J-BCH battery charger
Trailer brake assemblies
Wiring runs from the junction box to the brakes and lights
Junction-box mounting fasteners
Additional installation connectors and hardware
