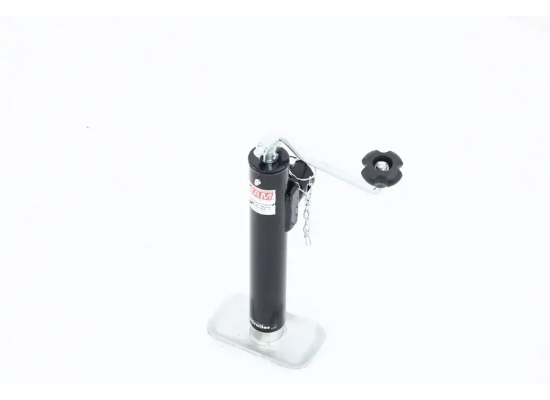

RAM 2,000 Lbs Lift, Round Weld-On Pipe Mount Swivel Trailer Jack with Footplate Topwind 10-3/4" Travel, 3,000 Lbs Support, TJP-2001-B
RAM 2,000 Lbs Lift, Round Weld-On Pipe Mount Swivel Trailer Jack with Footplate Topwind 10-3/4" Travel, 3,000 Lbs Support, TJP-2001-B is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
To ensure optimal performance and extend the service life of your new trailer components, please follow these care guidelines after purchase:
- Before installation, check all parts for shipping damage or missing components. Do not install damaged parts.
- Always use correct tools and torque settings. Improper installation can lead to premature wear or failure.
- For bearings, suspensions, and brake components, apply high-quality trailer grease before first use if not pre-greased.
- Some parts (like brake assemblies) require a short break-in period to achieve full performance. Follow manufacturer instructions for best results.
- Recheck fasteners, grease levels, and moving components after 100 miles of towing, then at regular intervals.
- After exposure to water, road salt, or mud, clean and dry parts thoroughly. Apply anti-rust treatment if needed.
- If storing unused parts, keep them in a dry, sealed container away from moisture and direct sunlight.
Delivery and Shipping
Delivery and Shipping
Handling Time: Orders ship out within 1 business day after payment is received.
Shipping Methods: We use trusted carriers like UPS, FedEx, or USPS based on package size and destination.
Delivery Time: Estimated delivery within 2–6 business days (U.S. domestic orders).
Tracking: A tracking number will be provided once your order is dispatched.
Product Overview
This manual swivel utility trailer jack provides reliable raising and lowering for agricultural, commercial, enclosed, and utility trailers. The tubular side-mount swivel design allows the jack to easily pivot up for travel and down for use, securely locked by a pull pin with a lanyard-connected clip. Featuring a topwind handle with a red claw grip for comfortable cranking and a built-in grease zerk for effortless maintenance, this jack is built with a durable black powder coat outer tube and a rust-resistant clear zinc inner tube and rectangular footplate to minimize soft ground sinking.
What's Included:
1 x Round Swivel Trailer Jack
1 x Welded-On Footplate
1 x Male Pipe Mount
1 x Pull Pin with Clip and Lanyard
Specifications:
Brand: RAM
Manufacture Part Number: TJP-2001-B
Lift Capacity: 2,000 lbs
Support Capacity: 3,000 lbs
Travel: 10-3/4"
Retracted Bracket Height: 11"
Extended Bracket Height: 21-3/4"
Outer Tube Diameter: 2-1/4"
Inner Tube Diameter: 2"
Footplate Dimensions: 7" long x 4" wide
Inner Pipe Mount Diameter: 2"
Outer Pipe Mount Diameter: 2-1/2"
Handle Radius: 7"
Handle Type: Top-wind
Mount Type: Weld-on pipe mount swivel
Finish: Black powder coat outer tube with clear zinc inner tube and footplate
