Pan American Lashing Ring 5/8" - Weld On, 48196P
Product Overview

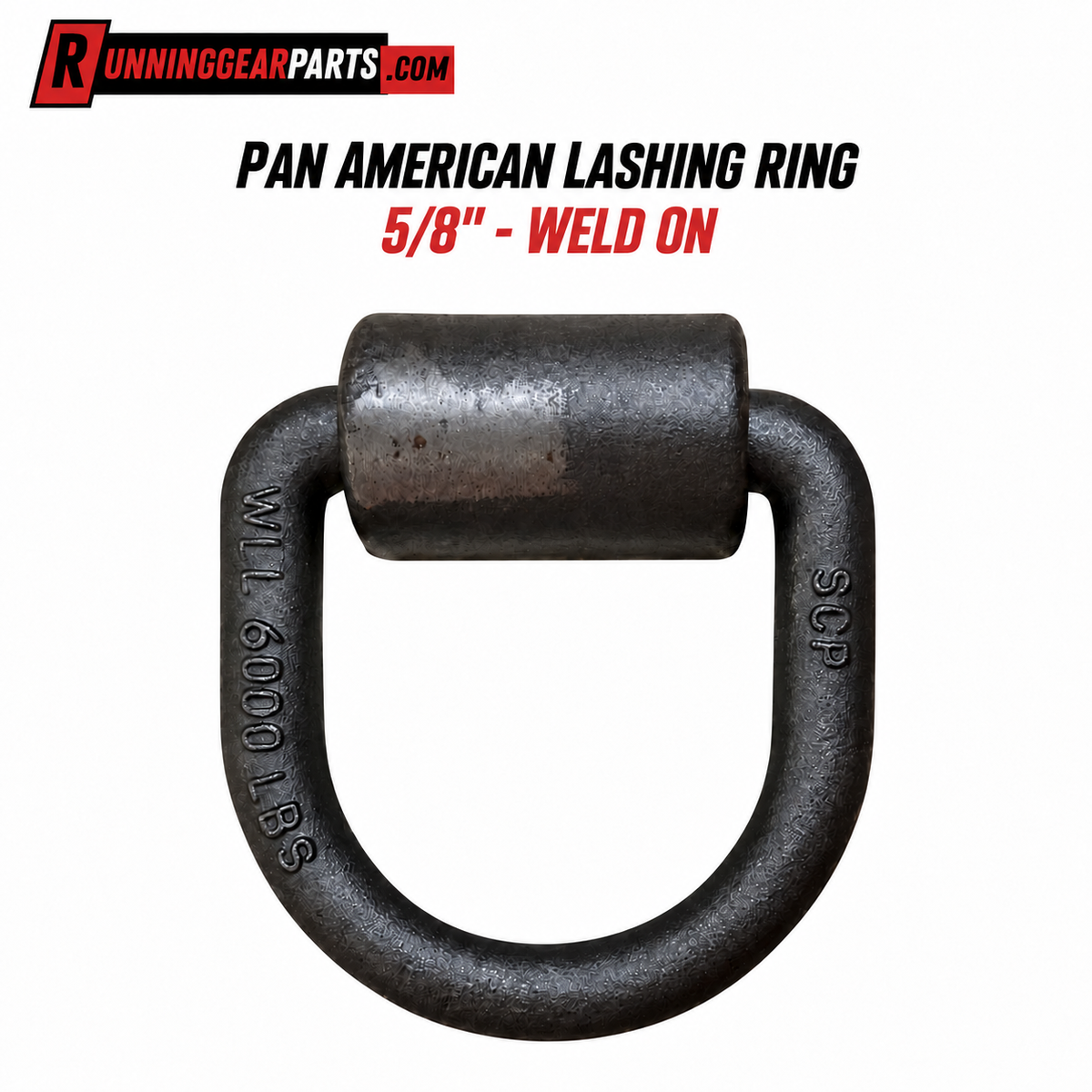

This heavy-duty 5/8" weld-on lashing ring provides a permanent and secure tie-down point for trailers, flatbeds, trucks, and other cargo-hauling applications. Constructed from forged steel, the D-ring is paired with a weldable mounting collar for direct attachment to compatible steel surfaces.
Rated at a 6,000 lbs working load limit (WLL), this tie-down anchor is designed for securing equipment, vehicles, and other heavy cargo during transport. The WLL marking is stamped directly into the ring for quick load-reference identification.
Key Features
6,000 lbs Working Load Limit: Rated for a maximum working load of 6,000 lbs for properly installed cargo securement applications.
5/8" Forged Steel D-Ring: Heavy-duty forged construction provides a strong anchor point for chains, straps, and compatible tie-down hardware.
Weld-On Installation: Includes a weldable steel mounting collar for permanent installation on trailers, flatbeds, trucks, and fabrication projects.
Stamped WLL Marking: Working load limit is marked directly on the ring for convenient reference during cargo securement.
What's Included:
1 x Forged D-Ring with Weld-On Mounting Collar
Specifications:
Brand: Pan American
Part Number: 48196P
Product Name: Lashing Ring 5/8" - Weld On
WLL: 6000 LBS
Marking: SCP
Ring Diameter: 5/8"
Overall Height: 4-3/4"
Overall Width: 4-1/4"
Inner Clearance Height: 3"
Inner Clearance Width: 3"
Side Bar Length: 4-1/4"
Collar Length: 2-9/16"
Collar Width: 1-5/8"
Collar Height: 1-1/4"
