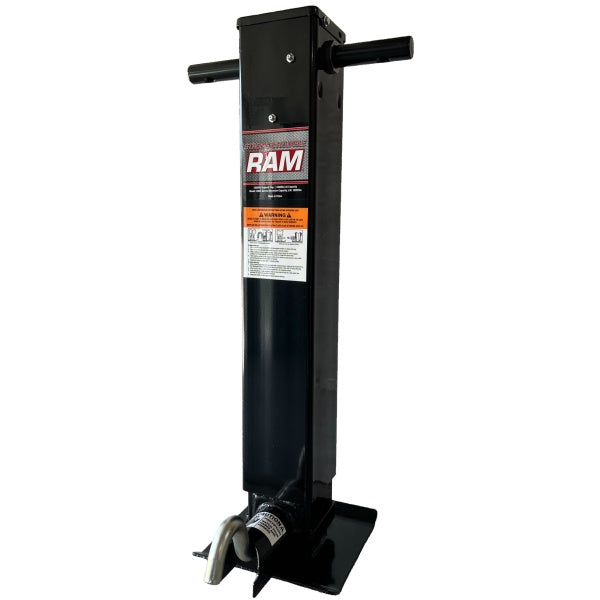

Ram 12,000 lbs Weld-On Drop Leg Jack, Sidewind, 12.5" Lift, 13.75" Travel, Front Pin Spring Return, includes Crank Handle | TJD12000SPF
Ram 12,000 lbs Weld-On Drop Leg Jack, Sidewind, 12.5" Lift, 13.75" Travel, Front Pin Spring Return, includes Crank Handle | TJD12000SPF is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
To ensure optimal performance and extend the service life of your new trailer components, please follow these care guidelines after purchase:
- Before installation, check all parts for shipping damage or missing components. Do not install damaged parts.
- Always use correct tools and torque settings. Improper installation can lead to premature wear or failure.
- For bearings, suspensions, and brake components, apply high-quality trailer grease before first use if not pre-greased.
- Some parts (like brake assemblies) require a short break-in period to achieve full performance. Follow manufacturer instructions for best results.
- Recheck fasteners, grease levels, and moving components after 100 miles of towing, then at regular intervals.
- After exposure to water, road salt, or mud, clean and dry parts thoroughly. Apply anti-rust treatment if needed.
- If storing unused parts, keep them in a dry, sealed container away from moisture and direct sunlight.
Delivery and Shipping
Delivery and Shipping
Handling Time: Orders ship out within 1 business day after payment is received.
Shipping Methods: We use trusted carriers like UPS, FedEx, or USPS based on package size and destination.
Delivery Time: Estimated delivery within 2–6 business days (U.S. domestic orders).
Tracking: A tracking number will be provided once your order is dispatched.
Ram 12,000 lbs Weld-On Drop Leg Jack, Sidewind, 12.5" Lift, 13...
Product Overview:
This heavy-duty RAM trailer jack is engineered for demanding lifting applications on agricultural, industrial, commercial, and utility trailers. It features a convenient front-facing pin release design for the drop leg and comes equipped with a heavy-duty, spring-loaded return foot for quick, effortless retraction when you are ready to hit the road.
For long-lasting durability and smooth operation, the jack includes an integrated grease zerk for hassle-free maintenance and utilizes premium brass bushings to reduce cranking wear over time. Both the inner and outer steel tubes are finished in a durable black primer, making this jack ready for immediate weld-on installation.
What's Included by Kit Option:
1 × Ram 12k Drop Leg Jack
1 × Sidewind Crank Handle
1 × Handle Clip
1 × Attached Sand Foot
Specifications:
Brand: RAM
MPN: TJD12000SPF
Jack Type: Dropleg Jacks
Jack Support (Static) Capacity: 12,000 lbs
Jack Lift Capacity: 10,000 lbs
Jack Travel (Lift): 12.5"
Drop Leg Travel: 13.75"
Retracted Height: 28.5"
Extended Height: 54"
Jack Pin Position: Front Pin
Jack Handle Type: Side Wind (Crank Handle Included)
Spring Return: Yes
Mounting Type: Weld-on
Material & Finish: Steel, Black primer painted outer tube and inner tube
Features: Pre-installed grease zerk for easy greasing, brass bushing to reduce wear
Weight: 59.8 lbs
Interchange & Compatibility
Compatible with alternate part numbers:
JP05-050
TJD-12000SP-F00
7950281
TJD-12000SP-F2
7950281-TT
TJD-12000SP-F2NL
TJD12000SPF-NL
TJD-12000SP-R2NH
