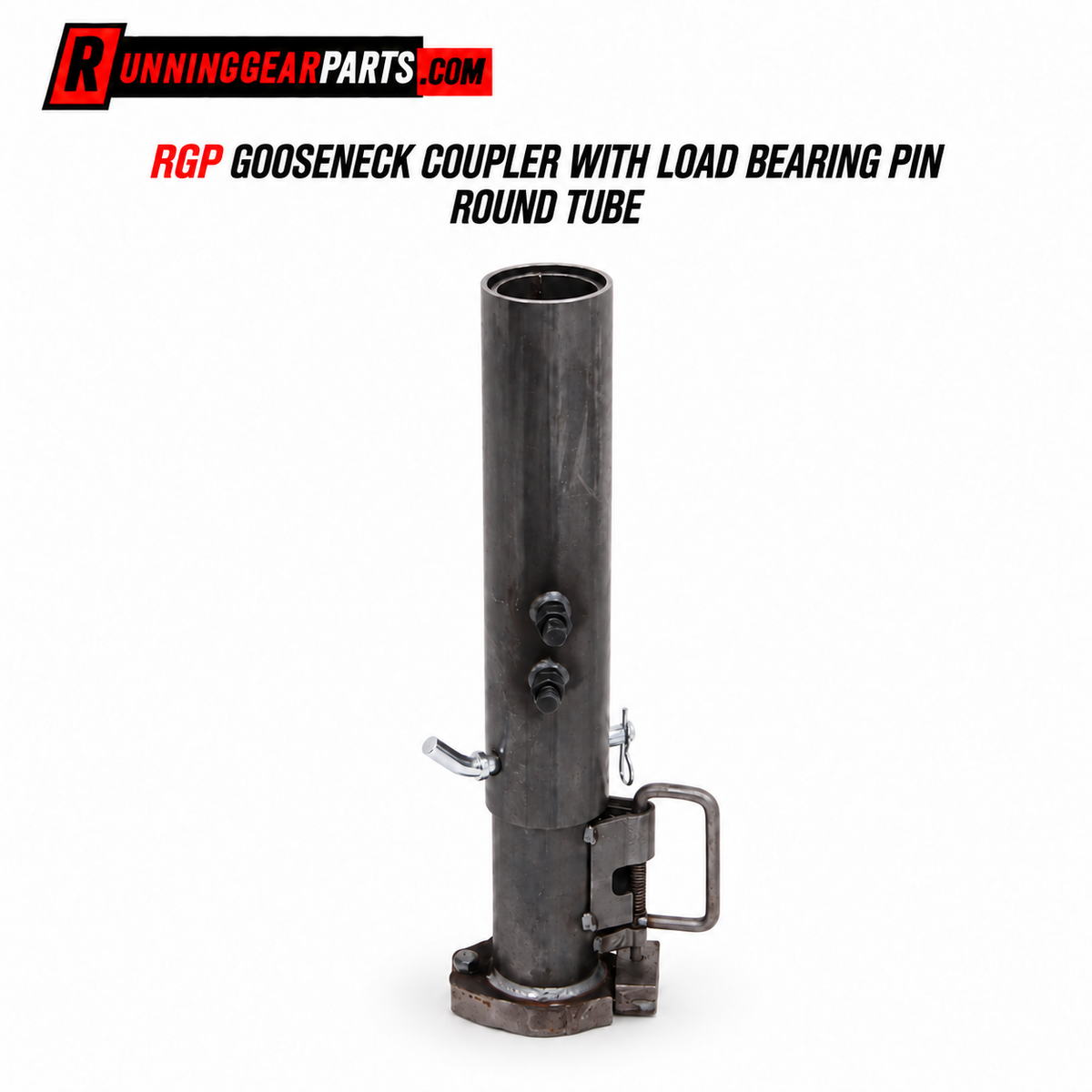

Ram Gooseneck Coupler with Load Bearing Pin - Round Tube, 2-5/16" Ball, 25,000 lbs GTW, GCPN-25008
Ram Gooseneck Coupler with Load Bearing Pin - Round Tube, 2-5/16" Ball, 25,000 lbs GTW, GCPN-25008 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
To ensure optimal performance and extend the service life of your new trailer components, please follow these care guidelines after purchase:
- Before installation, check all parts for shipping damage or missing components. Do not install damaged parts.
- Always use correct tools and torque settings. Improper installation can lead to premature wear or failure.
- For bearings, suspensions, and brake components, apply high-quality trailer grease before first use if not pre-greased.
- Some parts (like brake assemblies) require a short break-in period to achieve full performance. Follow manufacturer instructions for best results.
- Recheck fasteners, grease levels, and moving components after 100 miles of towing, then at regular intervals.
- After exposure to water, road salt, or mud, clean and dry parts thoroughly. Apply anti-rust treatment if needed.
- If storing unused parts, keep them in a dry, sealed container away from moisture and direct sunlight.
Delivery and Shipping
Delivery and Shipping
Handling Time: Orders ship out within 1 business day after payment is received.
Shipping Methods: We use trusted carriers like UPS, FedEx, or USPS based on package size and destination.
Delivery Time: Estimated delivery within 2–6 business days (U.S. domestic orders).
Tracking: A tracking number will be provided once your order is dispatched.
Ram Gooseneck Coupler with Load Bearing Pin - Round Tube, 2-5/16&qu...
Replacement & Compatibility:
Fitment: Designed for heavy-duty trailers utilizing a round gooseneck outer tube setup (such as flatbed goosenecks, livestock trailers, and commercial utility haulers).
Design Standards: Certified to meet SAE J2638 towing safety standards
Cross-Reference: Compares to Bulldog BD0289250300 and Redline SAC2516-I.
Specifications:
- Brand/MPN: Ram GCPN-25008
-
Weight Capacity: 25,000 lbs (M.G.T.W.)
-
Ball Pocket Size: 2-5/16"
-
Tube Shape: Round
-
Outer Tube Diameter: 4-1/2"
-
Inner Tube Diameter: 4"
-
Inner Tube Wall Thickness: 0.24"
-
Height Adjustment: 8" of vertical travel
-
Installed Height Range: 30" (Retracted) to 38" (Extended)
-
Hole Diameter: 7/8"
-
Hole Spacing: 2-11/16" (measured from center of hole to center of hole)
-
Finish: Raw steel (fully weld-ready for trailer frame installation)
What's Included:
-
1 x Outer Sleeve Tube (4-1/2" Round)
-
1 x Inner Adjustable Coupler Tube (4" Round) with Cast 2-5/16" Head
-
1 x Heavy-Duty Load-Bearing Pin (with Safety Clip)
-
2 x Hardened Set Screws
Features:
-
One-Piece Cast Head: Features a high-strength cast steel head with a curved internal ball clamp bar for a precise, tight fit that eliminates coupler rattle and wear.
-
Hidden Spring Latch: The positive latch mechanism is tucked inside the casting to protect the spring and moving parts from dirt, road grime, and impact damage.
-
Dual Securing System: Relies on a primary heavy-duty load-bearing pin for vertical adjustments, combined with dual integrated set screws to lock out inner tube play and vibration.
Product Overview:
Ensure a rock-solid link between your trailer and tow vehicle with this high-tensile Ram GCPN-25008 Round Gooseneck Coupler. Engineered to safely handle up to 25,000 lbs, this complete assembly features a premium one-piece cast head with an integrated curved internal ball clamp, providing a tighter grip on your standard 2-5/16" gooseneck ball. Designed with an adjustable 4" inner tube inside a heavy-walled 4-1/2" outer sleeve, it offers 8" of vertical adjustability secured by a load-bearing pin and dual set screws to perfectly level your towing rig. The raw steel finish arrives ready to weld directly onto your trailer's gooseneck frame structure.
