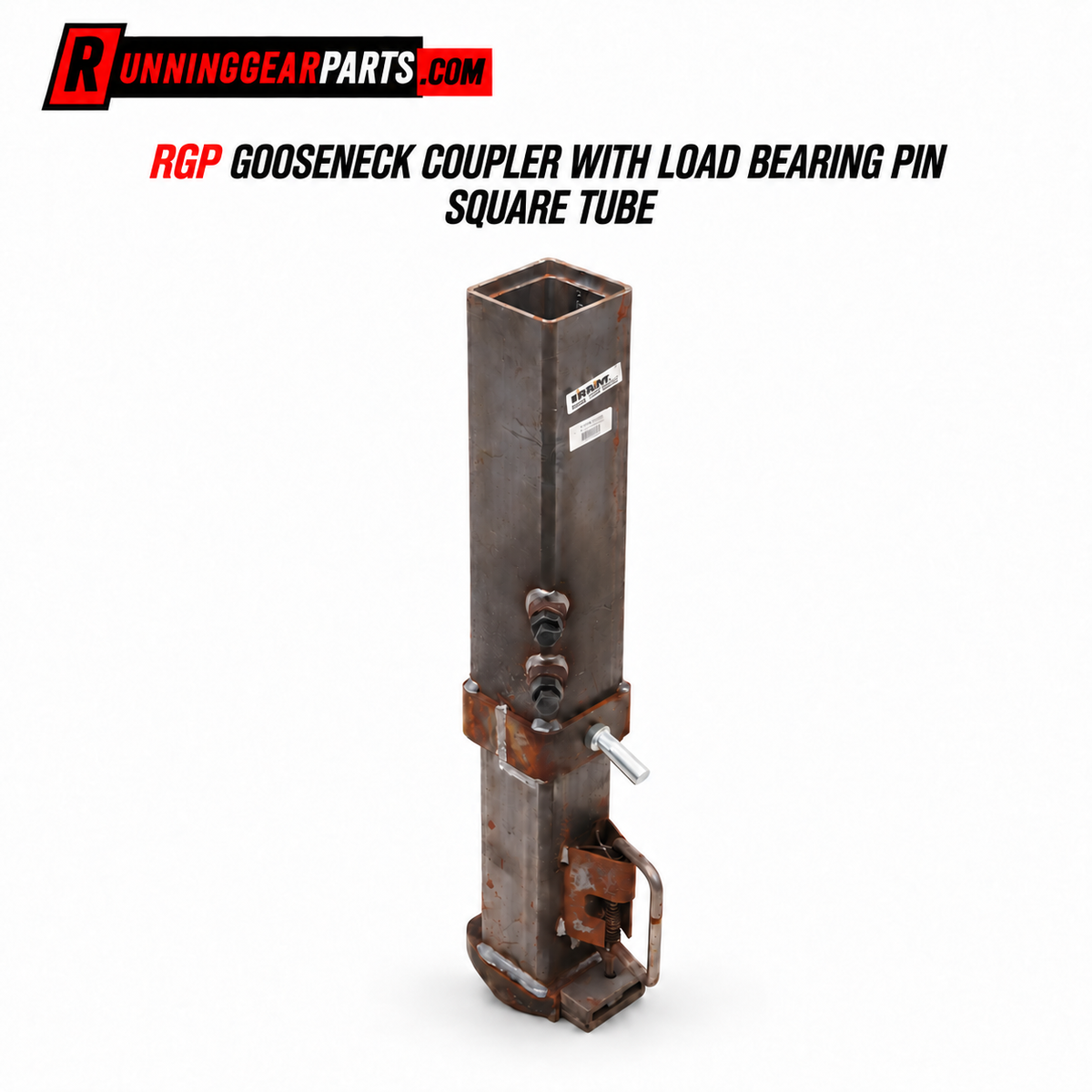

Ram Gooseneck Coupler with Load Bearing Pin - Square Tube, 2-5/16" Ball, 25,000 lbs GTW, GCSQ-25008
Ram Gooseneck Coupler with Load Bearing Pin - Square Tube, 2-5/16" Ball, 25,000 lbs GTW, GCSQ-25008 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
To ensure optimal performance and extend the service life of your new trailer components, please follow these care guidelines after purchase:
- Before installation, check all parts for shipping damage or missing components. Do not install damaged parts.
- Always use correct tools and torque settings. Improper installation can lead to premature wear or failure.
- For bearings, suspensions, and brake components, apply high-quality trailer grease before first use if not pre-greased.
- Some parts (like brake assemblies) require a short break-in period to achieve full performance. Follow manufacturer instructions for best results.
- Recheck fasteners, grease levels, and moving components after 100 miles of towing, then at regular intervals.
- After exposure to water, road salt, or mud, clean and dry parts thoroughly. Apply anti-rust treatment if needed.
- If storing unused parts, keep them in a dry, sealed container away from moisture and direct sunlight.
Delivery and Shipping
Delivery and Shipping
Handling Time: Orders ship out within 1 business day after payment is received.
Shipping Methods: We use trusted carriers like UPS, FedEx, or USPS based on package size and destination.
Delivery Time: Estimated delivery within 2–6 business days (U.S. domestic orders).
Tracking: A tracking number will be provided once your order is dispatched.
Ram Gooseneck Coupler with Load Bearing Pin - Square Tube, 2-5/16&q...
Replacement & Compatibility:
-
Fitment: Designed for heavy-duty trailers utilizing a square gooseneck outer tube setup (such as flatbed goosenecks, horse trailers, livestock haulers, and commercial utility trailers).
-
Cross-Reference: Compares to Bulldog BD0289600300.
Specifications:
- Brand/SKU: Ram GCSQ-25008
- Maximum Gross Trailer Weight (M.G.T.W.): 25,000 lbs
-
Ball Pocket Size: 2-5/16"
-
Tube Shape: Square
-
Outer Tube Width: 4-1/2"
-
Inner Tube Width: 4"
-
Inner Tube Wall Thickness: 0.24"
-
Height Adjustment: 8" of vertical travel
-
Installed Height Range: 32" (Retracted) to 40" (Extended)
-
Pin Hole Diameter: 7/8"
-
Pin Hole Spacing: 2-11/16" (measured from center of hole to center of hole)
-
Design Standards: Certified to meet SAE J2638 towing safety standards
-
Finish: Raw steel (fully weld-ready for trailer frame installation)
Features:
-
Belly Band Reinforcement: Features a heavy-duty steel belly band wrapped around the bottom of the outer tube, significantly increasing structural strength and durability at the highest-stress weld point.
-
One-Piece Cast Head: Equipped with a high-strength cast steel head featuring a curved internal ball clamp bar, ensuring a snug, slip-free fit on the hitch ball to eliminate rattle and wear.
-
Protected Hidden Latch: The spring-loaded manual latch mechanism is neatly tucked inside the casting, shielding the internal spring and moving parts from dirt, road debris, and physical impacts.
-
Dual-Lock Securing System: Relies on a robust 7/8" load-bearing pin for vertical adjustments, paired with dual integrated set screws to securely lock the inner tube in place and eliminate rattling.
What's Included:
-
1 x Outer Sleeve Tube (4-1/2" Square) with Integrated Bottom Belly Band
-
1 x Inner Adjustable Coupler Tube (4" Square) with Cast 2-5/16" Head
-
1 x Heavy-Duty Load-Bearing Pin (with Safety Clip)
-
2 x Hardened Set Screws
Product Overview:
Upgrade or replace your heavy-duty gooseneck trailer coupler with the RAM GCSQ-25008 Square Gooseneck Coupler Assembly. Designed for commercial trailers, flatbed goosenecks, horse trailers, livestock haulers, and utility trailers, this coupler provides a secure connection point with a 25,000 lb maximum gross trailer weight rating.
The adjustable square tube design allows vertical height adjustment to match different trailer setups, while the reinforced outer sleeve, cast steel coupler head, and dual locking system provide reliable performance for demanding towing applications.
Built from raw weld-ready steel, the GCSQ-25008 is ideal for trailer builders, repair shops, and owners replacing worn or damaged gooseneck coupler assemblies.
