RGP LED Trailer Lighting Kit — 6″ Oval Stop/Turn/Tail/Reverse Lights & 6′ 7-Way Cord with Junction Box
RGP LED Trailer Lighting Kit — 6″ Oval Stop/Turn/Tail/Reverse Lights & 6′ 7-Way Cord with Junction Box is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
To ensure optimal performance and extend the service life of your new trailer components, please follow these care guidelines after purchase:
- Before installation, check all parts for shipping damage or missing components. Do not install damaged parts.
- Always use correct tools and torque settings. Improper installation can lead to premature wear or failure.
- For bearings, suspensions, and brake components, apply high-quality trailer grease before first use if not pre-greased.
- Some parts (like brake assemblies) require a short break-in period to achieve full performance. Follow manufacturer instructions for best results.
- Recheck fasteners, grease levels, and moving components after 100 miles of towing, then at regular intervals.
- After exposure to water, road salt, or mud, clean and dry parts thoroughly. Apply anti-rust treatment if needed.
- If storing unused parts, keep them in a dry, sealed container away from moisture and direct sunlight.
Delivery and Shipping
Delivery and Shipping
Handling Time: Orders ship out within 1 business day after payment is received.
Shipping Methods: We use trusted carriers like UPS, FedEx, or USPS based on package size and destination.
Delivery Time: Estimated delivery within 2–6 business days (U.S. domestic orders).
Tracking: A tracking number will be provided once your order is dispatched.
RGP LED Trailer Lighting Kit — 6″ Oval Stop/Turn/Tail/Reverse Light...
Product Description:
Upgrade your trailer lighting with this RGP-assembled kit featuring TecNiq combination tail lights, Jammy marker lights, a chrome license plate lamp, adhesive reflectors and a prewired 7-way cord with junction box.
The two TecNiq T70 oval lamps combine red stop, turn and tail lighting with integrated white reverse lights. Matching rubber grommets are included for installation in compatible 6" oval mounting.
Two amber and two red LED marker lights provide additional visibility around the trailer. A separate TecNiq license plate light illuminates the plate, while six adhesive reflectors provide passive visibility without electrical connections.
The Jammy junction box comes prewired to a 6-foot cable with a molded 7-way RV blade plug, providing an organized connection point for the trailer's electrical circuits.
This kit groups the lighting components and tongue connection into one convenient package. Wiring from the junction box to the lamps is sold separately.
Specifications:
Kit assembled by: RGP
Component brands:TecNiq and Jammy
Electrical system: 12V DC
Powered lamps included: 7
Tail light model: TecNiq T70-RW0P-1
Tail light size/style: 6″ oval LED combination lamp
Tail light functions: Stop, turn, tail and reverse
Light output colors: Red for stop/turn/tail; white for reverse
Tail light mounting: Grommet mount
Oval grommet model:TecNiq T60-0G00-1
Marker lights: Two amber and two red, 3/4″ LED
Marker mounting: Rubber grommets included
License plate light: TecNiq L11-WC00-1, chrome housing
Junction box/cord model: Jammy J-5067-JB
Tow-vehicle connection: 7-way RV blade-style plug
Cord length: 6 feet
Junction box material: Weatherproof ABS plastic
Junction box mounting centers: 7.35″
Reflectors: Two amber and four red
Reflector size: 3-1/4″ × 1-3/16″
Reflector mounting: Self-adhesive
Installation: Requires wiring, grounding and suitable mounting locations

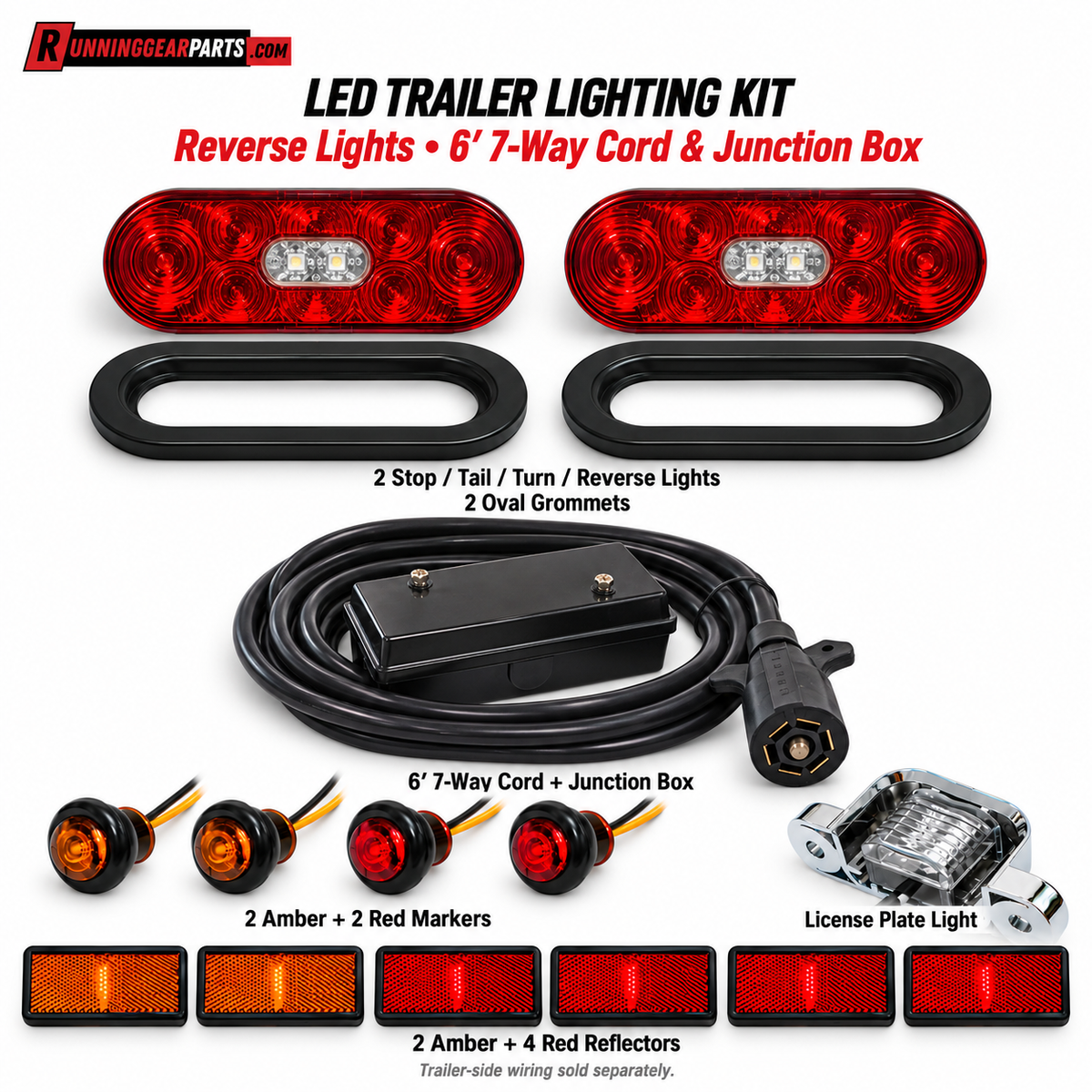

What's Included by Kit Option:
1 Kit:
2 × TecNiq T70-RW0P-1 6″ oval LED stop/turn/tail/reverse lamps with factory lead wires
2 × TecNiq T60-0G00-1 black oval mounting grommets
1 × Jammy J-5067-JB junction box prewired to a 6′ cord with 7-way RV blade plug
2 × Jammy J-51-A amber 3/4″ LED marker lights
2 × Jammy J-51-R red 3/4″ LED marker lights
4 × Jammy J-54-GM marker light mounting grommets
1 × TecNiq L11-WC00-1 chrome LED license plate light with attached lead
2 × Jammy J-002-A adhesive amber reflectors
4 × Jammy J-002-R adhesive red reflectors
Installation & Compatibility
For compatible 12V trailer lighting applications. Verify mounting openings, trailer dimensions and lighting placement before installation. Additional lamps or reflectors may be required for the trailer’s configuration.
The 6′ cord connects the trailer junction box to the tow vehicle. It is not a full-length trailer wiring harness. Wiring from the junction box to the lamps—including reverse and ground circuits—is not included.
Reverse lights require a functioning reverse-light feed from the tow vehicle’s connector. Follow the component wiring diagrams and verify circuit functions before making connections.
Mounting screws, lamp brackets, license plate bracket, splice connectors, additional wiring, wire loom and cable ties are not included. Electric brakes, a breakaway system and a brake controller are not included.
