RGP LED Trailer Lighting & Wiring Kit — 4″ Round Tail Lights, S...
Product Description:
Refresh your trailer lighting with this RGP-assembled kit featuring TecNiq 4″ round LED tail lights, Jammy amber and red marker lights, a chrome license plate lamp, adhesive reflectors and a 25-foot 4-way flat wiring harness.
The two TecNiq T40 lamps provide stop, turn and tail functions through red LED lenses. Each lamp includes attached wiring leads, and two matching rubber grommets are supplied for installation in compatible round mounting openings.
Four compact marker lights provide amber and red side lighting. A separate TecNiq license plate lamp illuminates the plate, while two amber and four red adhesive reflectors provide passive visibility without electrical connections.
This bundle brings the main lighting components together for trailer repair, replacement or rewiring projects. Installation requires suitable mounting locations, wiring connections and proper grounding.
Specifications:
Kit assembled by: RGP
Component brands: TecNiq and Jammy
Electrical system: 12V DC
Powered lamps included: 7
Tail light model: TecNiq T40-RR0P-1
Tail light style: 4″ round LED, red lens
Tail light functions: Stop, turn and tail
Tail light operating voltage: 9–14V DC
Tail light connection: Attached 9″ pigtail leads
Tail light mounting: Grommet mount
Round grommet model: TecNiq T40-0G00-1
Marker lights: Two amber and two red, 3/4″ LED
Marker mounting: Rubber grommets included
License plate light: TecNiq L11-WC00-1, chrome housing
Harness model: Jammy J-5024-WH
Harness connector: 4-way flat
Lighting-wire length: 25 feet
Harness ground-wire length: 30 inches
Reflectors: Two amber and four red
Reflector dimensions: 3-1/4″ × 1-3/16″
Reflector mounting: Self-adhesive
Installation type: Splice-in wiring

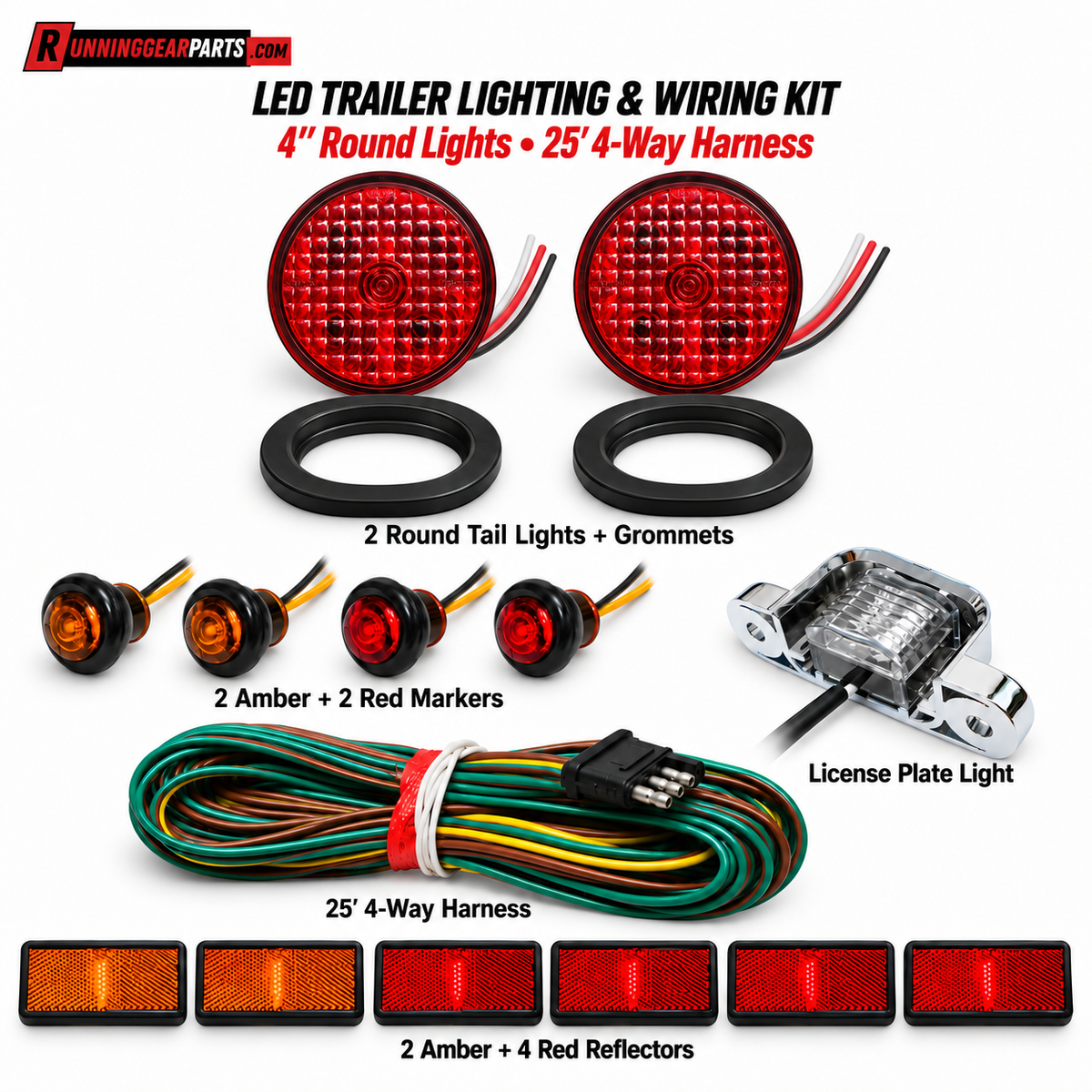

What’s Included by Kit Option:
1 Kit:
2 × TecNiq T40-RR0P-1 red 4″ round LED stop/turn/tail lamps with attached pigtail leads
2 × TecNiq T40-0G00-1 black round mounting grommets
2 × Jammy J-51-A amber 3/4″ LED marker lights
2 × Jammy J-51-R red 3/4″ LED marker lights
4 × Jammy J-54-GM marker light mounting grommets
1 × TecNiq L11-WC00-1 chrome LED license plate light with attached lead
1 × Jammy J-5024-WH 25′ 4-way flat wiring harness
2 × Jammy J-002-A adhesive amber reflectors
4 × Jammy J-002-R adhesive red reflectors
Installation & Fitment
Verify mounting openings, trailer dimensions and wire routing before ordering. Harness length does not directly equal the maximum trailer length.
Splice connectors, additional ground wire, mounting screws, lamp brackets, license plate bracket, wire loom and cable ties are not included.
The 4-way harness supports lighting circuits only; reverse lights, electric brake wiring and auxiliary power circuits are not included. Additional lighting or reflectors may be required for the trailer’s dimensions and configuration.
