RGP Tandem Axle Suspension Hardware Kit — 2-5/8″ Shackle Straps, 9/16″ × 3-1/2″ Bolts & Locknuts, 36 Pieces
RGP Tandem Axle Suspension Hardware Kit — 2-5/8″ Shackle Straps, 9/16″ × 3-1/2″ Bolts & Locknuts, 36 Pieces is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
To ensure optimal performance and extend the service life of your new trailer components, please follow these care guidelines after purchase:
- Before installation, check all parts for shipping damage or missing components. Do not install damaged parts.
- Always use correct tools and torque settings. Improper installation can lead to premature wear or failure.
- For bearings, suspensions, and brake components, apply high-quality trailer grease before first use if not pre-greased.
- Some parts (like brake assemblies) require a short break-in period to achieve full performance. Follow manufacturer instructions for best results.
- Recheck fasteners, grease levels, and moving components after 100 miles of towing, then at regular intervals.
- After exposure to water, road salt, or mud, clean and dry parts thoroughly. Apply anti-rust treatment if needed.
- If storing unused parts, keep them in a dry, sealed container away from moisture and direct sunlight.
Delivery and Shipping
Delivery and Shipping
Handling Time: Orders ship out within 1 business day after payment is received.
Shipping Methods: We use trusted carriers like UPS, FedEx, or USPS based on package size and destination.
Delivery Time: Estimated delivery within 2–6 business days (U.S. domestic orders).
Tracking: A tracking number will be provided once your order is dispatched.
RGP Tandem Axle Suspension Hardware Kit — 2-5/8″ Shackle Straps, 9/...
Product Description:
Replace worn suspension attaching hardware with this RGP 36-pieces kit featuring 8 shackle straps, 14 non-greaseable suspension bolts and 14 matching locknuts.
The shackle straps feature 2-5/8" center-to-center hole spacing and 1/4" steel thickness. Each bolt measures 9/16" in diameter by 3-1/2" long and uses a matching 9/16"-18 locknut.
The package provides the hardware quantities used at the shackle connections, outer spring-eye mounts and equalizer center pivots of a conventional tandem double-eye suspension. All supplied dimensions must match the existing suspension before installation.
Specifications
Brand: RGP
Product type: Tandem axle suspension hardware kit
Suspension application: Compatible double-eye leaf-spring layouts
Total pieces: 36
Shackle strap quantity: 8
Strap hole spacing: 2-5/8″ center-to-center
Strap overall length: 3-3/4″
Strap width: 1-1/4″
Strap thickness: 1/4″
Strap hole diameter: 9/16″
Strap material: Steel
Strap cross-reference: 4101-2A
Suspension bolt quantity: 14
Bolt diameter: 9/16″
Bolt length: 3-1/2″
Bolt thread: 9/16″-18
Bolt style: Non-greaseable
Locknut quantity: 14
Locknut thread: 9/16″-18
Locknut style: Reversible hex locknut

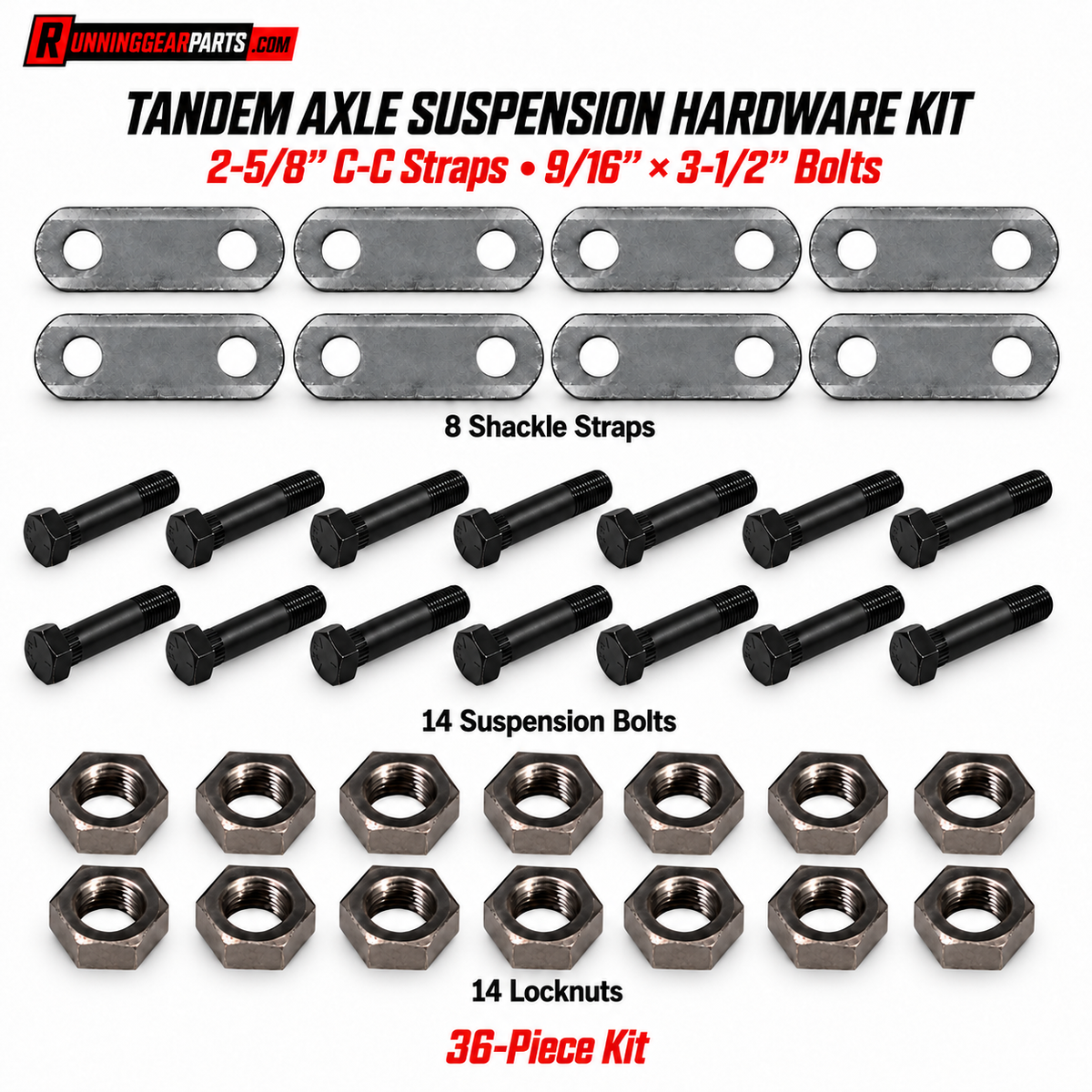

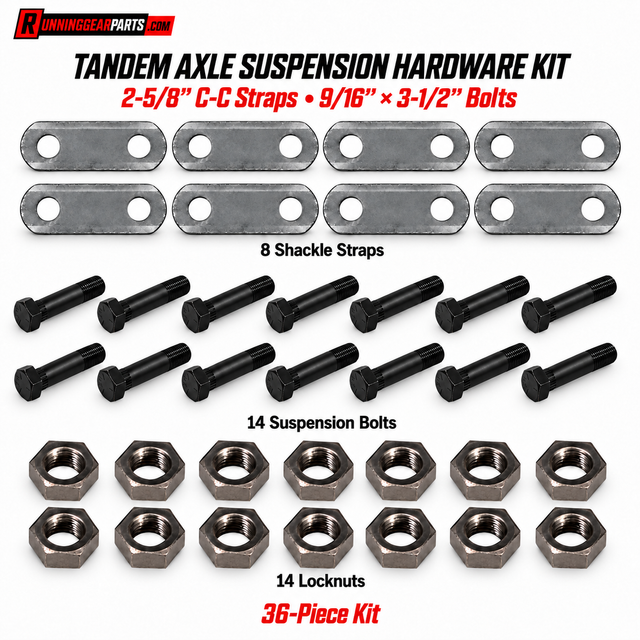

What’s Included by Kit Option
1 Kit — 36 Pieces:
8 × Steel shackle straps, 2-5/8″ center-to-center
14 × Non-greaseable suspension bolts, 9/16″ diameter × 3-1/2″ long
14 × Matching 9/16″-18 locknuts
