RGP Trailer Electrical Replacement Kit, 6' 7-Way Cord, Junction Box & Breakaway Switch
RGP Trailer Electrical Replacement Kit, 6' 7-Way Cord, Junction Box & Breakaway Switch is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
To ensure optimal performance and extend the service life of your new trailer components, please follow these care guidelines after purchase:
- Before installation, check all parts for shipping damage or missing components. Do not install damaged parts.
- Always use correct tools and torque settings. Improper installation can lead to premature wear or failure.
- For bearings, suspensions, and brake components, apply high-quality trailer grease before first use if not pre-greased.
- Some parts (like brake assemblies) require a short break-in period to achieve full performance. Follow manufacturer instructions for best results.
- Recheck fasteners, grease levels, and moving components after 100 miles of towing, then at regular intervals.
- After exposure to water, road salt, or mud, clean and dry parts thoroughly. Apply anti-rust treatment if needed.
- If storing unused parts, keep them in a dry, sealed container away from moisture and direct sunlight.
Delivery and Shipping
Delivery and Shipping
Handling Time: Orders ship out within 1 business day after payment is received.
Shipping Methods: We use trusted carriers like UPS, FedEx, or USPS based on package size and destination.
Delivery Time: Estimated delivery within 2–6 business days (U.S. domestic orders).
Tracking: A tracking number will be provided once your order is dispatched.
RGP Trailer Electrical Replacement Kit, 6' 7-Way Cord, Junction...
Product Description:

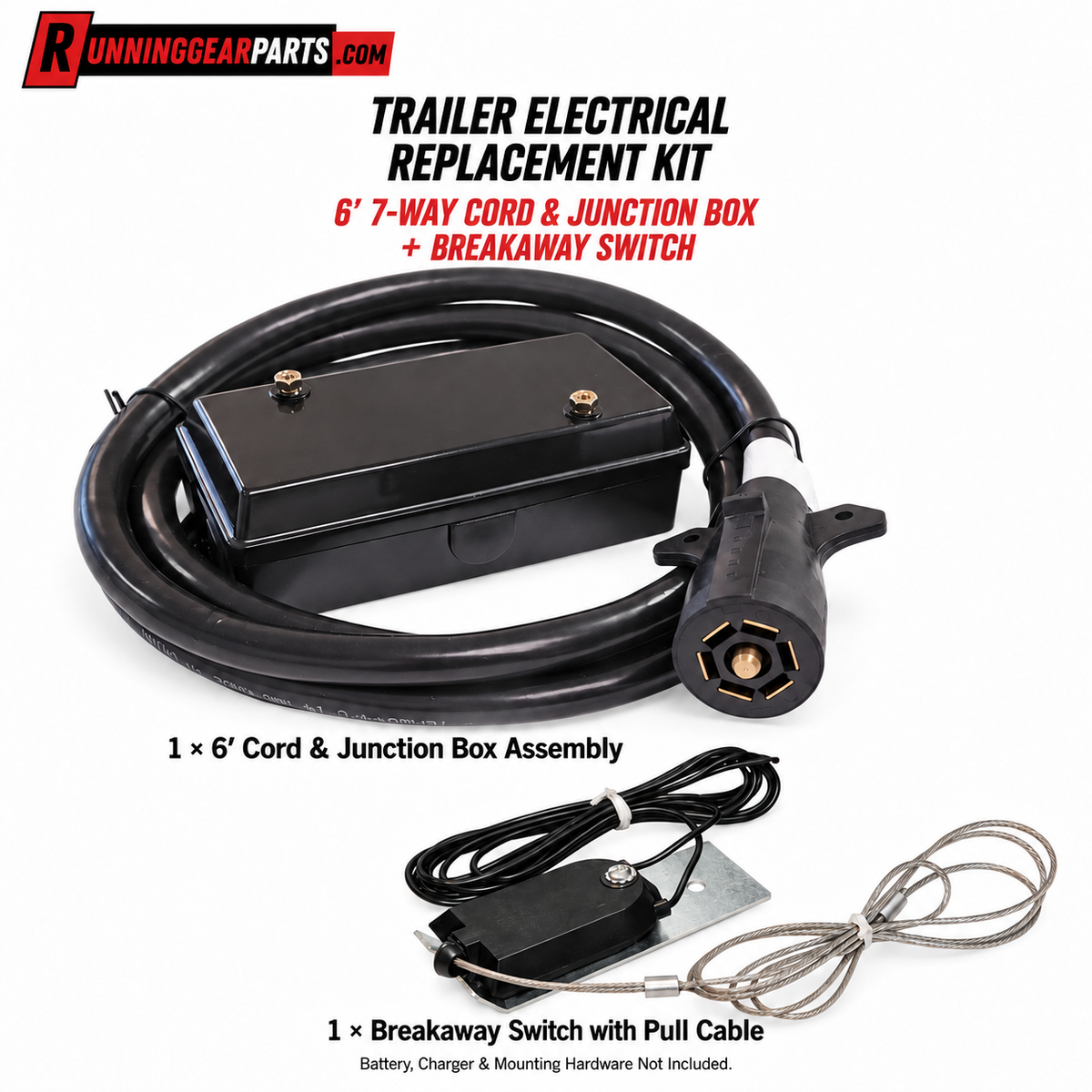

Replace worn or damaged electrical components at the front of your trailer with this RGP bundle featuring JAMMY components. The kit combines a 6' molded 7-way RV blade plug and cord, a prewired weatherproof junction box, and a replacement breakaway switch with pull cable.
The junction box provides a protected connection point for your trailer wiring. The separate breakaway switch replaces the activation switch in a compatible electric-brake breakaway system.
Designed for trailer electric repairs, this bundle retains your existing compatible battery, charger, and wiring runs.
Specifications:
Component manufacturer: JAMMY Incorporated
Application: Trailer electrical component replacement
Cord and junction box part number: J-5067-JB
Cord length: 6′
Plug type: 7-way RV blade-style trailer plug
Junction box material: Weatherproof ABS plastic
Junction box configuration: Prewired to the included cord
Internal connections: Crimped and soldered insulated ring terminals
Wire sizes: Two 10 AWG, one 12 AWG, and four 14 AWG conductors
Cord temperature rating: −10°C to 105°C
Junction box mounting centers: 7.35″
Maximum junction box mounting fastener diameter: 5/16″
Breakaway switch part number: J-ELEC
Breakaway pull cable length: 48″
Breakaway switch lead length: 45″
Switch mounting plate: Zinc steel
Switch mounting style: Single screw
Switch activation: Plunger removal
What's Included by Kit Option:
1 Kit:
1 × Jammy weatherproof 7-pole junction box prewired to a 6′ cord with molded 7-way RV blade plug
1 × Jammy breakaway switch with mounting plate and 45″ wiring leads
1 × 48″ coated steel pull cable with plunger, supplied with the breakaway switch
Compatibility & Installation
For trailers using a matching 7-way RV blade connection. The breakaway switch requires a compatible electric-brake breakaway system with a functioning power source.
Verify circuit functions and terminal assignments during installation; do not rely on wire color alone. The breakaway switch is supplied separately and must be wired into the trailer’s breakaway circuit.
Battery, battery box, charger, full trailer wiring runs, additional wiring connectors, and mounting fasteners are not included. This is a replacement-component bundle, not a complete trailer rewiring or breakaway system.
